| Image Sensor Type | CMOS |
|---|---|
| Night Vision Distance | 65.62 ft |
| Ingress Protection Rating | IP67 |
|---|
| Maximum Video Resolution | 2592 x 1944 |
|---|
| Maximum Operating Temperature | 131°F |
|---|---|
| Minimum Operating Temperature | -22°F |
| Operating Humidity | 0-90% RH |
| Longest Shutter Speed | 1/30 Second |
|---|---|
| Shortest Shutter Speed | 1/50,000 Second |
| ADI Part Number | SQ-ACE8020R |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Manufacturer Part Number | ACE-8020R |
| Product Model | ACE-8020R |

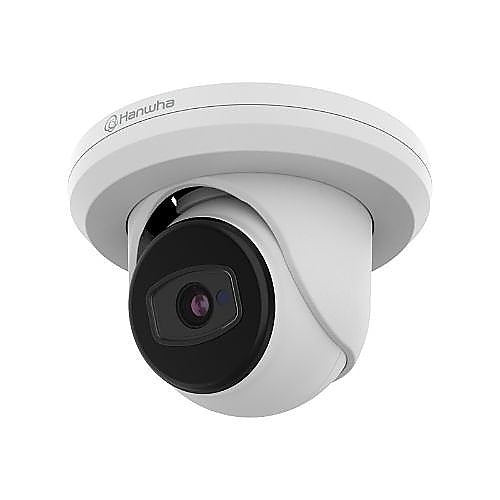

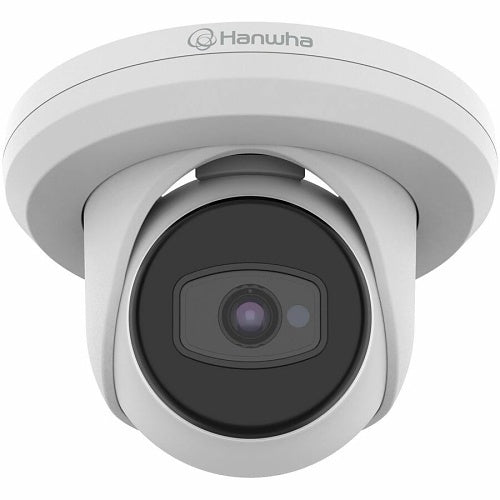

| Product Name | 5MP Analog HD Flateye Camera |
| Product Series | A |
| Product Type | Flateye Camera |
| Focal Length | 3.6mm |
|---|---|
| Maximum Focal Length | 3.6mm |
| Country of Origin | KR |
|---|---|
| Features | ,, 0.08Lux at F1.6(Color), 0Lux(B/W - IR LED on), 12v DC power, 3.6mm fixed focal lens FoV H - 94°/V - 54°, 5MP resolution at 30FPS, 4MP at CVI, Day and Night (ICR), DWDR, Easy installation (Plug and play), Coaxial control, IR distance 20m(65.6 ft), Multi-protocol compatible with AHD, TVI, CVI, CVBS, Transmission distance max.500m |
| Impact Protection Rating | IK10 |
| Color | White |
|---|---|
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Flateye |
| Weight | 0.90lb |
| Input Voltage | 12V DC |
|---|
| Diameter | 4.72" |
|---|---|
| Mount Type | Backbox Mount |
| Connectivity Technology | Wired |
|---|---|
| Effective Camera Resolution | 5MP |
| Field of View | Diagonal, Horizontal, Vertical |
| Field of View (Horizontal) | 83.9° |
| Field of View (Vertical) | 63.4° |
| Lens Type | Fixed Focus |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.6mm |
| Night Vision | Yes |
| Analog Video Signal Format | AHD, CVBS, CVI, TVI |
|---|---|
| Maximum Resolution | 1280 x 720 |
| Limited Warranty | 5-Year |
|---|
