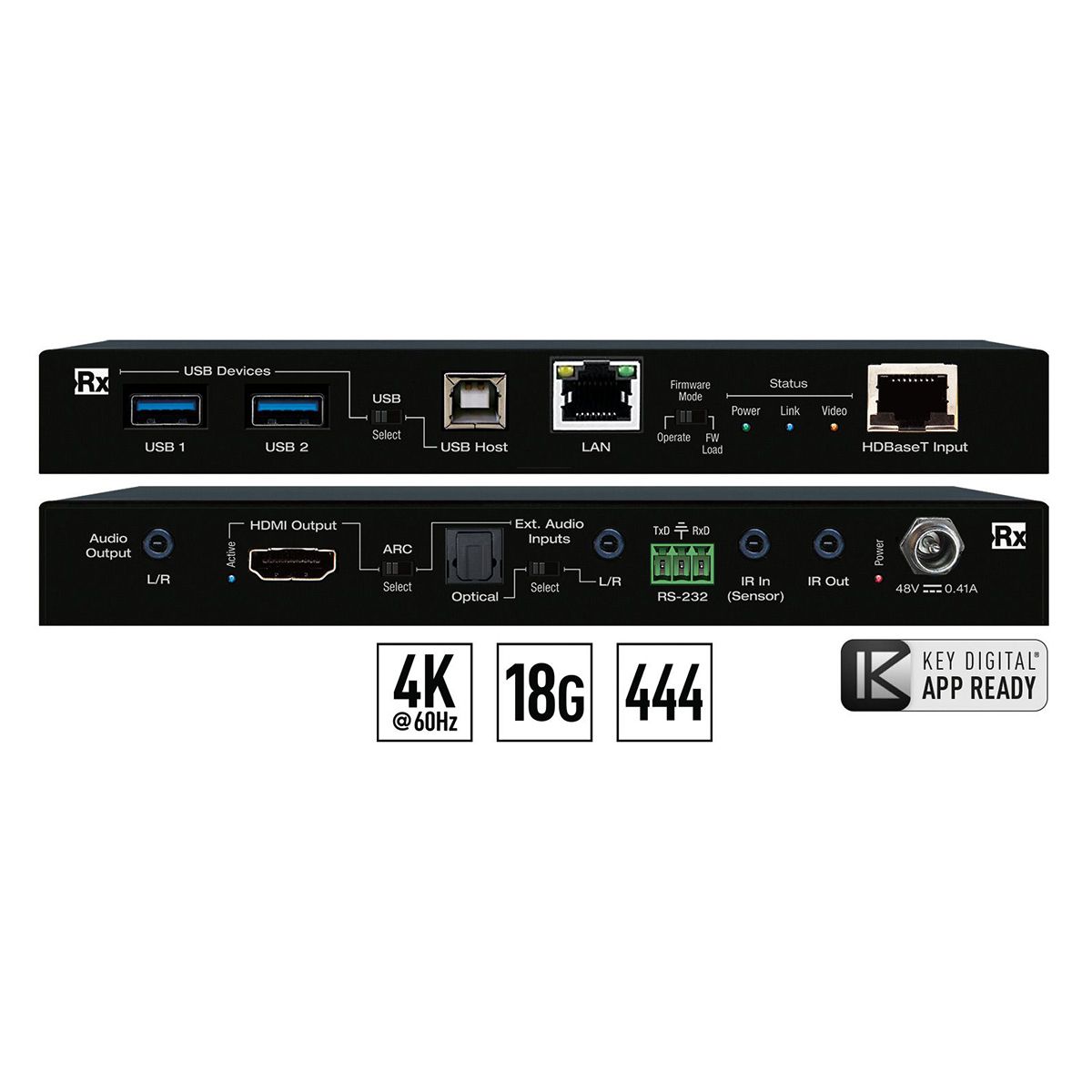

HDBaseT 100m Receiver with USB

Description

4K/18G HDBaseT Rx (100m) with USB, LAN, ARC, L/R Audio In, L/R Audio Output De-Embed, IR, RS-232 (Receiver Only)

• Tx Options: Sold a-la-carte to integrate natively with KD-X4x1WUTx wall-plate or KD-PS22UTx black box transmitters (sold separately).  Also integrates natively and is included with KD-UPS52U.

• Soft-Codec Enabling System:  USB Host + Device ports on Rx and chosen wall-plate / Presentation Switch create connectivity hub for professional USB cameras and microphones, audio DSP, keyboard, mouse, or touchscreen display with connected computer

• Flexible Power over HDBaseT: Rx powers Tx when integrated with KD-X4x1WUTx / KD-PS22UTx.  Rx is powered by Tx when integrated with KD-UPS52U

• Audio De-embedding: Audio of the incoming source is de-embedded at the unit’s analog L/R connector

• ARC / eARC: Audio may be returned to the connected Tx unit (KD-PS22UTx or KD-X3x1WUTx) from the connected HDMI display or external audio inputs

• CEC Manager™: Passes through CEC control signals for monitors & projectors generated by KD-X4x1WUTx, KD-PS22UTx, or KD-UPS52U

• PTZ USB Camera Integration: Marries natively with KD-CAMUSB for full PTZ control via KD-App with supported presentation switcher

• KD-AMP220 Integration: Marries natively with KD-AMP220 for full volume and mic mix control with supported presentation switcher

• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

• Signal Extension: For resolution and cable quality

• 4K/UHD (18G): Up to 100m / 328 ft.

• 1080p: Up to 150m / 492 ft.

• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension

• HDR10: More life-like images through a greater range of luminance levels

• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant

• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

• IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block

• RS-232: Bi-Directional control to/from Tx/Presentation Switch and Rx unit

• Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

• Control System Support: Fully controllable by all TCP/IP and RS-232 supported control systems via open API

• Low Profile: Super slim chassis design
