HDMI 2.0-3G-SDI Signal Analyzer

Description

HDMI 2.0/3G-SDI Signal Analyzer

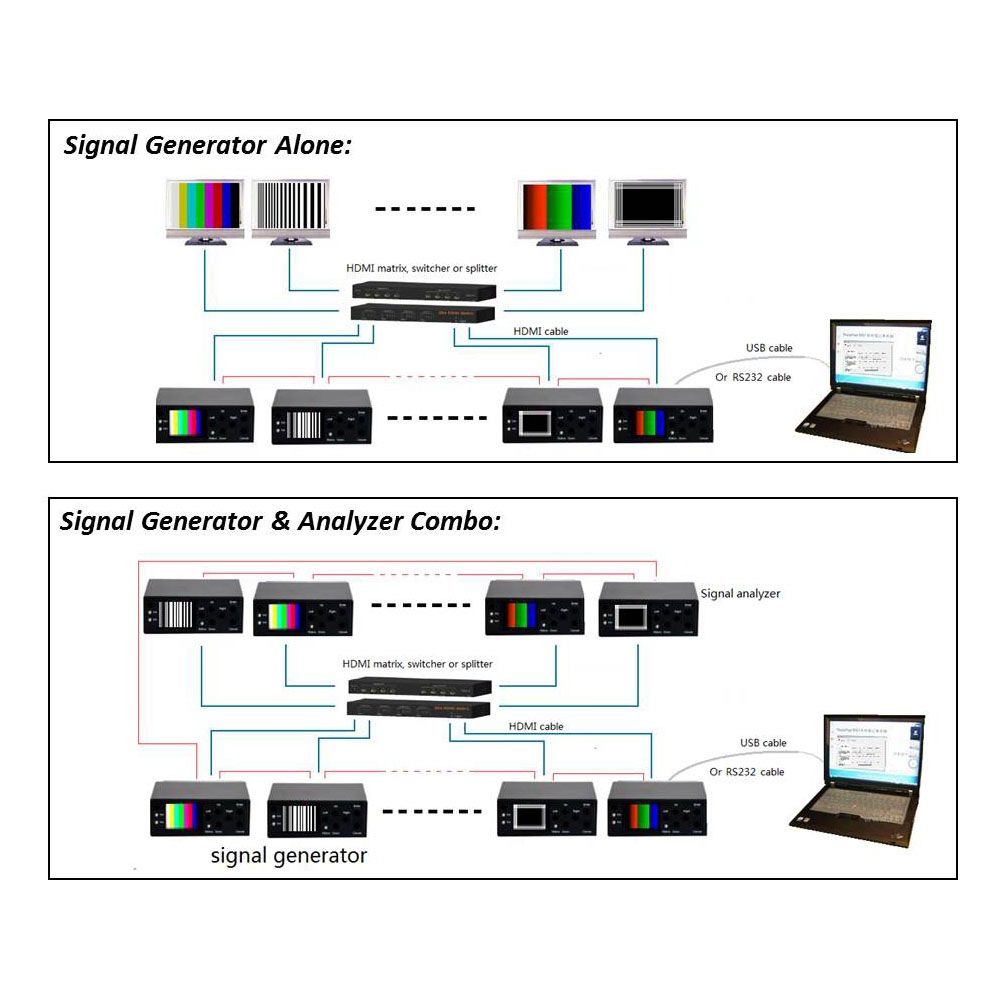

This Signal Analyzer is a portable test tool that is able to analyze SD/HD/3G SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K@ 60Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their source devices. When used with the 500830 Signal Generator, a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. The device is an exceptional tool at an attractive price for any AV engineer/developer, integrator and installer.

The Signal Analyzer is a portable device which can be used anytime you need it and anywhere, making it an invaluable tool. The unit supports an internal rechargeable Lithium-ion battery, allowing the device to be operated autonomously for up to 5 hours per charge.

Control Software Download.

• Portable Signal Analyzer for autonomous operation anytime, anywhere
• Supports up to 5 hours of operation on a single charge via an internal rechargeable Lithium-ion battery
• Supports HDMI up to 4K/60 & 3D, and 3G-SDI
• Supports RGB4:4:4, YUV4:2:2, YUV4:2:0 & Deep Color
• Supports an HDMI cable test function
• Displays AV signal characteristics

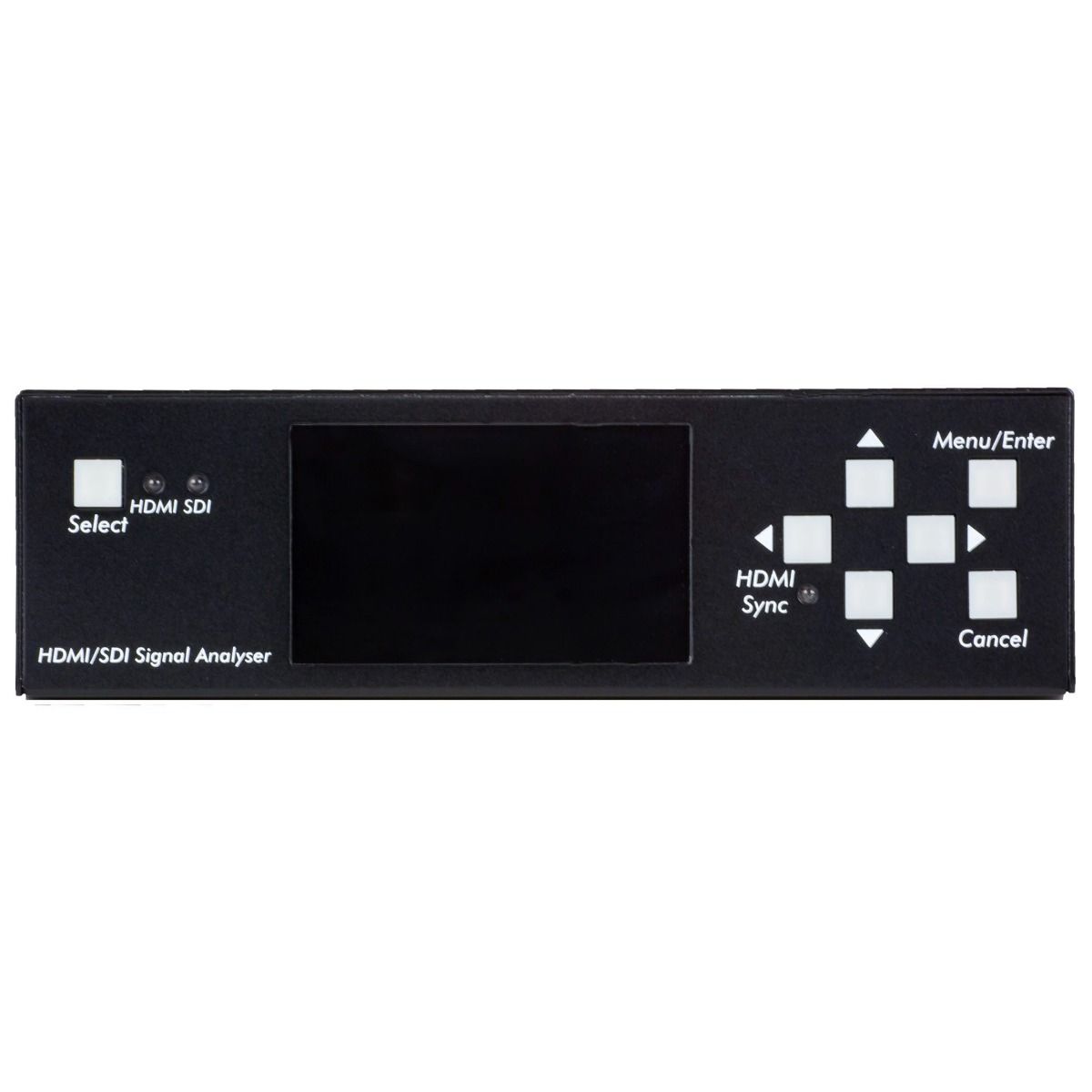

• 3??? LCD panel for pattern preview & menu settings
• Supports 7 audio sample rates
• VU meter supported on LCD
• Supports HDCP 2.2 & 1.4
• Supports EDID management

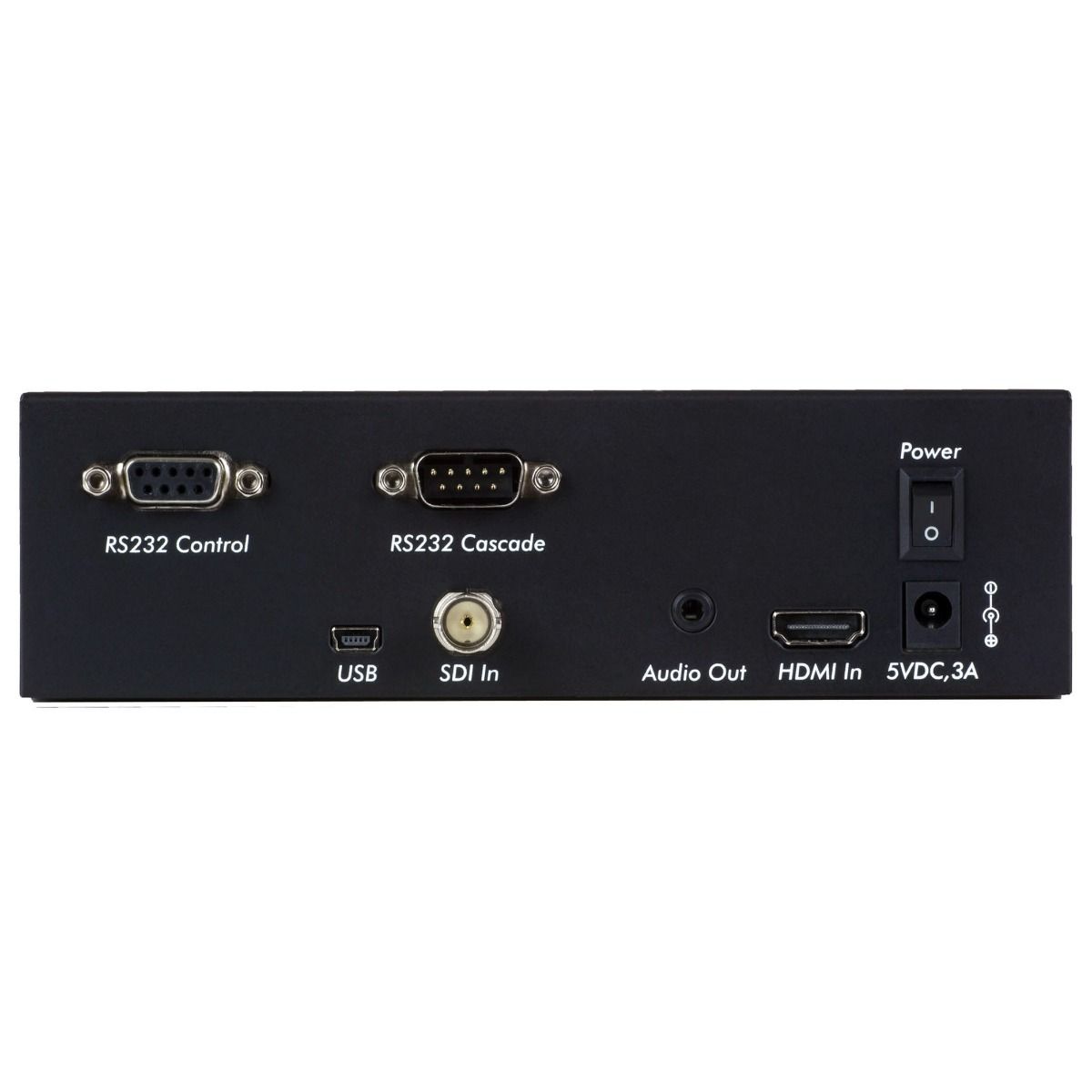

• Locally or remotely managed via RS232 or USB
• Supports an RS232 cascade for management
• Free Windows management software
