Description

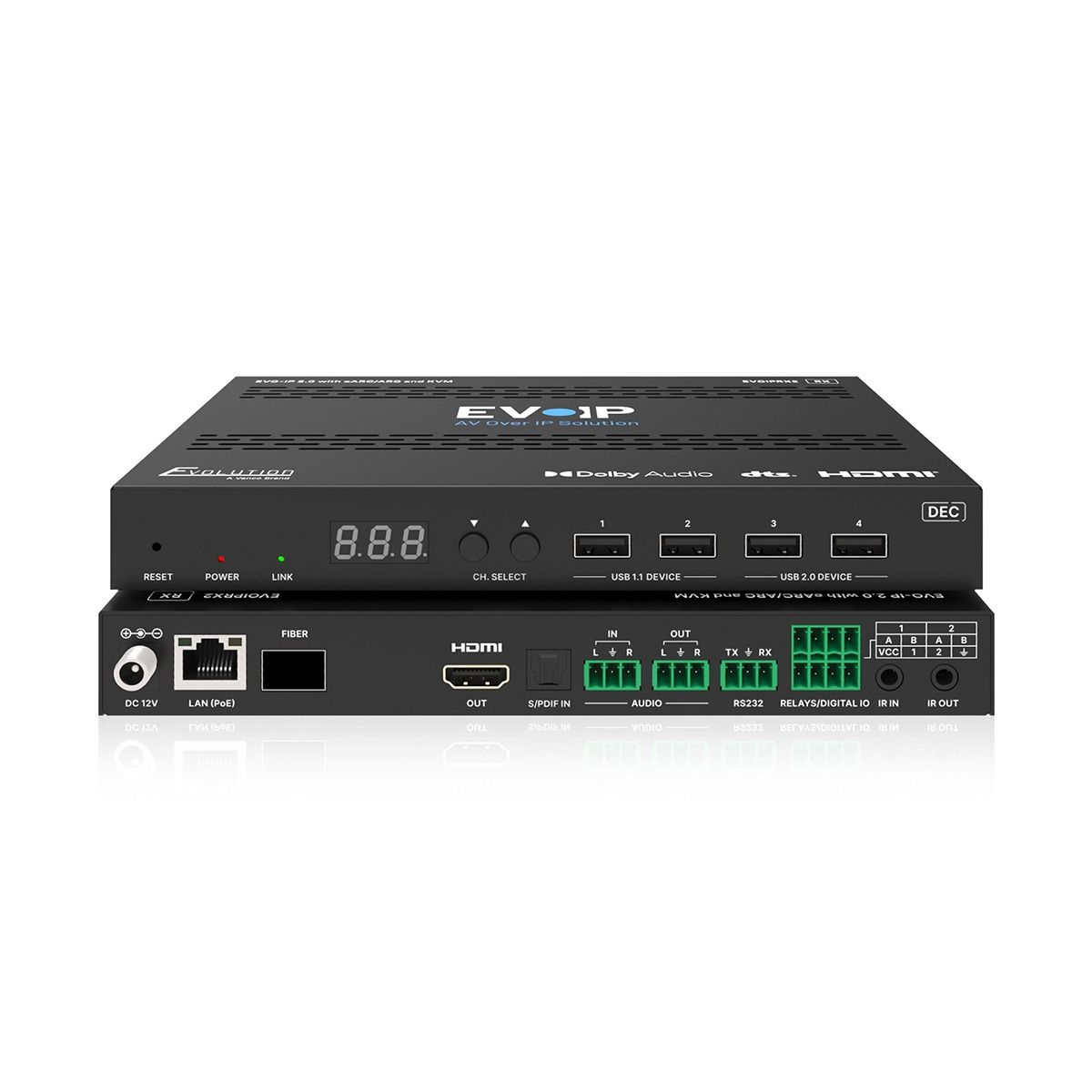

Receiver Unit for EVO-IP 2.0 AVoIP Solution with eARC/ARC and KVM
Purposefully built for video walls and digital signage, this cutting edge system delivers stunning 4K visuals, immersive eARC audio, Dolby & DTS downmixing, KVM integration, and Dante AV-A support for additional AV integration.
EVO-IP 2.0 redefines AV over IP distribution with unmatched flexibility, scalability, and ease of deployment. Featuring 4K@60Hz, 4:4:4 chroma with HDR and HDCP 2.2, independently routable KVM, audio, and control signals, and VLAN-free setup, this solution streamlines installation for integrators in a wide range of applications. EVO-IP 2.0 supports Cat6/6A, multi-mode, and single-mode fiber transmission, making it ideal for SMBs to enterprise environments. Cloud-based management enables remote monitoring and troubleshooting, reducing downtime. With Dante AV-A enabled out of the box, support for USB 2.0, eARC/ARC, Dolby/DTS downmixing and videowall/digital signage capabilities, EVO-IP 2.0 is the ultimate networked AV distribution solution for both residential and commercial applications.
EVO-IP 2.0 is not backwards compatible with older EVO-IP devices. Transmitter, receiver, and controller all sold separately.
- 4K@60Hz input and output with HDR and Dolby Vision
- Upscale to 4K@60Hz or downscale to 720p
- Dante AV-A enabled for additional AV integration
- Dolby & DTS 5.1 audio downmixing to PCM/stereo output
- Analog audio embedding and de-embedding
- eARC/ARC support with S/PDIF ARC back-up plan
- VA-EVOIPRX2
- Dimensions: 8.03in (w) x 5.35in (d) x 1.00in (h) / 204mm (w) x 136mm (d) x 25.5mm (h)
- Weight: 626g / 22oz
Network
- Dual LAN port connects and separates local network from EVO-IP network
Power
- Powered with PoE over Cat6 cable
- Redundant power with provided power supply
Transmission
- Up to 328ft/100m transmission with PoE over Cat6
- Up to 984ft/300m transmission over multi-mode fiber
- Up to 3.72mi/6km transmission over single mode fiber
Control
- Automatically detects new devices in the system
- Independent audio, video, and control routing
- IP control with IR, RS-232, and CEC routing and pass-through
- Advanced EDID presets and learning
- Trigger, relay, and digital input/output integration
System
- Matrix mode displays individual sources on separate screens
- OSD mode supports custom graphics and digital signage
- Logo mode allows logos, icons, and information to be overlaid on screen

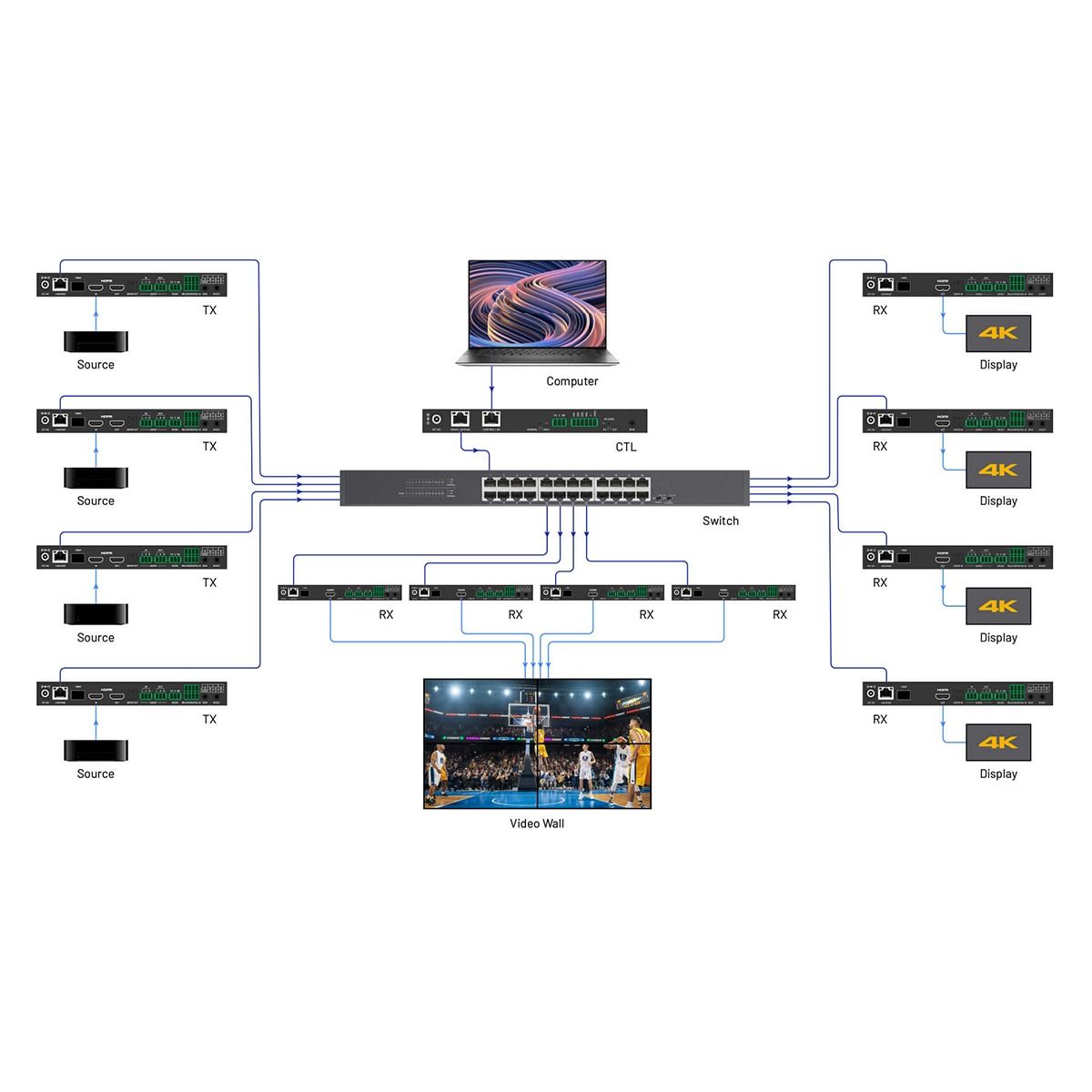

- Video Wall mode supports up to 25 displays in any configuration
- Flip screen horizontally or vertically
- Customizable splash screen when no sources are selected
Interface
- Local and cloud interface for scheduling, troubleshooting, and updating
- Customize presets, labels, and names of sources and displays
- Exportable logs shows events and actions over a specific period
- Control sources and displays in specific zones
