Description

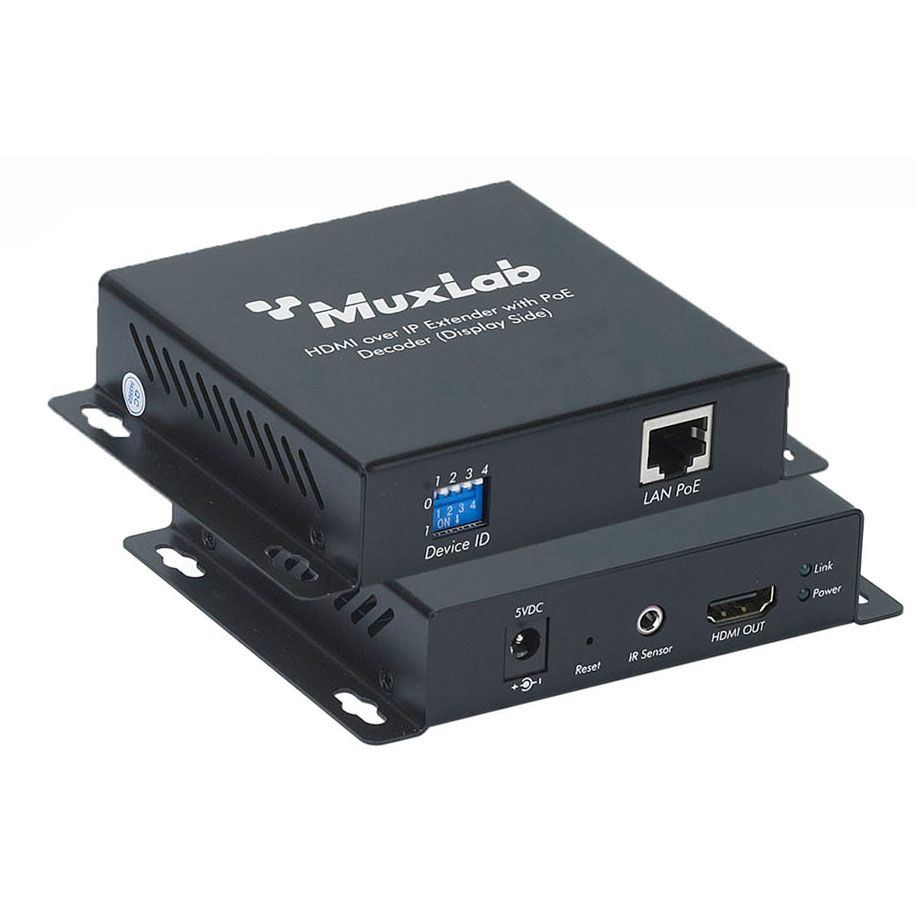

HDMI Over IP Receiver with PoE

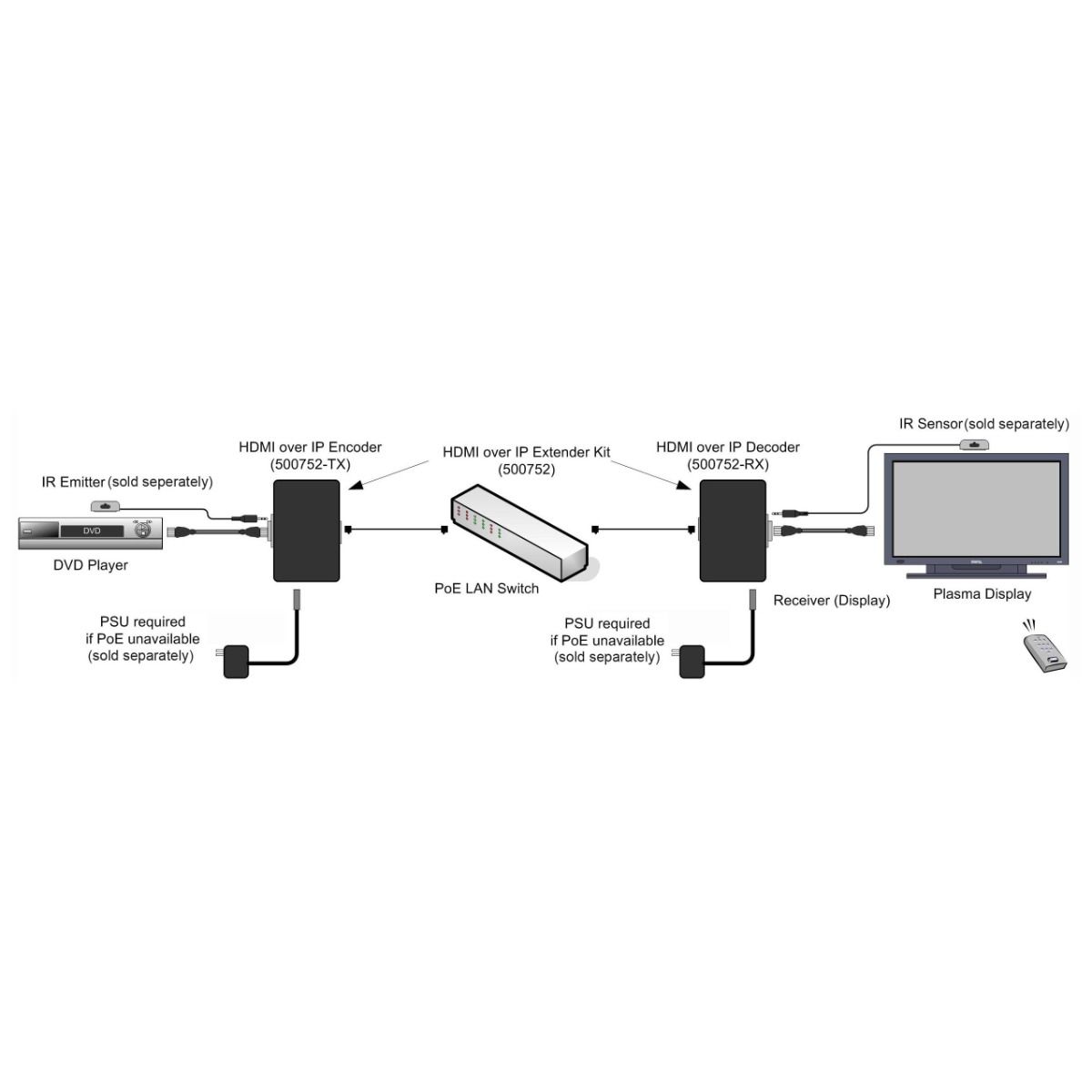

The HDMI over IP extender allows HDMI equipment to be connected up to 330feet (100m) @ 1080p via one (1) Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint is possible by connecting several Transmitters and Receivers to the same Ethernet network. The Transmitter (500752-TX) and Receiver (500752-RX) also support PoE (PD) if used with a PoE (PSE) Ethernet Switch. The HDMI over IP extender kit comes with one (1) Transmitter and one (1) Receiver ideal for starting to set up your HDMI over IP network. The IR Emitter and IR Sensor, if required, may be purchased separately for remote control applications.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet switch must have Gigabit ports, DHCP Server capability and IGMP communications protocol. MuxLab recommends using the Cisco SG300 Series Managed Switches.
The MuxLab Pro Digital Network Controller (500811) is available to simplify the configuration and utilization of the MuxLab IP based products via an Ethernet web interface, and supports third party management via smartphone and tablet.
DATASHEET MANUAL
Applications: Commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems.
Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (500992) may be purchased separately.
- HDMI 1.3
- HDMI over IP extender Supports up to 1080p resolutions
- Motion JPEG compression with Very low latency
- Supports 100’s of Transmitters and Receivers, depending on network bandwidth
- Supports point-to-point, point-to-multipoint, and multipoint-to-multipoint applications
- Transmission up to 330ft (100m) over Cat5e/6
- Up to 390ft (120m) between the TX and RX? when no LAN switch is used
- HDMI over IP extender Supports IR transmission for remote control
- PoE powered
- Control via any web device (mobile, tablet) with use of model 500811 (Pro Digital Network Controller)
