Description

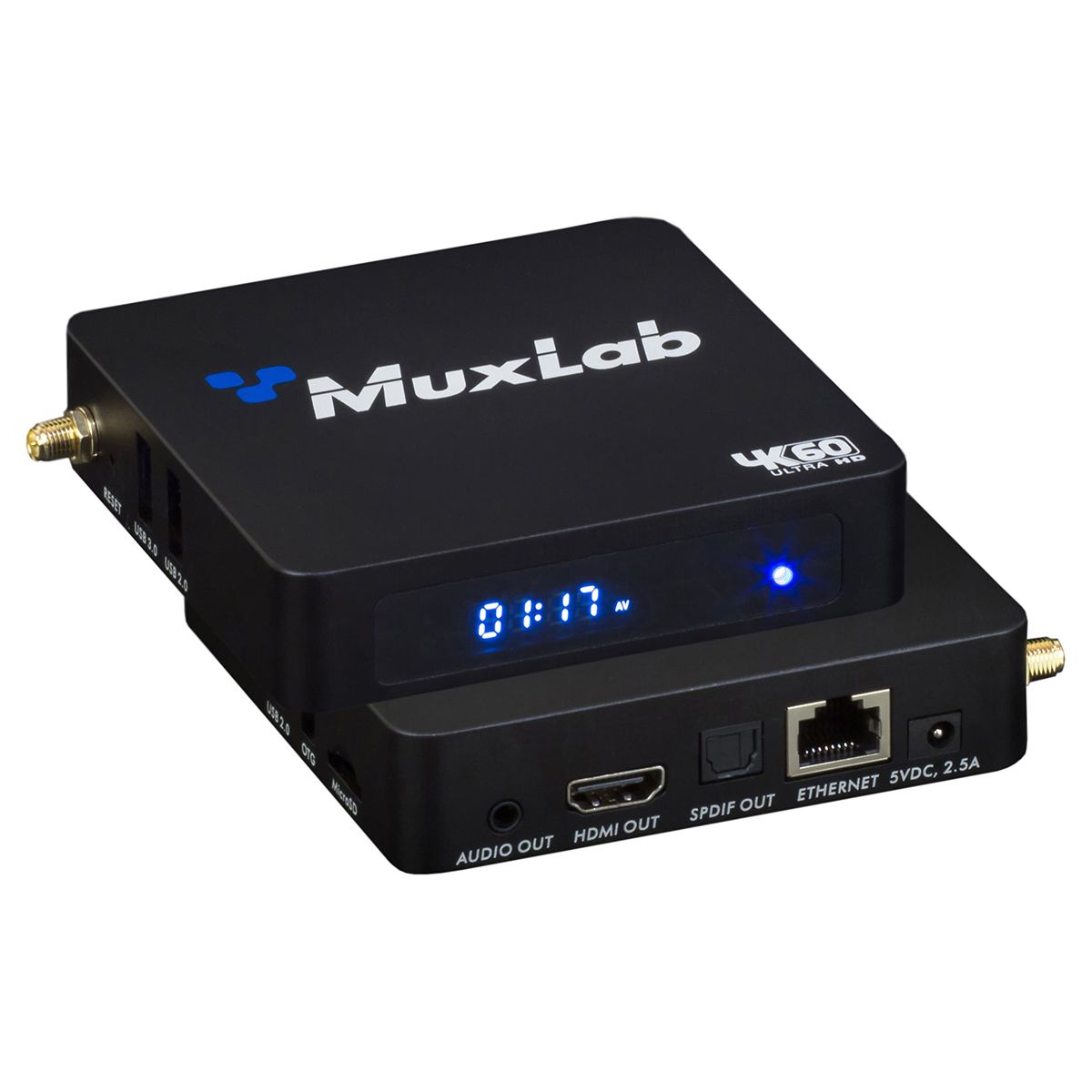

HDMI over IP Receiver with Signage Player
The HDMI over IP Receiver with Signage Player is a versatile device seamlessly combining an HDMI over IP Receiver and a DigiSign signage player. With support for H.264/H.265 video signals at resolutions up to 4K/60 (4:4:4), this device ensures superior video quality.
When paired with the HDMI over IP Transmitter (500763/764-TX), it facilitates local extension of HDMI source and display equipment up to 330ft. (100m) using unshielded twisted pair cables in a point-to-point configuration. The system’s scalability allows for point-to-multipoint and multipoint-to-multipoint configurations by connecting multiple transmitters and receivers to the same local Ethernet network, providing Video Wall and Multiview capabilities.
In its role as a Digital Signage Player, the HDMI over IP Receiver with Signage Player is managed by the DigiSign CMS Software, running on a PC. This comprehensive CMS supports various media formats, including video, audio, and images, along with features such as HTML5,RSS feeds, and widgets. The DigiSign CMS facilitates the efficient creation and scheduling of digital signage content, the Player can operate autonomously, storing and executing schedules without external intervention. This integrated solution offers a powerful and flexible platform for dynamic AVoIP and digital signage applications.
- Versatile Integration
- High-Quality Video
- Video Wall and Multiview Capabilities
- Low Bandwidth Requirements
- Global Distributed Installations
- Digital Signage Player Functionality
- Flexible Content Creation
- Powerful and Flexible Platform
HDMI over IP Receiver
- Supports up to 4K/60Hz (4:4:4) video streams
- Supports Video Wall and Multiview capabilities
- H.264/265 video codec
- Supports Multicast, RTSP, RTMP and HLS
- SPDIF (TosLink) Audio Out
- Managed via MuxLab Network Controller (500812) & Muximus Network Controller (500813)
Signage Player
- Supports up to 4K/60Hz (4:4:4) video streams
- Decodes H.264/265 video streams over the Internet and local network
- Supports playlists and yearly scheduler to operate autonomously
- Supports multi-format video, image and audio files
- Supports Multi-view & PiP layouts
- Can be managed using DigiSign Cloud or the DigiSign CMS Windows app.
