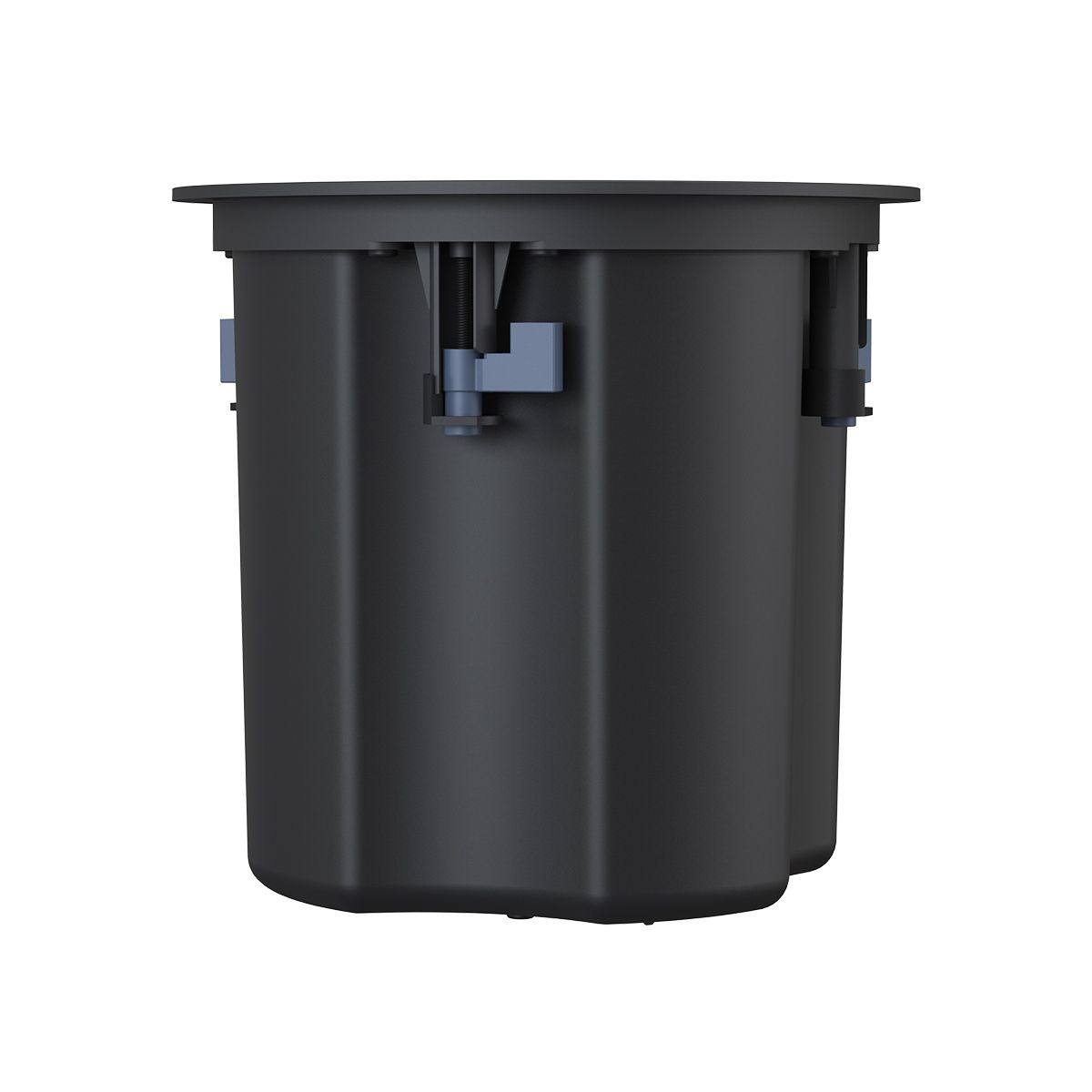

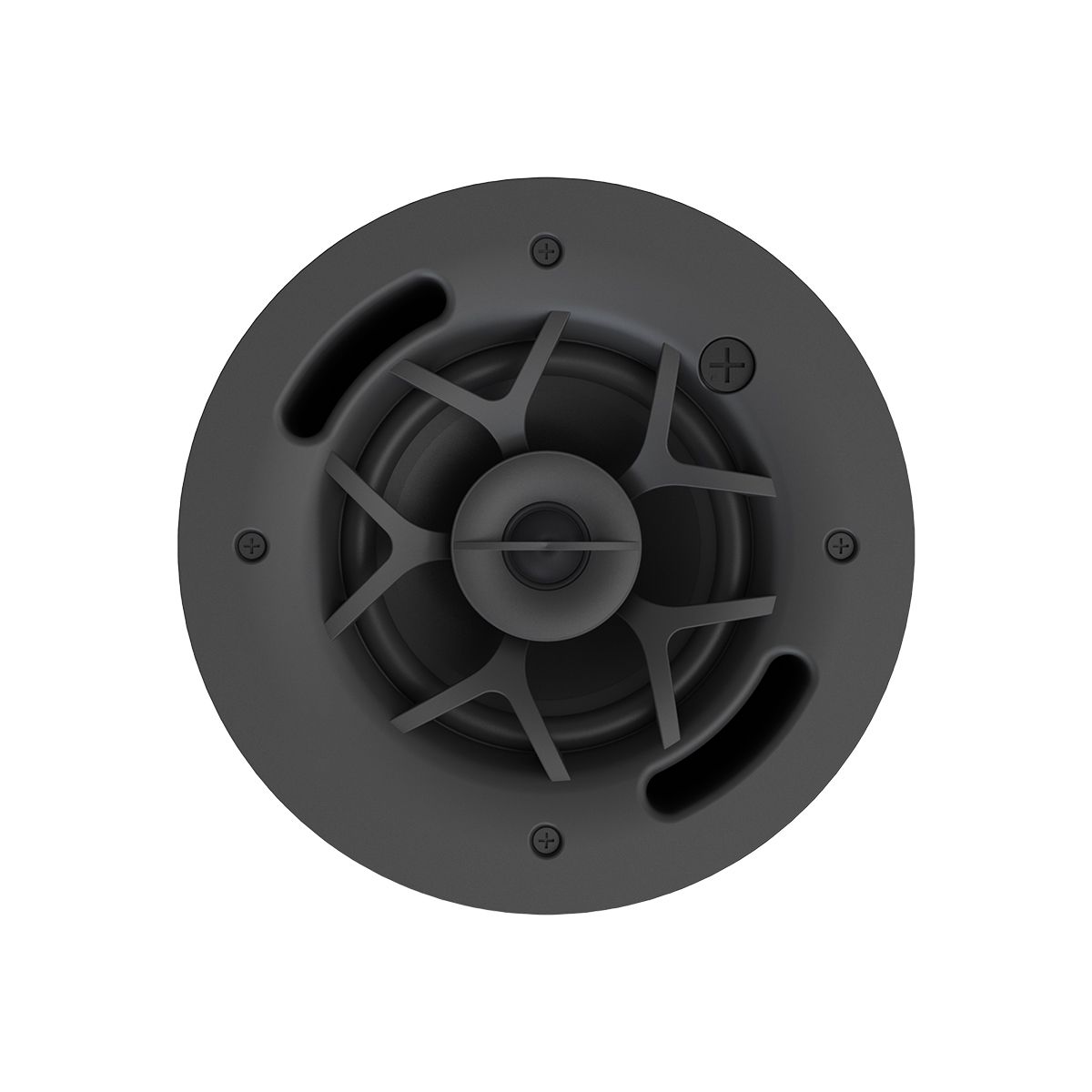

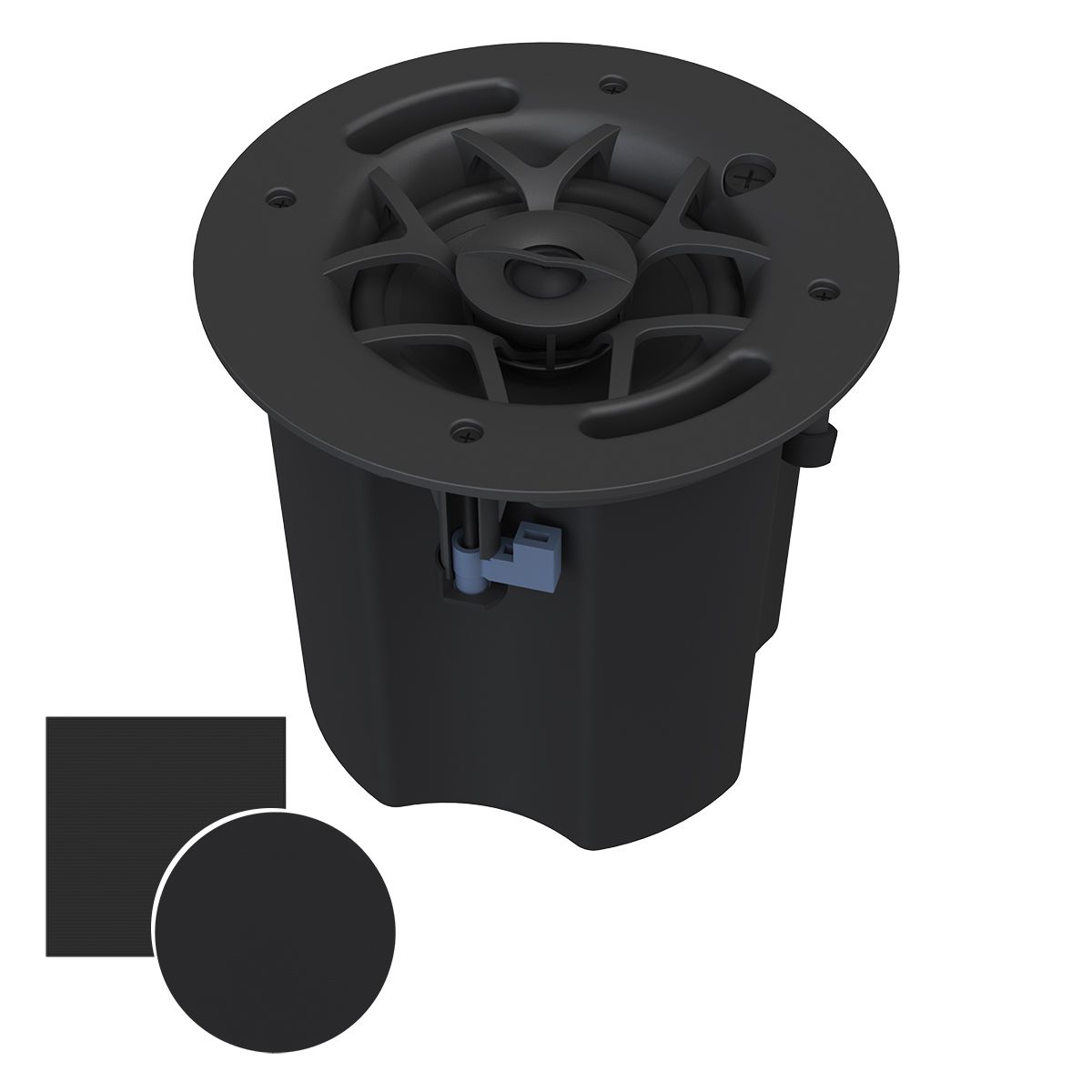

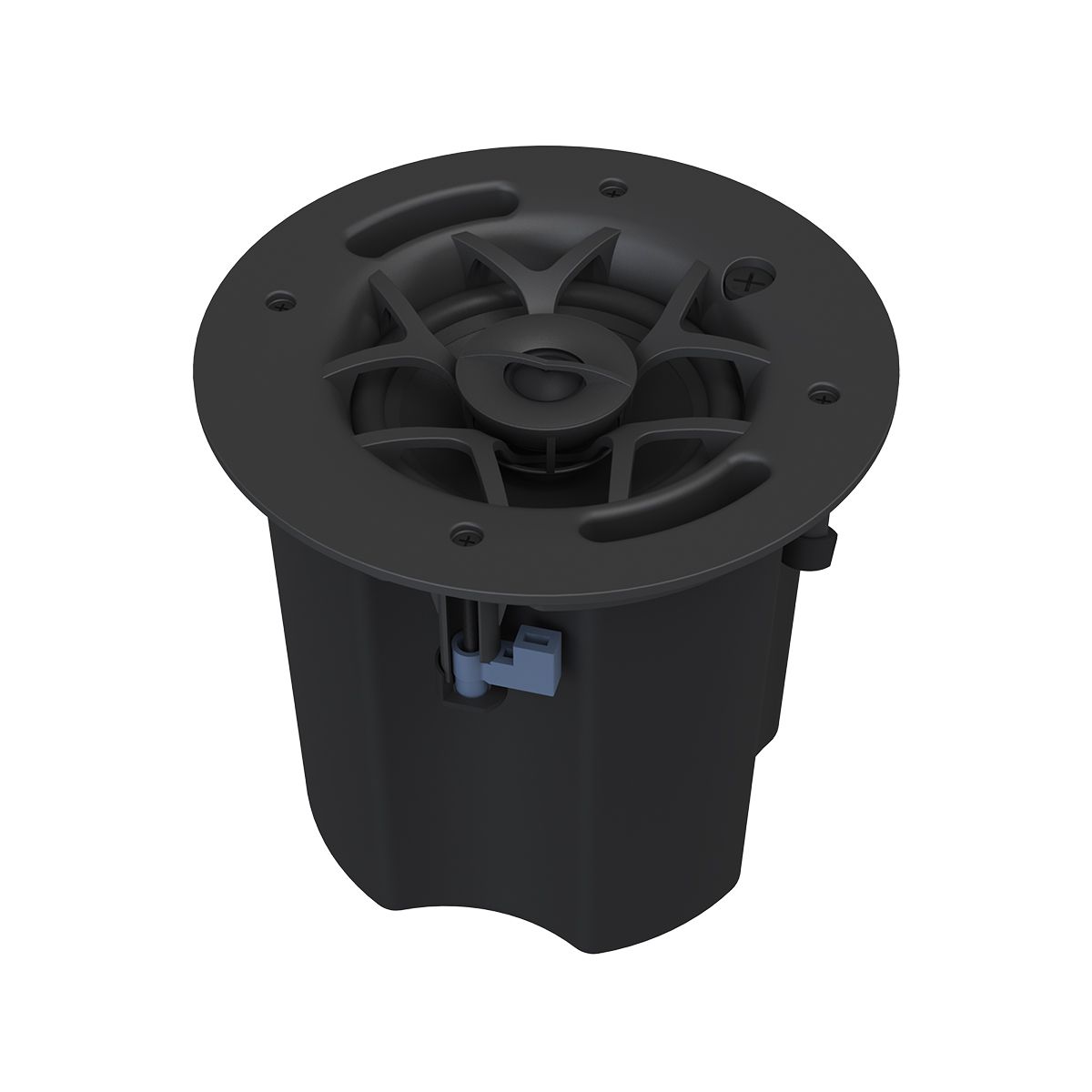

In-Ceiling 5.25in 70v/100v OP Speaker 60w, 120 Deg, Black

Description

In-Ceiling 5.25" 70v/100v Speaker with IMPP Driver, 100w, 120 Degree Conical Coverage, with both a Round and Square black Grille.

Our In-Ceiling Collection goes above and beyond the competition with integrator friendly features and overall musicality. Each model is a 2-way loudspeaker with a pivoting Silk DPSD™ tweeter, utilizing Origin’s patented Multi-Motion Pivot™ for superior aiming and dispersion.

With an integrated conduit lock, heavy-duty dog-ears, and secure euro-block connections, this series is ready for installation into even the most challenging commercial environments. Low-profile paintable grilles are included to reduce ceiling visibility.

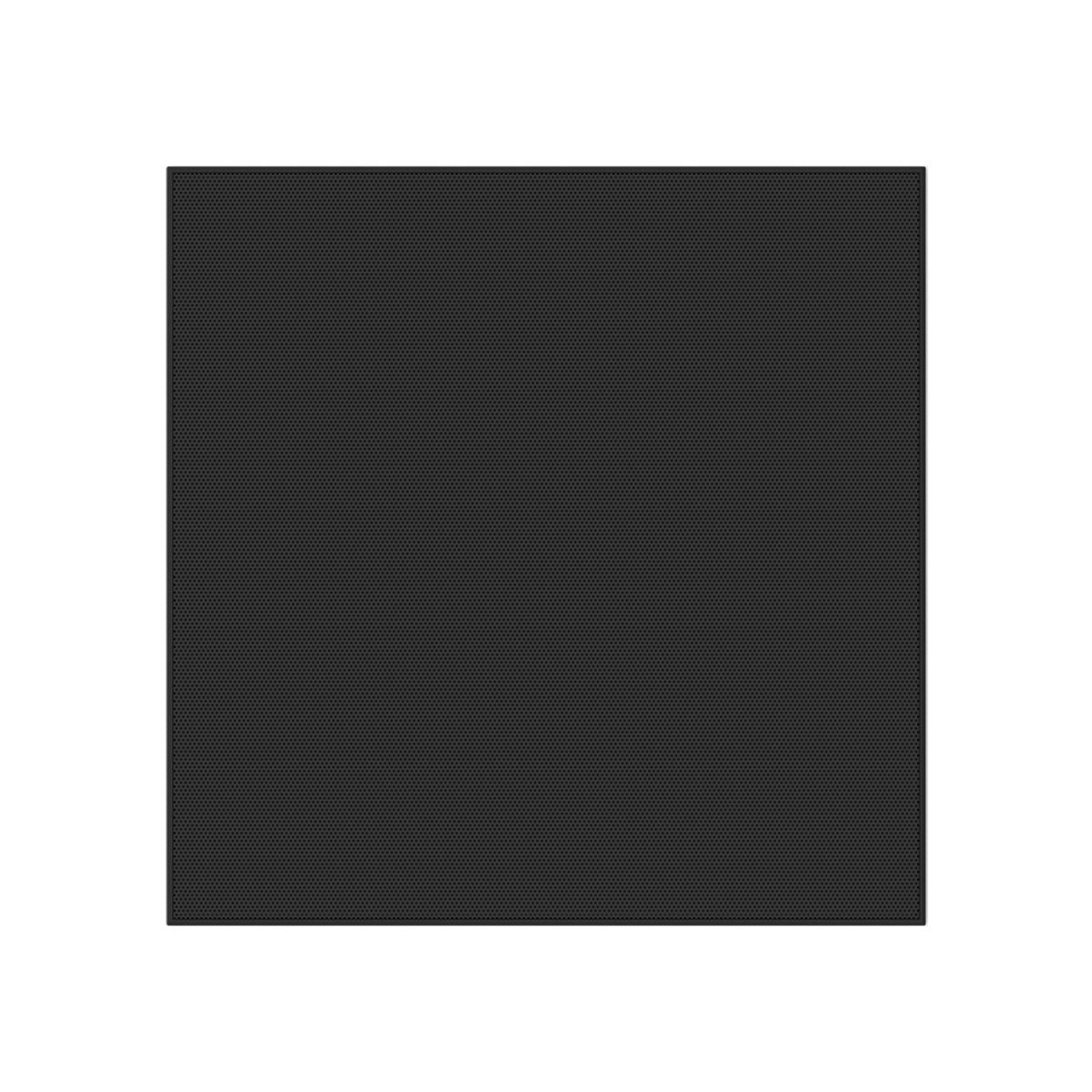

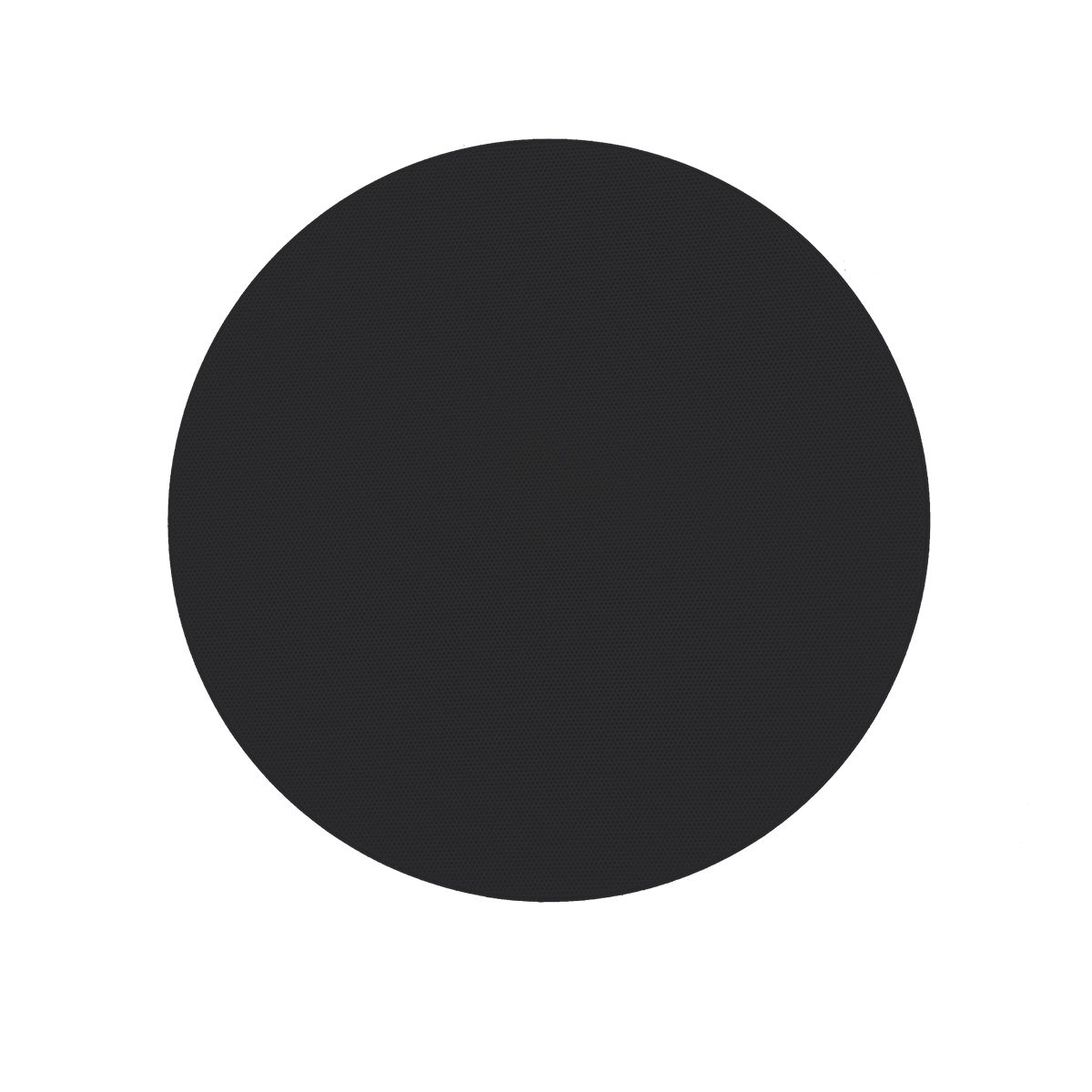

Grilles are also available as black or white, square and round, and with or without a tile bridge option.

• Woofer:  5 1/4” IMPP
• Tweeter:  3/4” Silk DSPD™ MMP™
• Power Handling (Program Power):  60 Watt
• Power Handling (Cont. Pink Noise): 30 Watt
• Frequency Response:
  • • (- 10dB): 54Hz-20kHz
    • (- 3dB): 80Hz-20kHz
• Nominal Coverage Angle: 120 Degree Conical Coverage
• Sensitivity @1m:   89dB
• Rated Maximum SPL:  106dB
• Impedance:  6 Ohm Nominal
• Transformer Taps:
  • • 70V - 30W, 15W, 7.5W, 3.8W
    • 100V - 30W, 15W, 7.5W
• Diameter:  8 1/4” (210mm)
• Cutout Diameter: 7 1/2” (190mm)
• Grille Diameter:  8 11/16” (220mm)
• Mounting Depth:  8 1/8” (206mm)
• Feature:  Metal Can, Zinc Plated
• New Construction Bracket
  • OA-BRPC5 (10pk)
  • OA-BRPC5-EA  (each)
• Tile Bridge:
  • OA-TB50 (pair)
