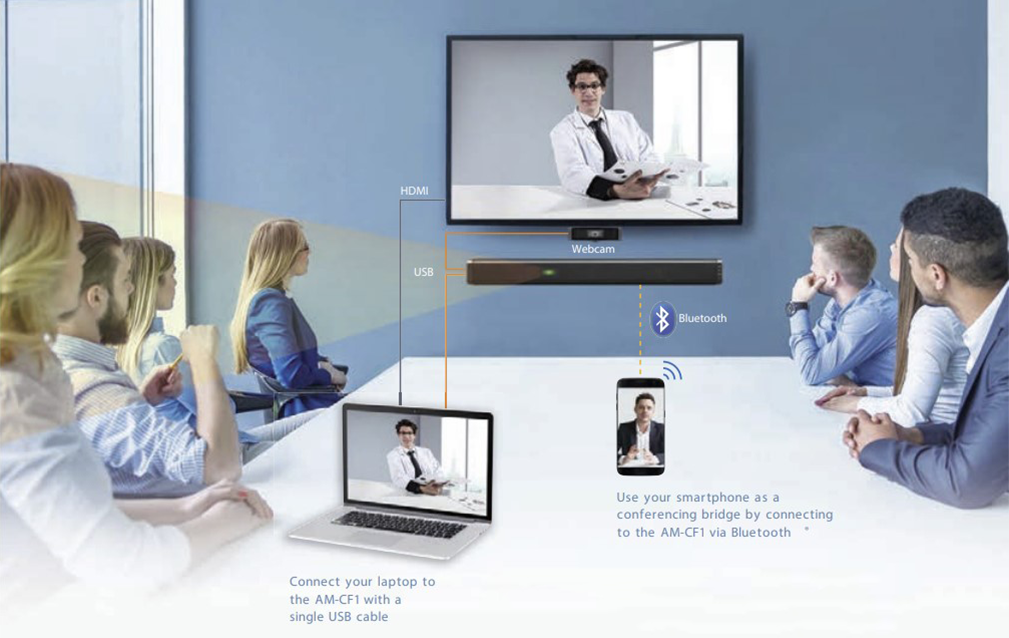

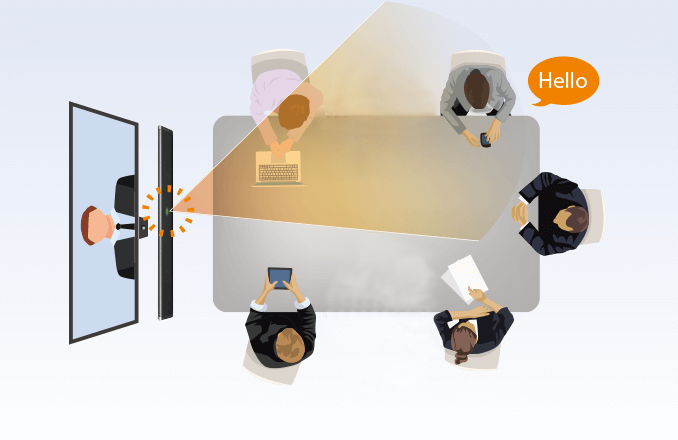

The AM-CF1 is an audio system for conference rooms which incorporating TOA‘s proprietary array microphone technology,digital signal processing and 2-way active speakers. While you can see the clearer image via any video conferencing system, are you hearing conversation clearly? High quality loudspeakers, and array microphone which collects sound ideally by detecting and tracking voice in real-time will make team collaboration more productive and your presentation more attractive.
| Model | AM-CF1B | AMCF1W | |
| Power Source | 12 V DC (supplied from the specified AC adapter) or 52 V DC (60W PoE (PoE++) Note: AC adapter NOW INCLUDED |
||
|
Current Consumption |
Under 3.5 A | ||
| Inputs | USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port (USB 3.0 Cable INCLUDED) Bluetooth: 2 channels, Codec: 1 channel, RCA pin jack, −10 dB*1, 10 kΩ, unbalanced type AUX: 2 channels, RCA pin jack, −10 dB*1, 10 kΩ, unbalanced type |
||
| Outputs | USB Audio: 2 channels, USB 3.0/USB 2.0/USB 1.1 micro-B port Bluetooth: 2 channels Codec: 1 channel, RCA pin jack, −10 dB*1, 600 Ω, unbalanced type AUX: 2 channels, removable terminal block (6 pins), 4 dB*2, 600 Ω, balanced (electronically-balanced) type Internal speaker: 2-way × 2 (woofer × 2, tweeter × 1) |
||
| Control Inputs | 2 inputs, removable terminal block (6 pins), no-voltage make contact | ||
| Control Outputs | 2 outputs, removable terminal block (6 pins), no-voltage make contact, relay contact output |
||
| Network I/F | 10BASE-T/100BASE-TX, RJ-45 | ||
| Microphone | Unidirectional electret condenser type | ||
| Frequency Characteristics | 20 Hz – 20 kHz (AUX IN – AUX OUT) | ||
|
Operation Section |
Power switch, Bluetooth pairing, Mute, Volume Up/Down | ||
| Indicators | Power (blue/green/orange/red), USB connection (green), Bluetooth (blue), Multifunction (green/red) |
||
| Operating Temperature Range | 0 – 40˚C | ||
| Operating Humidity Range | 90% RH or less (no condensation | ||
| Finish | Body | Surface-treated aluminium plate, black, 30 % gloss |
Surface-treated aluminium plate, white (RAL 9003 equivalent), 30 % GLOSS |
| Punched Net | Surface-treated steel plate, black, 30 % gloss | Surface-treated steel plate, white (RAL 9003 equivalent), 30 % gloss |
|
| Side Cover | ABS resin, black | ABS resin, white | |
| Dimenstions | 799 (w) x 83.2 (h) x 85.5 (d) mm (31.46" x 3.28" x 3.37") | ||
| Weight | 4.6 kg (10.14 lb) | ||
