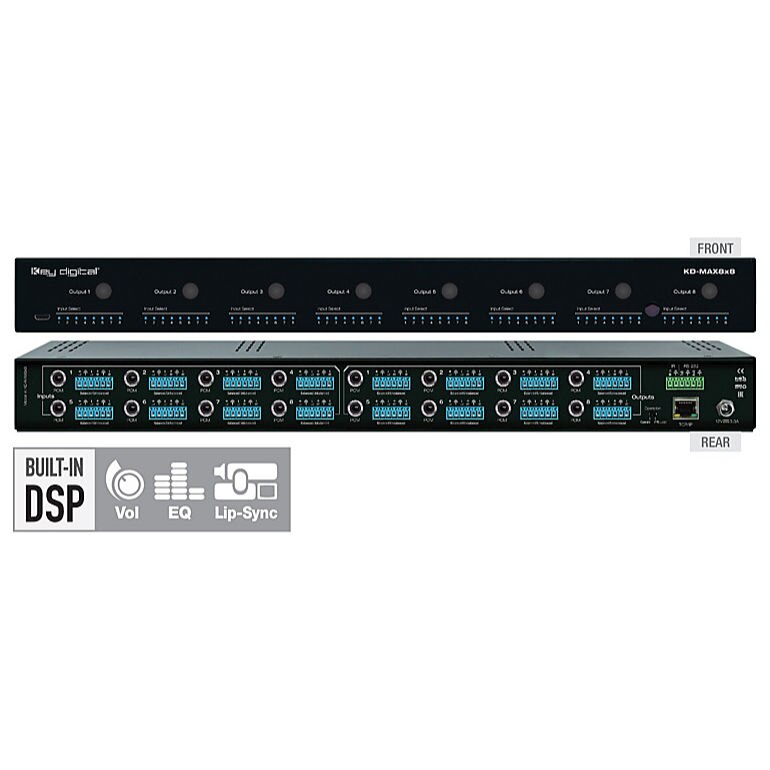

Key Digital 8x8 Audio Matrix Switcher with built-in Audio Pre-Amp
Regular price
$1,467.90
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
Hurry up! Only 1 item(s) items left in stock
Couldn't load pickup availability
8x8 Audio Matrix Switcher with built-in Audio Pre-Amp
| Specifications for: KD-MAX8X8: Key Digital 8x8 Audio Matrix Switcher with built-in Audio Pre-Amp | |
|---|---|
| Technical | |
| Input (each) | Balanced/unbalanced line level audio on 6-pin terminal block. Accepts 2VRMS line audio input with a sampling rate of 48KHz |
| Input (each) | RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz |
| Output (each) | Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 48KHz |
| Output (each) | RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz |
| K-Factor | 0.22% @ optimal EQ » Video Isolation (Crosstalk): -45dB @ 5MHz |
| Analog Audio Max Input Level | 4dBu on 50kΩ, AC coupling |
| Analog Audio Max Output Level | 4dBu on 150kΩ, DC coupling |
| Audio Bandwidth | 20Hz to 20kHz @ 0dBu |
| TND + Noise | 0.33% @0dBu @ 1kHz » PCM Max Input Level: 1Vpp on 75Ω, AC coupling |
| PCM Max Output Level | 1Vpp on 75Ω, DC coupling |
| Wired IR | modulated IR signal input, 0-5V TTL or -10 to +10V |
| Power | 12V/2A (25W) AC Power Supply with Grounded, 2.1mm ID DC Power Jack |
| General | |
| Regulation | CE, RoHS, WEEE |
| Rack Mount | 1U, 1 Rack Width (rack ears included) |
| Enclosure | Black Metal |
| Product Dimensions | 17.5" x 7" x 1.75" |
| Shipping Carton Dimensions | 23.5" x 11" x 4.5" |
| Product Weight | 6 lb |
| Shipping Weight | 9 lb |
