KVM HDMI over IP PoE Transmitter, UHD-4K

Description

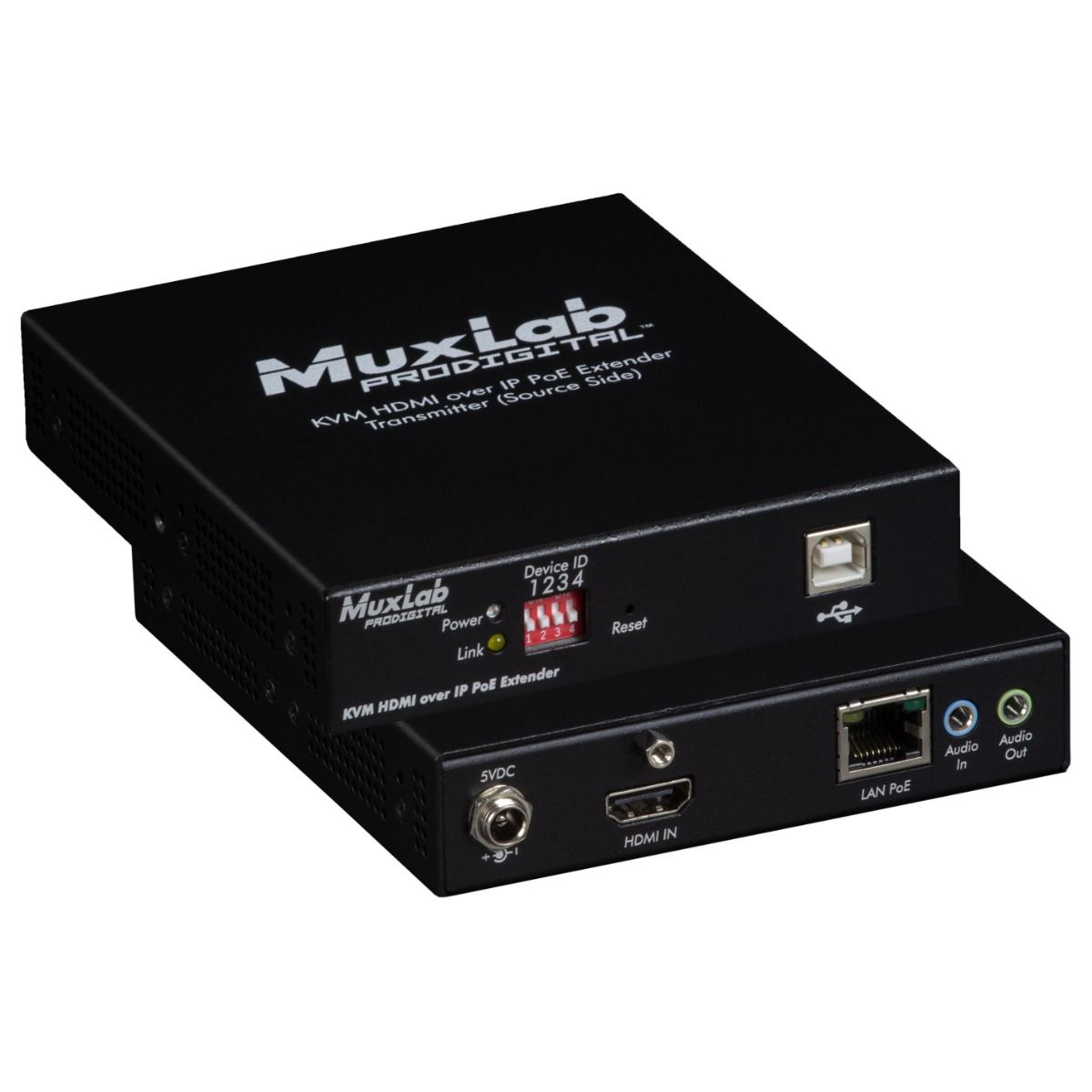

KVM HDMI over IP PoE Transmitter, UHD-4K

The KVM HDMI over IP PoE Extender, UHD-4K allows HDMI & USB equipment to be connected up to 330ft (100m) over an Ethernet LAN, supports HDMI up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0) via Cat5e/6 cable in multiple point-to-point and point-to-multipoint configurations. The Transmitter (500772-TX) and Receiver (500772-RX) support PoE (PD) if used with a PoE (PSE) Ethernet Switch.

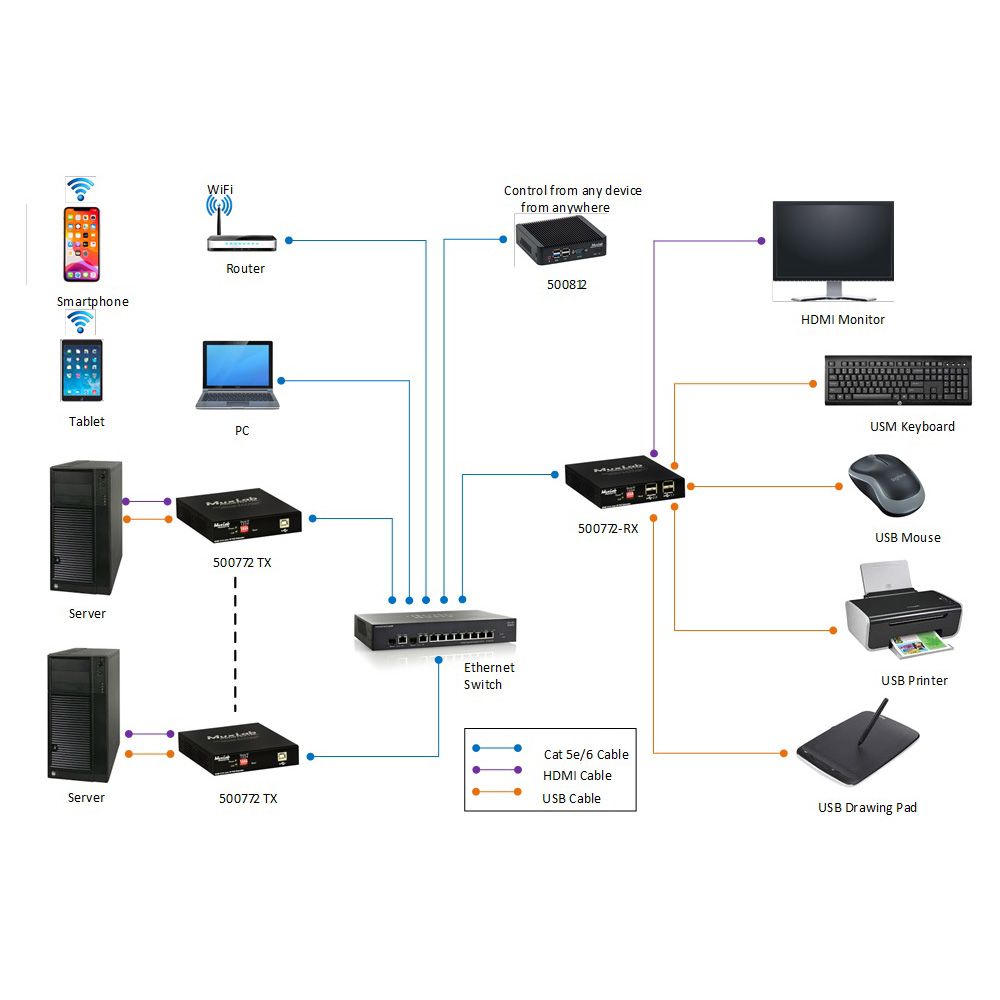

The Transmitter terminates to a computer server/workstation via an HDMI & USB port, The Receiver terminates to an HDMI display and up to 4 USB devices such as a keyboard, mouse, printer, drawing pad, storage device, camera, etc., via a 4 port USB hub. A single Receiver can be switched via hotkey sequences to any Transmitter on the network, allowing a single operator to manage numerous servers/workstations, in a distributed KVM application.

Applications:
Management of multi-server systems supporting HDMI displays in IT departments within corporations, educational institutions, CAD Design, Graphic Design, Media Servers, and Data Centers.

DATASHEET     MANUAL

• One operator can manage multiple servers/workstations
• Supports HDMI up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
• Receiver side includes a 4-port USB hub, for KVM applications
• Up to 330ft (100m) over Cat5e/6
• Supports 100’s of Transmitters & Receivers depending on network bandwidth
• Supports multiple point-to-point, and point-to-multipoint applications
• Supports HDR
• PoE powered
• Supports audio insert & audio output (TX), and audio extract & mic-in (RX)
