LT- 15A 125V DECORA PLUS HOSPITAL GRADE DUPLEX RECEPTACLE 16262-HGW
Regular price
$11.49
Couldn't load pickup availability
Hurry up! Only 0 item(s) items left in stock
Couldn't load pickup availability

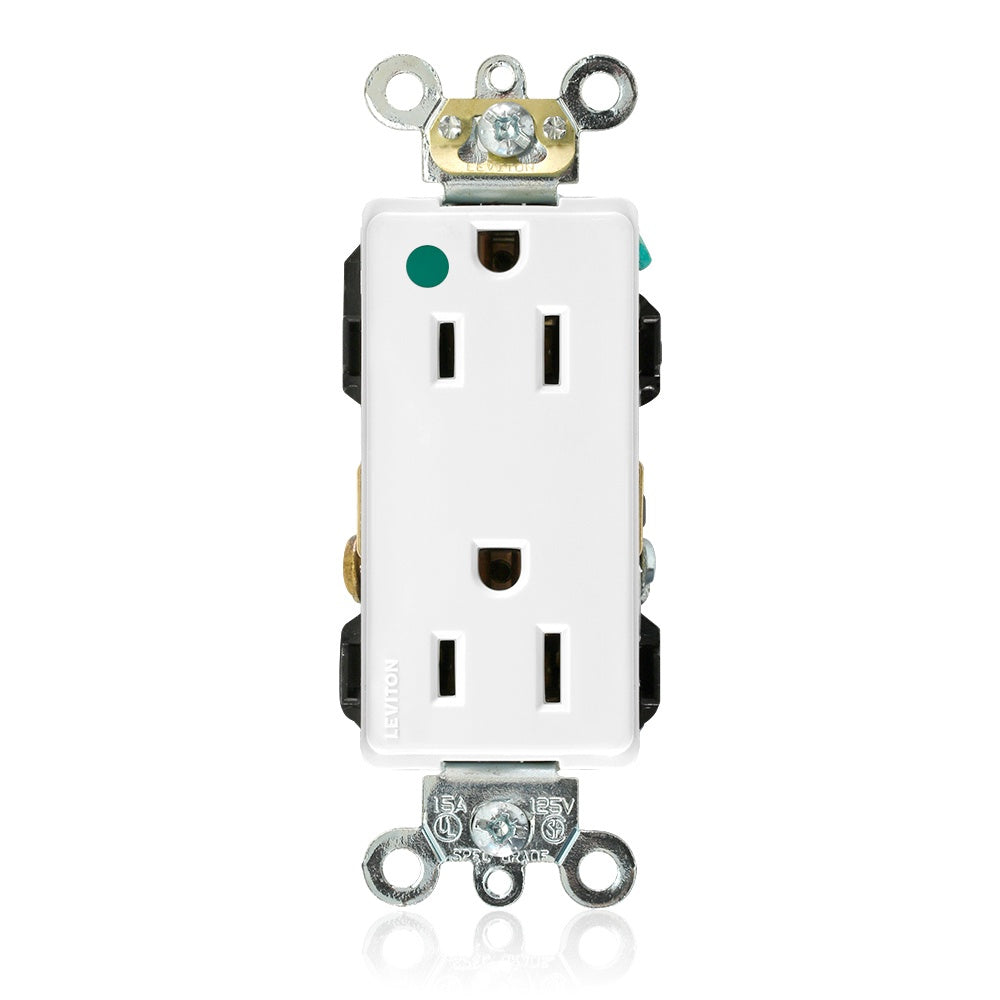

The Leviton 16262-HGW Decora Plus Duplex Receptacle is an extra heavy-duty, hospital-grade 15 Amp receptacle engineered for maximum reliability in healthcare, commercial, and institutional environments. Rated for 15A, 125VAC, this NEMA 5-15R receptacle features a smooth-face design, self-grounding capability, and supports both back and side wiring for flexible installation.
Manufactured with a rugged nylon body, heavy-duty brass triple-wipe contacts, and a zinc-plated steel mounting strap, the 16262-HGW is designed to withstand demanding applications while providing superior plug retention and long service life. Certified to UL 498 Hospital Grade, CSA, NEMA, and ANSI standards, it is ideal for hospitals, medical facilities, laboratories, schools, offices, and other commercial installations where dependable power connections are essential.
| Specification | Details |
|---|---|
| Brand | Leviton Decora Plus |
| Model | 16262-HGW |
| Product Type | Hospital Grade Duplex Receptacle |
| Amperage | 15A |
| Voltage | 125VAC |
| NEMA Configuration | 5-15R |
| Pole/Wire | 2-Pole, 3-Wire |
| Horsepower Rating | 1/2 HP |
| Grounding | Self-Grounding |
| Wiring Method | Back or Side Wire |
| Wire Size | 14–10 AWG |
| Terminal Identification | Brass (Hot), Silver (Neutral), Green (Ground) |
| Body Material | Nylon |
| Face Material | Nylon |
| Mounting Strap | Zinc-Plated Steel |
| Line Contacts | 0.040" Brass Triple-Wipe |
| Ground Screw | Brass 8-32 |
| Terminal Screws | Brass 10-32 |
| Operating Temperature | -40°C to 60°C |
| Flammability Rating | UL 94 V-2 |
| Dielectric Strength | Withstands 2000V per UL 498 |
| Color | White |
| Standards | UL 498 Hospital Grade, CSA C22.2 No. 42, ANSI C-73, NEMA WD-6, NOM 057 |
| Warranty | 10-Year Limited |
The Leviton 16262-HGW is a premium hospital-grade Decora receptacle that delivers exceptional durability, secure electrical connections, and dependable performance in critical applications. Its extra heavy-duty construction, self-grounding design, and compliance with stringent healthcare and commercial standards make it an excellent choice for installations requiring maximum safety and reliability.
