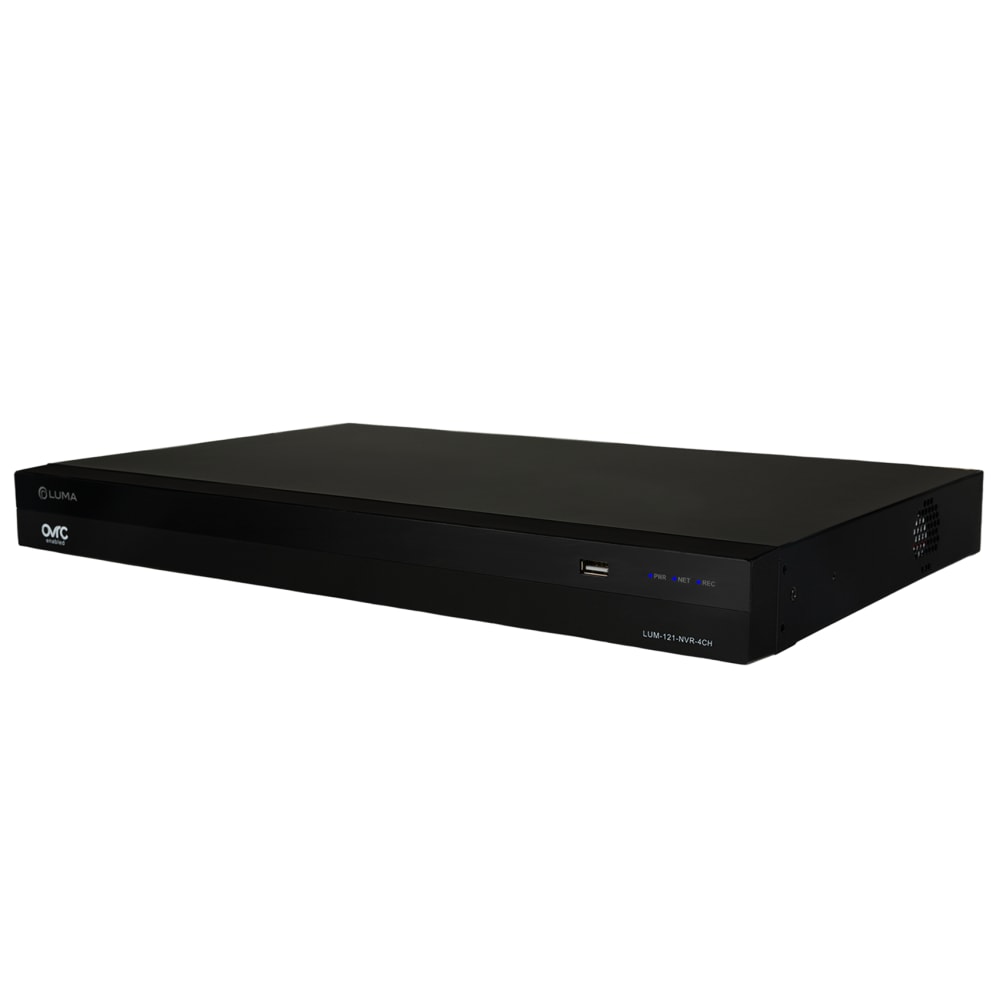

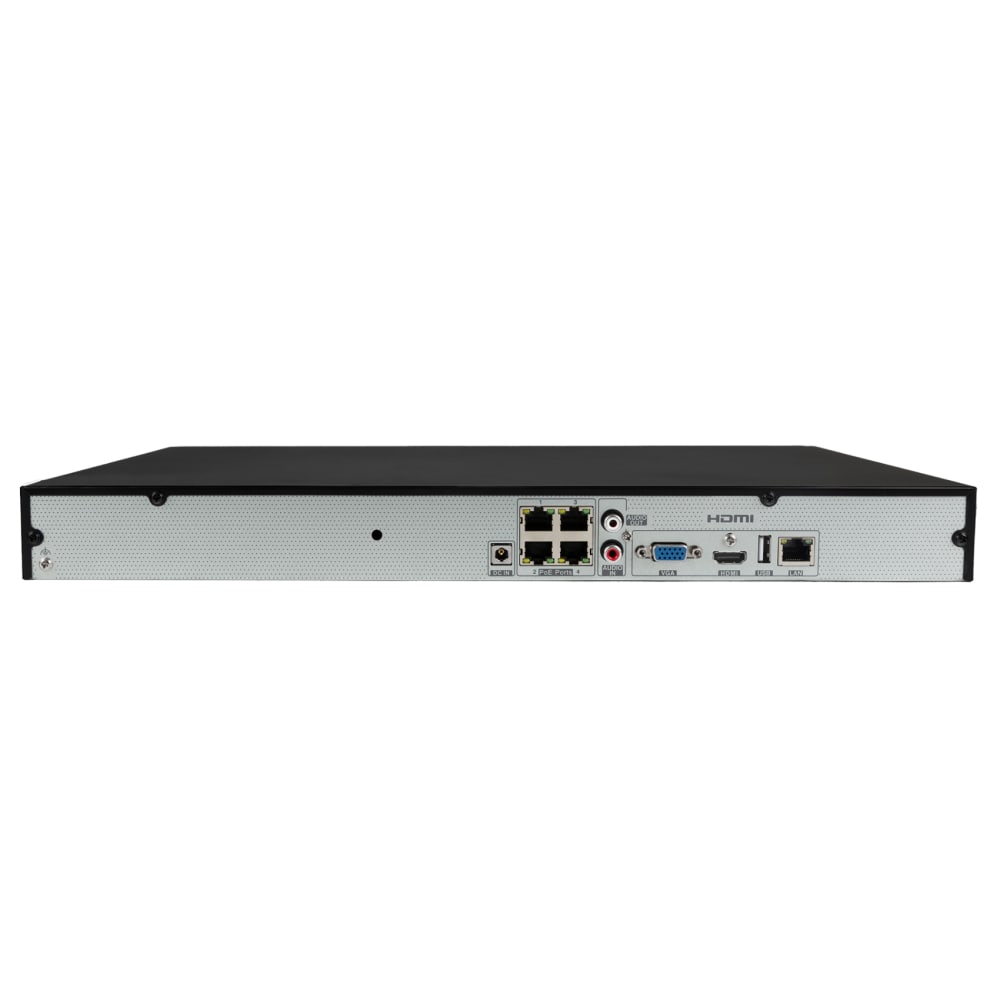

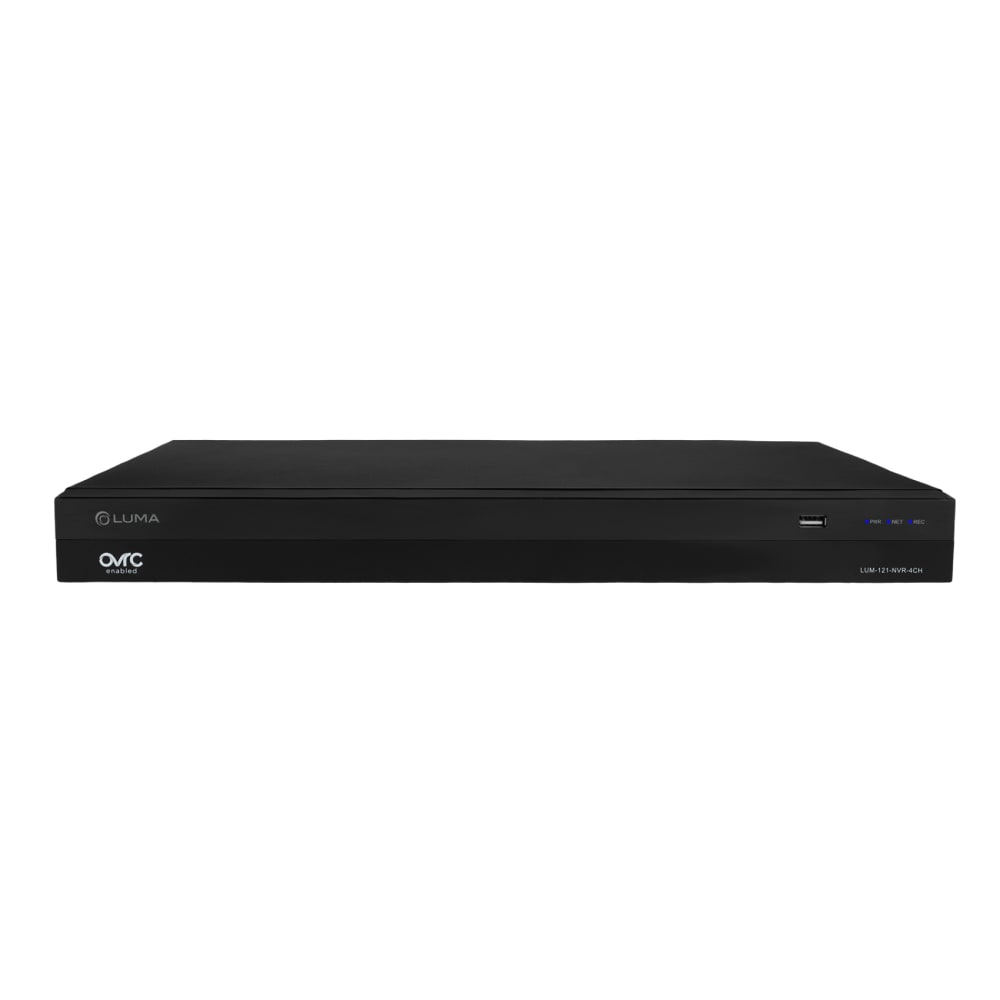

Luma Surveillance™ 121 Series NVR - 4 Channels
The Luma 121 Series 4-Channel NVR delivers enhanced processing power for improved performance and reliability‚ making it an ideal fit for smaller surveillance projects with a straightforward 4-camera setup.
With support for up to 4K video output, 48W of power, and 80 Mbps of both incoming and outgoing bandwidth, this NVR is well-equipped to handle high-quality video streams. It's available in 0TB, 2TB, and 4TB HDD configurations, with storage expansion supported up to 18TB.
Built-in OvrC integration allows for quick setup and seamless remote management. Configure systems, receive real-time outage alerts, and push firmware updates with ease‚ ensuring consistent performance and customer satisfaction.
Fully NDAA-compliant, the Luma 121 Series 4-Channel NVR is an excellent choice for residential and small business installations where reliability, security, and compliance are essential.
Important Note:
This NVR does not support the maximum resolution of the Luma X20 12MP Fisheye Camera (LUM-1220-IP-FE-W).
Do More with the Luma View App
Luma View gives your clients intuitive access to their surveillance system, offering push notifications, lightning-fast video playback, easy sharing and viewing of recordings, 16-channel synchronous playback, activity highlights with AI-filtered events, and more. Luma NVRs also support remote customer handoff via OvrC, allowing you to invite end users to the Luma View app and provide them with additional privacy once the job is complete.
Learn More
Save Time with Easy OvrC Configuration
OvrC enables you to deploy and configure an entire Luma system in a fraction of the time. Adjust event and image settings, set up recordings, enable AI-filtered events, and more‚ all from OvrC's intuitive interface. OvrC doesn't just help with setup, it also let's you remotely manage Luma systems from anywhere in the world.
Learn More
Intelligent Analysis
Find smart motion events anytime‚ even after they occur. With Intelligent Analysis and Luma NVRs, users can now search recorded video for line-crossing or AI-filtered events such as human or vehicle detection. Your customers can quickly filter and view event snapshots, then watch the full recording of the selected event.
Control System Integration
Luma NVRs integrate seamlessly with Control4 and other control systems. View live camera feeds, trigger events within your control system, turn on lights when motion is detected, and more‚ delivering an enhanced automation experience. For additional details, refer to the Support tab.
Learn More
Free Multi-Site Management Software
The Luma View™ Video Management System (VMS) is free downloadable client software for local workstations to connect to large residential and commercial projects, especially those with multiple job sites utilizing Luma X20 products. Supporting full-resolution viewing for up to 256 cameras without the need for browser plug-ins, it enables users to watch live video, review playback, receive event alerts, and even create a custom map of all surveillance locations for instant access.
Learn More
NDAA Compliant & ONVIF Conformant
We have you covered for any job that requires NDAA compliant equipment. All Luma X20 family surveillance solutions are fully NDAA compliant. Luma NVRs are fully ONVIF conformant giving you greater choice and flexibility when designing or updating systems. They also support recording from the Control4 Chime video doorbell and DS2 intercom.
Large Capacity Storage
Supports up to 18TB single HDD to maximize video storage and the number of days for recording.
Rack Mountable

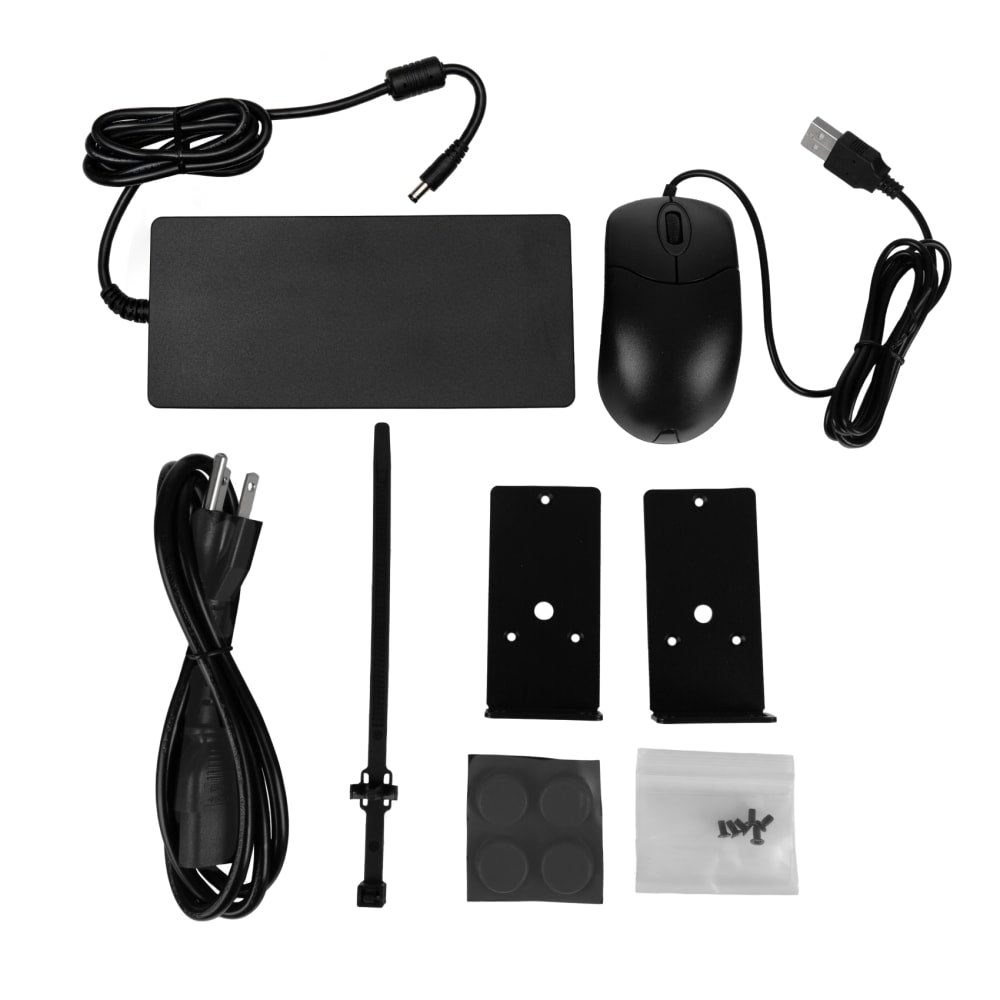

This NVR is 1U in size, making it a perfect fit for any rack‚ delivering maximum performance while occupying minimal space. It includes rackmount ears for easy installation.
Security Updates
For product and companion application until at least March 1st, 2031. For more information on our End of Life Policy and support see here.
