LUMARIS RGB+ TUNABLE WHITE 1.8-4K LED TAPE LIGHT, 98.4FT

Description

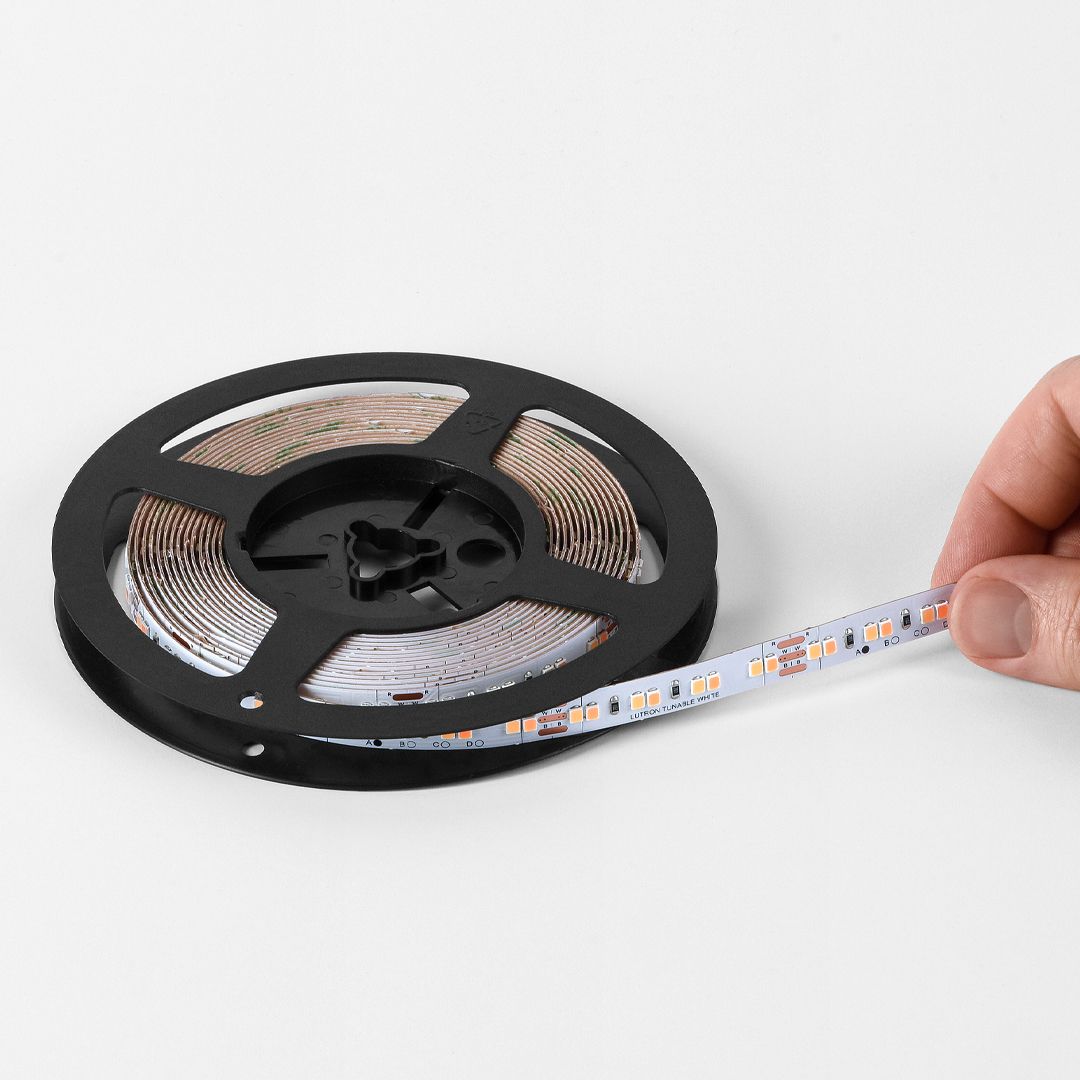

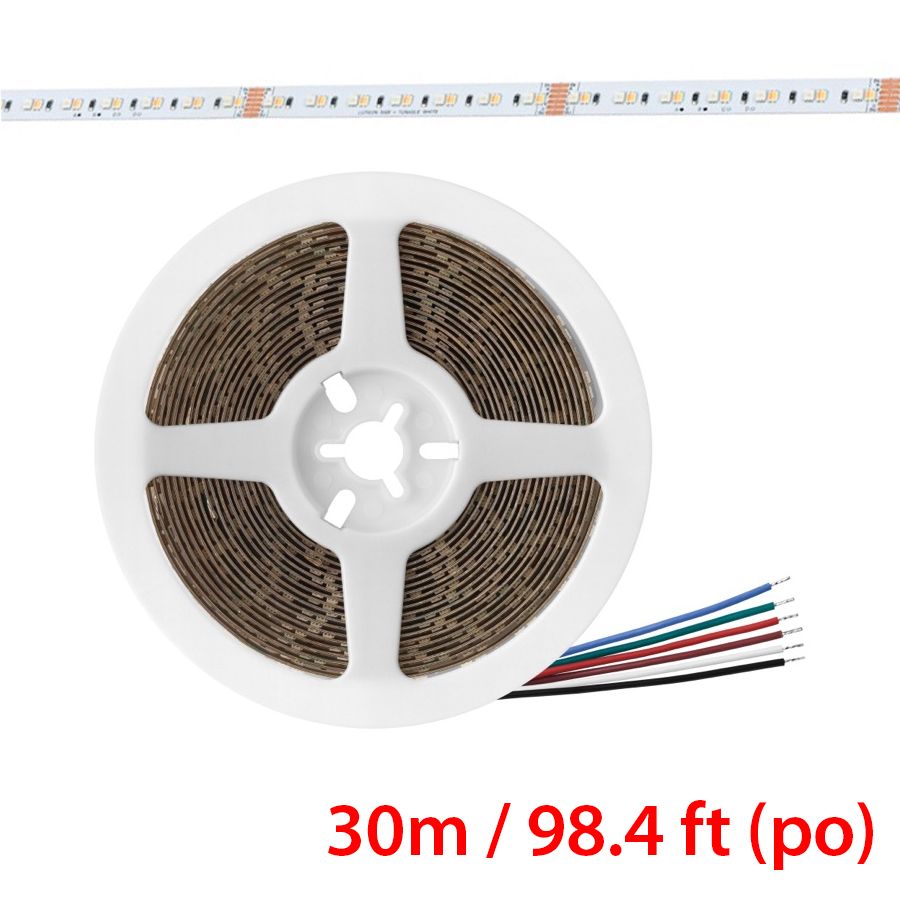

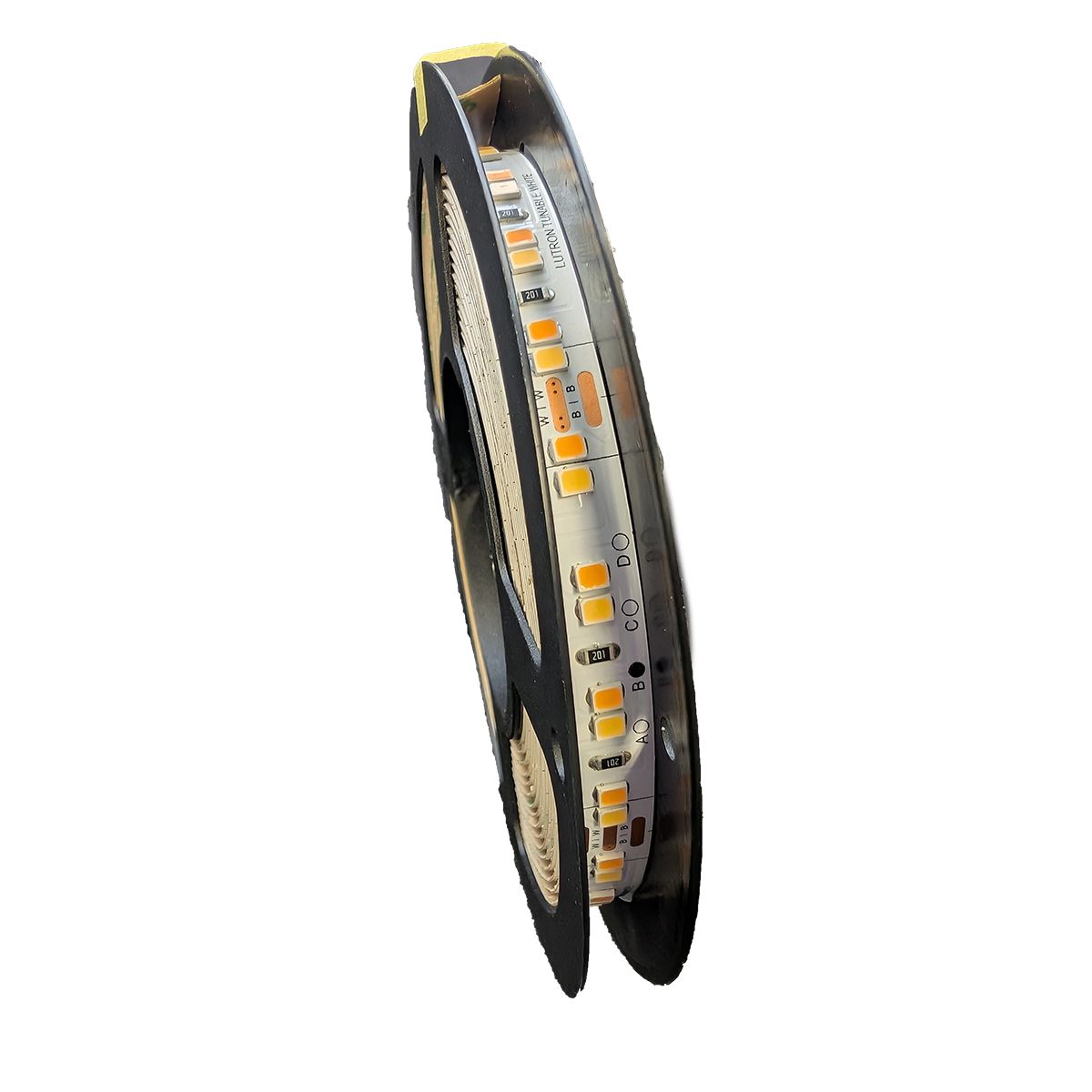

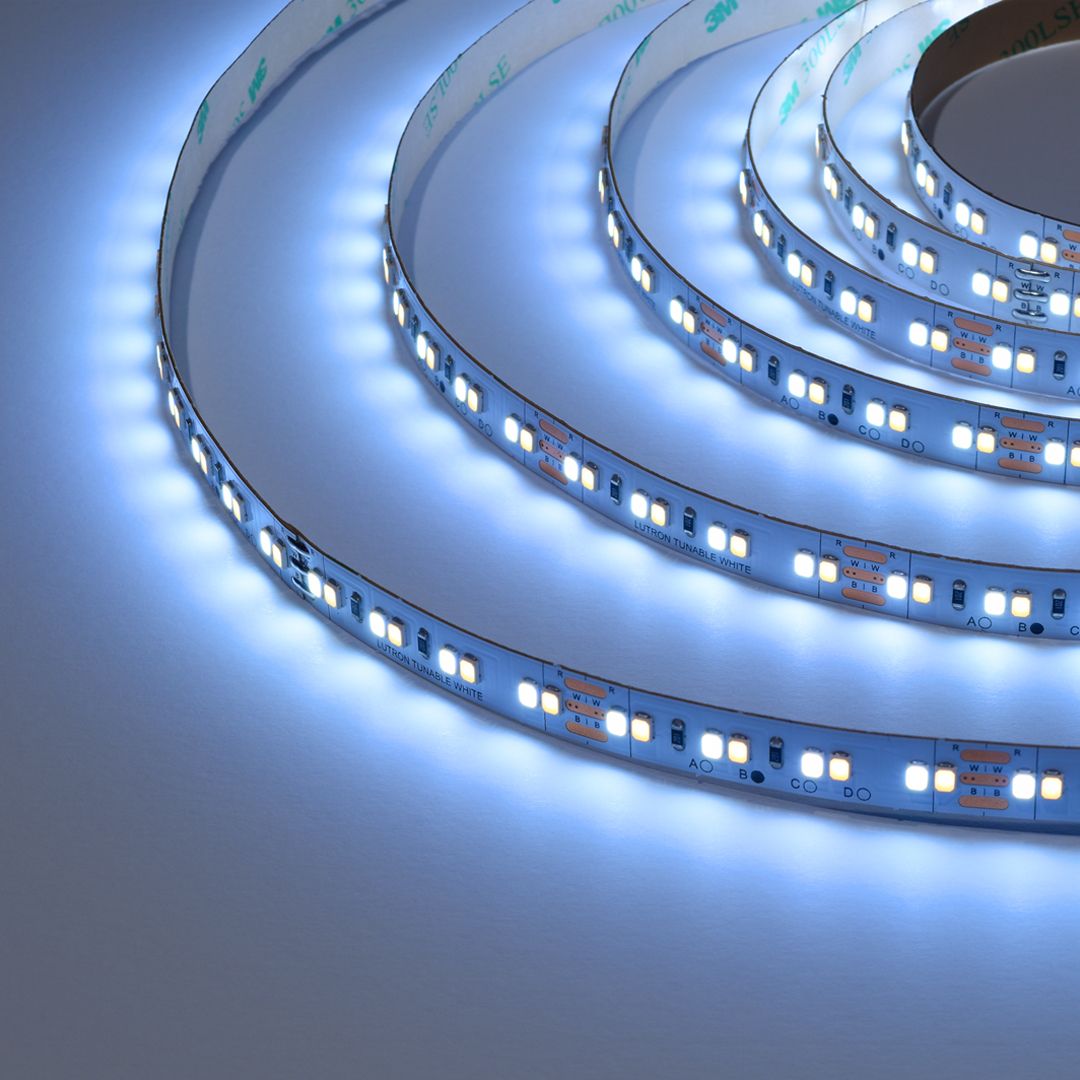

RGB + Tunable White LED Tape strip (RGB, 1800 K – 4000 K) - Roll of 30m / 98.4ft

Requires:

• Controller:
  • LU-RRL-MWCL-WH
    • Maximum Total Tape Length per Controller: 32.8 FT (10m) (Must be split into parallel runs, each no more than 16.4 ft (5 m), see spec sheet for details: https://assets.lutron.com/a/documents/3691301_eng.pdf
• Power:
  • LU-LU-PH3-A   (Power Interface with 3 barrel-to-terminal adapters)
    • or
  • LU-LU-PH3-B   (Power interface with flying leads)
• Wiring and Mounting Hardware

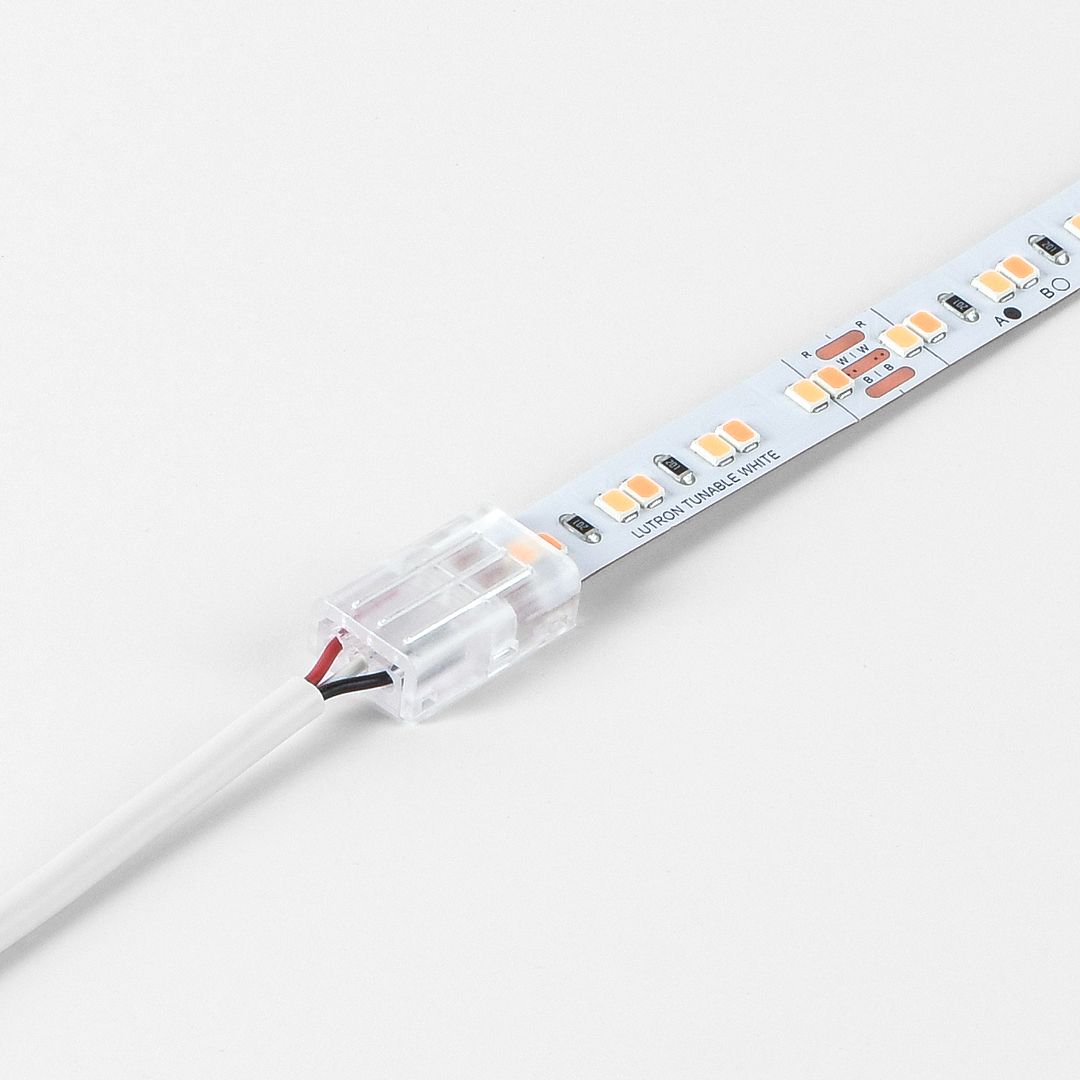

  • LU-LU-CK1-6W   (6-pin wire-to-tape connectors (qty 10)
  • LU-LU-WK1-6W   (6 x 22 AWG cable - 50 ft (15.2m)
  • LU-LU-MK1 (0.394 in (10mm) surface mounting clips (qty 20)
• LED Tape Extrusions
  • LU-LU-SR1-K, LU-LU-SR2-K, LU-LU-SR3-K*, LU-LU-45S-K, LU-LU-45T-K, LU-LU-RR1-K*, LU-LU-MI1-K
    • * SR3 and RR1 extrusions do not fit the 6-pin wire/tape connectors. Connections inside the SR3 and RR1 must be through the reel's pre-soldered wire

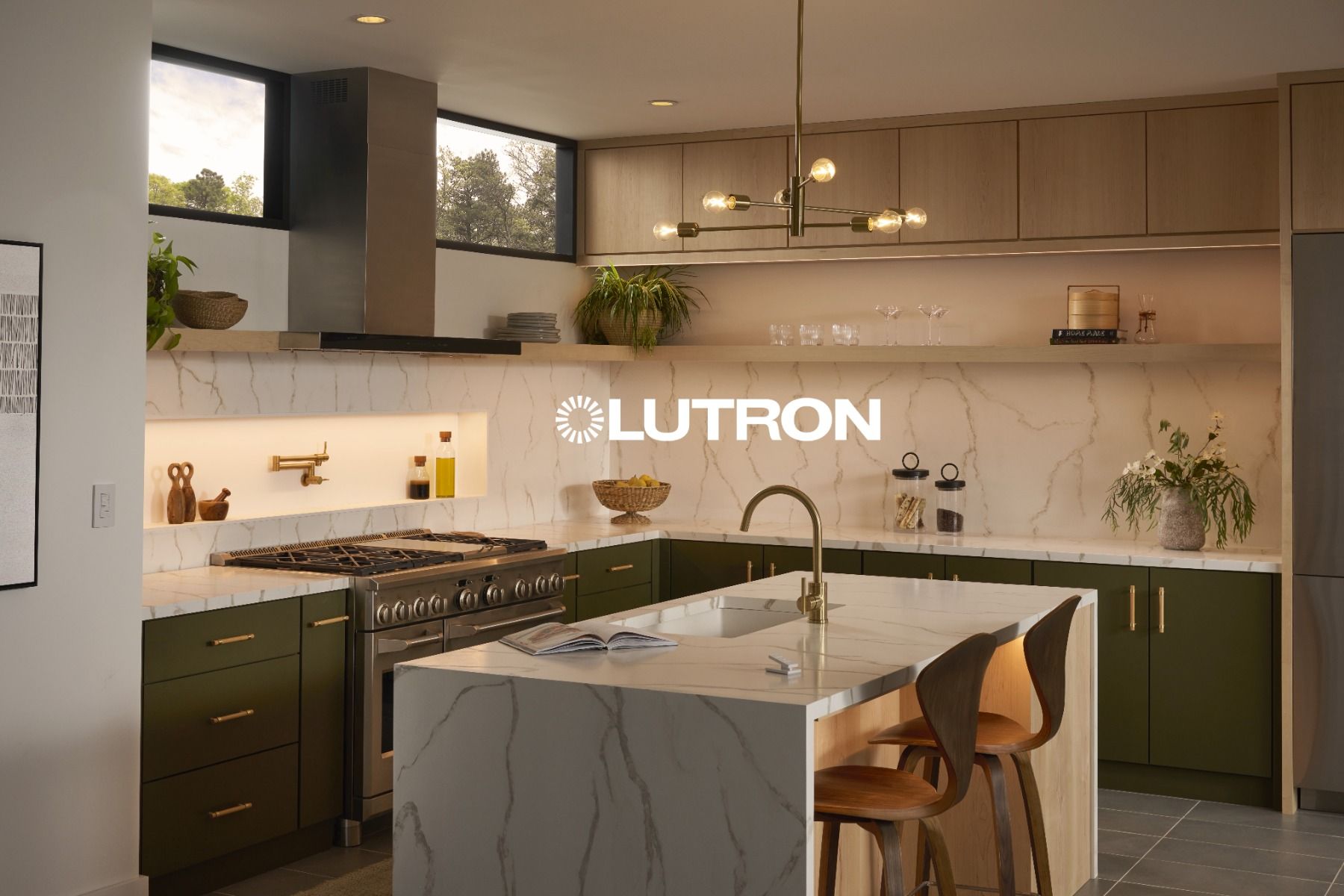

Lutron’s tape light solution enhances scene control, providing a simple and seamless way to integrate accent lighting into connected home projects.

Powered by ultra-reliable Lutron Clear Connect–Type X wireless technology, Lutron tape light controllers seamlessly integrate with the Lutron platform, including controls, apps, programming software, and Lutron Connect cloud services.

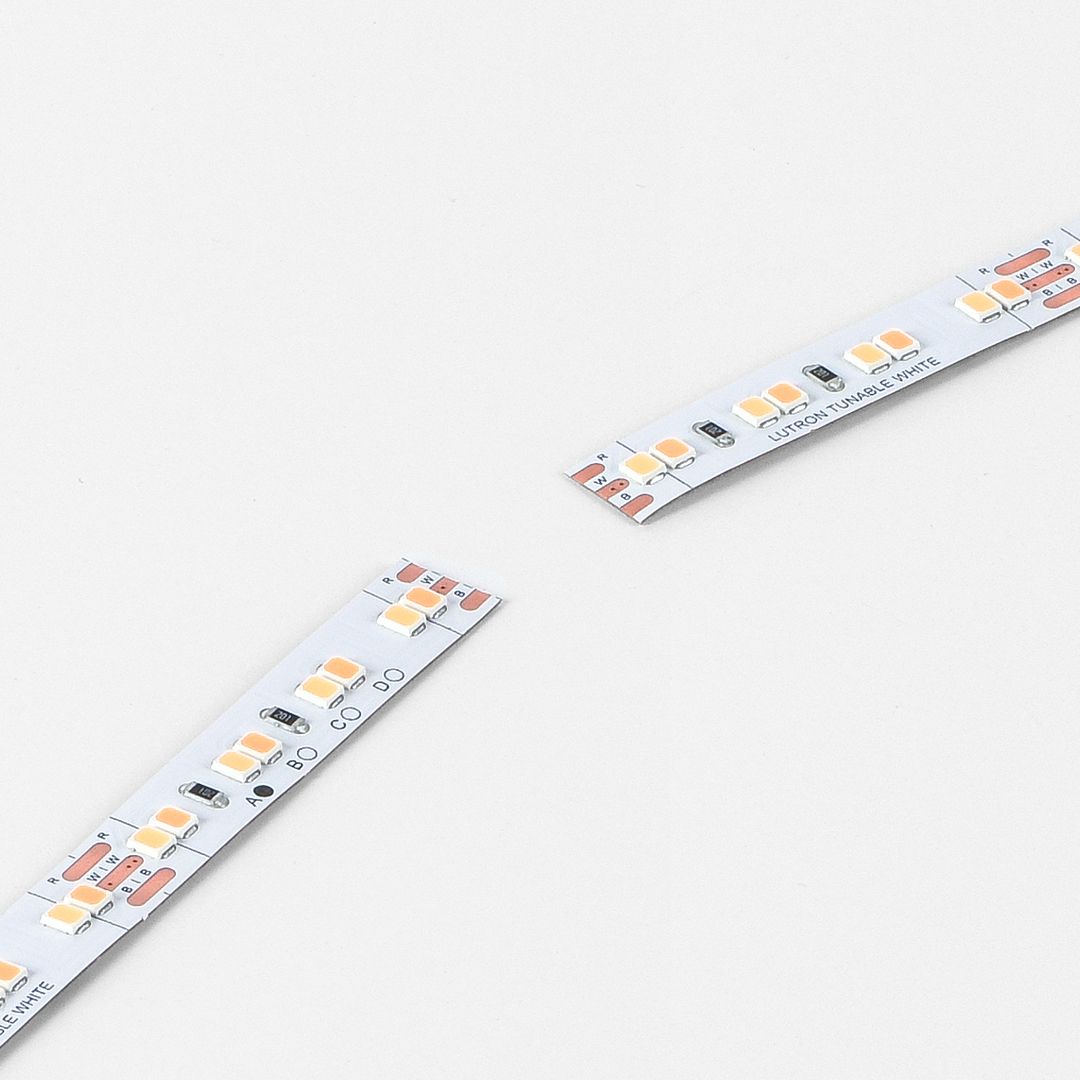

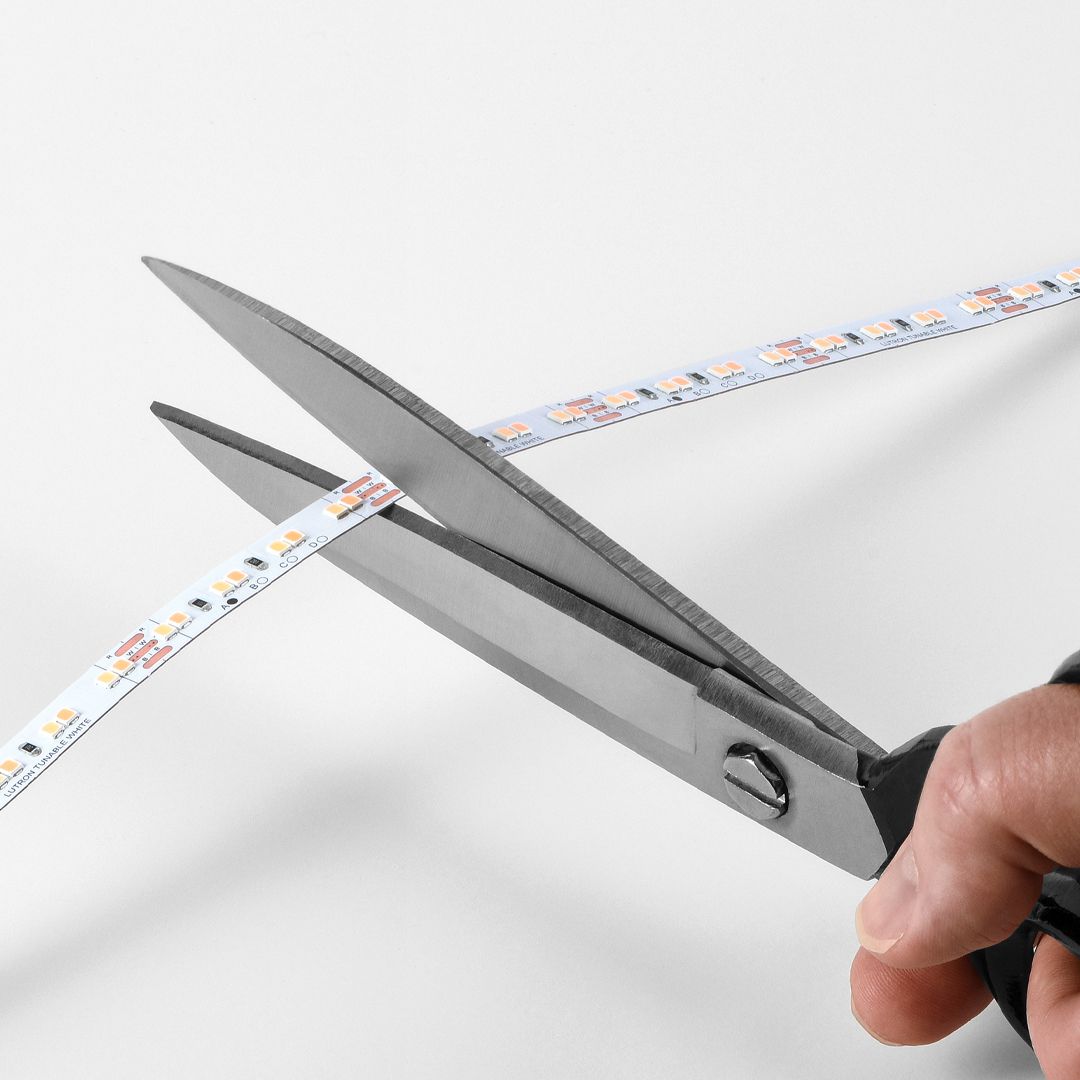

A complete Lutron tape light system includes field-cuttable LED tape, a wireless controller with built-in LED drivers, high-reliability punch connectors, dedicated wiring, and a power supply or interface. For optimal performance and aesthetics, install the tape light within Lutron LED tape extrusions.
