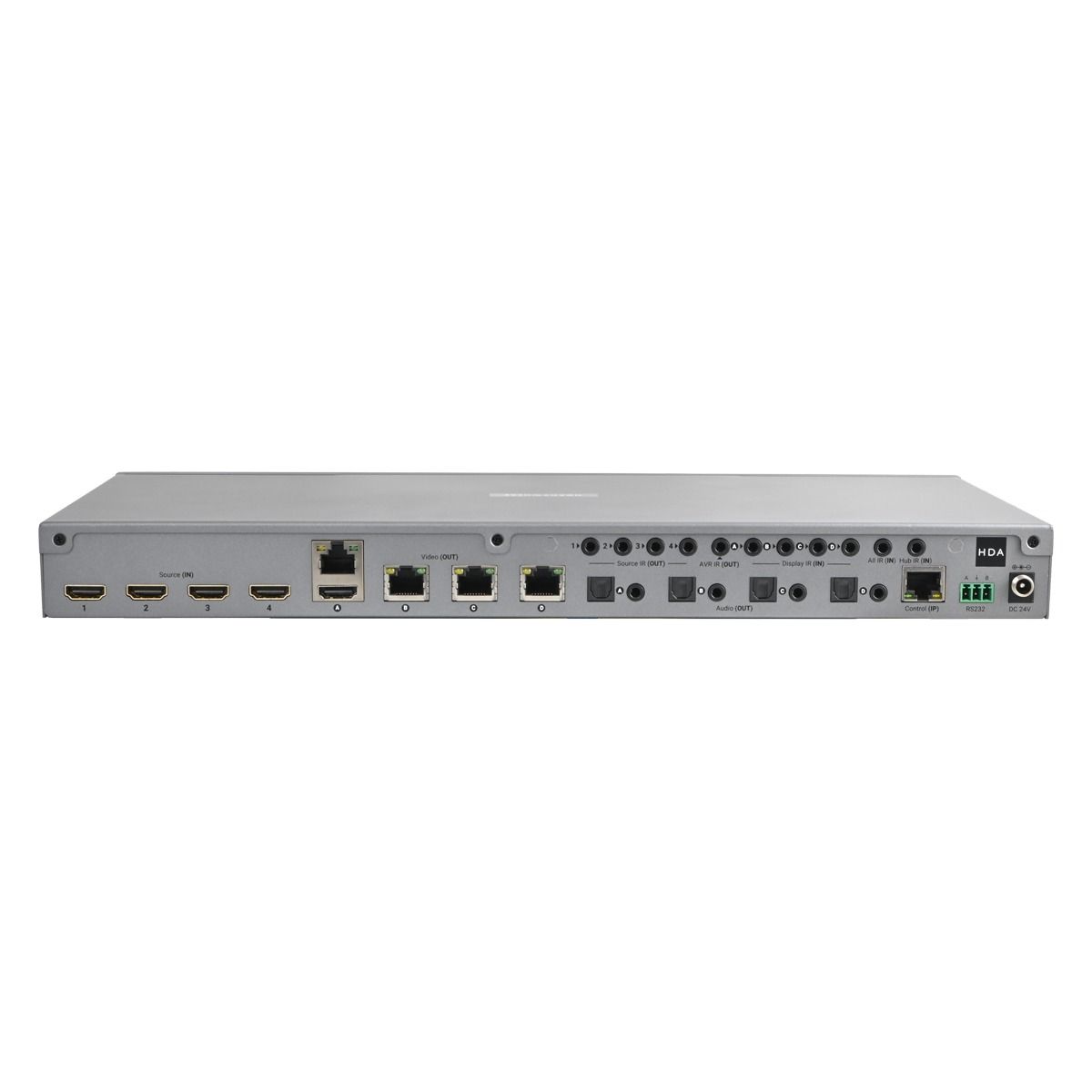

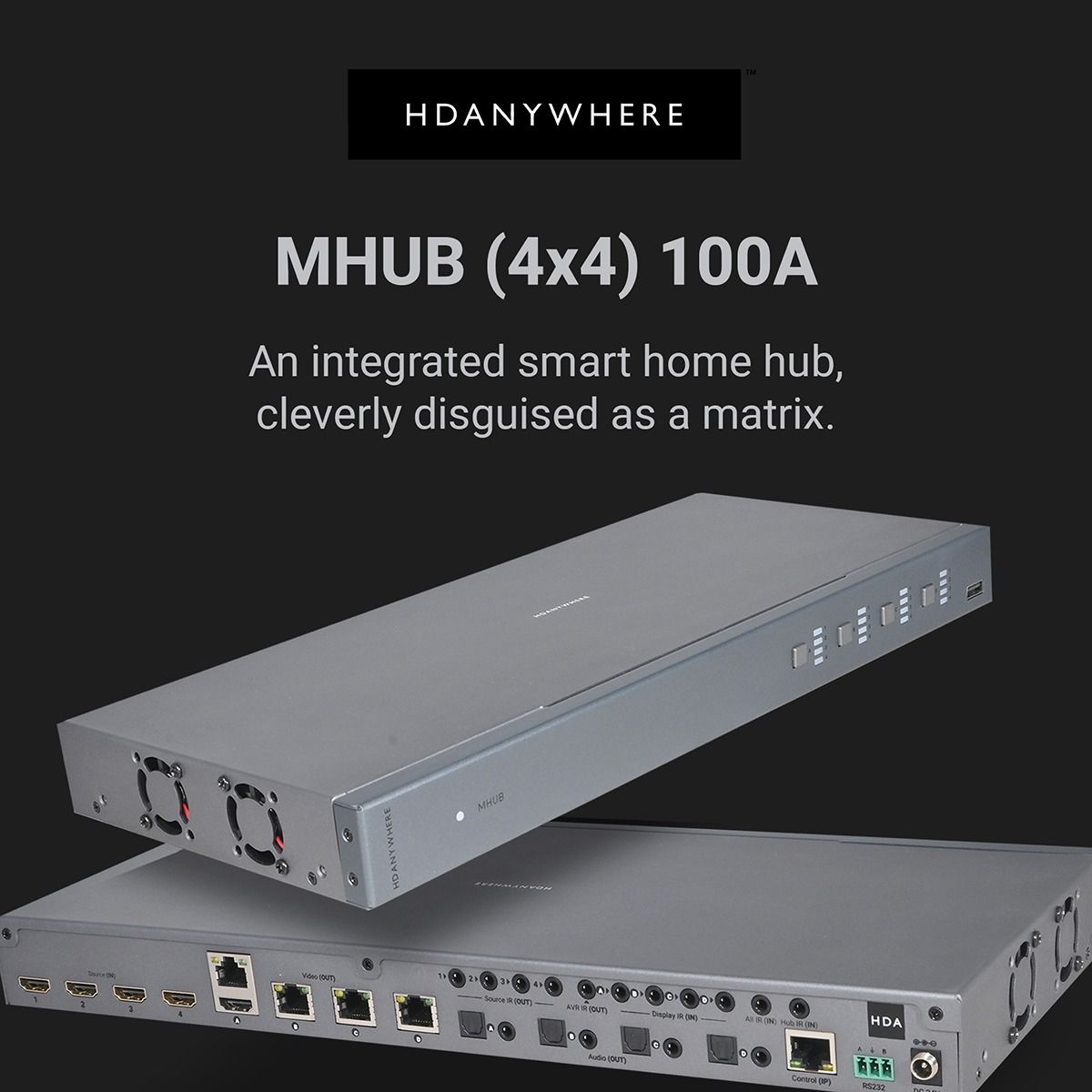

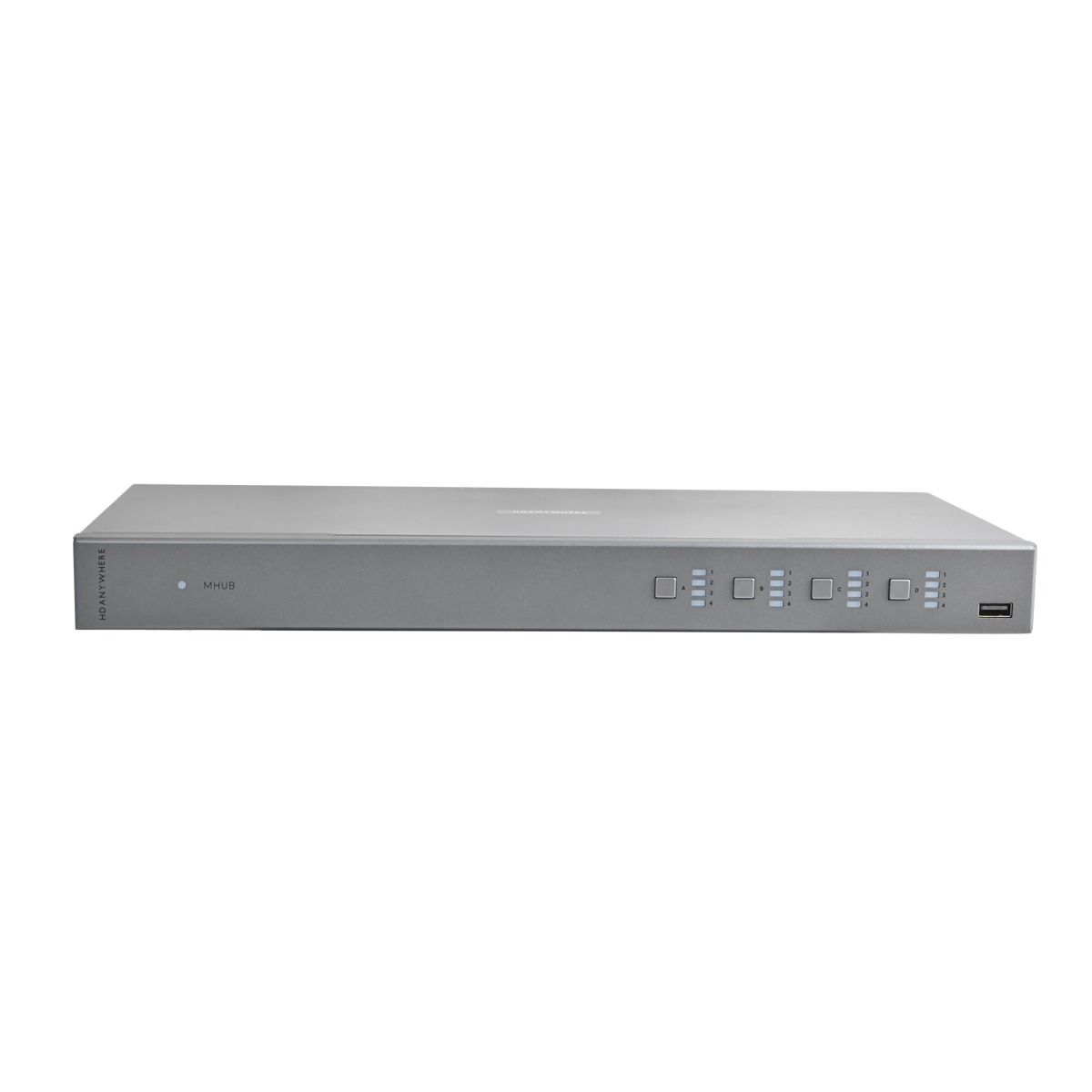

MHUB 4 Zone AV Control Hub (4 x 4 UTP 100M +1 HDMI Mirror)

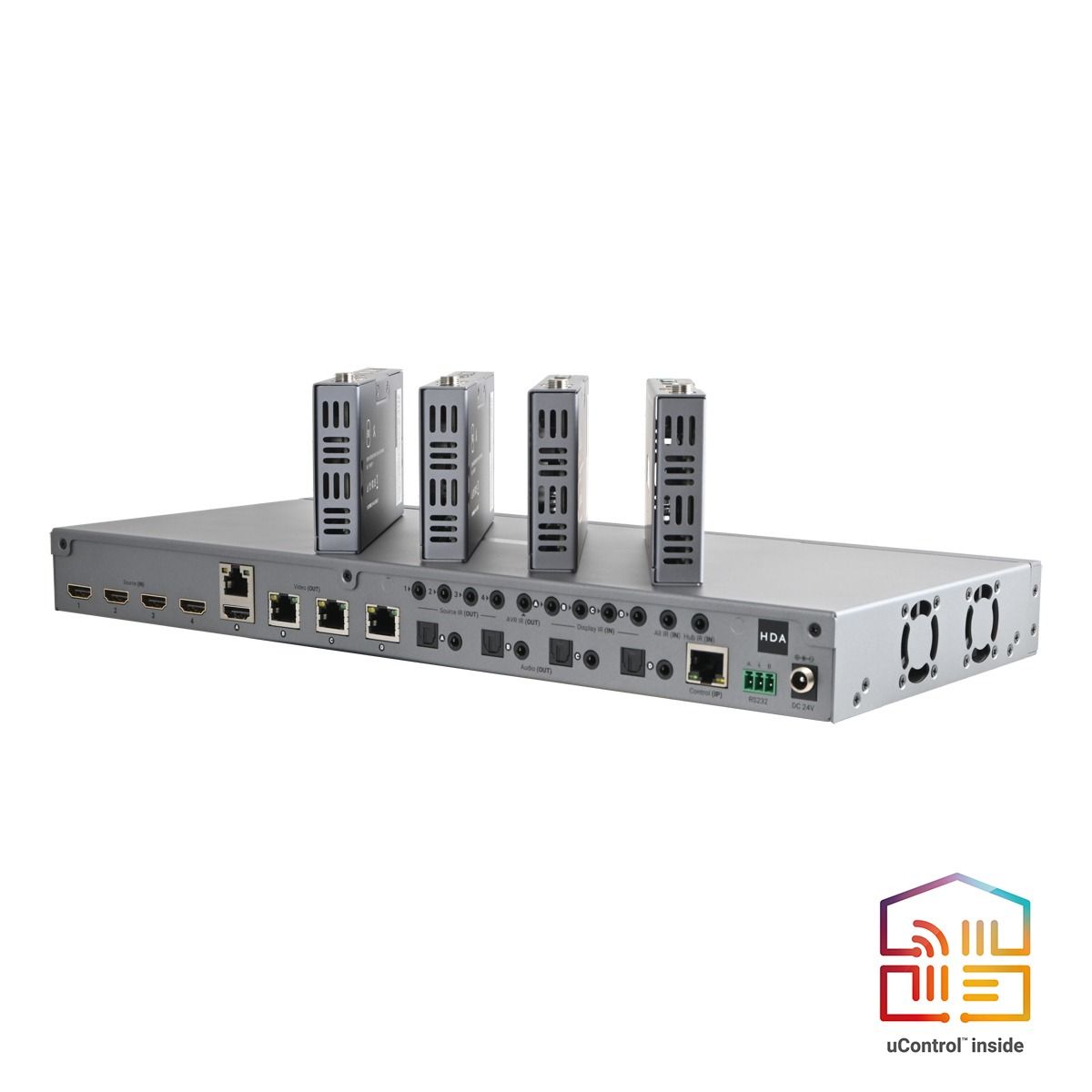

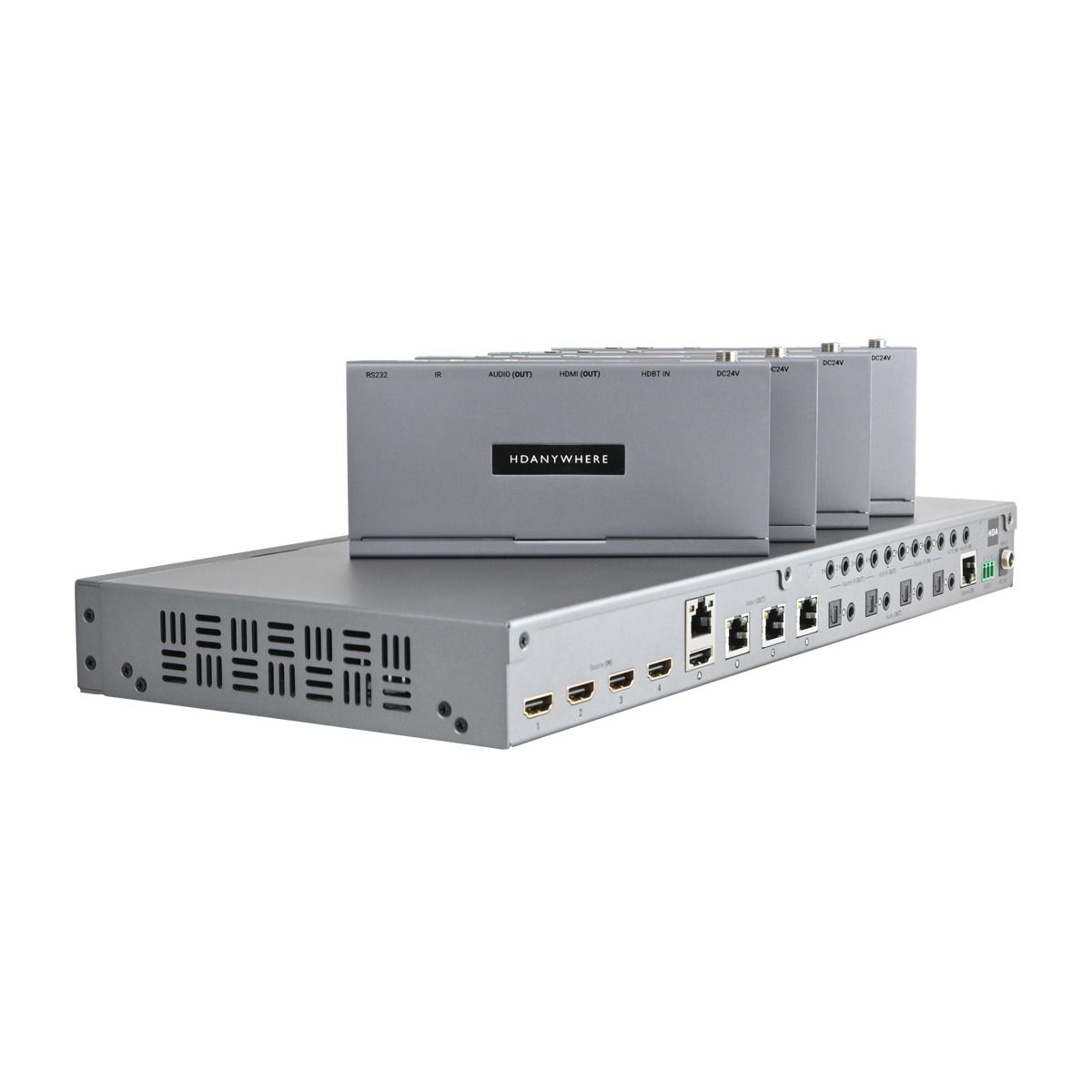

Multi-award winning AV distribution systems with uControl™. An integrated smart home hub, cleverly disguised as a matrix. All MHUB systems are sold with all display receivers and IR cabling included.
MHUB with uControl is an all-in-one solution for pubs, bars, gyms, and workspaces. Keep everyone informed with breaking news and create a vibrant atmosphere with live sports and entertainment that keeps your audience engaged. All managed through a centralised, user-friendly system that simplifies operations and enhances the customer experience.
Simplify staff workflows.
uControl puts your team confidently in command to manage AV, lighting, and audio with ease, from a single, intuitive interface - reducing training time and enabling faster service.
Streamlined & tidy.
With centralised sources and consolidated hardware, MHUB with uControl eliminates remotes, messy cabling, and box clutter - making installations faster, cleaner, and more straightforward.
Reliable & scalable.
Built to grow with your business. MHUB with uControl supports up to 160 displays. With dedicated UK support and a 5-year warranty*, it’s a system you can rely on now and in the future.
-
Control: 4 Zones (uControl inside)
-
Inputs: 4x Video
-
Outputs: 4x HDBaseT | 2x HDMI Mirror
-
Audio Outputs + Control: 4x Stereo/Optical Mirror
-
Range: 100m / 328ft (4K)
-
Warranty: 2 Years (can be extended to 5 Years if registered on HDA Cloud within 30 days of First Boot date.)
Features
- Supports formats up to 4K@60Hz (4:4:4)
- HDR, HDR10, HDR10+, Dolby Vision* and HLG

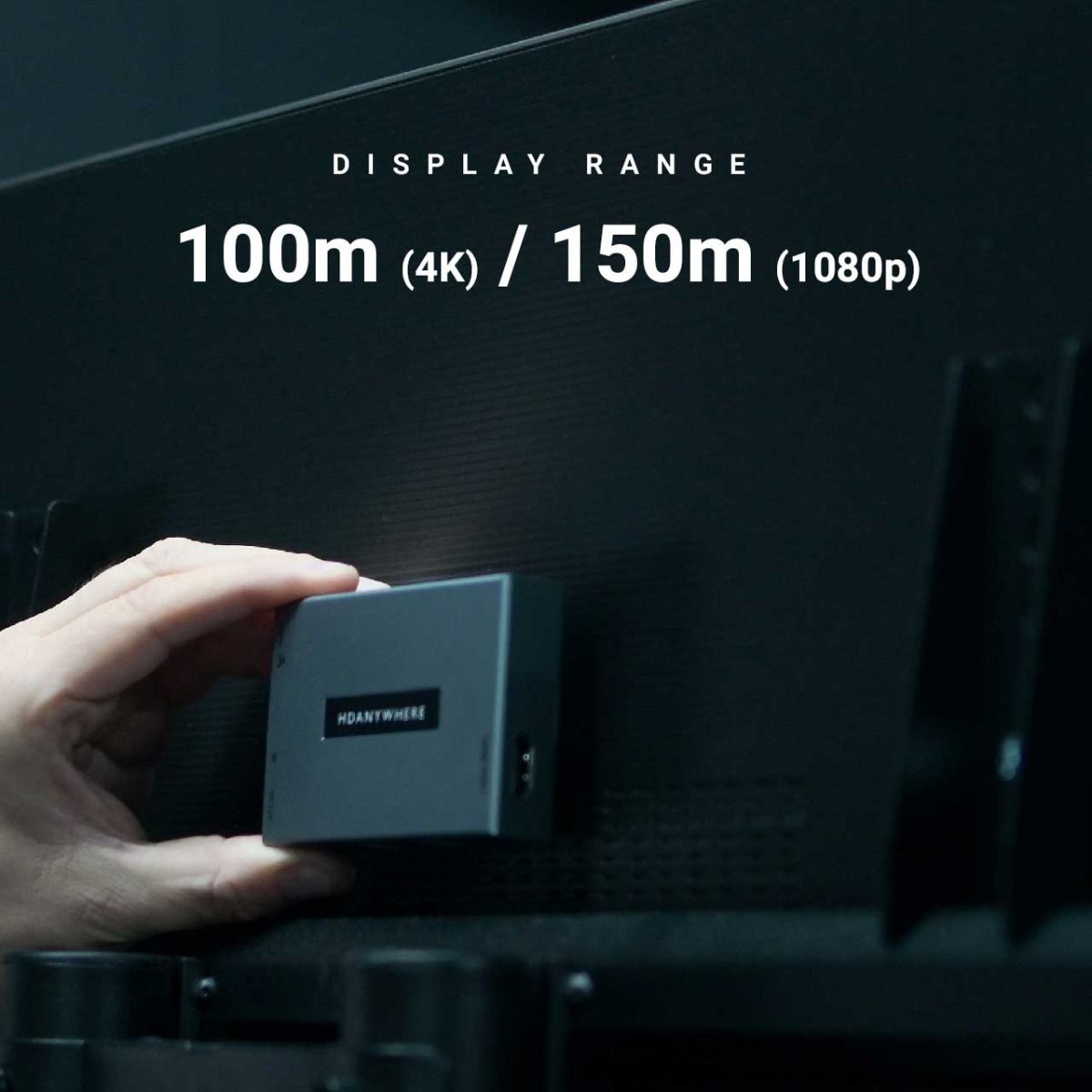

- 100m range (4K), 150m range (1080p)
- Down scaling on all outputs
- Multi-channel digital audio support up to and including Dolby/Atmos and DTS:X
- HDMI Output Mirrors
- Video source or zone audio extraction modes

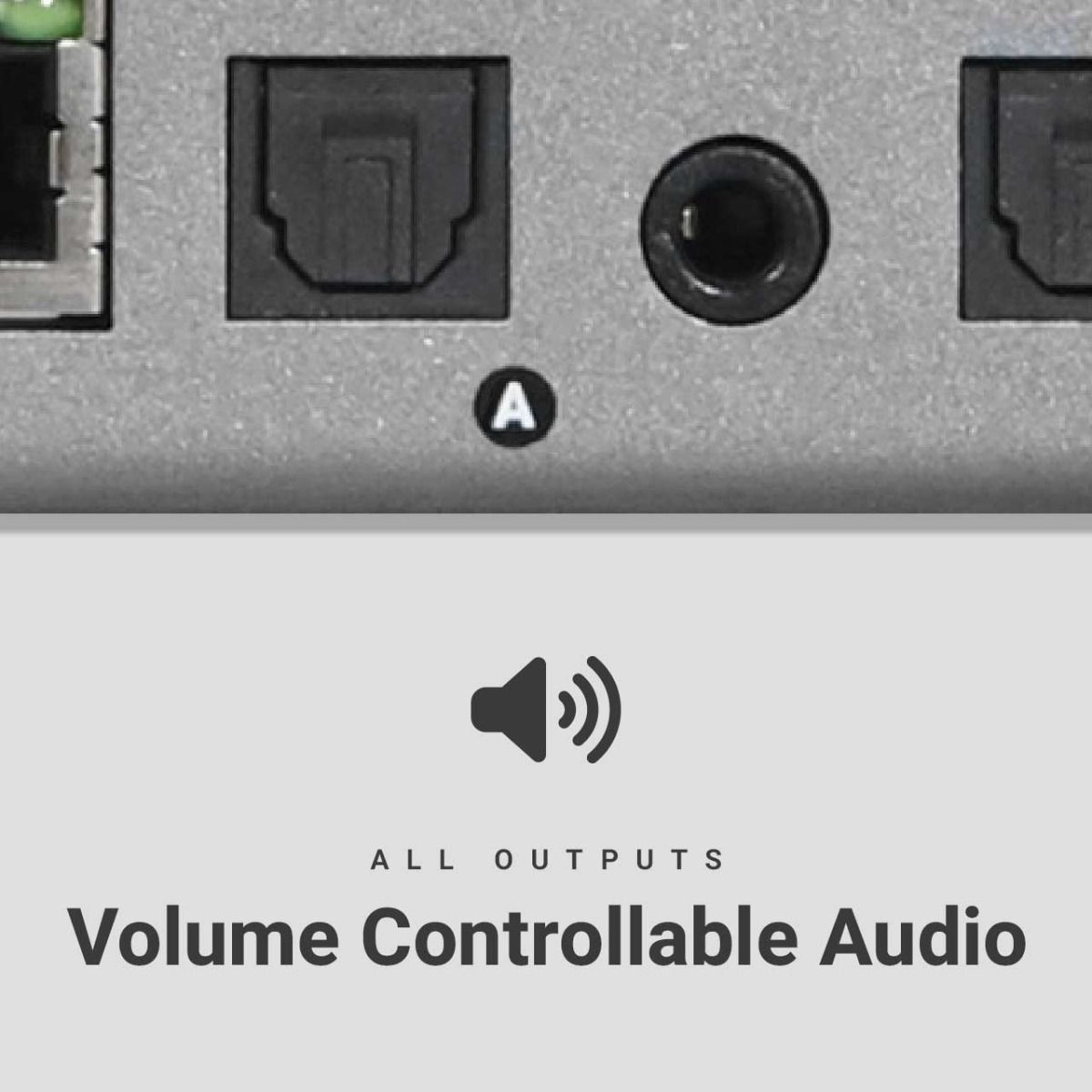

- Line-level (Pre-Out) volume control
- Adjustable output gain from -12dBu to +12dBu in 1dB steps
- Bi-directional IR
- Expanded IO capability (API pass through of IR and RS232 data)
- CEC Display control***

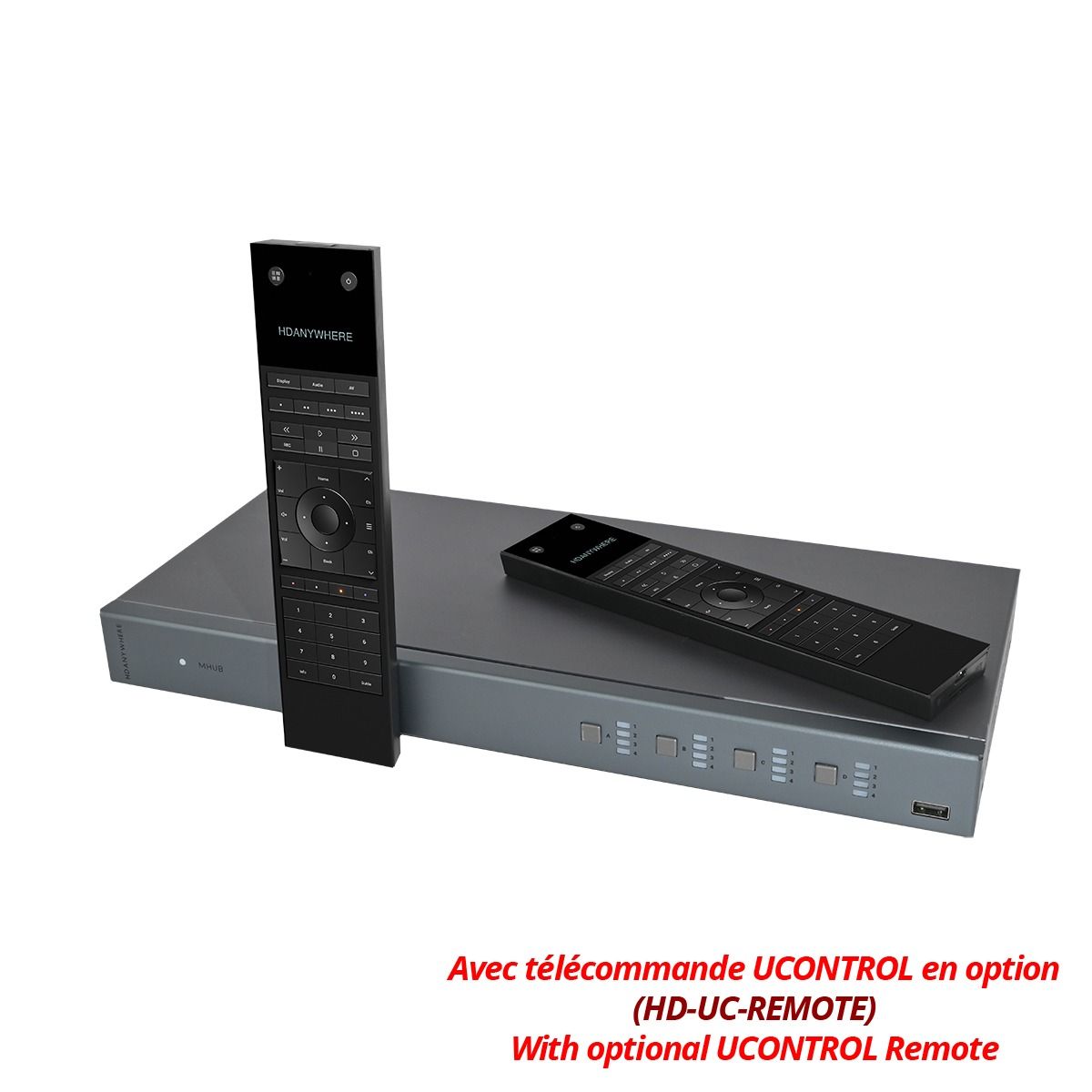

- Works with uControl™ Remote
- Remotely manageable
- 2 Year Warranty (+1 with HDA Cloud Registration)
- MHUB44100A contains cooling fans that generate noise as it ventilates the system. If possible, avoid installing in places where this noise might be unwanted or could be amplified to an unacceptable level (e.g hollow/closed cupboards).
