MHUB PRO 2.0 4 Zone AV Control Hub (4 AV x 4 UTP 40M)

Description

MHUB PRO 2.0 4 Zone AV Control Hub (4 AV x 4 UTP 40M)

Designed to address the needs of a contemporary AV install, MHUB PRO 2.0 is fully HDMI 2.0 compatible, equipped with 18G HDMI interfaces and backplane to support Ultra HD 4K/60 (4:4:4) with HDBaseT 2.0 technology to transmit 4K to displays up to 40 metres away over a single Cat6 cable with no latency. Versatile integrator-centric functions include an internal video scaler, which can fix certain video zones at 1080p, without affecting higher 4K resolution zones, so that every display is always performing at its best. Audio can be ‘grabbed’ from either the source or display via HDMI-ARC, and an internal 12x4 independent audio matrix switcher offers flexible routing of the grabbed audio, with volume and delay adjustments to make managing audio easy for connection to amps, active speakers, soundbar etc.

• Control:  4 Zones (uControl 2016 app)
• Inputs:   4x Video | 4x Audio | 4x ARC
• Outputs:  4x HDBaseT/Mirror | 4x Audio
• Audio Outputs:   4x Stereo | 4x Optical
• Range:   40m / 131ft (4K)
• Warranty:  2 Years (can be extended to 5 Years if registered on HDA Cloud within 30 days of First Boot date.)

Features

• 18G (600MHz) HDMI® 2.0 and HDCP 2.2 compatible
• Supports source content up to and inc. Ultra HD 4K 60 4:4:4 with High Dynamic Range (HDR) formats inc. Dolby Vision®
• Supports all current audio formats including Dolby Atmos® and DTS:X®
• HDBaseT 2.0 with PoH
• Internal video scaling (4K>1080p on every output)
• Internal 12x4 audio matrix switcher with flexible grabbing audio (source or display HDMI- ARC) via digi coax, or audio downmix via stereo jack
• Internal uControl IO expander universal controller
• Control paths via TCP/IP, two-way IR and RS232
• Backlit fade in/out touch panel controls
• App/web GUI for easy config (MHUB-OS) with remote management (HDA Cloud)

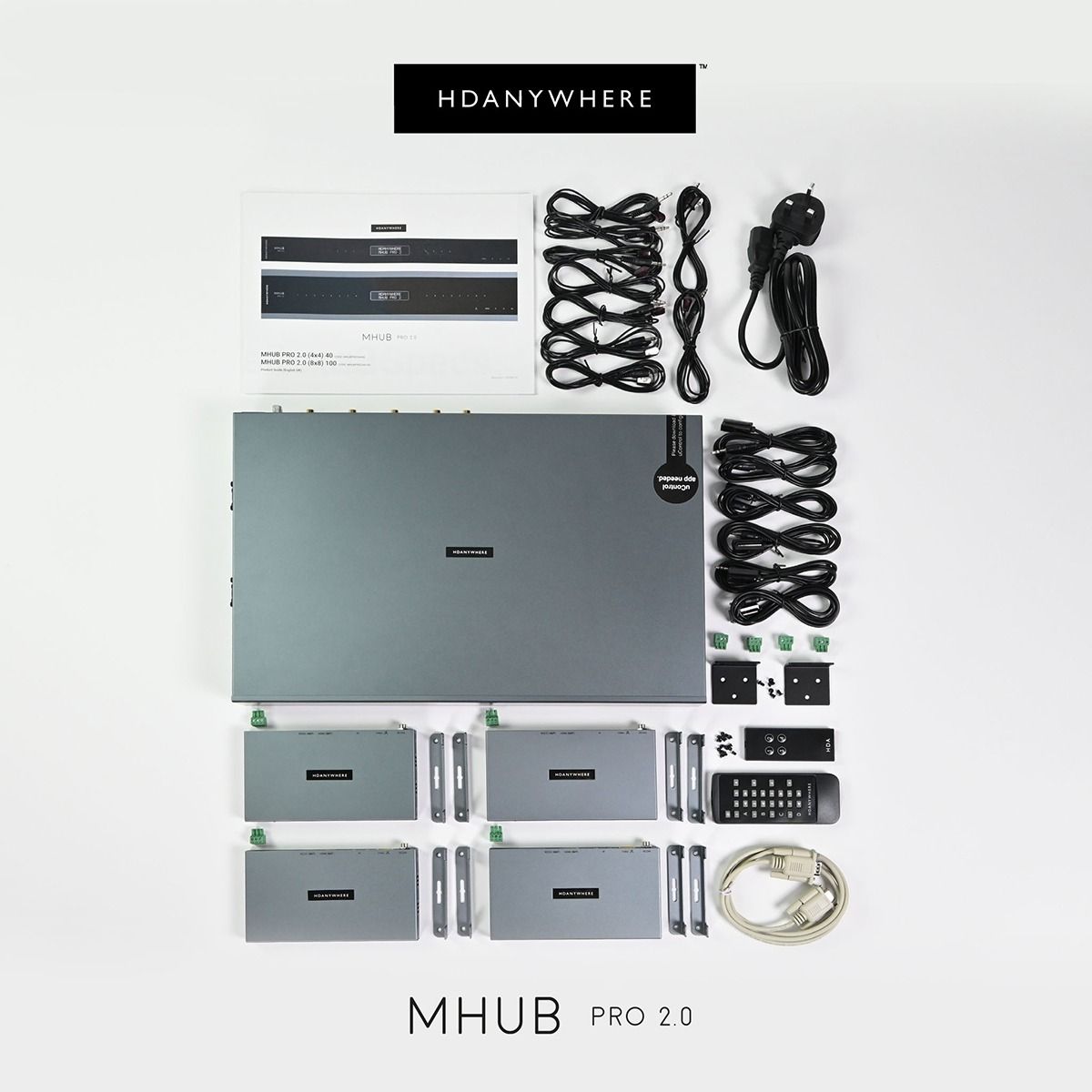

• Sold as a complete install package, with all receivers,IR cables and mounting kit included.
