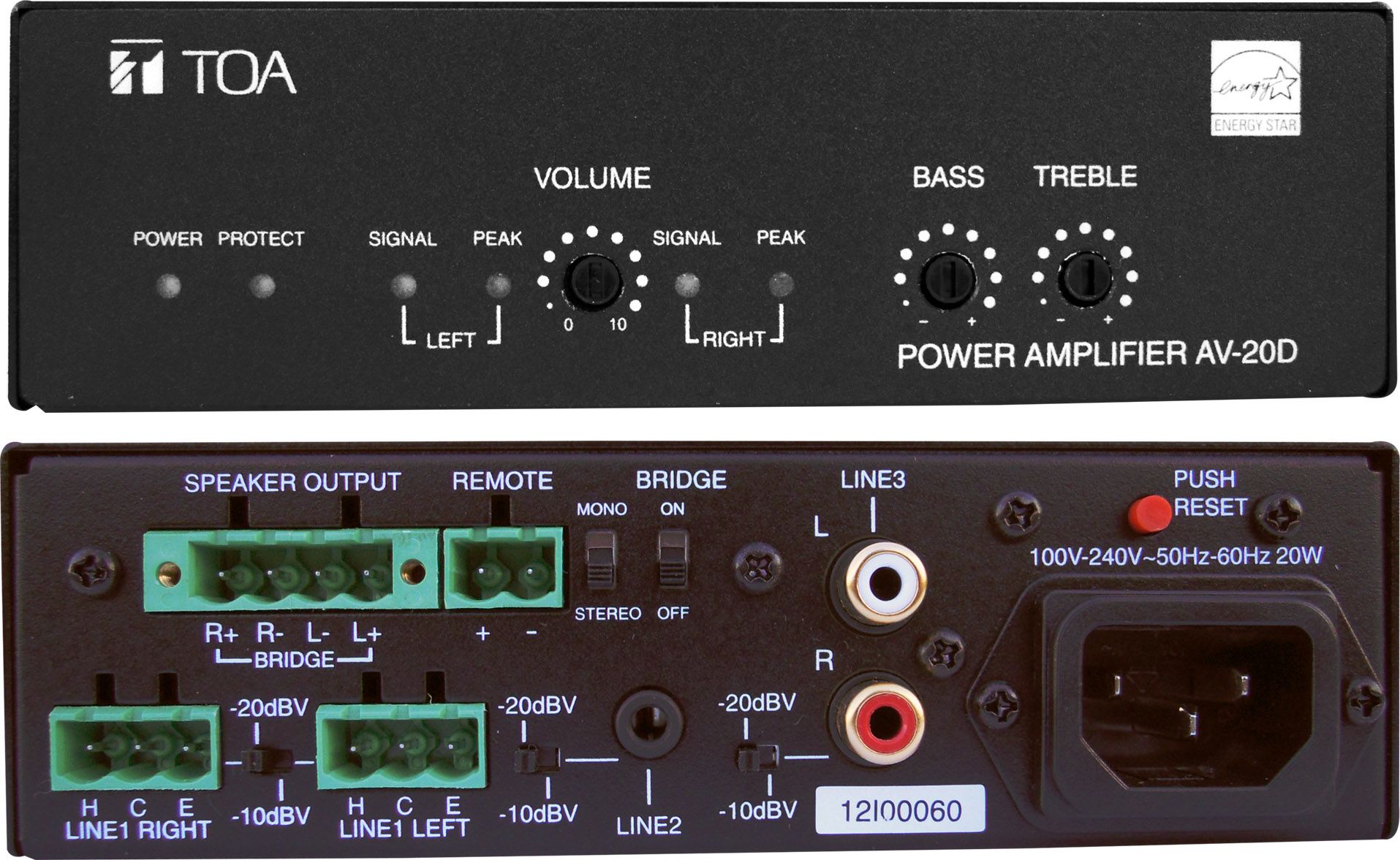

The AV-20D Micro Amplifier introduces a new standard in small amps for plenum use. With ultra-compact size, a flexible compliment of inputs and power configuration, control features and carrying both UL2043 and Energy Star 2.0 certification, the AV-20D is an ideal choice for corporate meeting rooms, POS/signage, and kiosks or any place where space and placement limitations are a factor.
Specifications
*0 dB - 1 V
| Power Source | 100V-240V AC, 50Hz/60Hz |
| Rated Output | 15W x 2 @ 8 Ohms, 20W x 2 @ 4 Ohms, 40W x 1 @ 8 Ohms (Bridge) |
| Power Consumption | 63W |
| Idle Power Consumption | <6 Watt |
| Power Consumption in Power Saving Mode | <1 Watts |
| Frequency Response | 20Hz to 20KHz ±3dB (Line1 input with transformer:100Hz to 20KHz) |
| Total Harmonic Distortion | Less than 0.15% |
| Input |
Line 1: -10/-20dB* (selectable), 10 K ohms, transformer-balanced, removable terminal block Line 2: -10/-20dB* (selectable), 10 K ohms, unbalanced, 3.5mm stereo jack Line 3: -10/-20dB* (selectable), 10 K ohms, transformer isolated unbalanced, RCA jacks |
| Output | Speaker output, removable terminal block (4P) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ± 10dB at 10 kHz |
| Controls | Master volume control Remote volume control Bass tone control, Treble tone control Bridge ON/OFF switch Mono/Stereo switch Input sensitivity switches (Line 1, Line 2, Line 3) |
| Indicator | Power LED, Protection LED, Signal LED, Peak LED |
| Other Feature | Automatic Level Control, Thermal/Over-current protection |
| Operating Temperature | -10 to 40°C |
| Case | Black metal case |
| Dimensions | 150 (W) x 44 (H) x 156 (D) mm (5.9” x 1.73” x 6.14”) |
| Weight | 1 kg (2.2 lb) |
| UL Standards | UL 2043 |
| Accessories | 1/2” EMT adaptor plate |
| Optional Accessories | WPB-20, MB-AV20RM |
