Description

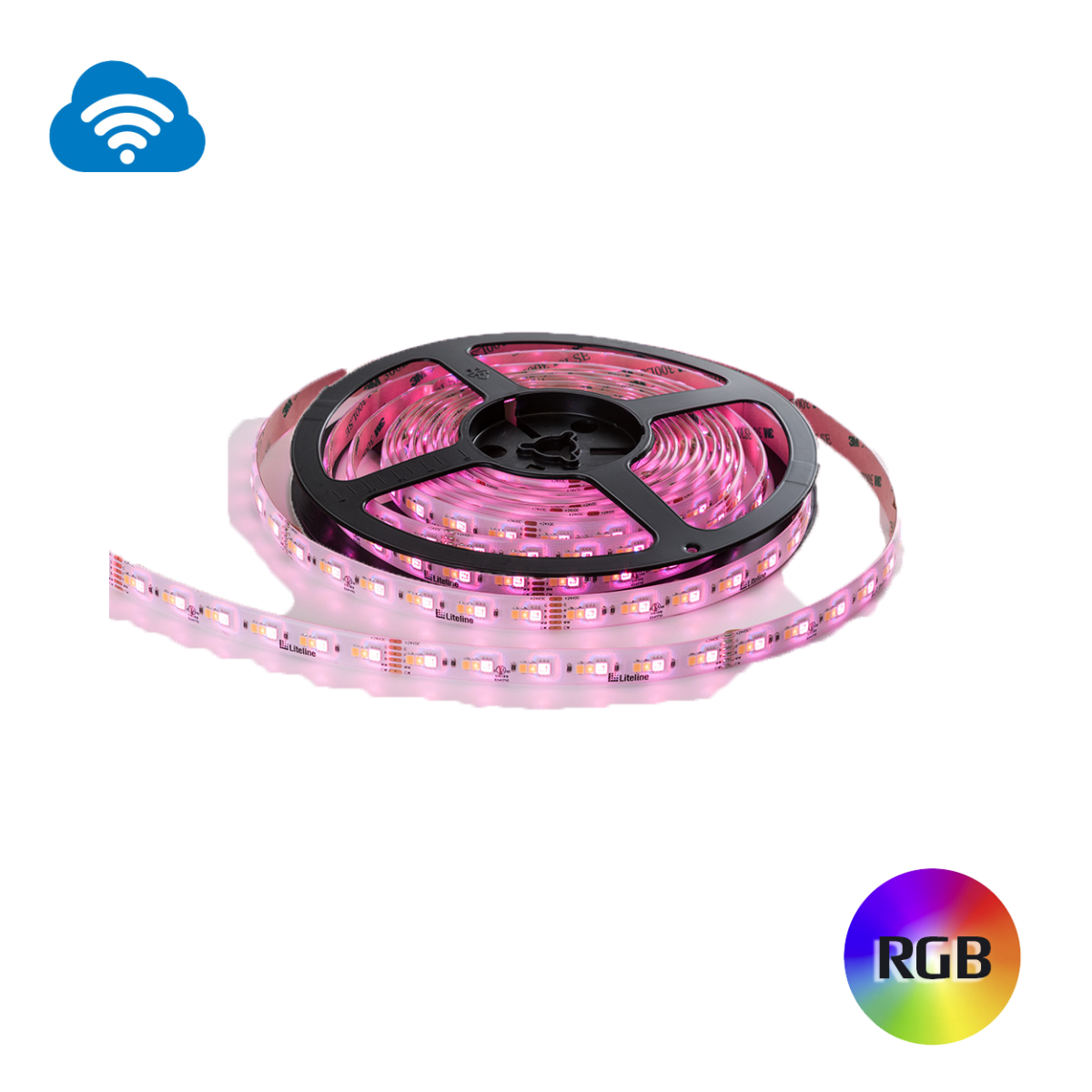

Full color (RGB+WH) OnCloud tape kit, 5m (expandable to 10m) 40W Adapter, @ 4w/m (Hardwired)

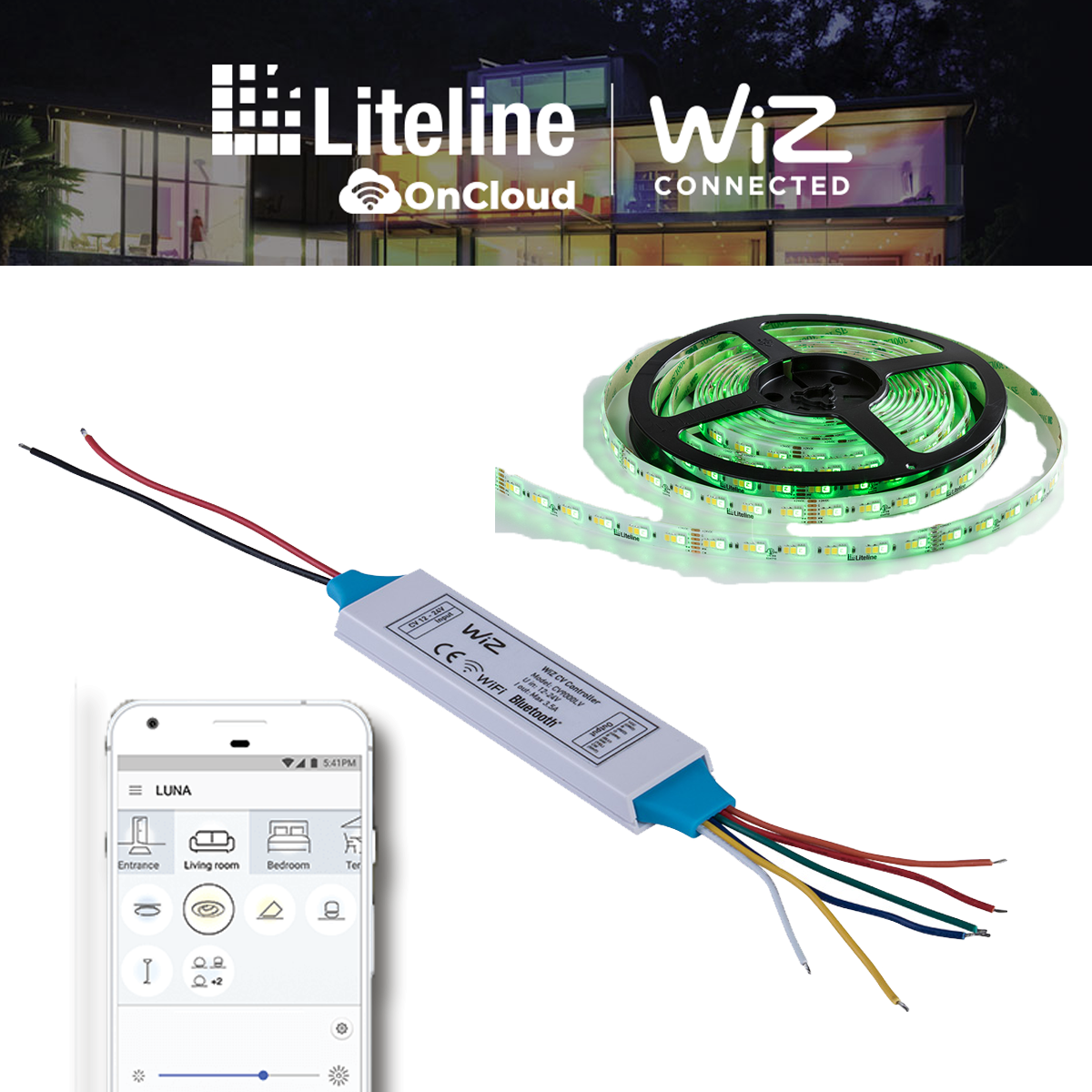

The Mood Tape Kit includes Tape at selected length, LED driver, OnCloud Adapter , low-voltage powerfeed. This LED tape provides ample illumination for residential, retail and commercial accent lighting. Suitable for dry, damp and wet locations.
-
Lighting Performance
Available in 250-450 lumens per meter options, this high density full color (RGB+Tunable White) LED maintains uniform intensity. It provides full color with its RGB channels and full 2200K to 6500K whites through the dedicated tunable white channels producing up to 450 lumens per meter at 3500K.
-
Color Temperature
Achieves full color, combining RGB and Tunable White (2200K - 6500K), with 90+ CRI in the Tunable White range and an R9 of up to 95.
-
Lumen Maintenance
LEDs reduce ongoing maintenance, has a rated life of over 50,000 hours.
-
Power Consumption
Operates as a constant voltage load at 24VDC, and consumes up to 0.20 Amps/6 Watts per meter.
-
Dimming
The LED tape is Wi-Fi dimmable when used with our OnCloud Adapter, or High Power OnCloud Adapter (sold separately). See page 2 for driver options.
Note: Not compatible with standard dimmers.
-
Beam Spread
This LED tape features a 120° linear beam spread to provide even light distribution.
-
Operating Temperature
-20°C~42°C (-4°F~108°F).
-
Mounting
This flexible LED tape is provided with a 3M high bond adhesive backing that provides secure mounting to smooth surfaces.
-
Environment
Suitable for dry, damp and wet locations; tape is IP65 rated.
Note: For installation in wet locations, do not cut the tape and make all electrical connections in an appropriate enclosure.
-
LED Driver
24V DC driver available as plug-in or hardwire, with a DC 2.1 connector. Drivers feature open and short circuit protection, and over voltage protection.
-
OnCloud Adapter / High Power OnCloud Adapter
An integrated constant voltage LED driver and a Wi-Fi + Bluetooth controller module. Available in 40W and 96W.
-
Kit Includes
Tape at selected length
LED driver
24V 5-channel OnCloud adapter
DC 2.1 jack low-voltage powerfeed
Extrusion with lens (optional)
Note: Connectors sold separately, see accessories below.
