The MX-DAC is a tremendous performer. It has ultra low distortion, very wide bandwidth and low noise. The technical performance of the MX-DAC is on a par with any other DAC at any price. Jitter is about 12pps, s/n ratio is -116dB (‘A’ weighted), linearity is +0.2dB at -116dB, stereo separation is -104dB at 1kHz, frequency response is ruler flat and distortion is 0.00025% at 1kHz and 0.0003% at 20kHz. These technical figures are state-of-the-art and show that our implementation is almost perfect, to ensure completely neutral and accurate digital-to-analogue conversion of any digital input.
The MX DAC has inputs for: 2 x coax (up to 24bit 192 kHz PCM), 2 x optical (up to 24bit 192kHz PCM) and asynchronous USB up to 24bit 192 kHz PCM as well as DSD 64 and DSD 128.
Also, all inputs whether from coax, optical or USB, are processed in the DSD domain. This desirable feature gives a warmth and humanity to the sound that simple digital conversion doesn’t achieve.
The MX DAC has both single ended and balanced outputs.

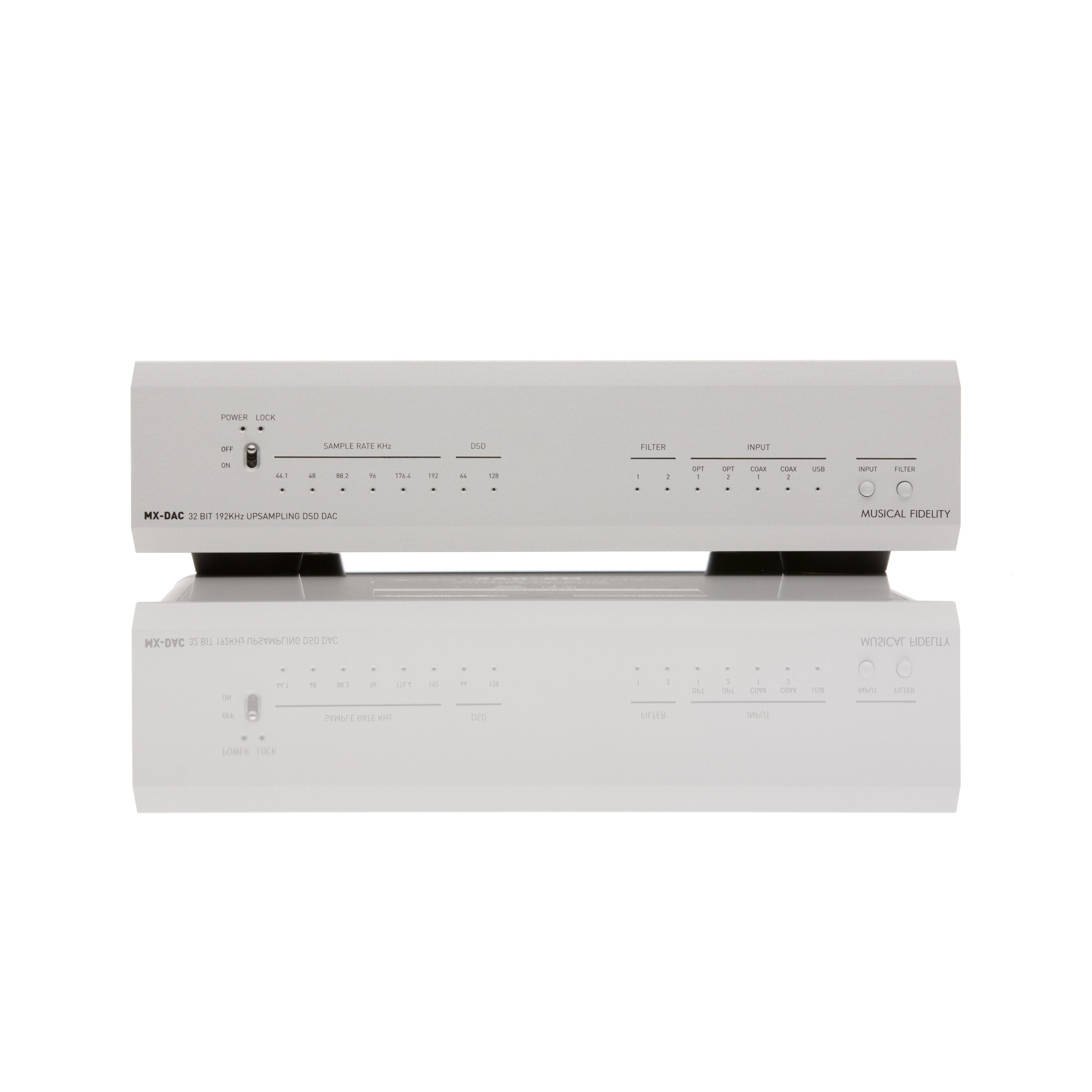

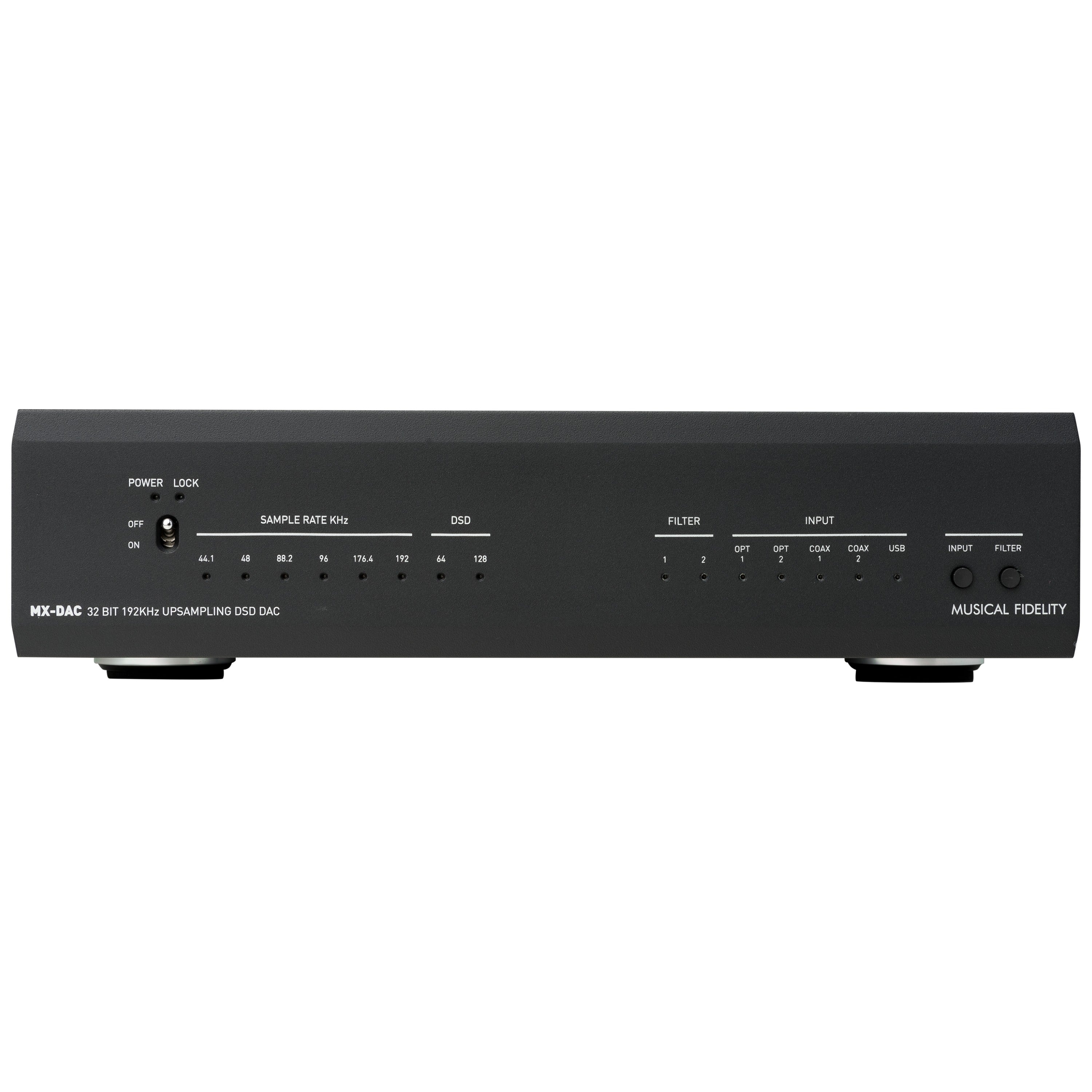

The new MX range has beautiful aesthetics and wonderful build quality. The front panel and housing are both from exclusive custom-made extrusions using mil-spec aluminium.
- Superlative state of the art performance with ultra-flat frequency response
- Able to process DSD64 and DSD128 formats as well as PCM up to 192kHz / 24bit
- Multiple digital inputs – 2 x coax, 2 x optical, and asynchronous USB
- All inputs processed and converted in DSD domain
- Very low noise
- Extremely low distortion
- Outstanding linearity
- Outstanding channel separation
- Beautiful aesthetics and build quality
DAC Structure
- Sample rate converter: SRC4392 up-sampling data to 192kHz
- Digital to Analogue converter: PCM1795 32 bit / 192kHz Multi-bit Sigma-Delta type
Performance
- Output Voltage: 2 Volts RMS single-ended (RCA)
- Output Voltage: 4 Volts RMS balanced (XLR)
- PCM THD: <0.002%
- PCM THD (+ noise): <0.003%
- DSD THD: <0.003%
- DSD THD (+ noise): <0.006%
- PCM Frequency Response: –3dB, 2Hz to 90kHz
- PCM Frequency Response: –3dB, 2Hz to 40kHz
- Channel Separation: -110dB
Capabilities
- Coaxial Inputs: S/PDIF up to 24 bit / 192kHz
- Optical Inputs: S/PDIF up to 24 bit / 192kHz

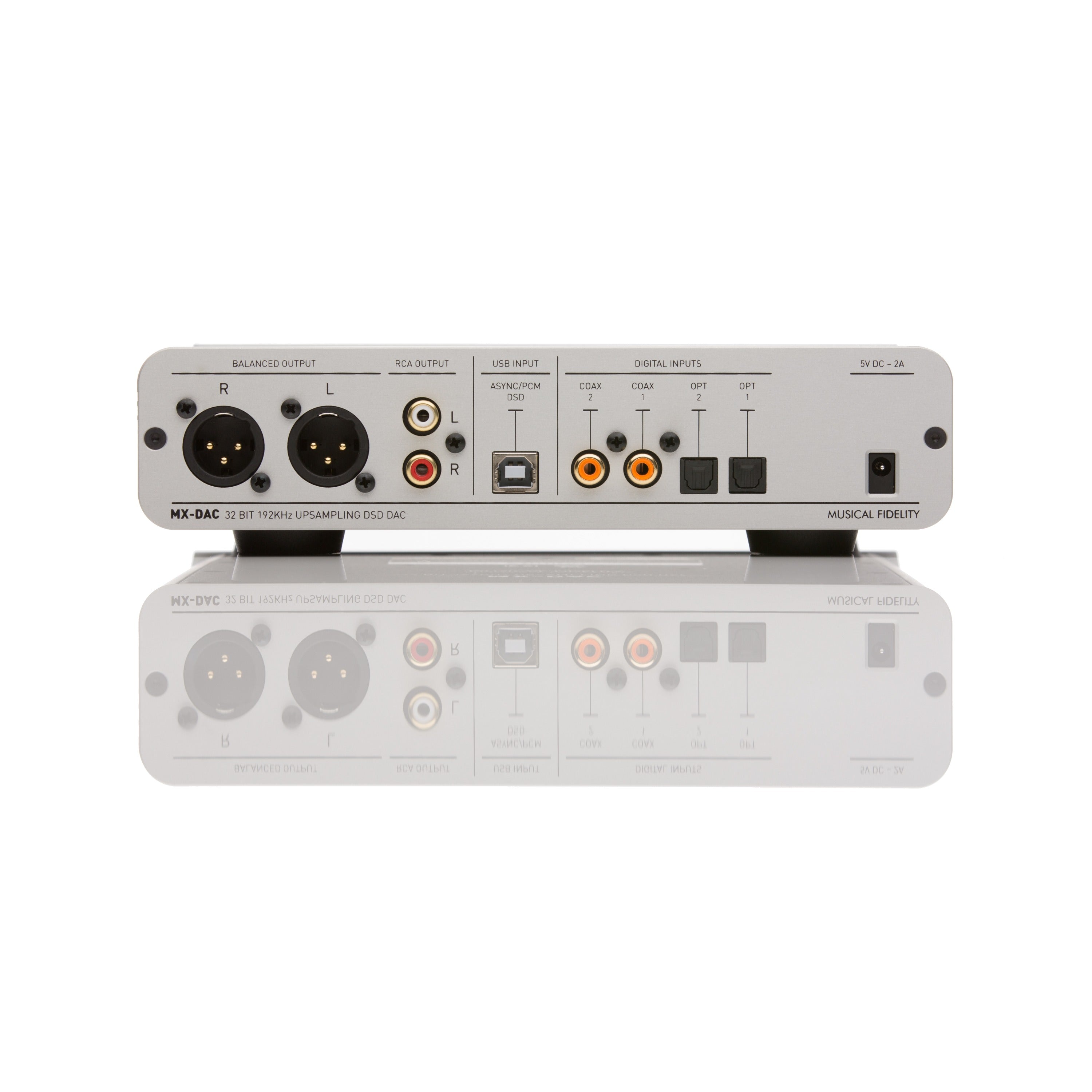

Inputs
- 2x RCA coaxial connector SPDIF 32-192kHz
- (16-24 bit stereo PCM)
- 2x TOSLINK optical connector 32-192kHz
- (16-24 bit stereo PCM)
- 1x USB type ‘B’ connector
- Asynchronous data stream at up to 24-bit/192kHz PCM as well as DSD64 and DSD128
- (Determined by source file/computer settings)
Outputs
- 1x line level RCA (single-ended)
- 1x XLR Male sockets (balanced) to EIA RS-297-A
- General
- Dimensions - WxHxD (mm): 220 x 53 x 215
- Weight (unpacked / packed): 1.9Kg / 2.4Kg
- Power Consumption: <0.25 Watts standby, <1 Watt max.
Supplied Accessories
- 1x 5v / 2A DC power supply (90-250VAC universal worldwide supply)
- Windows driver CD
- User manual
