New Const. Brackets (Reusable Ring), 6.5/ 8in OA / AA - EACH

Description

1 (each) x  of New Construction Brackets (Reusable Ring), for 31  -   6.5" & 8" skus from Origin Acoustics, Adept Audio & Origin Pro

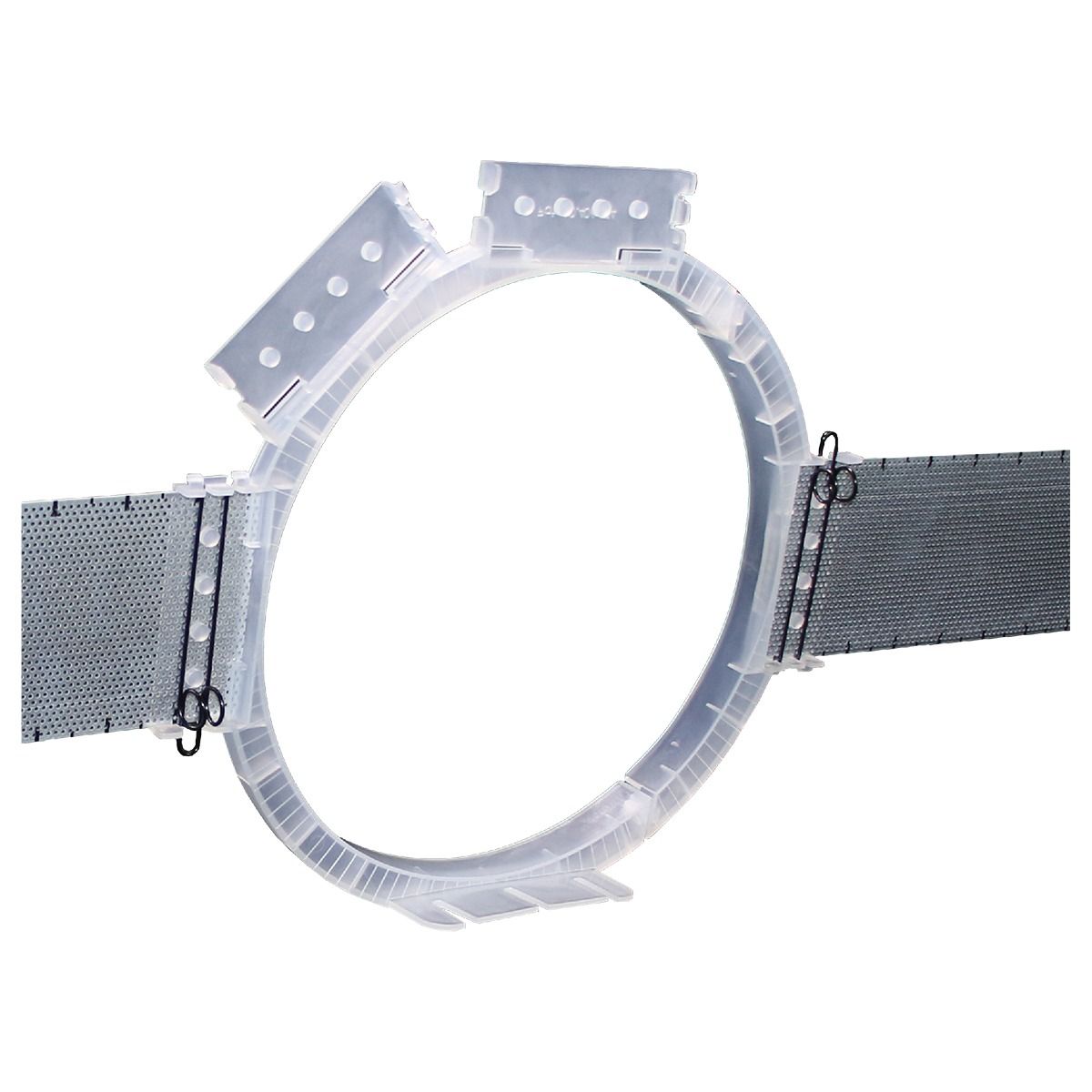

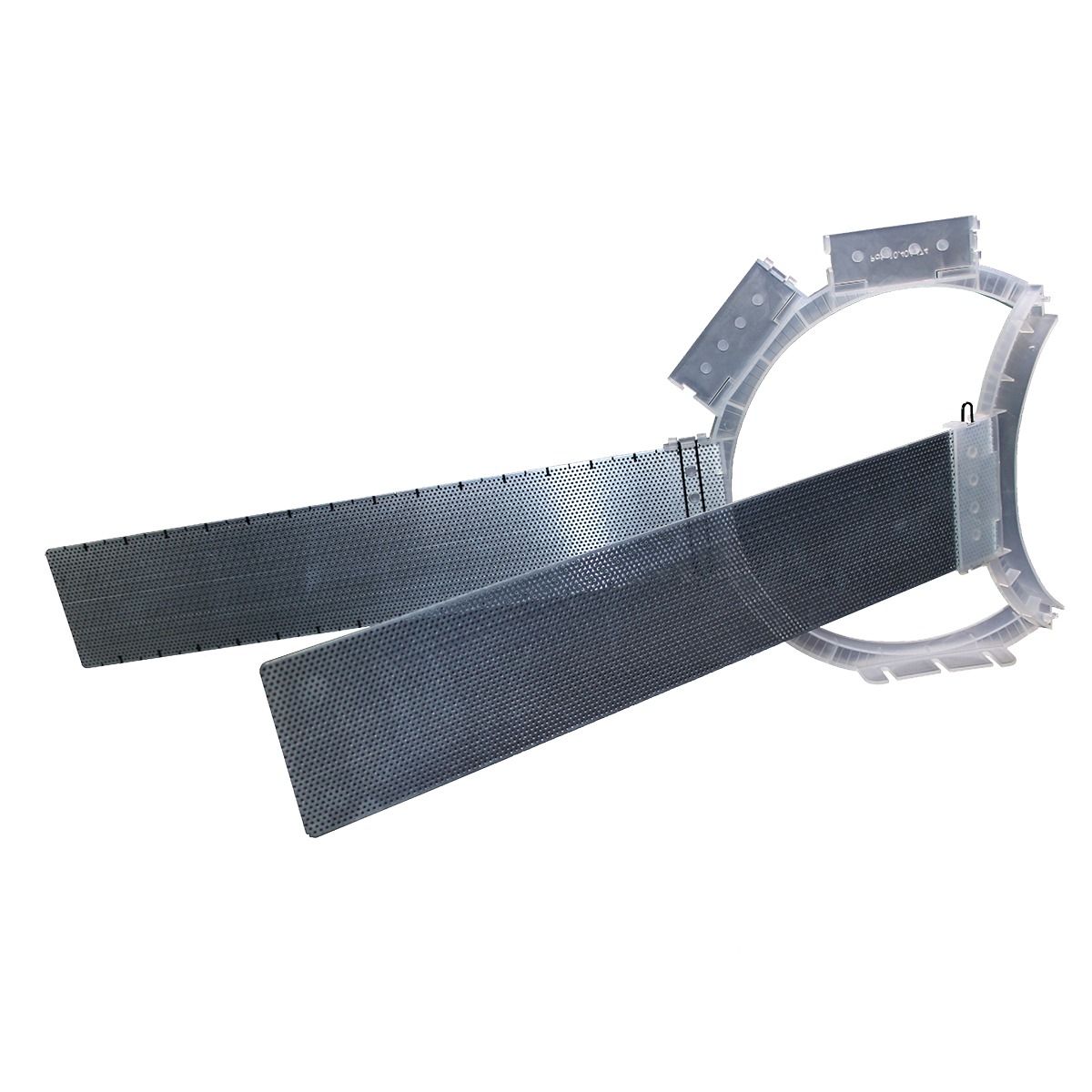

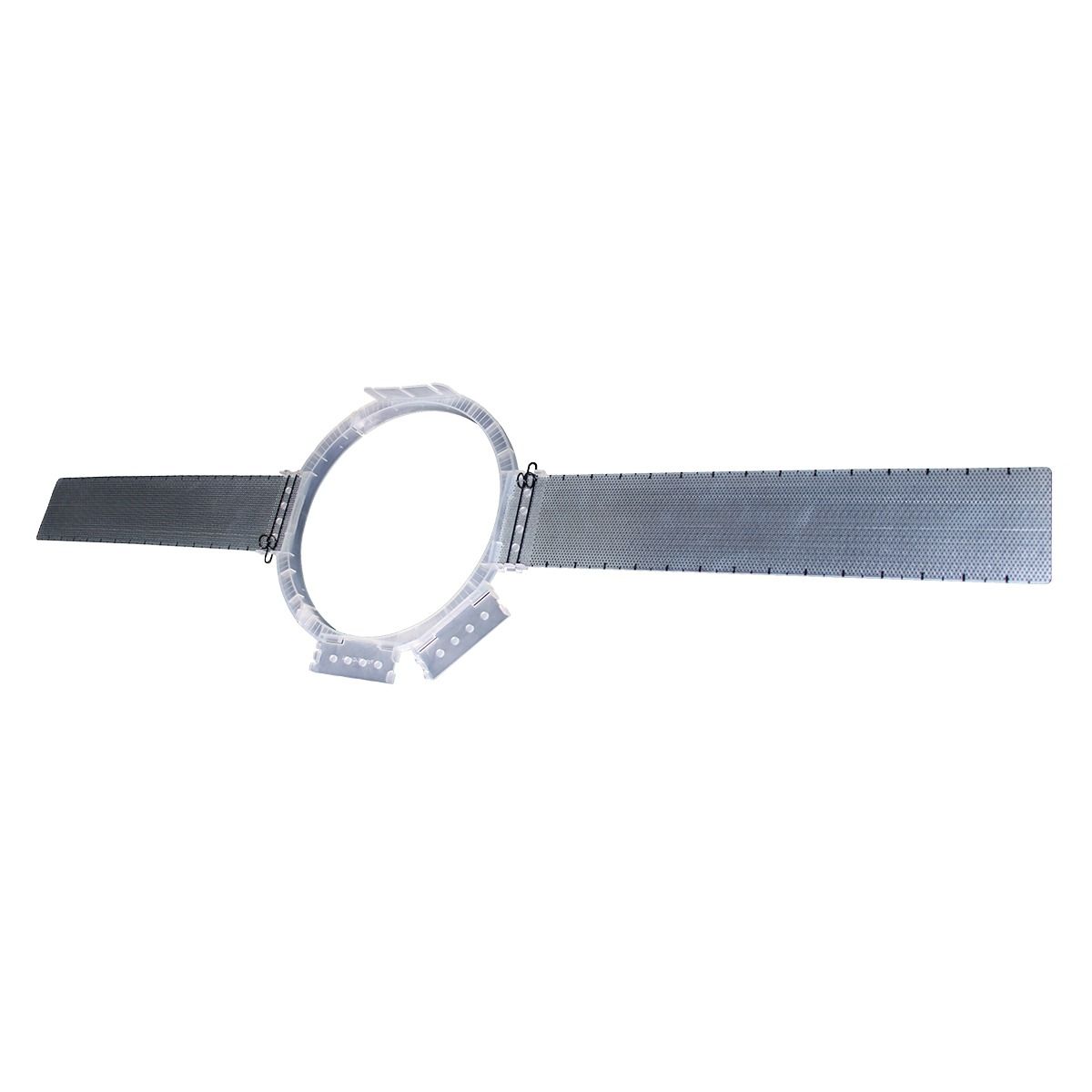

The Reusable bracket REBR68 is designed to be used as a new construction bracket for Origin Pro PC60 - 6.5” speakers. Additionally, the center plastic ring can be removed once the sheet rock has been cut to accommodate our speaker. With the plastic ring you can simply attach a new set of installation wings and reuse the bracket for the next project you’re working on. This will save you time and cost for your larger new home projects.

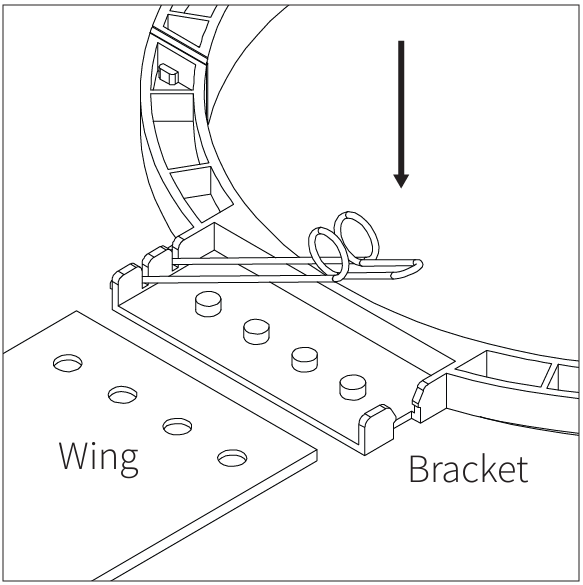

1. Installing the Wings
• Once desired speaker location is found, locate desired wing positions on the reusable bracket that coordinate with the ceiling joists for a secure fit. Line up and place the four pins of the bracket to the four holes of the wing. Attach the wings by locking in place with the included metal clips.

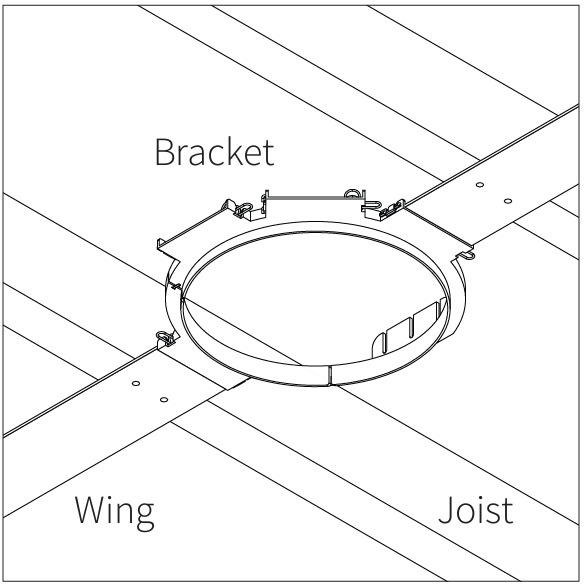

2. Placing the Bracket
• Place the bracket between ceiling joists using the ruler marks for your desired location. Either nail or staple the bracket wings to the joists.

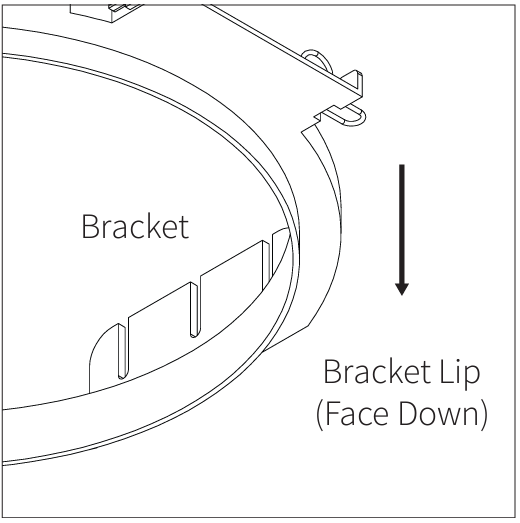

3. Cutting the Hole
• Make sure the “lip” of the bracket is facing down into the room. The “lip” allows the bracket to act as a template for cutting the speaker cutout in the sheet rock. Cut along the inside of the bracket hole where the hole should be. Use a keyhole or drywall saw to cut the hole. Bracket Bracket Lip

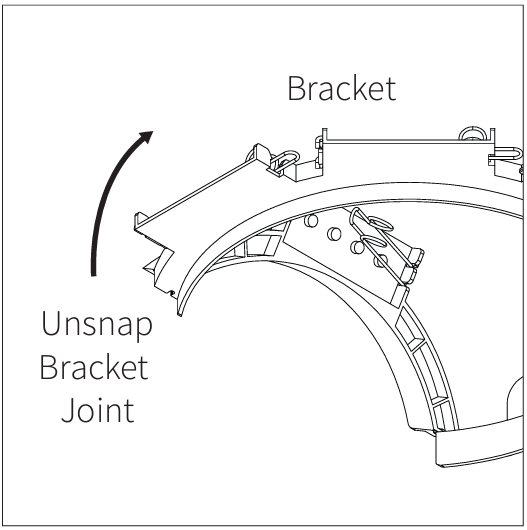

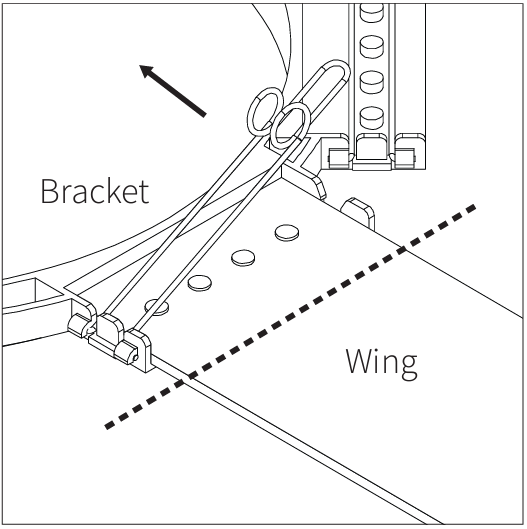

4. Uninstalling the Bracket
• To remove the bracket, squeeze the metal clips to loosen each wing. The wings Wing can be cut if needed. They will not be used again. Once the wings are detached, unsnap the bracket at the joint to allow the bracket to bend for easy removal through the cutout. The bracket can be used again by adding another pair of REBRW20 wings.
