PPC "F" Connector for RG59 – 25 pc pkg.
Regular price
$41.98
Couldn't load pickup availability
Hurry up! Only 103 item(s) items left in stock
Couldn't load pickup availability

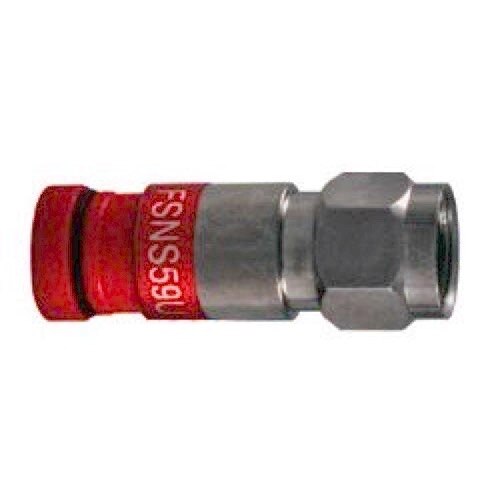

ProSNS® Universal F Male Connector
ProSNS® connectors combine innovation and performance reliability.
ProSNS F type connectors use a patented, removeable plastic sleeve guide designed to assist with the insertion of the cable center conductor to simplify the installation. As the cable center conductor is inserted into the back end of the connector, the removeable plastic guide is pushed forward and out from the front end of the connector. When the guide is completely pushed out from the front of the connector, it will detach and fall out. This design feature is to guide the insertion of the cable and to help identify when the cable center conductor is fully and properly inserted into the connector.
A patented internal O-ring at the base of the nut ensures the seal of the connector.
| Specifications for: PPC-FSNS59U: PPC "F" Connector for RG59 – 25 pc pkg. | |
|---|---|
| Nut and Collar | NiTin Plated Brass |
| Post | Tin Plated Brass |
| O-Rings | Ethylene Propylene |
| Return Loss | ≥-30 dB up to 1GHz typical |
| Insertion Loss | ≤-0.2 dB up to 1GHz typical |
| RFI Shielding | -85 dB typical (60% bonded foil) |
| Cable Insertion Force | 20lbs. maximum |
| Cable Retention Force | 40lbs. minimum per SCTE IPS-SP-401 |
| Temperature Rating | -40°F (-40°C) to 140°F (60°C) |
| Salt Fog | Passes 1000 hours ANSI/SCTE 143 2007 |
| Moisture Migration | Passes ANSI/SCTE 60 2010 |
| Cable Sizes | Centre- 0.0317 ~ 0.0339 in. (0.81 ~ 0.86 mm) Dialectric- 0.144 ~ 0.157 in. (3.66 ~ 3.99 mm) Outer Jacket- 0.232 ~ 0.273 in. (5.89 ~ 6.93 mm) |
