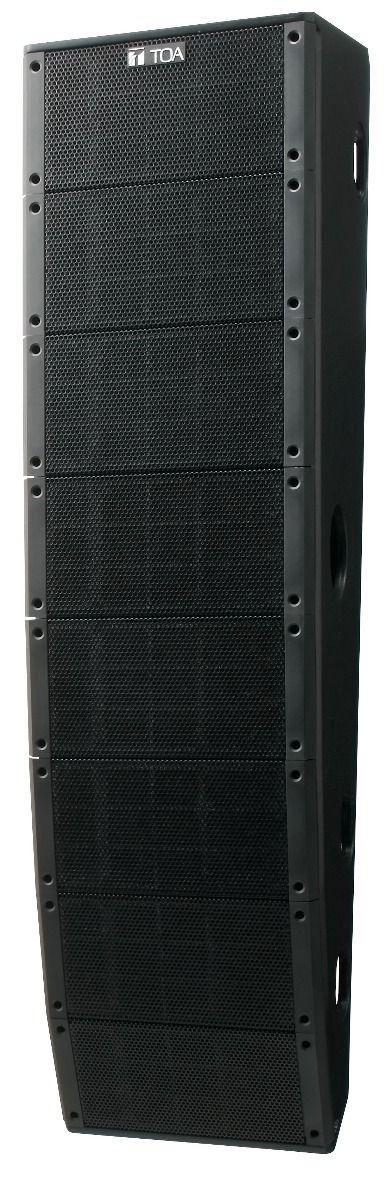

The SR-T5 is a 2-way Line Array speaker in which woofers and tweeters are arranged vertically in close proximity to each another. Its excellent speech clarity makes it ideal for installation in sports facilities with strong reverberation, such as gymnasiums. Sturdy impact-resistant construction allows the speaker to be used as a main speaker in small- or medium-scale indoor sports facilities
| Enclosure | Bass-reflex type |
|---|---|
| Power Handling Capacity | Continuous pink noise: 250 W Continuous program: 750 W |
| Rated Impedance | 8 Ω |
| Sensitivity | 96 dB (1 W, 1 m equivalent, measured at 4 m) |
| Frequency Response | 70 Hz - 20 kHz |
| Crossover Frequency | 3 kHz |
| Directivity Angle | Horizontal: 100゜ Vertical: 35゜ |
| Speaker Component | Low frequency: 13 cm (5.12") cone-type × 8 High frequency: Balanced dome-type × 24 |
| Recommended Installation Height | 4 - 5.5 m (13.12 - 18.04 ft) (Speaker top, when installed in sport facilities 30 m (98.43 ft) in length) |
| Adjustable Angle Range | Downward: 0゜, 1゜, 2゜, 3゜ (when the supplied mounting bracket is used) Horizontal (left or right): 5゜, 10゜ (when the optional SR-PB5 Wall Pan Bracket |
| Input Terminal | M5 screw terminal, distance between barriers: 12.2 mm (0.48") |
| Finish | Enclosure: Plywood, black, urethane paint Baffle: Polypropylene, black Punched net: Steel plate, black, acrylic paint Mounting bracket: Steel plate, black, acrylic paint |
| Dimensions | 310 (W) × 1239 (H) × 341 (D) mm (12.2" × 48.78" × 13.43") |
| Weight | 29 kg (63.93 lb) (including accessories) |
| Accessory | Mounting bracket A …1, Mounting bracket B …1, Bracket mounting bolt …6, Side cover …5, Side cover mounting screw …10, Eye bolt …1, Safety wire …1 |
| Option | Wall pan bracket: SR-PB5 (to be used in conjunction with the supplied mounting bracket) Matching transformer: MT-S0601 |
