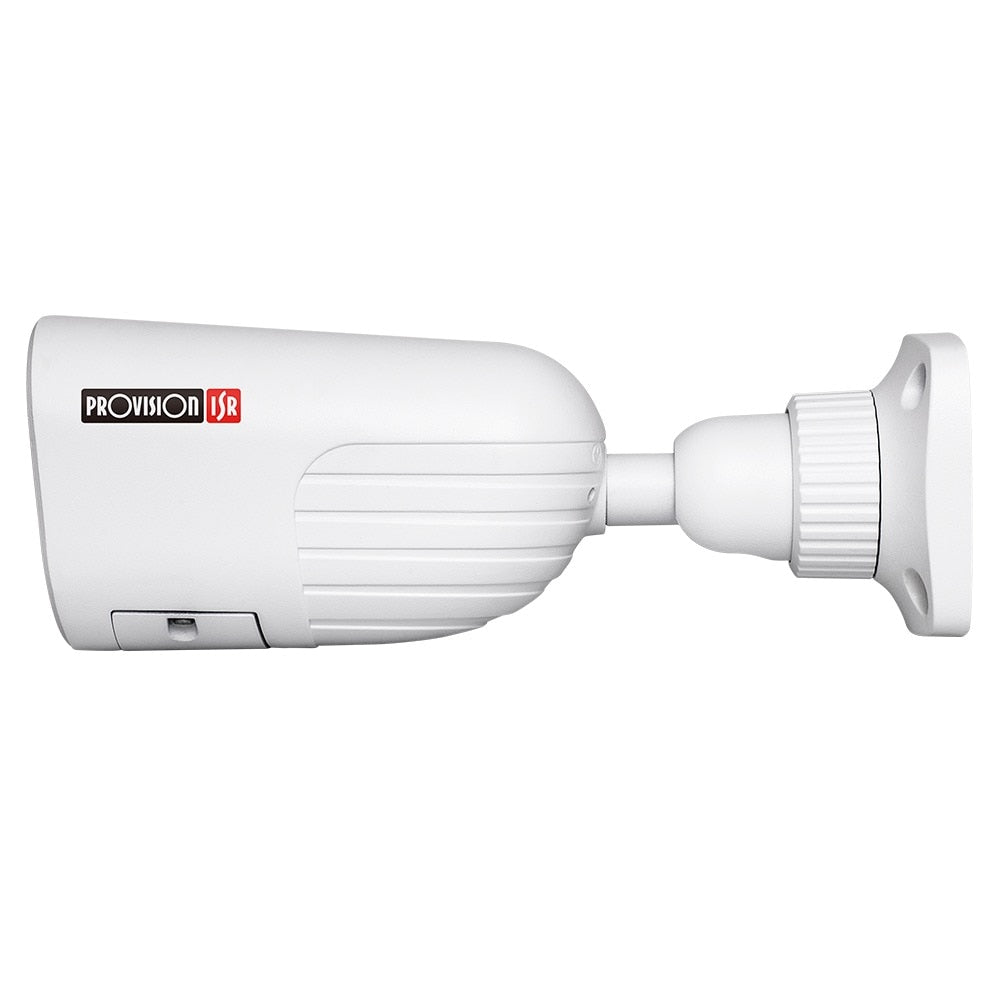

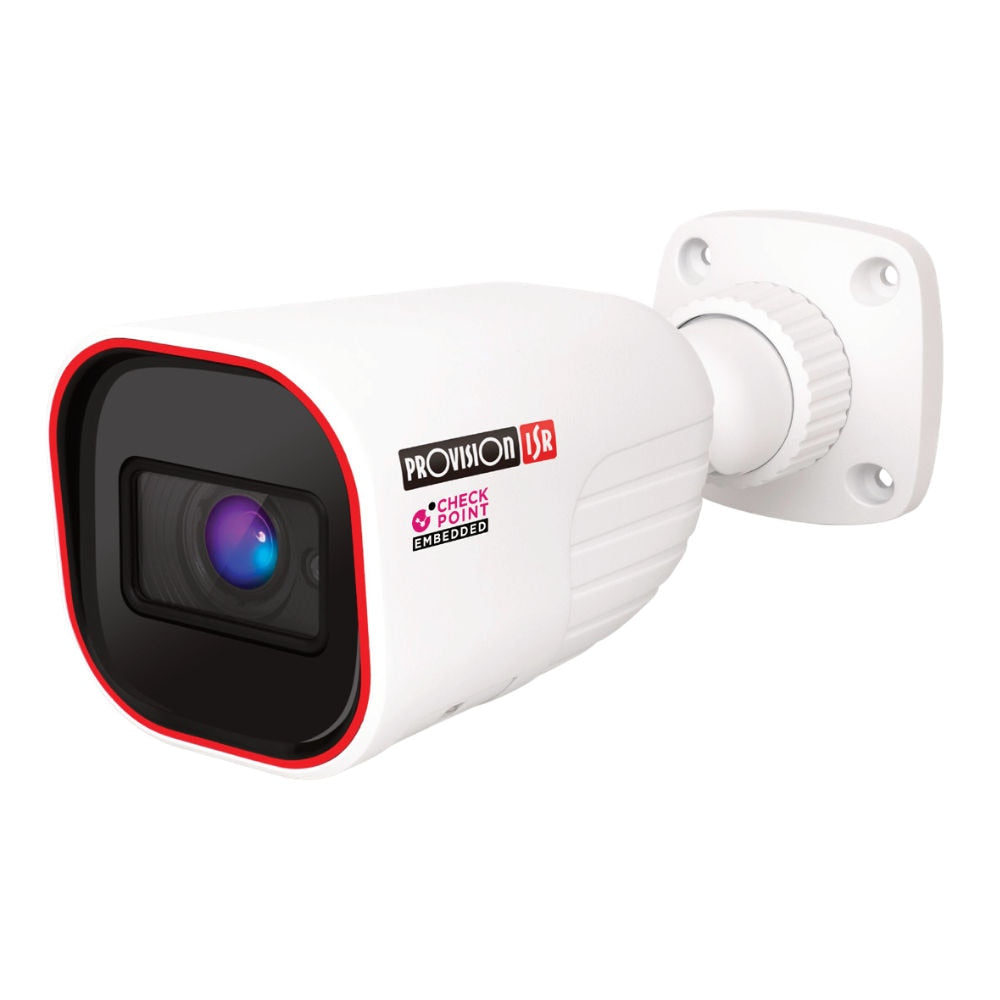

40m IR 4MP DDA2 analytics motorized vari-focal lens bullet camera with built-in check point protection and dual system technology
Equipped with a 2.8-12mm motorized lens, this 4MP camera is designed for medium-distance surveillance (up to 40m) in indoor and outdoor scenarios. Fitted with the new “Dual System” technology, the camera can deal with internal anomalies independently, making it more redundant to software-based issues. The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The I4-340IPEN-MVF-V4 camera is here to end false alarms and, with the Check Point protection, ensures that your devices are cyber-protected round the clock.
| Specifications for: PV-I4-340IPEN-MVF-V4: Provision-ISR 4MP Bullet Eye-Sight IP MVF 2.8-12mm Lens w/ 40M IR Camera – White | |
|---|---|
| Image Sensor | 1/3 CMOS (16:9) |
| Effective Pixels | 2592X1520 |
| Electronic Shutter | 1/2s ~ 1/100000s |
| Frame Rate | 1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode*** |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC On) 0lux with IR on |
| Audio compression | G.711A/G.711U |
| Communication | One-way Audio |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Analytics | General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advance Object Classification |
| DRI Distance | Detect 2.8~12mm(W): 58.91m(193.27ft) - 2.8~12mm(T): 205.99m(675.82ft) Recognize 2.8~12mm(W): 11.78m(38.74ft) - 2.8~12mm(T): 41.20m(119.32ft) Identify 2.8~12mm(W): 5.89m(19.35ft) - 2.8~12mm(T): 20.60m(59.64ft) |
| Video Compression | H.265+/H.264+/H.265/H.264/MJPEG* |
| Resolution | 4MP (2592x1520) / 3MP (2304x1296) / 2MP (1920x1080) / D1 / QVGA /CIF |
| Multi-Stream | Master Stream: 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps) |
| Bit rate | 64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| IR Distance | 40m (2 High Power IR LED) |
| Lens (Field of View) | 2.8-12mm MVF with Auto Focus (100°-29°) |
| Iris | DC Iris |
| Lens Mount | Ø14 mount |
| Protection Rate | Water Proof: IP67 |
| Bracket | 3-Axis Bracket |

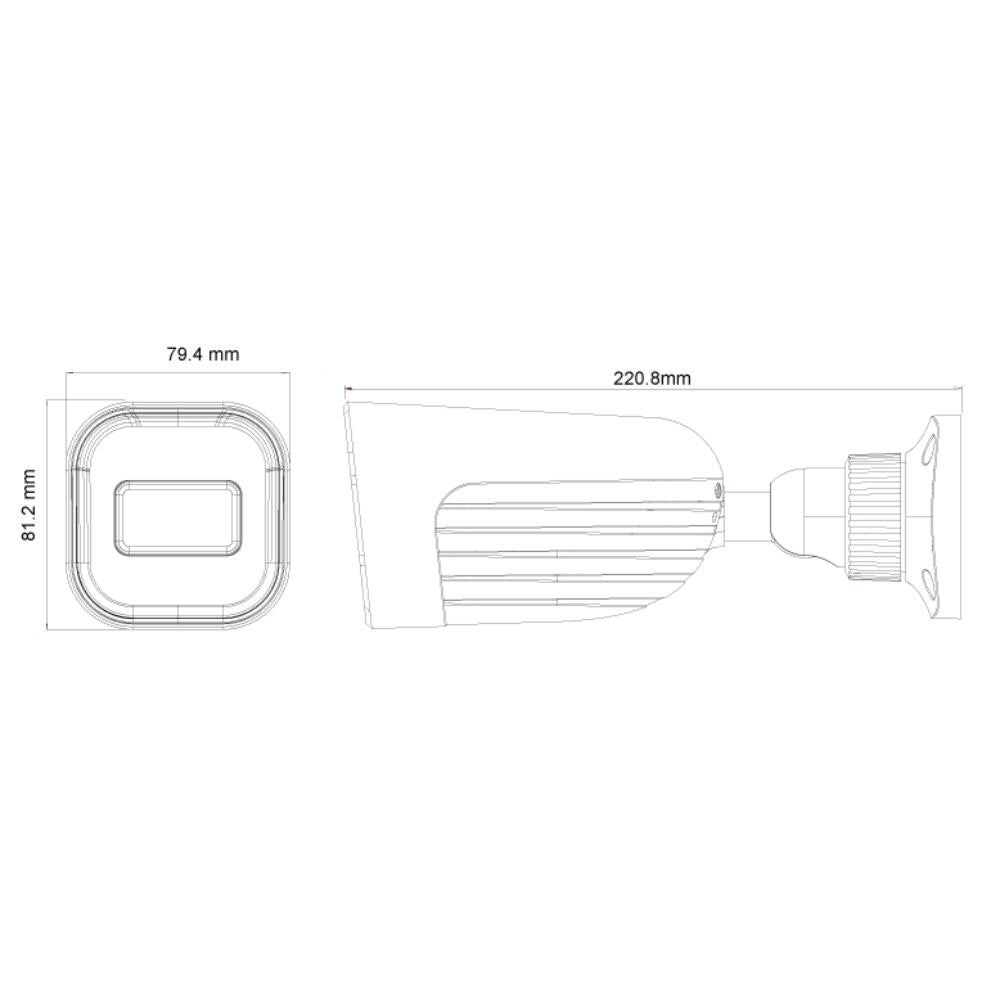

| Dimensions | 220.8x79.4x81.2mm |
| Weight (gross) | ~820g |
| Network | RJ45 (+PoE) |
| Power | DC Socket |
| Analog Video Output | No |
| Audio Connectivity | Audio Input |
| SD Card | Event/Schedule based Main/Sub-Stream recording (Up to 256Gb) |
| Hard Reset Button | Yes |
| Alarm | Alarm in + Alarm out |
| Remote Monitoring | IE Browsing, VMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring for up to 10 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | Yes |
| Power Supply | DC12V/~650mA / PoE/~9.5W |
| Work Environment | -30°~60°, 10%~90% Humidity |
| Junction Box | PR-JB12IP66 - PR-JB12IP64 |
Download Provision-ISR's Bracket Matching System PDF
