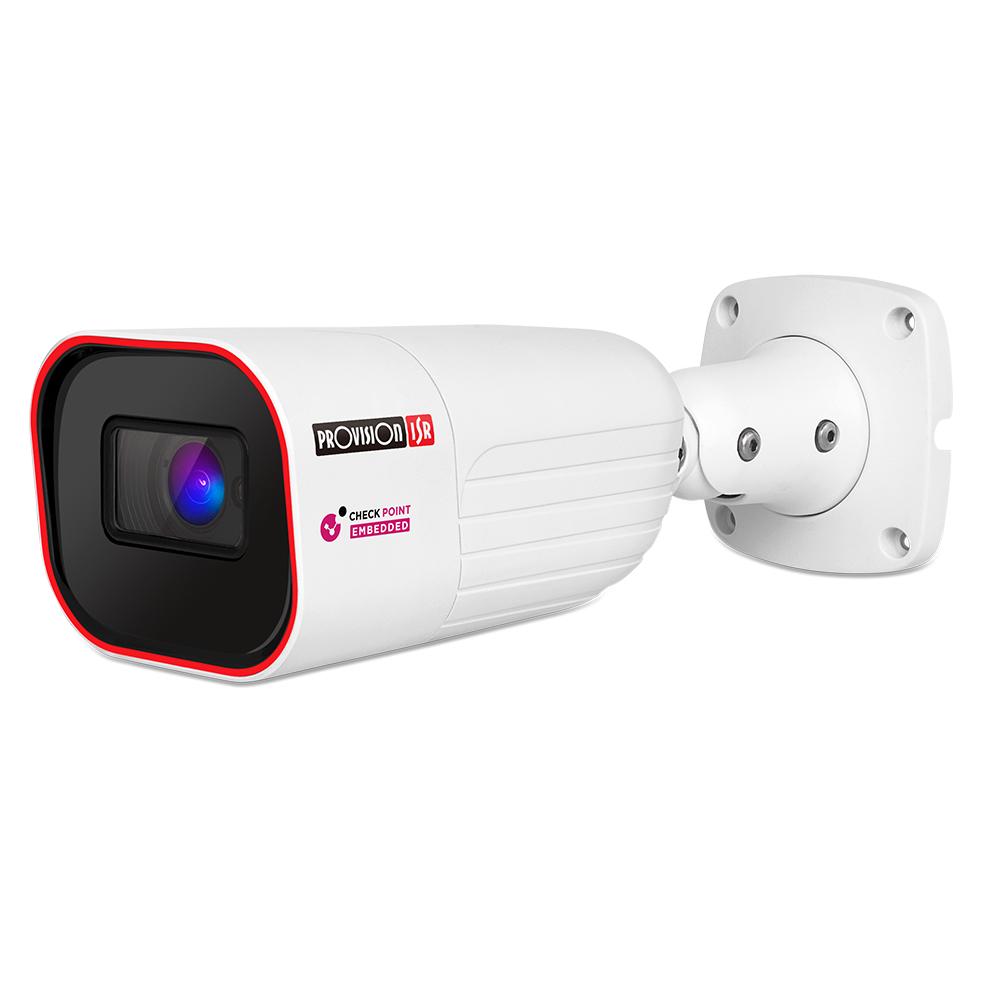

80m IR 4MP DDA2 Analytics Motorized Vari-Focal Lens Large Bullet Camera With Built-in Check Point Protection and Dual System Technology
| Specifications for: PV-I8-340IPEN-MVF2V5: Provision-ISR 4MP DDA2 Analytics Motorized Vari-Focal Lens Large Bullet Camera | |
|---|---|
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Image Sensor | 1/3" CMOS (16:9) |
| Effective Pixels | 2592x1520 |
| Electronic Shutter | 1/2s ~ 1/100000s |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.005lux (@F1.6, AGC on) 0lux with IR on |
| Audio | |
| Audio compression | G.711A/G.711U |
| Communication | Two-Way Audio |
| Image | |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip, Corridor Mode |
| Privacy Zone | Yes |
| Events and Analytics | |
| Analytics | General Analytics: Camera Tampering Human & Vehicle Recogition: SMD, Sterile Area, Line Crossing, Object Counting (Line), Object Counting (Area), Loitering Detection, Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification |
| Motion Detection | Yes |
| Metadata | Human: Gender, Age, Direction, Hat, Glasses, Backpack, Upper clothing type, Upper clothing color, Lower clothing type, Lower clothing color, Skirt/Dress, Mask, Shoulderbag Car/Truck: Color, Type, Brand, Model; 2-Wheel: Type |
| Compression | |
| Resolution | 4MP (2592x1520) / 3MP (2304x1296) / 2MP (1920x1080) / D1 / QVGA /CIF |
| Frame Rate | 1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode** |
| Video Compression | H.265+/ H.264+ / H.265 / H.264 / MJPEG** |
| Multi-Stream | Master Stream: 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps) |
| Bit Rate | 64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens | |
| Lens (Field of View) | 7-22mm MVF with Auto Focus (43°-18°) |
| Iris | DC Iris |
| Lens Mount | ø14 Mount |
| Network | |
| User Access | Supports simultaneous monitoring of up to 8 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| Ethernet | 100Mbps |
| ONVIF | Profile T/S/G |
| Connectivity | |
| Network | RJ45 (+PoE) |
| Audio Connectivity | Built-in Microphone + Audio input + Audio output |
| Alarm | Alarm in + Alarm out |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256Gb) |
| Wiegand | N/A |
| Power | DC Socket |
| Analog Video Output | CVBS out + Technician Port |
| Housing | |
| PoE | Yes |
| Illumination | 80m (2 High-Power IR LED) |
| Power Supply | DC12V/~550mA / PoE/~9W |
| Protection Rate | Water Proof: IP67 |
| Work Environment | -30°C~60°C, 10%~90% Humidity |
| Bracket | 3-Axis Bracket |

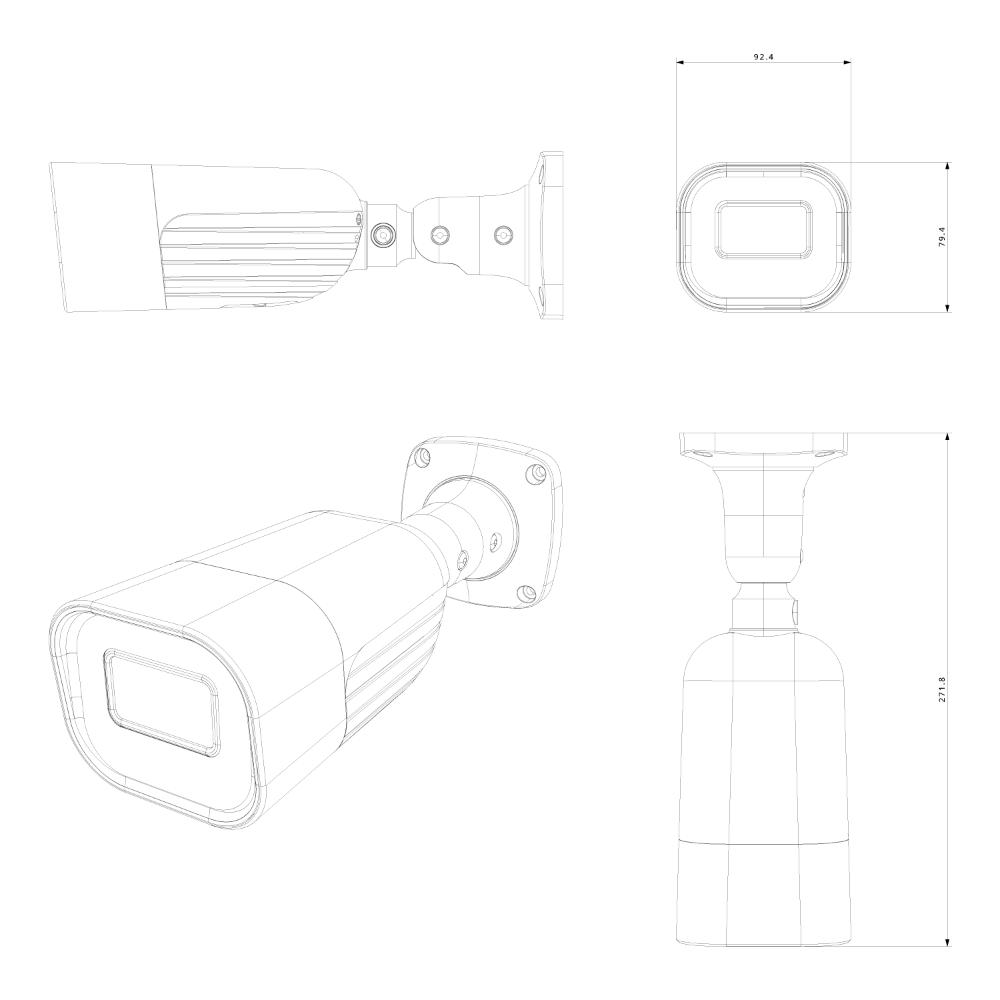

| Dimensions | 271.8x92.4x79.4mm |
| Weight (gross) | ~1050g |
| Hard Reset Button | Yes |
Download Provision-ISR's Bracket Matching System PDF
