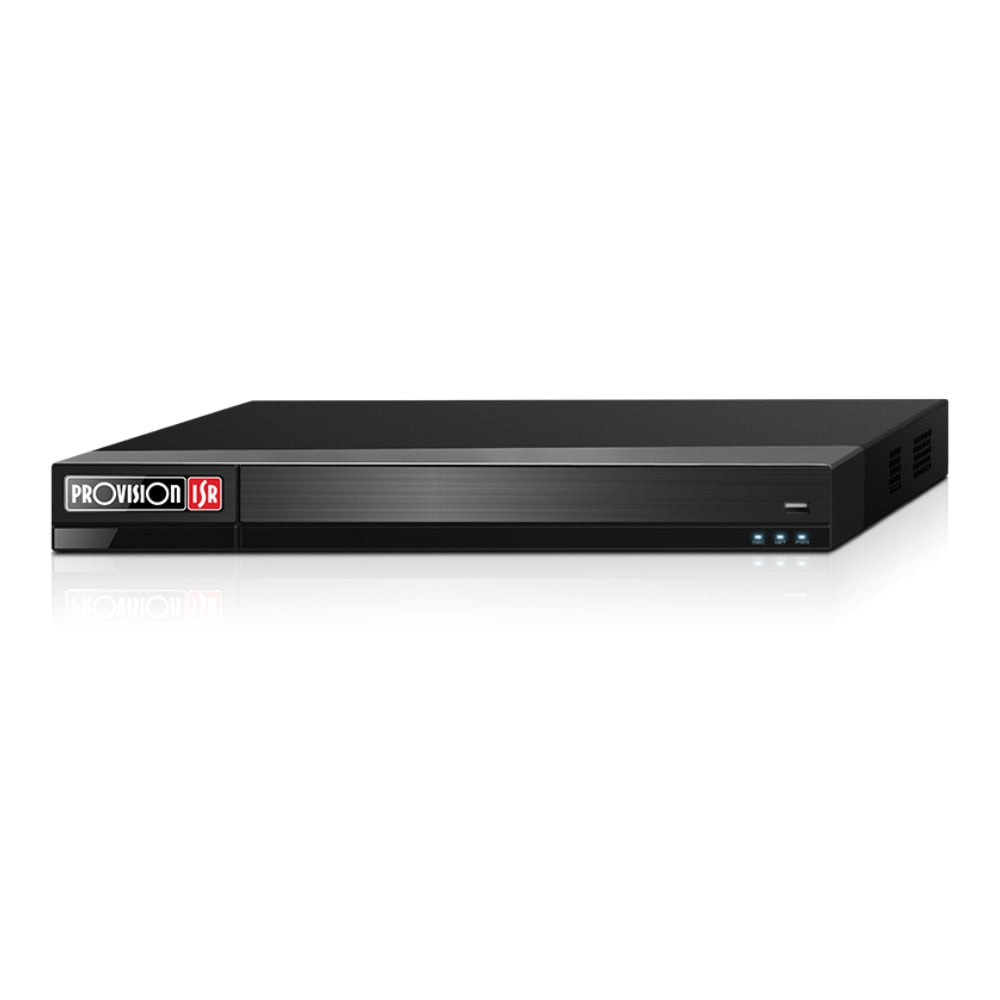

16CH 12MP NDAA-compliant Face Recognition NVR with Alarms
Provision-ISR’s NVR12-16400FAN(1U) is a high-performance network video recorder supporting Face Recognition and advanced Video Analytics (DDA). The device, suitable for small-sized installations (up to 16 channels), features 8 alarm inputs + 8 alarm outputs and provides you with everything you need for a trouble-free CCTV project. This model complies with NDAA demands.
| Specifications for: PV-NVR12-16400FAN-1U: Provision-ISR H.265 Stand Alone NVR 16CH 12MP at 25fps Facial Recognition – 1U Case | |
|---|---|
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Video Input | 16Ch over Network |
| Output | HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280x1024, 1024x768) |
| View Mode | Mirrored |
| Fish-Eye Dewarp | Local + Web |
| Decoding Format | H.265 / H.265+ / H.265S / H.264 |
| Decoding Capabilities | 1Ch – 12MP ; 4Ch – 4MP ; 9-16Ch – D1 |
| Audio | |
| Input | 1CH RCA (Linear, 1kΩ) + IPC inputs |
| Output | 1CH RCA (2.0 Vp-p, 1 kΩ) + IPC outputs |
| Compression | G.711A/G.711U |
| Two Way Audio | Yes |
| Analytics | |
| Supported Analytics | Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal(Limited Support). Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition. |
| Analytics Channels (IPC Based) | 16Ch (Requires supporting IPC) |
| Analytic Channels (NVR Based) | Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection + Recognition or Up to 6Ch Face Recognition (or their combinations) |
| Face Recognition Rate | 18 Faces per second (6Ch supported) |
| Bandwidth | |
| Incoming | 160Mbps |
| Outgoing | 160Mbps |
| Record/ Main Stream | |
| Real-Time Recording | 16CH 12MP Real-Time |
| Record Type | Video / Video + Audio |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations |
| 16MP | N/A |
| 12MP | 480FPS(NTSC)/400FPS(PAL) |
| 8MP | 480FPS(NTSC)/400FPS(PAL) |
| 5MP and lower | 480FPS(NTSC)/400FPS(PAL) |
| Master stream over network | Up to 12CH@Recording Resolution |
| Substream | |
| Resolution substream | Depends on IPC |
| Remote view | |
| Max Channel View | 80Ch (Limited to outgoing Bandwidth Capacity) |
| Remote Applications | |
| User Access | 64 Users online with Professional Autorithy Management |
| Mobile App | Provision Cam2 for iOS/Android |
| PC/Mac Software | Ossia VMS Standard / Enterprise |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback) |
| Plug-in based Web-Browser | Internet Exporer |
| Playback | |
| Local | 16Ch |
| Remote | 16Ch |
| Search Mode | DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS |
| Backup | |
| USB | 2 USB 2.0 Port + 1 USB 3.0 Port |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) |
| Alarm | |
| Alarm-in | 8+IPC |
| Alarm-out | 4+IPC |
| Storage | |
| HDD | 2 |
| E-Sata Support | No |
| RAID | N/A |
| PTZ | |
| Connection | via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 | Yes (C06 Keyboard Connection) |
| Network | |
| Ethernet | 2x1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance / Dual Network Configuration |
| Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS) |
| ONVIF | Full Device Support (Profile T/G, ONVIF Version 20.12) |
| PoE | |
| PoE Ports | N/A |
| Speed | N/A |
| Standard | N/A |
| CCTV Mode | N/A |
| Total Power | N/A |
| Max. Power Output (Per Ch.) | N/A |
| Others | |
| Power Supply | 12VDC/4A |
| Power consumption (No HDD) | 20W |
| Dimension | 380 × 268 × 48.1 mm |
| Operation Temperature | 0°C~50°C |
