Provision-ISR NDAA 3" IP PTZ With 4MP x4 Zoom, With DDA Analytics and POE+
Regular price
$756.00
Couldn't load pickup availability
Hurry up! Only 48 item(s) items left in stock
Couldn't load pickup availability
4MP PTZ with 4X Zoom and DDA Analytics

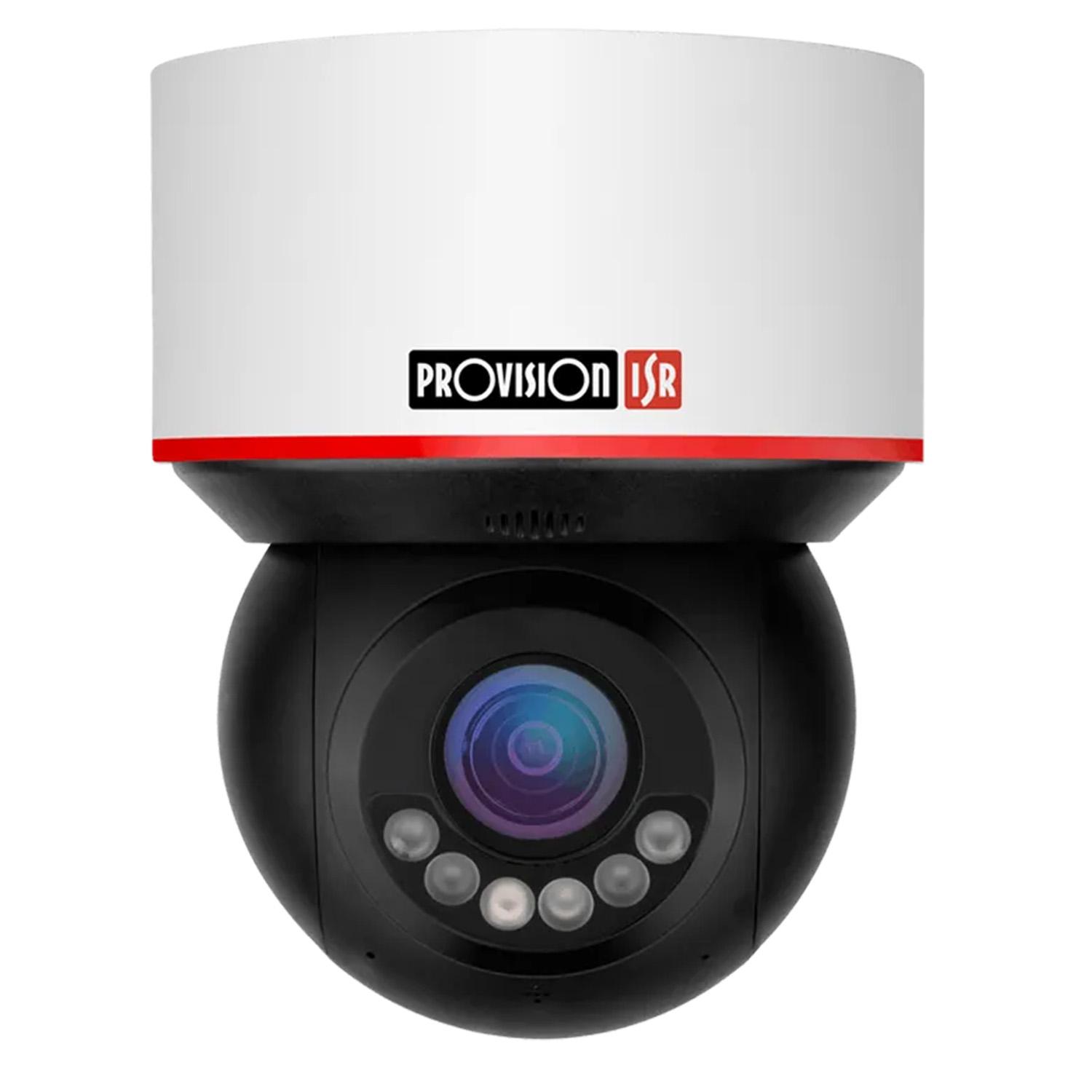

The Z3-4ADSN-4 AI IP PTZ is an NDAA-compliant camera with impressive video quality and features. The Z3 provides basic connectivity options and standard motor speed while keeping a compact and sleek design. It can be installed almost anywhere with optional accessories and provides full compatibility with Provision-ISR's platforms (Ossia NVRs, Ossia VMS, Provision Cam2 Mobile App.)
| Specifications for: PV-Z3-4ADSN-4: Provision-ISR NDAA 3" IP PTZ With 4MP x4 Zoom, With DDA Analytics and POE+ | |
|---|---|
| Video | |
| Image Sensor | 1/2.7″ CMOS |
| Effective Pixels | 2560Φ1440 |
| Sync System | Progressive Scan |
| Electronic Shutter | 1/25~1/30,000s |
| Day & Night | ICR (Auto/Day/Night) |
| Min. Illumination | 0.002 Lux (Color), 0.01 Lux (B&W), 0 Lux (IR On) |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Lens | |
| Optical Zoom | X4 |
| Digital Zoom | No |
| Focal Length | 2.8mm (F1.6) – 12mm (F2.7) |
| Aperture Range | F1.6 ~ F2.7 |
| Focus | Auto/Manual |
| Minimum Focus Distance | 0.3m |
| Horizontal Field of View | 97°(wide) ~ 31°(tele) |
| Detect | 2.8mm - 68m 12mm - 206m |
| Recognize | 2.8mm - 13.6m 12mm - 41.3m |
| Identify | 2.8mm - 6.8m 12mm - 20.7m |
| AI Features | |
| Analytics | AI: DDA Sterile Area, DDA Line Crossing General: Camera Tampering |
| Smart Tracking | Auto Tracking based on DDA (Human / Vehicle) |
| Face Recognition | No |
| Face Database | No |
| PTZ Features | |
| Pan Range | 355° |
| Pan Speed | Manual: 0.1~70°/s; Preset speed: 50°/s |
| Tilt Range | -5°~90° (With Auto Flip) |
| Tilt Speed | Manual: 0.1~40°/s; Preset speed: 40°/s |
| Presets | 300 |
| Patterns | 4 Tracks. Up to 3 minutes each |
| Cruise | 8 cruises (16 presets per cruise) |
| Scan | Standard / Random (with left and right boundaries) |
| Park Action | Preset/Cruise/Pattern/Auto Scan/Random Scan |
| Power Up Action | Yes |
| Schedule | Up to 8 tasks (Preset/Cruise/Pattern/Auto Scan/Random Scan) |
| 3D Control | Supported (Via Provision-ISR Devices) |
| Image Enhancement | |
| Image Settings | AWB Adjustable Exposure Mode Sharpness, Saturation, Brightness & Contrast Adjustable Auto Gain Adjustable |
| WDR Range | True WDR (120dB) |
| BLC-HLC | Yes |
| 3D-DNR Noise Reduction | 3D-DNR |
| EIS | N/A |
| Defog | No |
| Image Orientation | Mirror/Flip |
| Dynamic Privacy Zone | No |
| Privacy Zone | No |
| Motion Detection | Yes |
| Audio | |
| Audio Compression | G.711A/G.711U |
| Communication | 2-Way Audio |
| Housing | |
| IR Distance | 50m |
| Illumination Type | IR LED |
| Wiper | No |
| Smart IR | Yes |
| Network | RJ45 |
| Analog Video Output | No |
| Audio Input | 1Ch + Built-in Microphone |
| Audio Output | 1Ch + Built-in Speaker |
| SD Card | Yes (microSD/SDHC/SDXC. Up to 256GB) |
| RS-485 | No |
| Alarm In | 1 Dry Contact |
| Alarm Out | 1 Dry Contact |
| Power Consumption | Max 18.9W (With LED, Speaker, and Movement) |
| Power Supply | PoE+ (802.3at) / DC12V±20%/2A (not included) |
| Work Environment | -40°C ~ 65°C With IR off -40°C ~ 55°C with IR on |
| Protection Rate | IP66 |
| Fan & Heater | No |
| Dimensions | Φ 130mm Φ 162mm |
| Weight (Gross) | ~1.2Kg |
| Network | |
| Interface | 1 RJ45 10M/100M Adaptive Ethernet (Support PoE 802.3.at) |
| User Access | Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP,DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, P2P UDP, IGMP, ICMP,DHCP, PPPoE, HTTP POST |
| ONVIF | Yes |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| Compression | |
| Video Compression | H.264/H.265/H264+/H265+/MJPEG |
| Resolutions and Streams | Main stream: 2560Φ1440 (4MP), 2304Φ1296 (3MP), 1920Φ1080 (2MP), 1280Φ720 (720P) Substream: 1280Φ720 (720P), 704Φ576 (D1), 352Φ288 (CIF) Third stream: 704Φ576 (D1), 480Φ240, 352Φ288 (CIF) |
| FPS | 1-25/30FPS |
| Bit-Rate | 1536Kbps ~ 7192Kbps@H.265 / 2048Kbps ~ 8192Kbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
Download Provision-ISR's Bracket Matching System PDF
