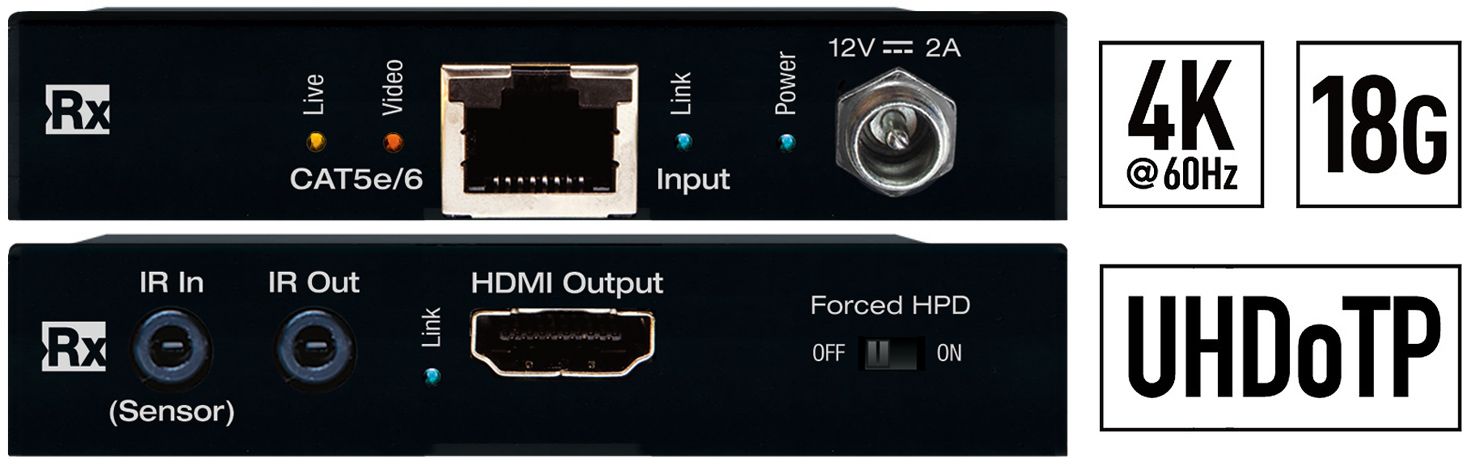

Rx Balun for EXWPSTX, 4K-18G over Cat, Two-Way IR 35m

Description

4K 18G UHDoTP 35m Rx with Power over Cat, Two-Way IR, Forced Hot Plug Detection

Features

• Tx Options: Sold a-la-carte to integrate natively with KD-EXWPSTx wall-plate transmitter (sold separately). Future compatible Tx units will be available from Key Digital.

  4K to 1080p Down Convert: Optional resolution conversion applied at UHDoTP Transmitter output provides added integration options in retrofit installations as well as added distance performance

• Power over CAT (PoC): KD-EX18GRx powers KD-EXWPSTx / KD-X2x1WVTx.

• Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate UHDoTP transmission channel

• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

• 4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)

• Low Profile: Super slim chassis design

• Signal Extension: For resolution and cable quality

• 4K/UHD (18G): Up to 35m / 115ft

• 1080p: Up to 50m / 164ft

• 10G Pass-thru: Mode enables uncompressed 10.2Gbps signal extension

• HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels

• HDCP 2.2: Compliancy up to HDCP 2.2 and backward compliant

• Deep Color Support: Up to UHD/4K 30Hz 4:4:4/12 bits or 60Hz 4:4:4/8 bit

• IR Sensor: Sensor powering via +5V on IR In ports collects line-of-sight IR from remote(s) without external IR connecting block

• Up/Down IR: Two channels of IR enable control to/from devices or control systems connected to Tx and Rx units

• Hot Plug Detection Control: Enables integrator to choose if active signal voltage is forced to connected display/output device

• Surround Audio: Supports Dolby®, DTS™ (formats up to 5.1/6.1)
