Description

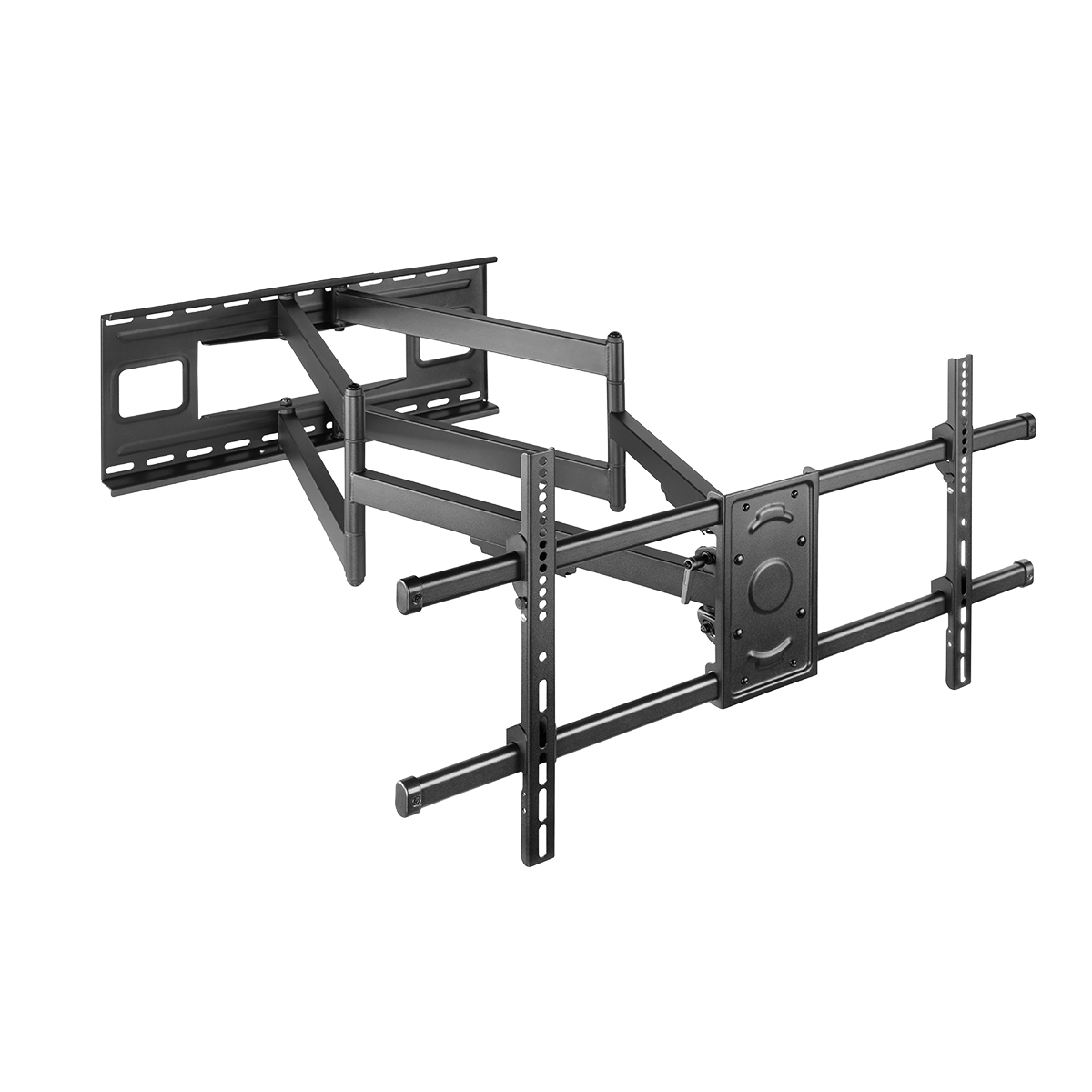

Heavy-Duty Full-Motion TV Wall Mount with Long Arm Extension - 55" - 90" Displays

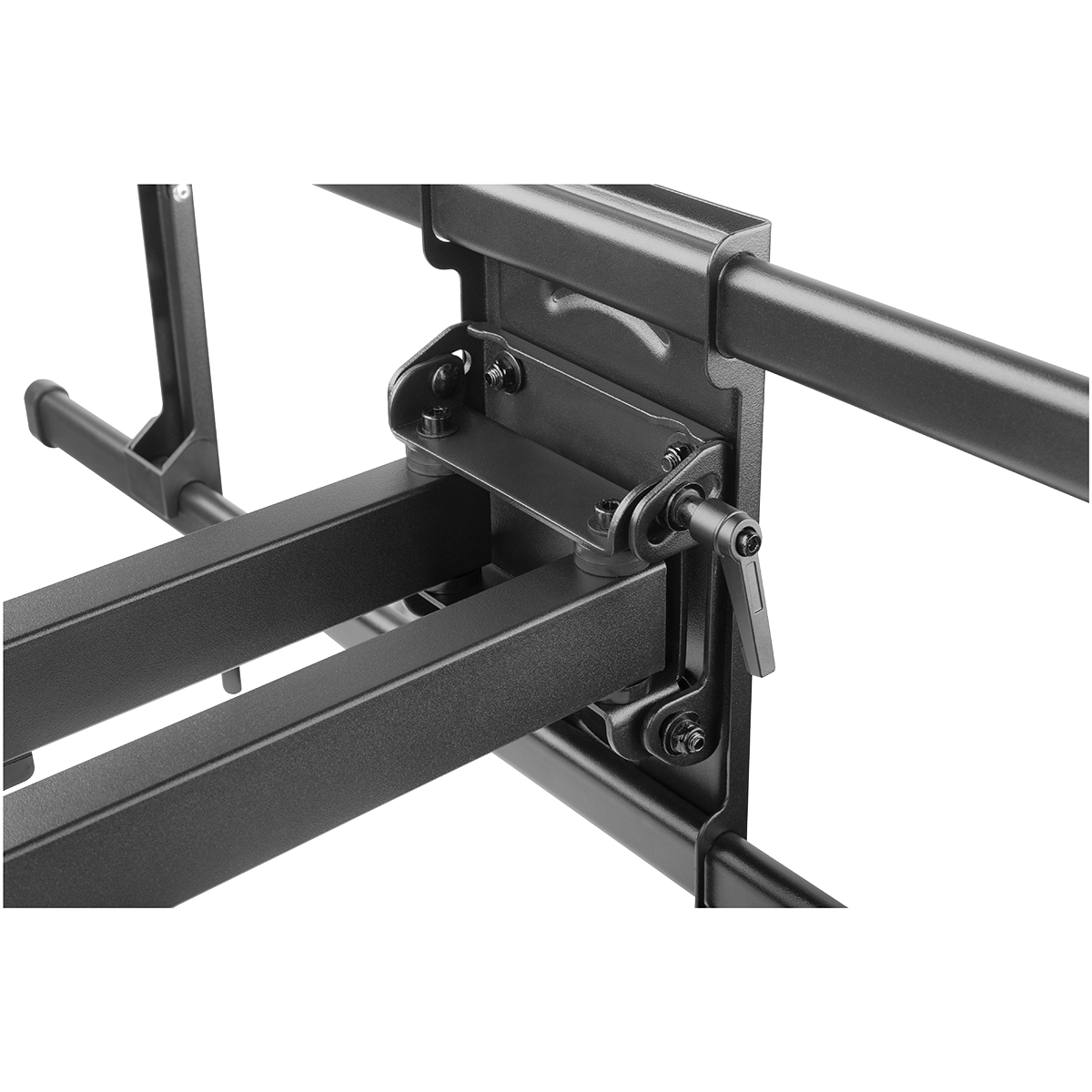

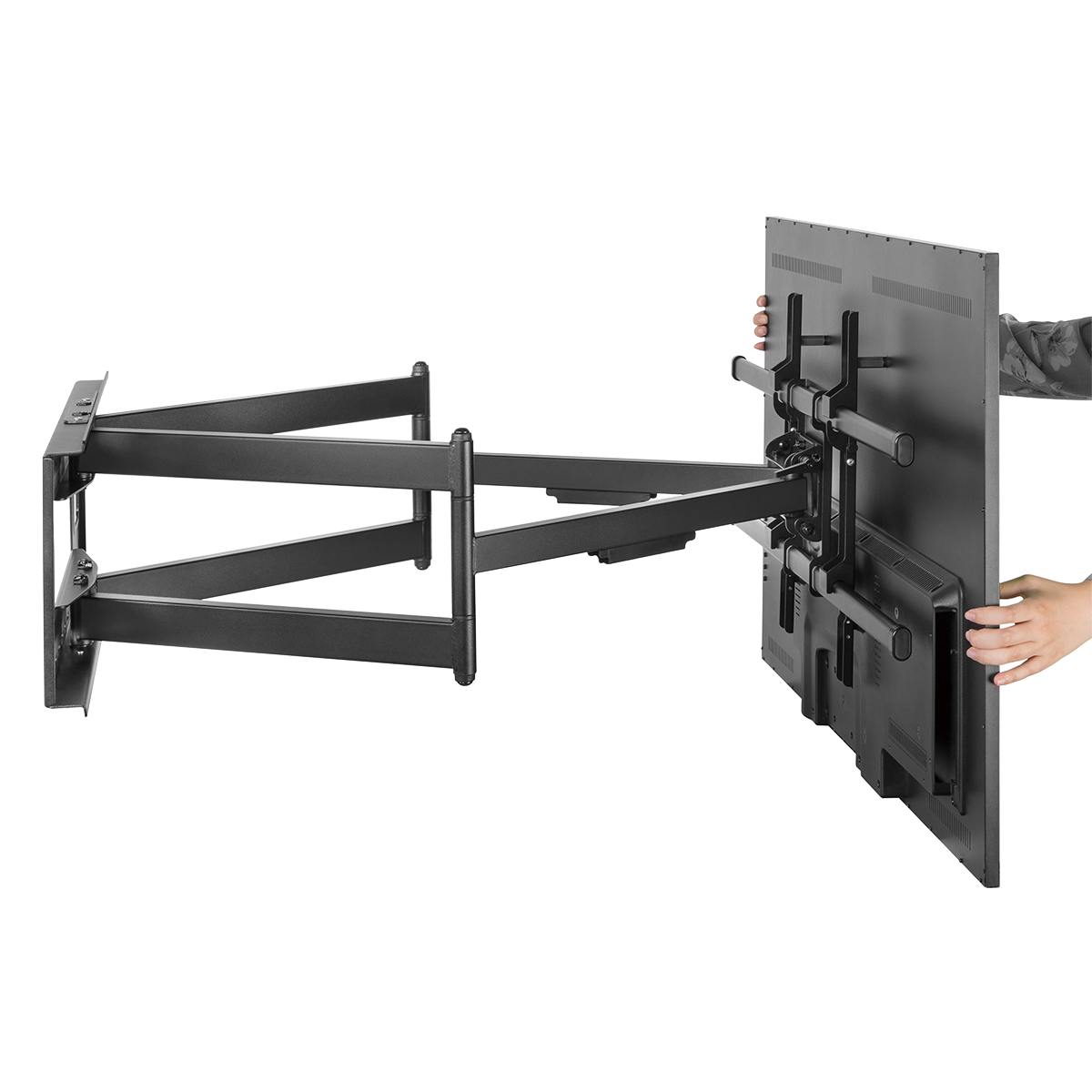

Featuring a 1044mm (41.1") arm extension and 80kg (176lbs) weight capacity, the SA4390XL is a great fit for either home or commercial installations. Offering a maximum viewing range for larger, heavier TVs, featuring toolless tilting, ample swivel motion and long extension arms for the most optimal viewing angles. Cable management along the arm keeps everything organized for a cleaner looking appearance. Installers will love the quick-release mechanism, allowing the TV to be installed or removed in record time. Upgrade your customer’s viewing experience with the SA4390XL!

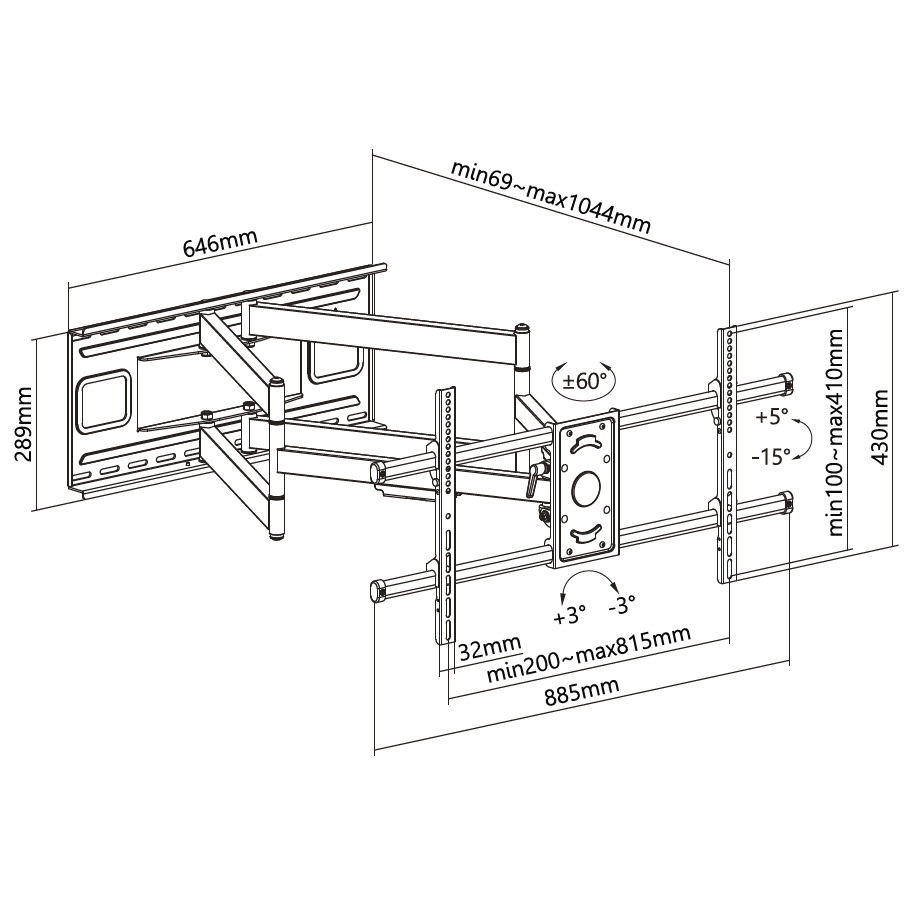

- Fit Screen Size: 55"-90"
- Fit Curved TV: Yes
- Mounting Hole Pattern : VESA Only
- VESA Compatible: 200x200, 300x200, 400x200, 300x300, 400x300, 400x400, 600x400, 800x400
- Max. Mounting Hole: 800x400
- Weight Capacity: 80kg

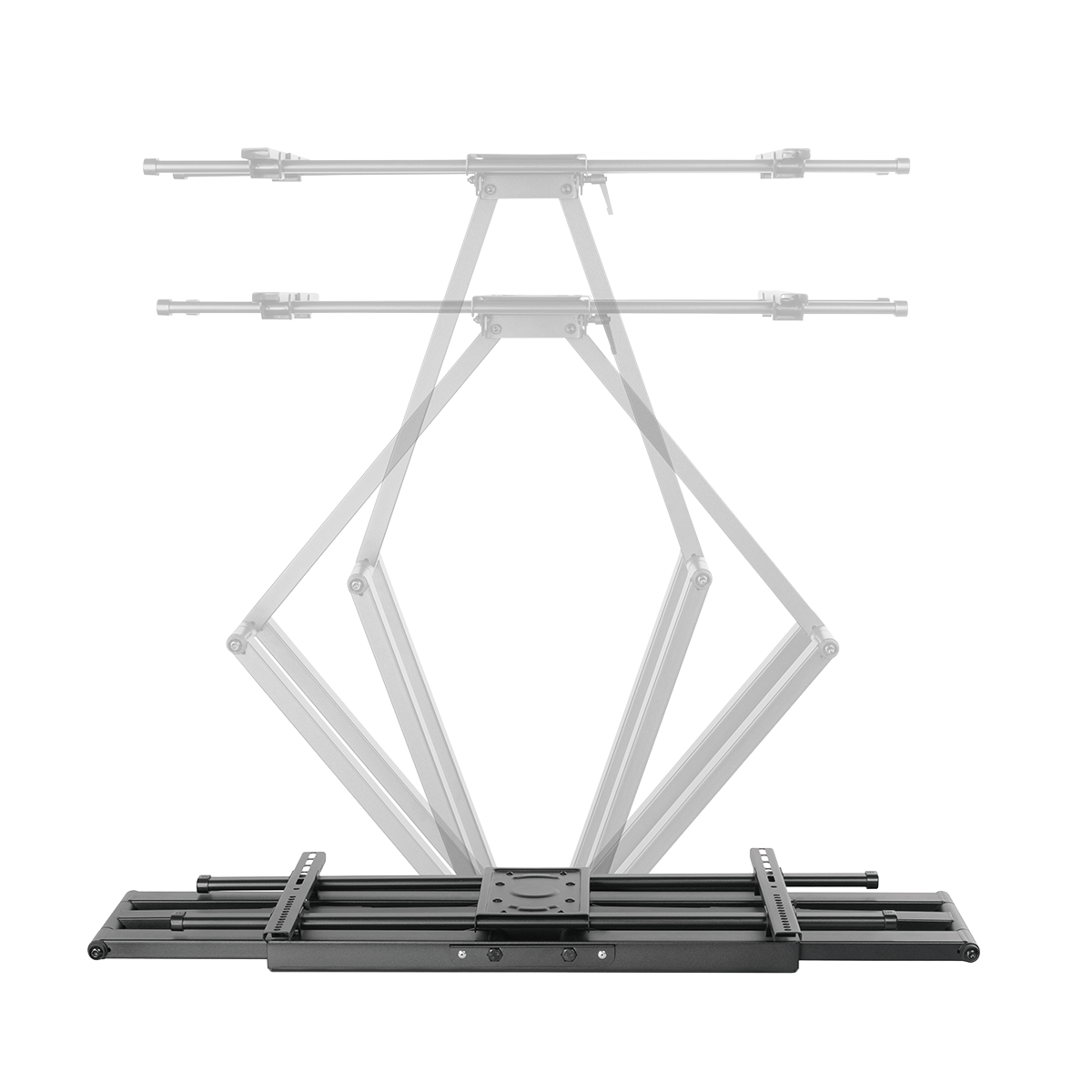

- From Wall: 69mm (2.71") to 1044mm (41.1")!
- Tilt Range: +5°~-15°

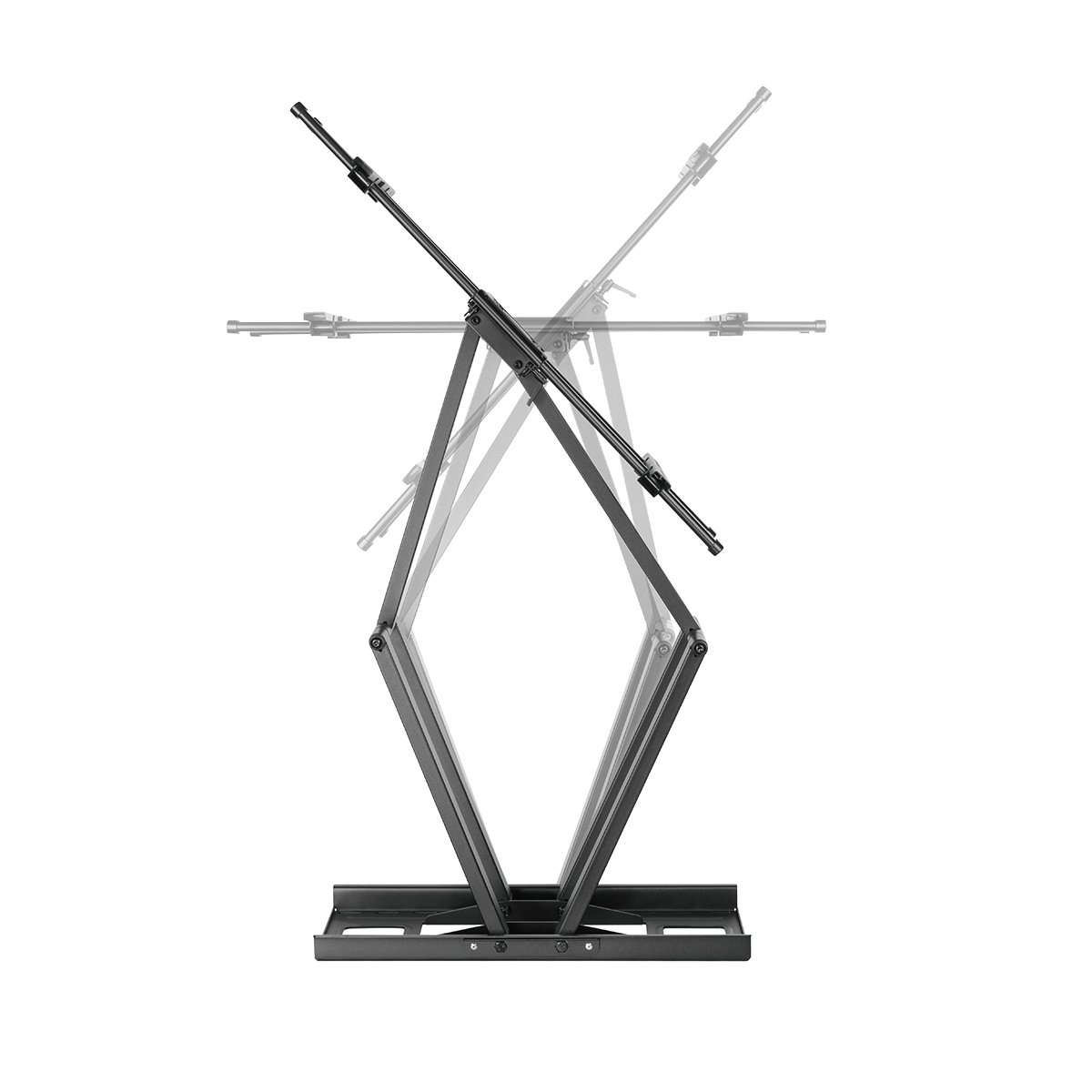

- Swivel Range: +60°~-60°
- Screen Level: +3°~-3°
- Screen Freely Tilting: Yes
- Mounting Plate Dimensions: 645mm x 275mm (26.6” x 10.8”)

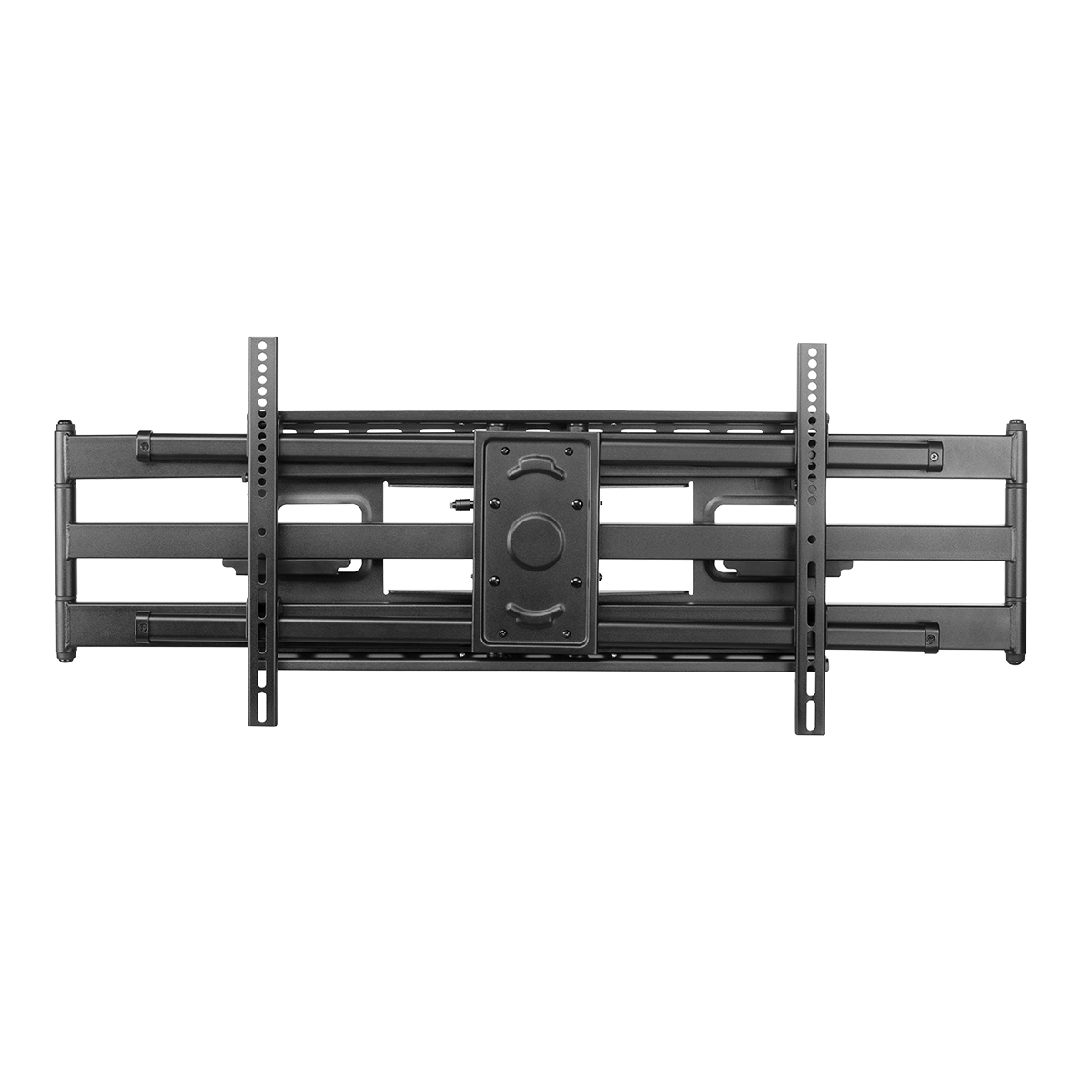

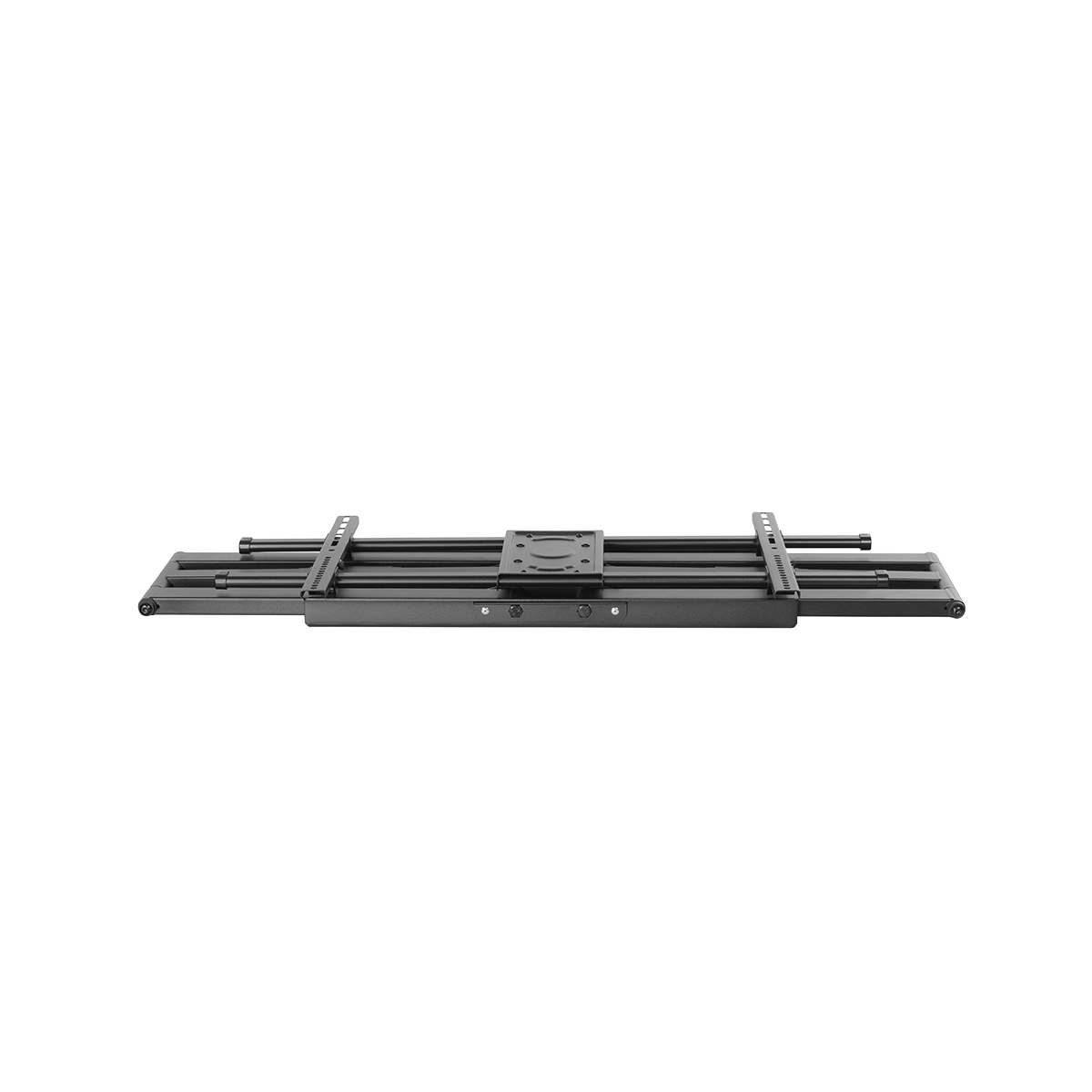

- Closed to Wall Dimensions: 1,080mm x 275mm (42.5” x 10.8”)

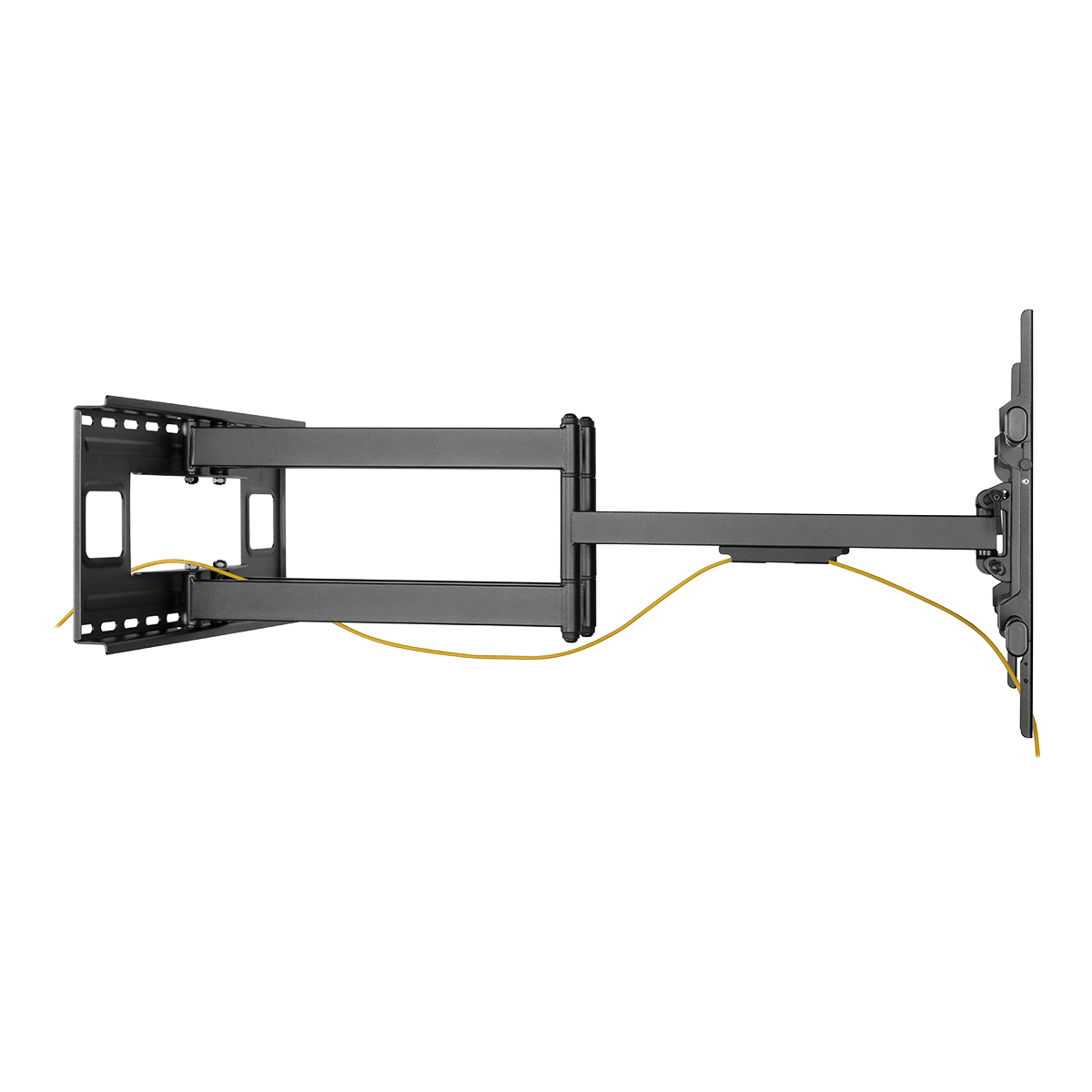

- Cable Management: Yes
- Installation: Solid Wall, Double Stud (406mm/450mm/600mm)
