End of Sale Notice: The Triad 8×8 Audio Matrix Switch is End of Sale effective June 2021. The new Triad 8×8 v2 Audio Matrix Switch is coming early July 2021.

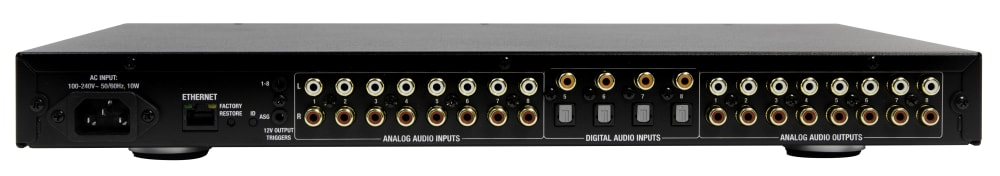

The Triad 8×8 and 24×24 Audio Matrix Switches distribute stereo audio sources to powered amplifiers to deliver high-resolution audio throughout the home while preserving high-resolution audio quality. They include stereo RCA, digital coax, and digital optical audio inputs to integrate with virtually any audio source. Stereo analog (RCA) audio outputs distribute sources to audio/video receivers and multi-room amplifiers. Each output can be adjusted with independent gain, bass, treble, five-band EQ, balance, loudness, and monosumming controls. Triad multi-room audio solutions are built from the ground up to deliver high-resolution audio throughout the home and hide neatly out of sight.
Use Triad Audio Matrix Switches with Triad speakers, Triad Power Amplifiers, and Control4 EA Series Entertainment and Automation Controllers to deliver a fantastic high-resolution audio experience throughout the home.
Triad Audio Matrix Switches require OS 2.10 or higher.
- Share up to 8 (or 24) audio sources to as many as 8 (or 24) audio zones for multi-room audio distribution
- High signal-to-noise ratio delivers dynamic, high-resolution audio to every room in the house
- All audio inputs and outputs support resolutions up to 192 kHz/24 bit
- Independent output controls adjust volume, bass, treble, five-band parametric EQ, balance, loudness, and monosumming
- Independent input gain control for each source for consistent levels when switching between sources
- Two output zones can be grouped into a single 2.1 (stereo speakers + subwoofer) audio zone
- 12V trigger outputs enable simple on/off control of Triad power amplifiers or other devices that support 12V power-on capabilities
- Audio sensing supports programmable events based on the presence of audio
- Ethernet control
- Rack-mount ears included
- Built-in EQ presets for Triad speakers
