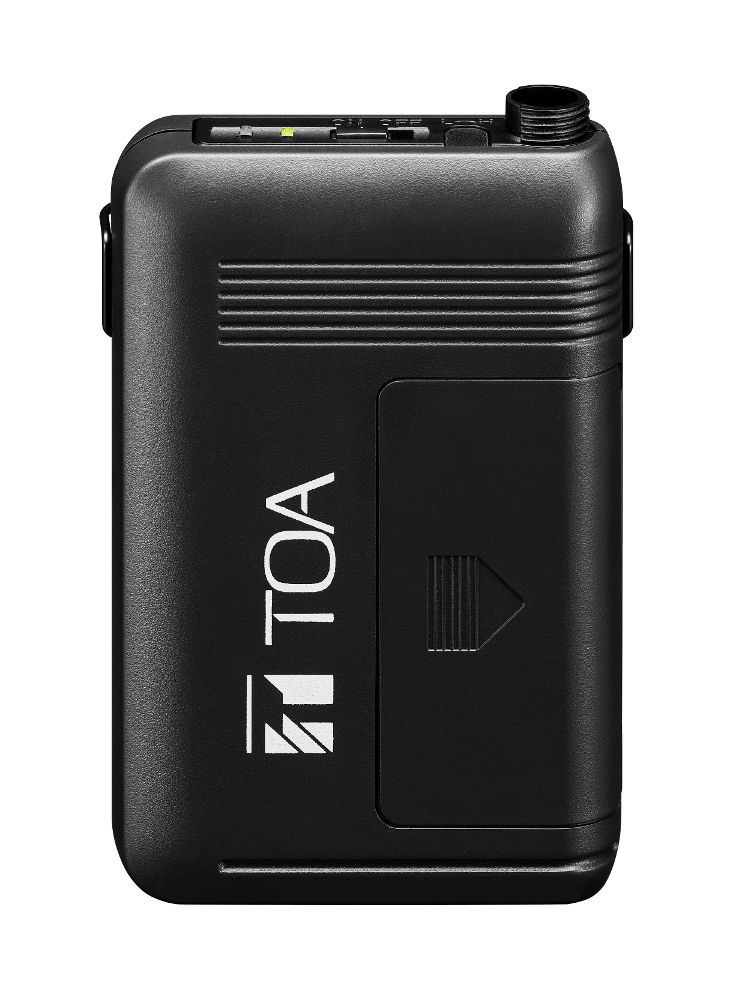

The WM-5325 wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available. A high output power ensures stable radio signal transmission.
NOTE: Microphones sold separately.
| Modulation | Frequency modulation |
|---|---|
| Frequency Range | 576 - 932 MHz (*2), UHF |
| Channel Selectable | 64 channels (the number of channels may differ from country to country) |
| RF Carrier Power | 50 mW or less |
| Tone Frequency | 32.768 kHz |
| Oscillator | PLL synthesized |
| Maximum Input Level | -14 dB to -29 dB (*1) (Audio level control: Min. to Max.) |
| Maximum Deviation | ±40 kHz |
| Audio Frequency Response | 100 Hz - 15 kHz |
| Battery | WB-2000 (WB-2000-2 contains 2 pieces) rechargeable battery (option) or AA alkaline dry cell battery |
| Battery Life | Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used) |
| Indicator | Power/Battery lamps |
| Antenna | Built-in type |
| Connector | φ3.5 mm (φ0.14") mini plug |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) (except battery) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, coating |
| Dimensions | 62 (W) × 102.5 (H) × 23 (D) mm (2.44" × 4.04" × 0.91") |
| Weight | 90 g (0.2 lb) (with battery) |
| Accessory | Screw driver …1, Storage case …1, Neck strap …1 |
| Option | Unidirectional lavalier microphone: YP-M5300 Omnidirectional lavalier microphone: YP-M5310 Headset microphone: WH-4000A, WH-4000H |
NOTE: Microphones sold separately.
