USB 3.2 over CAT6 Extender

Description

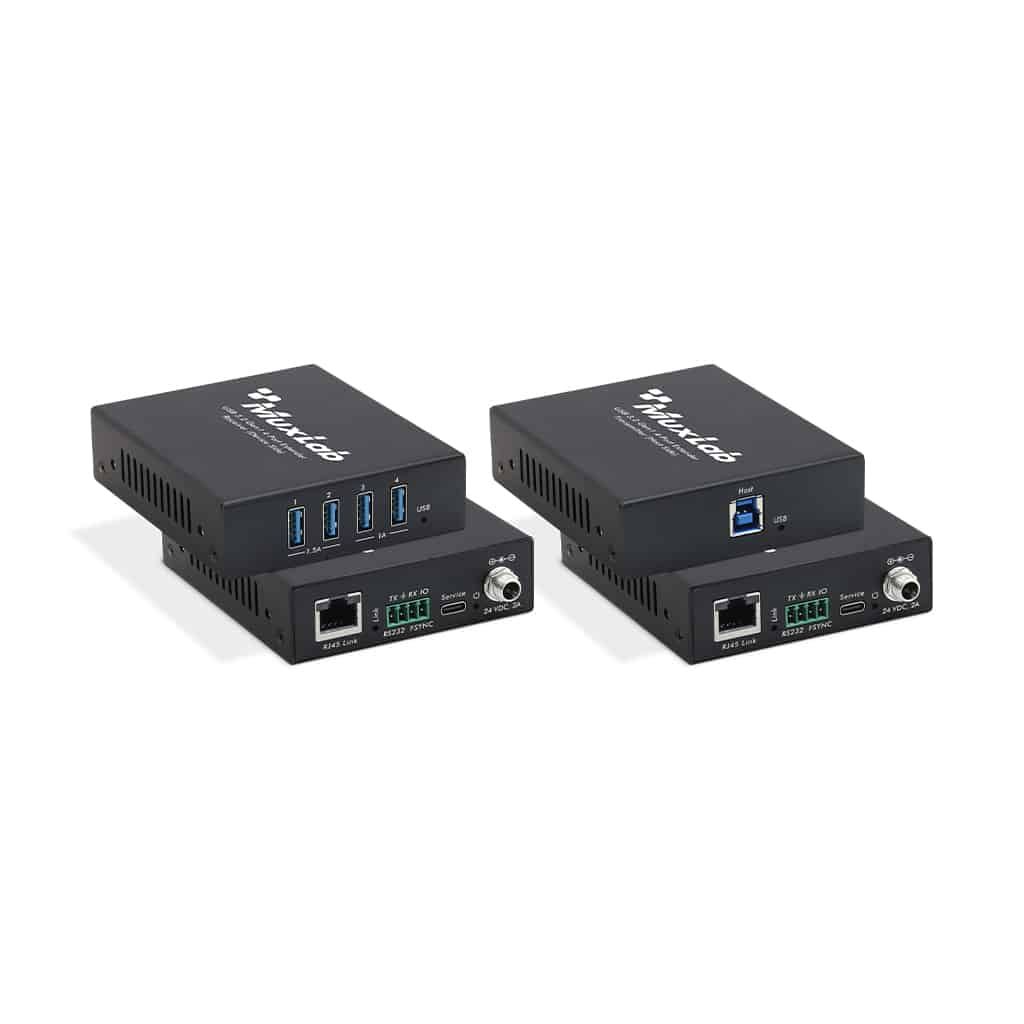

USB 3.2 Gen1 4-Port Extender Kit, 100m

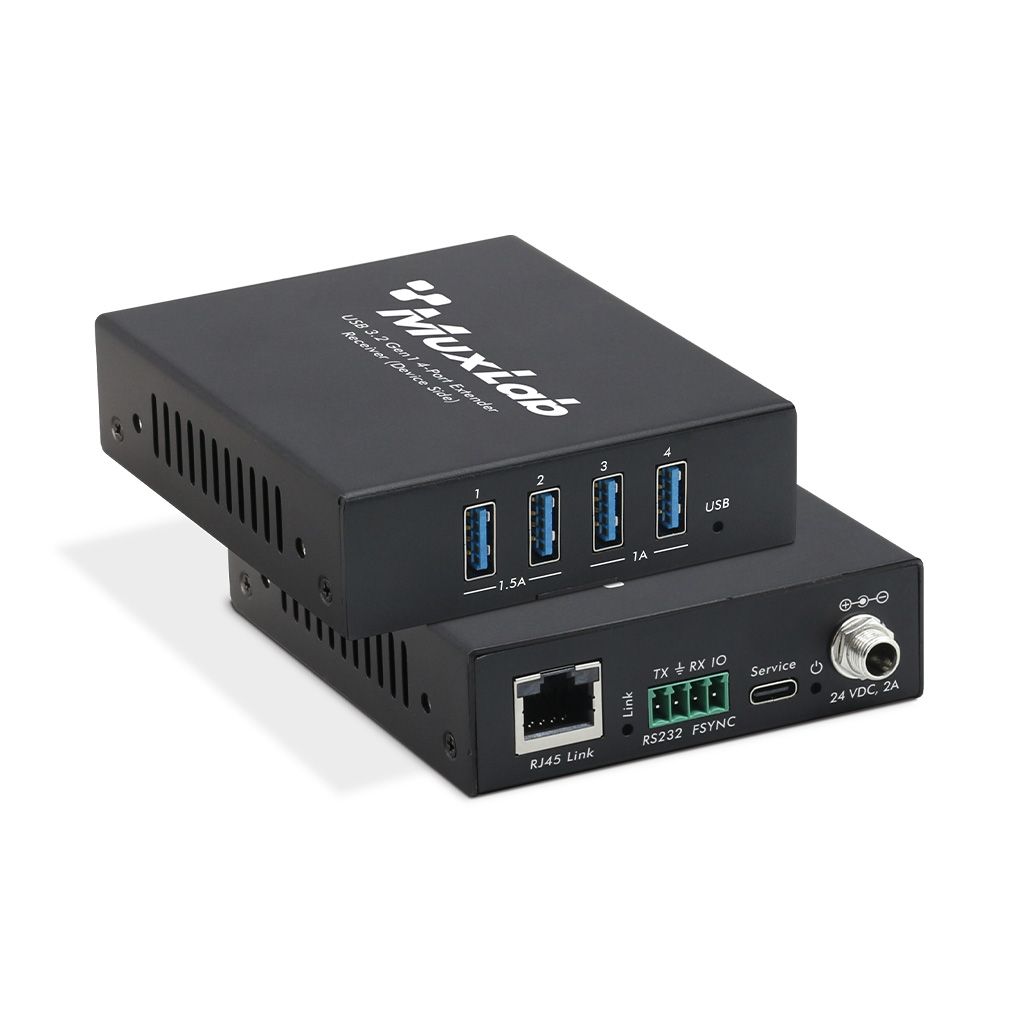

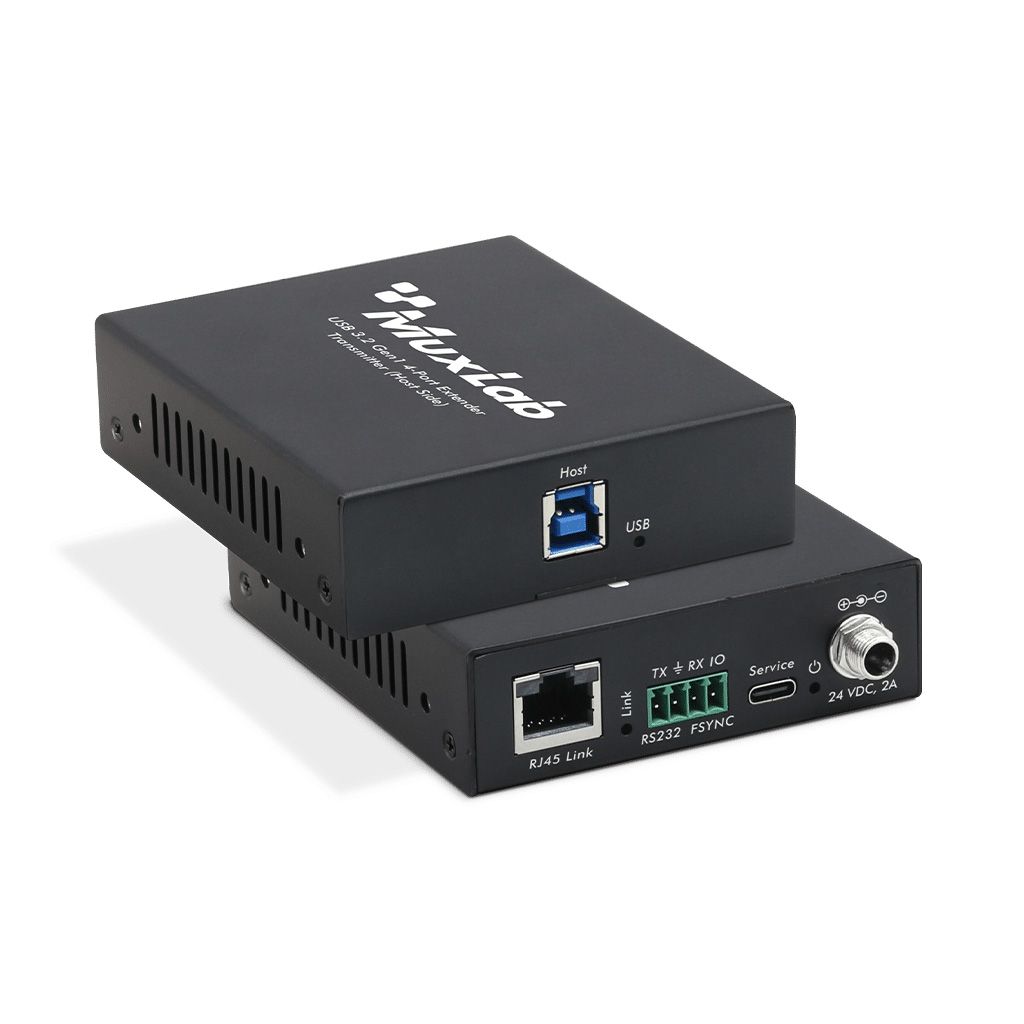

The USB 3.2 Gen1 4-Port Extender Kit, 100m (model: 500530) enables USB 3.2 Gen1 connectivity at data rates up to 5Gbps & extends true USB up to 100m (328ft) over standard Cat6a UTP. Transmitter features with one USB 3.2 Gen1 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.2 Gen1 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. The device also supports 24V Bi-directional PoC.

The USB 3.2 Gen1 4-Port Extender Kit, 100m is true plug and play, requires no additional software drivers, and is compatible with all major operating systems. The unit supports a wide variety of USB extension applications including security, industrial control, digital signage, scientific data acquisition and other implementations of USB standards.

• Extension of USB 3.2 Gen1 up to 100m/328ft over CAT6a cable
• USB 3.2 Gen1 connectivity with data transfer rate up to 5Gbps
• Backwards compatible with USB 2.0 and USB 1.1 Hardware acceleration for isochronous and bulk transfer
• USB-A port 1 and 2 support 5VDC/1.5A, port 3 and 4 support 5VDC/1A on the Receiver
• Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
• Support bi-directional 24VDC PoC
• Simple plug and play, no driver and setting installation required

Applications:

• Conference Rooms
• Classroom Projector Systems
• Collaborative PC Systems
• Digital Signage
• Educational Institutions
• Boardroom Systems
