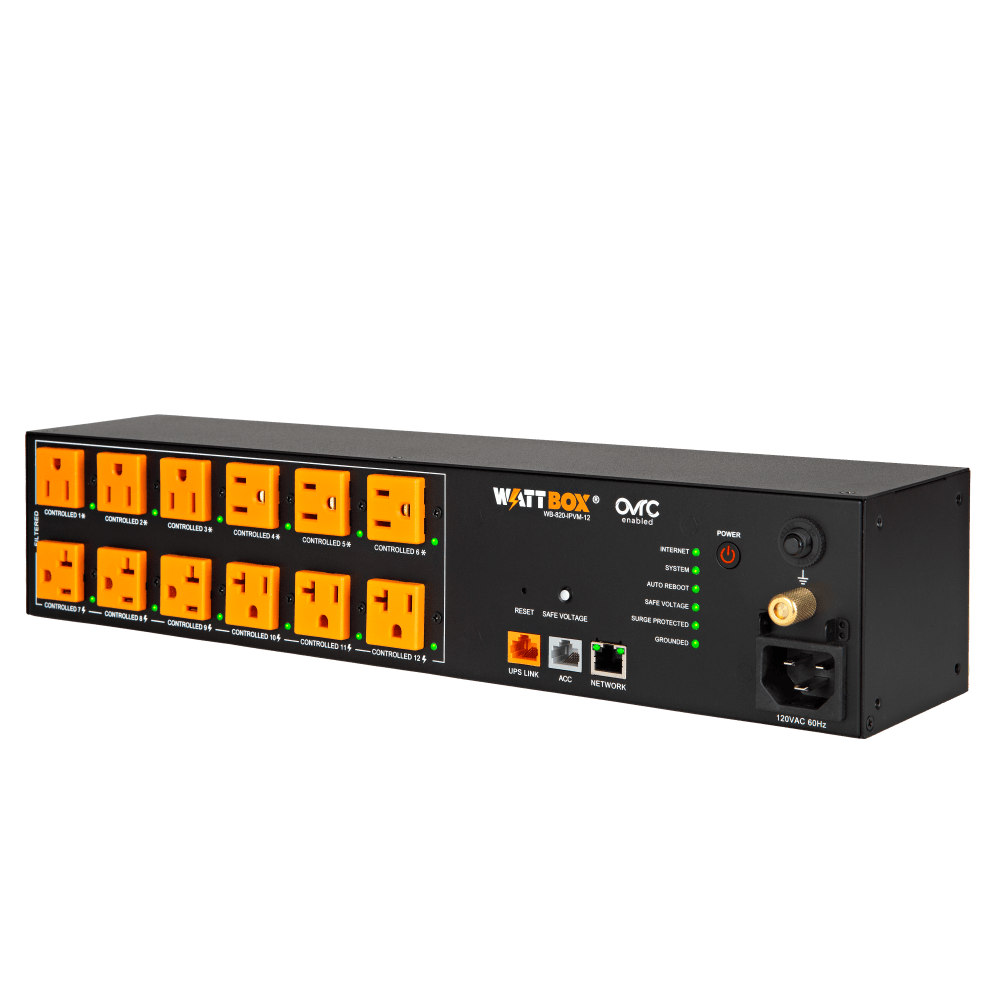

WattBox® 820 Series 20A IP Power Conditioner | 12 Individually Controlled and Metered Outlets
The WattBox 820 Series 20-amp 12-Outlet PDU delivers individual outlet metering, smart outlet placement, and flexible mounting options. Individually controlled and metered outlets, combined with OvrC remote management, solve issues without the need for a service call. Thanks to a unique design and strategically placed outlets, you can install the WB-820-IPVM-12 at virtually any angle to maximize outlet space and create an organized, aesthetically pleasing rack. For ultimate troubleshooting and control, you can reboot individual outlets and create schedules directly from the OvrC mobile app. With a professional-grade aluminum build, built-in surge protection, and power conditioning, the WattBox 820 will power and protect your gear for years to come.
Flexible Mounting Options
Stop struggling to reach outlets. Whether you need it up, down, angled, or recessed, this WattBox provides almost limitless options. Turn the included bracket around to easily mount it in the back of a rack, cabinet, or on a wall. Or, face the bracket down, apply the included feet, and you can quickly secure it to a shelf or the top of the cabinet to power your install.
Smart Outlet Design
Bulky power supplies can get in the way and create install headaches. To help alleviate that inconvenience, WattBox outlets are strategically spaced and feature various orientations to maximize outlet use and provide greater flexibility for any job. Tie-down straps and a locking IEC cord are included to keep everything in place.
Surge Protection & Power Conditioning
This professional-grade WattBox is engineered to protect critical equipment on the job. Safe Voltage protects gear by automatically disconnecting it during unsafe voltage conditions, while MOVs with a UL94 V-0 rating provide critical surge protection. Additionally, an isolated filter bank ensures that critical audio and video components perform optimally with reduced EMI/RF interference. You can even use OvrC to set threshold ranges for voltage, power, and current, and receive helpful notifications when they fall out of range.
Outlet Metering + Power Insights Dashboard
WattBox gives pros deeper visibility through outlet-level metering and the Power Insights Dashboard in OvrC. Access historical data to quickly spot unusual behavior, pinpoint the device causing an issue, and resolve problems faster. With these insights, you can deliver more reliable installs and reduce unnecessary truck rolls.
Optional UPS Battery Pack Add-On
Pairing an IP WattBox with a WattBox OvrC UPS Battery Pack safely backs up all of your equipment in case of power failure. This add-on lets you manage your system proactively by unlocking additional OvrC features including smart load shedding, remote alarm silencing, and critical battery health alerts.
Control System Integration & IP WattBox API
WattBox is compatible with the industry’s most popular control systems, including Control4®, Crestron, Elan, RTI, and URC. We’ve even added a next-generation Telnet API that lets you program unique features into your system or create custom solutions to deploy and monitor WattBox products across thousands of sites. With Telnet API, you can integrate with any third-party control system, monitoring platform, or other proprietary solutions.
On-the-Go Remote Management
With the easy-to-use OvrC mobile app, you'll receive real-time alerts to promptly address any issues and view critical information for all devices, including those that have gone offline. You can effortlessly create schedules and automatically reboot individual outlets directly from the app, giving you enhanced control from anywhere you are.
15/20 Amp Flexibility
Mix and Match your power needs in a single PDU. The 12-outlet WattBox 820 has 6 dedicated 20 Amp outlets and 6 15 amp outlets.
Three Ways to Prevent Service Calls & Truck Rolls
This WattBox provides three lines of defense to fix problems and reduce service calls. Combine WattBox’s scheduling and auto-reboot feature with OvrC remote management and a client-facing mobile app, and you have an iron-clad solution built for pros. Simply put, no other remote management system comes close to what WattBox and OvrC can do.
