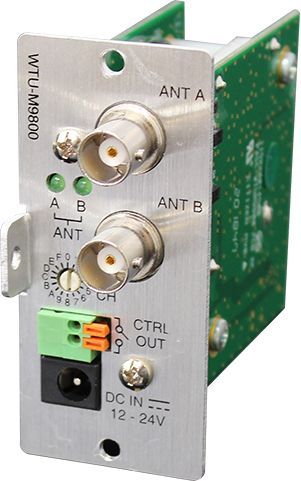

The TOA Wireless Tuner Module WTU-M9800 provides a truly integrated wireless microphone solution for any TOA product that accepts a 900 series input module.
Speifications
| Power Requirement | Internal power supply mode : 24 V DC (Up to two WTU-M9800 can be powered from the mixer's internal power supply.) External power supply mode : 12 – 24 V DC |
| Current Consumption | 100 mA |
| Receiving Frequency | 506 – 538 MHz (*1), UHF, M-band |
| Receiving System | Double super-heterodyne |
| Receiving Sensitivity | S/N <80dB (20 dBV input, 40kHz deviation) |
| Contact Output | 1 channel, normally open relay rate to 30V DC max, no-voltage make contact output, withstand voltage: 30 V DC, control current 0.5 A max |
| Antenna Input | 75 , BNC connector with 9V DC / 30mA power (phantom power for YW-4500 series powered antenna 9V DC, 30mA max) |
| Diversity System | Space diversity |
| Channel | 16 selectable channels |
| Frequency Response | 100 – 12 kHz, ±3 dB |
| Operation Temperature | -10°C +50°C(14°F to 122°F) |
| Dimensions | 35 (W) X 78 (H) X 90.8 (D) mm (1.38" X 3.07" X 3.57") |
| Weight | Max. 92g (0.21 lb) |
| Optional Accessories | External power supply TOA xxx-xxx |
