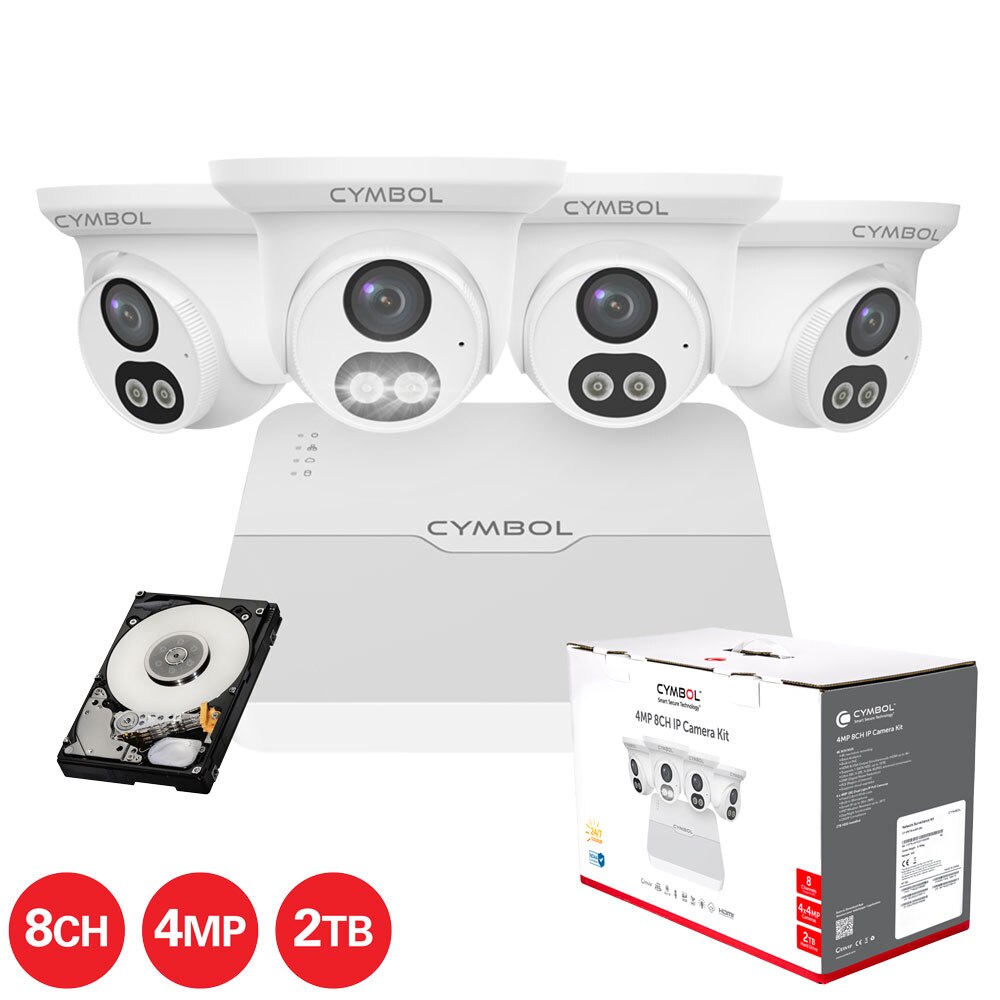

| Specifications for: CY-IBK844MPL-WH: Cymbol 8CH IP Box Kit w/ 4 x 4MP White Dual Light Turret Cameras and 8CH 2TB 4K NVR |
| Network Video Recorder (NVR) |
| 1x (CY-NVR4K-8P-2TB-WH) |
| IP Video Input |
8-ch |
| Bandwidth |
64Mbps (Incoming) |
| 48Mbps (Outgoing) |
| HDMI/VGA Output |
HDMI: 4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
VGA: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution |
4K/5MP/4MP/3MP/ 1080p/960p/720p/D1/2CIF/CIF |
| Synchronous Playback |
8-ch |
| Liveview display |
1/4/6/8/9 |
| Corridor Mode Screen |
3/4/5/7/9 |
| Decoding format |
Ultra 265/H.265/H.264 |
| Liveview/ Playback |
4K/5MP/4MP/3MP/ 1080p/960p/720p/ D1/2CIF/CIF |
| VCA Detection by Camera |
Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection |
| VCA Search |
Behavior Search |
| Smart Intrusion Prevention (SIP) by Camera |
4-ch(supports channel 1-4; Alarm only, no image) |
| General Alarm |
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panel: 2 x USB2.0 |
| Interface |
8 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power |
Max 30W for single port |
| Max 75W in total |
| Power Supply |
52V DC |
| Power Consumption: ≤9 W (without HDD) |
| Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) |
270mm × 205mm × 46mm (10.6"×8.1"×1.8") |
| Weight |
≤0.8 kg (1.76 lb) (without HDD) |
| Cameras |
| 4x (CY-TR4MP2-8DL) |
| Sensor |
1/3”, 4.0 megapixel, CMOS |
| Minimum Illumination |
Colour: 0.0.01 lux ( F1.6, AGC ON) 0 lux with IR on |
| Adjustment angle |
Pan: 0° ~ 360° Tilt: 0° ~ 80° Rotate: 0° ~ 360° |
| Lens |
2.8mm@F1.6 |
| Iris |
Fixed |
| Field of View |
(H) 97.0°/ (V) 52.2° / (D) 107.5° |
| DORI Distance |
Detect 63m Observe 25.2m Recognize 12.6m Identify 6.3m |
| IR Range |
Up to 30m (98 ft) IR range |
| Frame Rate |
Main Stream:
4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; |
Sub Stream:
D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps |
| Flip |
Normal, Flip Vertical, Flip Horizontal, 180°, 90°Clockwise, 90°Anti-clockwise |
| Basic Analytics |
Motion detection,Tampering alarm, Audio detection |
| Other Functions |
Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication |
| Built-in-mic |
Support |
| Edge Storage |
Micro SD, up to 128GB |
| Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Client |
CymCamPro / Guard Station / Star4Live |
| Network |
1 x RJ45 10M/100M Base-TX Ethernet |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 2.8W |
| Dimensions |
Ø126 x 93.6mm (Ø5.0” x 3.7”) |
| Weight |
0.29kg (0.64lb) |
| Material |
Camera: metal / Housing: metal / Ring: plastic |
| Working/Storage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Protection |
IP67 |
