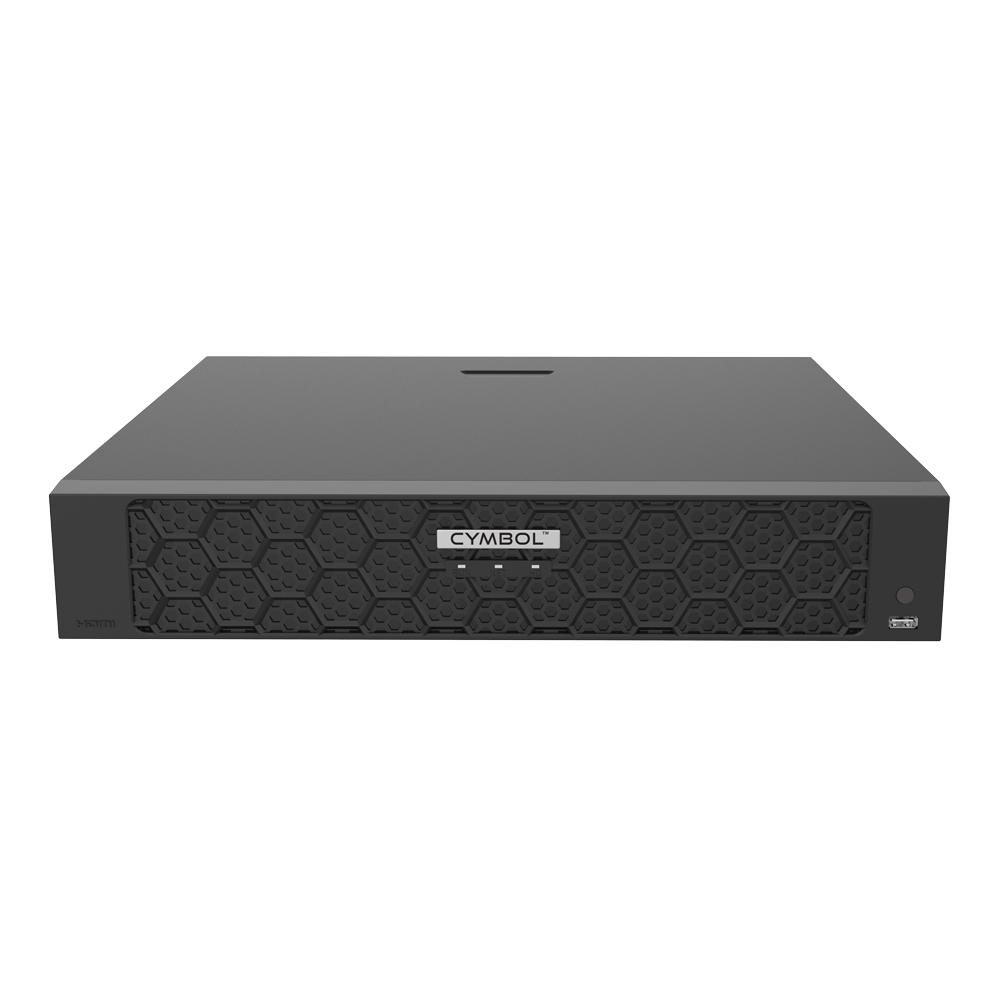

| Specifications for: CY-NVR4K-32-16P-V2: Cymbol 16MP H.265 NVR 32CH/16PoE 16/4 Alarm 4 SATA |
| VIDEO/AUDIO INPUT |
IP Video Input |
32-ch |
| Two-way Audio Input |
1-ch, RCA |
| NETWORK |
Incoming Bandwidth |
320Mbps |
| Outgoing Bandwidth |
160Mbps |
| Remote Users |
128 |
| Protocols |
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPV6 |
| Browser |
IE(IE10/11) for Windows, Firefox (version 52.0+) for Windows Chrome(version 45+) for Windows, Edge(version 79+) for Windows |
| VIDEO/AUDIO OUTPUT |
HDMI/VGA Output |
HDMI: 4K (3840x2160/30Hz), 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution |
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Audio Compression |
G.711A, G.711U |
| Synchronous Playback |
16-ch |
| Liveview display |
1/4/6/8/9/16/25/32 |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16/32 |
| SNAPSHOT |
FTP/Schedule/Event Snapshot |
4-ch snapshot, up to D1 resolution |
| DECODING |
Decoding format |
Ultra 265, H.265, H.264 |
| Liveview/Playback |
16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
Ultra 265/H.265: 2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 10 x 3MP@30, 16 x 1080P@30, 32 x 960P@25 H.264: 2 x 16MP(4800 x 2688)@30, 2 x 12MP@30, 2 x 4K@30, 4 x 5MP@30, 6 x 4MP@30, 8 x 3MP@30, 14 x 1080P@30, 30 x 720P@30, 32 x D1 |
| HARD DISK |
SATA |
4 SATA interface |
| Capacity |
Up to 16TB for each HDD |
| eSATA |
NA |
| Disk Group |
Support |
| SMART |
VCA Detection by Camera |
Vehicle Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Temperature Detection (Fire Detection, Smoking Detection,Temperature Measurement, Smoke and Fire Detection), UMD (Ultra Motion Detection),Video Metadata, Traffic Monitoring |
| VCA Search |
Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| People counting |
People Flow Counting, Crowd Density Monitoring |
| Smart Intrusion Prevention (SIP) by Camera |
8-ch |
| GENERAL ALARM |
General Alarm |
Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm |
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |

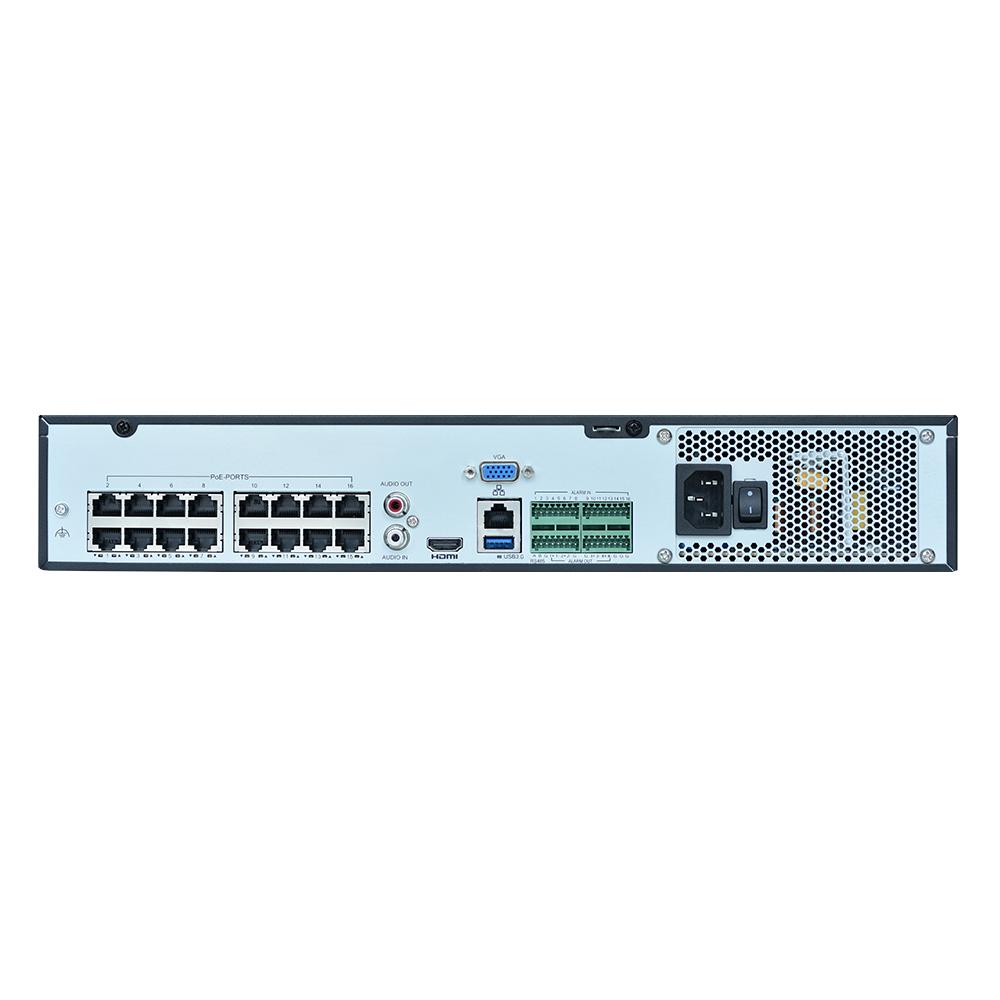

| EXTERNAL INTERFACE |
Network Interface |
1 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| USB Interface |
Front panel: 2 x USB2.0, Rear panel: 1 x USB3.0 |
| RS232/RS485 |
NA/1 |
| Alarm In/Alarm Out |
16-ch/ 4-ch |
| POE |
Interface |
16 RJ45 10M/100M self-adaptive Ethernet Interface |
| Max Power |
Max 30W for single port |
| Max 150W in total |
| Supported Standard |
IEEE 802.3af/at |
| GENERAL |
Power Supply |
100 ~ 240 V AC |
| Power Consumption: ≤ 20W (without HDD) |
| Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ≤ 90% RH (non-condensing) |
| Dimensions (W×D×H) |
400mm × 368mm × 74mm (15.7”×14.5”×2.9”) |
| Weight (without HDD) |
≤4Kg (8.82lb) |
| CERTIFICATION |
Certification |
CE, FCC, UL, RoHS, WEEE |
| CE |
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017 |
| FCC |
Part15 Subpart B, ANSI C63.4 |
