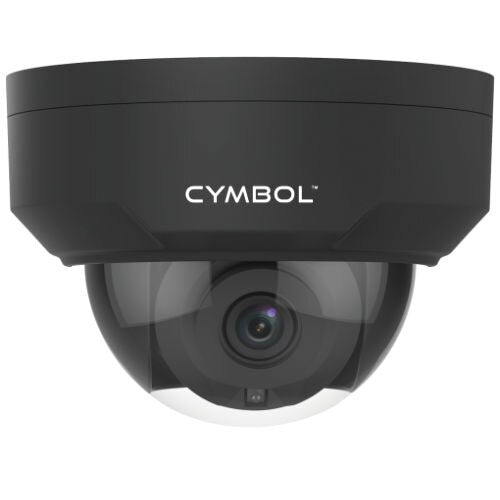

| Specifications for: CY-VPD4MP2-8SL-BK: Cymbol 4MP Starlight IR Dome Camera 2.8mm – Black | |||||
|---|---|---|---|---|---|
| Camera | |||||
| Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F1.6 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63 | 25.2 | 12.6 | 6.3 | |
| Angle of View (H) | 105.3° | ||||
| Angle of View (V) | 57° | ||||
| Angle of View (O) | 136.9° | ||||
| Adjustment angle | Pan: 3° ~ 360° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour:0.005 Lux (F1.6, AGC ON) 0Lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >56dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||
| Frame Rate | Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps Sub Stream: 720P (1280*720), Max 30fps |
||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| 9:16 Corridor Mode | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 8 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise | ||||
| Dewarping | N/A | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256GB | ||||
| Network Storage | ANR, NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTMP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API | ||||
| Client | CymCam2 Star4Live Guard Station | ||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Audio I/O | N/A | ||||
| N/A | |||||
| Alarm I/O | N/A | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 | ||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 3.5W | |||||
| Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3” x 3.2”) | ||||
| Net Weight | 0.42kg (0.93lb) | ||||
| Material | Metal + Plastic | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistant | IK10 | ||||
| Reset Button | N/A | ||||
