Fusion Splicer

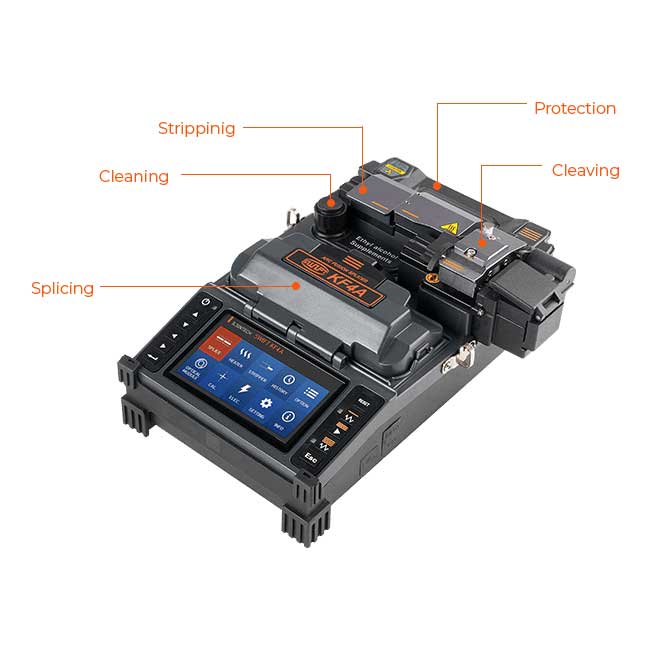

Performs the major 5 functions, stripping, cleaning, cleaving, splicing, and sleeving

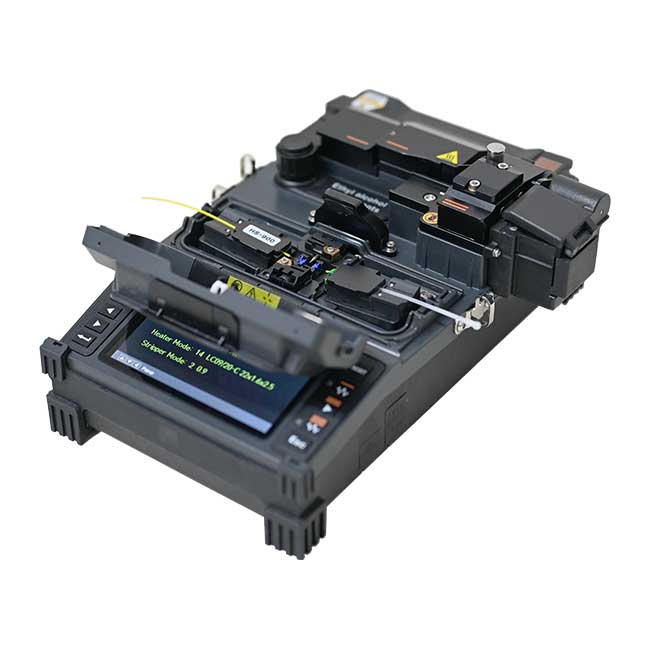

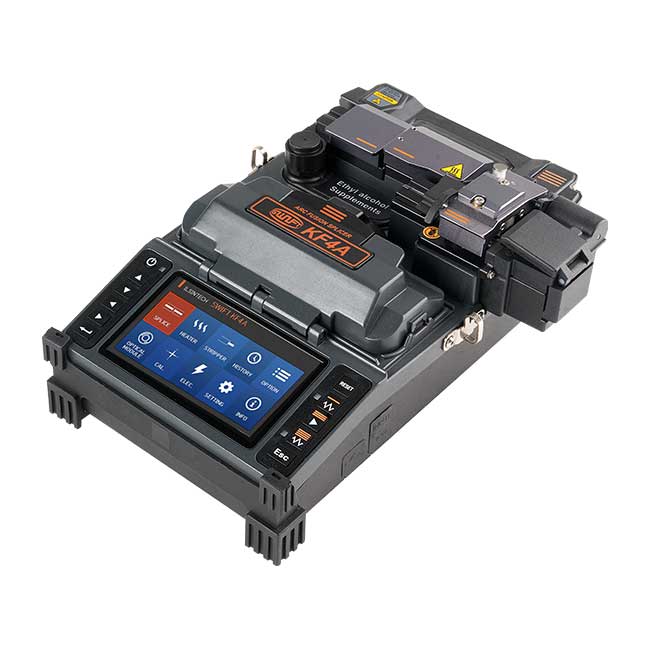

Swift KF4A is a highly advanced and accurate active cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically: stripping, cleaning, cleaving, splicing and sleeving (All-in-One). The Swift KF4A is the best fit for fusion splicing and fusion splice-on connectors (SOC) of FTTx network applications. The KF4A eliminates fatal issues common with conventional mechanical connectors including low quality, weak durability and high maintenance costs. The Swift KF4A fusion splicer coupled with our fusion splice-on connectors provides customers the best ROI.
| Specifications for: IL-KF4A-KIT: Ilsintech Swift All In One Active Fusion Splicing Kit | |
|---|---|
| Category | Description |
| Fiber alignment | IPAAS Clad to Clad Alignment |
| Applicable type of fibers | 0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable |
| Fiber count | Single fiber |
| Applicable fiber dimensions | Cladding diameter : 125μm, Coating diameter : 150μm~3mm |
| Fiber setting and cleaved length | 0.20in to 0.63in |
| Splicing modes | Splice mode: 300, Heat mode: 100 |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB |
| Return loss | > 60dB |
| Splicing time | Typical 7sec with SM |
| Sleeve heating time | Typical 13sec with IS-60 mode, IS-60 sleeve |
| Applicable protection sleeve | 2.4in, 1.5in and micro sleeves |
| Storage of splice result | Data : 5,000ea Up to, Image : 5,000ea Up to |
| Tension test | 1.96N to 2.25N |
| Operating condition | Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
| Storage condition | Temperature: 40°F~176°F, Humidity: 0~95% |
| Dimension | 132(W) x 212(L) x 73(H)mm (Without rubber protector) |
| Weight | 1.5kg(Including battery) |
| Viewing method and display | 2 AXIS Two CMOS cameras with 4.3-inch color LCD monito |
| Fiber view and magnification | X/Y : 110X , Max : 220X |
| Power supply | Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC Charger |
| No. of splice cycles with battery | Typical 200 cycles |
| Electrode life | 21,000 splices |
| Blade Life | 75,000 |
| Terminals | USB |
Download IL-KF4A-KIT Spec Sheet
Download IL-KF4A-KIT User Manual
