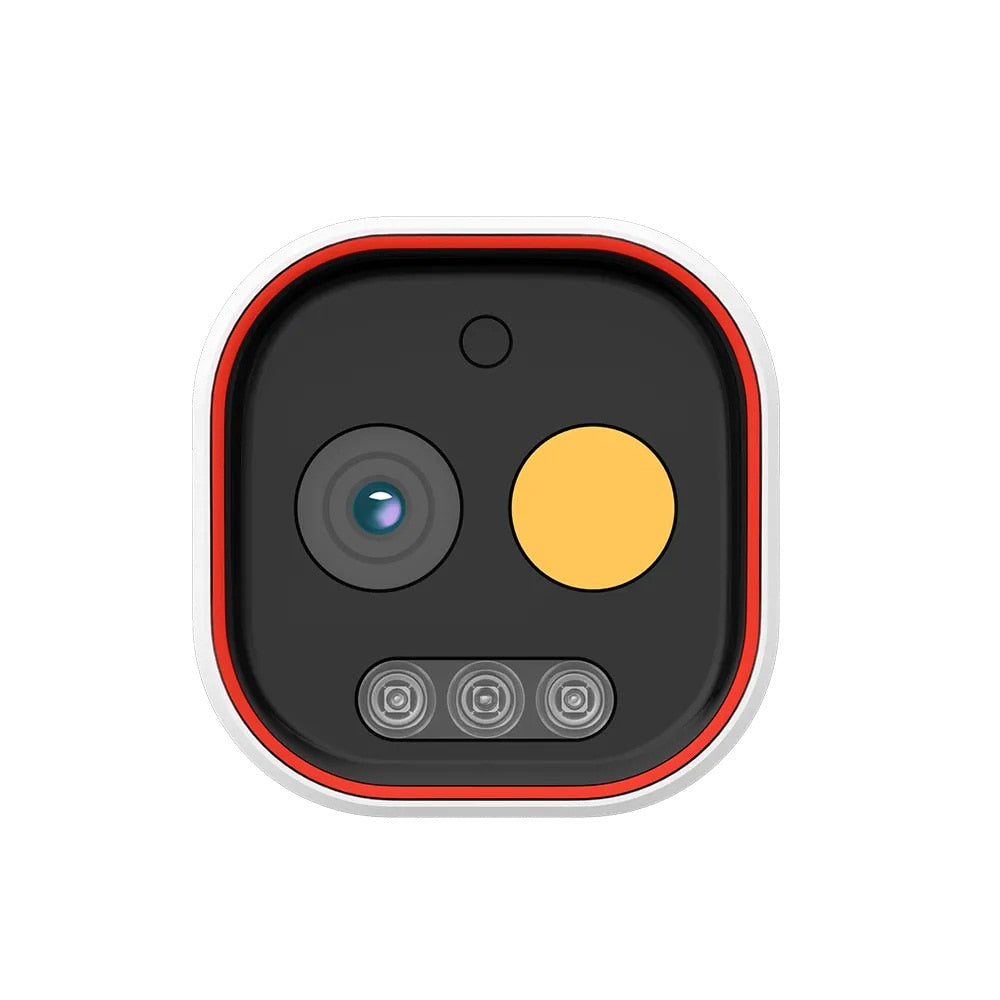

| Specifications for: PV-BMH-THERMAL-7-V2: Provision-ISR 5MP Thermal/Optical Bi-Spectrum Fixed Lens Bullet Camera - White |
| Video |
| Image Sensor |
1/2.7" CMOS |
| Effective Pixels |
2592x1944 |
| Electronic Shutter |
1/23s ~ 1/100000s |
| Day & Night |
ICR |
| Min. Illumination |
Day: 0.1lux / Night: 0.03lux (@F1.6, AGC on) 0lux with IR on |
| Video (Thermal) |
| Detector Type |
12µm Vanadium oxide uncooled focal plane detector |
| Temperature Range |
-20° ~ 150° C |
| Spectral Range |
8µm-14µm |
| Thermal Sensitivity (NETD) |
<50mK(@25°C, F#=1.0) |
| Color Sets |
Black hot, White hot, Rainbow, iron oxide red, Lava Fusion image support |
| Temperature Detection Distance |
7.7m (Object size is 0.1m * 0.1m) In Theory: when the size of the object is doubled - the detection distance is also doubled |
| Fire Detection Distance |
24m (Flame size is 0.1m * 0.1m) In Theory: when the size of the flame is doubled - the detection distance is also doubled |
| DRI Distance Human |
Detection: 292m(958ft) Recognition: 73m(240ft) Identification:36m(118ft) |
| DRI Distance Vehicle |
Detection: 894m(2933ft) Recognition: 224m(735ft) Identification:112m(367ft) |
| NDAA Compliant |
| NDAA Compliant |
Yes |
| Lens |
| Lens (Field of View) |
Optical: 8mm (35°) Thermal: 7mm (25°) |
| Iris |
Fixed Iris |
| Lens Mount |
M12 Mount |
| Image |
| Image Settings |
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable, Lens distortion correction |
| Image Enhancement |
True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction |
3D-DNR |
| Image Orientation |
Mirror/Flip |
| Privacy Zone |
Yes |
| Housing |
| Bracket |
3-Axis Bracket |
| Illumination |
20m (2 High-Power IR LED) White Strobe light |
| PoE |
Yes |
| Power Supply |
DC12V/~650mA / PoE/~9W |
| Protection Rate |
Water Proof: IP66 |
| Work Environment |
-30°C~60°C, 10%~90% Humidity |
| Dimensions |
220.8x79.4x81.2mm |
| Weight (gross) |
~800g |
| Hard Reset Button |
Yes |
| Network |
| Remote Monitoring |
IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| User Access |
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol |
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS, HTTP POST, P2P |
| ONVIF |
Profile M/T/S/G |
| Ethernet |
100Mbps |
| Events and Analytics |
| Analytics |
General Analytics: Camera Tampering AI (Optical Image): AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI (Thermal): DDA Sterile Area, DDA Line Crossing Audio Exception |
| Motion Detection |
Yes |
| Connectivity |
| Network |
RJ45 (+PoE) |
| Audio Connectivity |
Built-in speaker + Audio input |
| Alarm |
Alarm in + Alarm out |
| SD Card |
Event/Schedule based Main/Substream recording (Up to 256Gb) |
| Power |
PoE / DC Socket |
| Analog Video Output |
No |
| Compression |
| Video Compression |
H.265/H.264/MJPEG |
| Frame Rate |
1-25/30FPS |
| Resolution |
256Φ192 |
| Multi-Stream |
Master Stream: 5MP(2592x1944) / 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP Substream: 1MP / D1 / CIF / QCIF Third Stream: D1 / CIF / QCIF (1~30fps) Thermal Stream: 1MP / D1 / CIF / QCIF |
| Bit Rate |
64Kbps ~ 11Mbps@H.265 / 64Kbps ~ 11Mbps@H.264 |
| Encode Mode |
VBR/CBR |
| Image Quality |
Five levels under VBR; Free adjustment under CBR |
| Audio |
| Audio compression |
G.711A/G.711U |
| Communication |
2-Way Audio |
| 3rd Party Cyber Protection |
| General |
Quantum IoT Nano agent by Check Point™ |
| Protection Methods |
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
