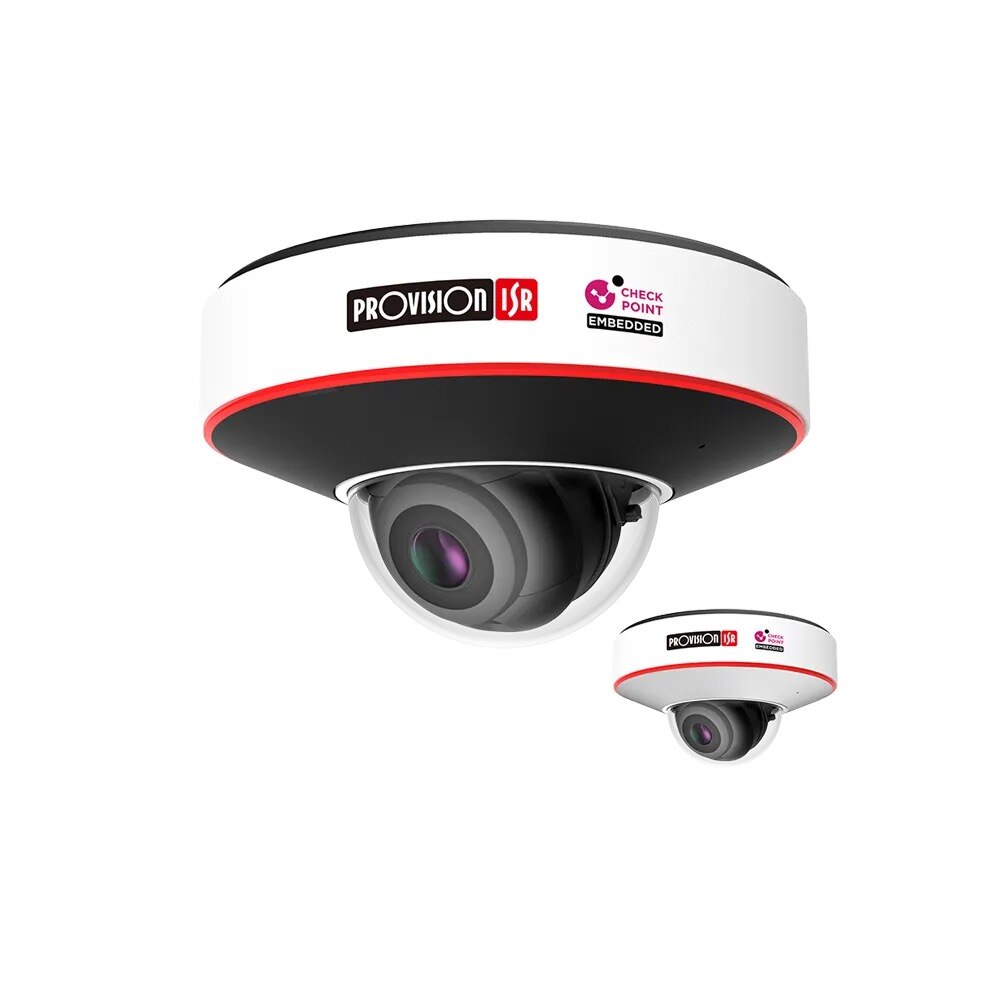

Provision-ISR 8MP Mini VPD Eye-Sight IP Fixed 2.8mm Lens w/ 10M IR Camera – White
Regular price
$630.00
Hurry up! Only 10 item(s) items left in stock
Couldn't load pickup availability
Hurry up! Only 10 item(s) items left in stock
Couldn't load pickup availability
8MP Fixed Lens Dome Camera with IR LED and DDA2 Analytics
The DMA-380IPEN-28-V3 camera has a 2.8mm fixed lens and a protective dome. With its 11cm diameter, this 8MP mini-dome camera is designed for short-distance surveillance (up to 10m) in indoor scenarios. The vandal-proof IK10 protection makes it extremely hard to sabotage. The camera offers broad possibilities for Analytics, from Face Detection to the outstanding DDA Analytics (Detect, Distinguish, Alert) and the newly developed DDA2, which can perform object recognition, object counting, and investigate specifics such as age, color, gender, vehicle brand and much more. The DMA-380IPEN-28-V3 camera is here to end false alarms. Check Point Quantum IoT Nano agent is integrated into this model. It provides an advanced threat prevention layer against the common attack vectors at runtime.
| Specifications for: PV-DMA-380IPEN-28-V3: Provision-ISR 8MP Mini VPD Eye-Sight IP Fixed 2.8mm Lens w/ 10M IR Camera – White | |
|---|---|
| 3rd Party Cyber Protection | |
| General | Quantum IoT Nano agent by Check Point™ |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant | |
| NDAA Compliant | Yes |
| Video | |
| Image Sensor | 1/3" CMOS (16:9) |
| Effective Pixels | 3840x2160 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Day & Night | ICR |
| Min. Illumination | 0.015 lux (@F1.4, AGC on) 0 lux with IR on |
| Audio | |
| Audio compression | G.711A/G.711U |
| Communication | Two-Way Audio |
| Image | |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | True WDR (120dB), BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip, Corridor Mode |
| Privacy Zone | Yes |
| Events and Analytics | |
| Analytics | General Analytics: Camera Tampering AI (Object Recognition): DDA Sterile Area, DDA Line Crossing, DDA Object Counting (Line), DDA Object Counting (Area), DDA Loitering Detection, DDA Illegal Parking Detection AI (Face Detection): 10 Faces per frame AI: Heatmap DDA2: Advanced Object Classification Audio Exception |
| Motion Detection | Yes |
| Compression | |
| Resolution | 8MP / 4K / 6MP / 5MP / 4MP / 2MP / 1MP / D1 / QVGA / CIF |
| Frame Rate | 1-25/30FPS in Normal Mode. 1-50/60FPS in HFR Mode** |
| Video Compression | H.265 / H.264 / H.265+ / H.264+ / MJPEG (Substream only) |
| Multi-Stream | Master Stream: 4K(3840x2160) / 6MP(3072x2048) / 5MP(2592x1944) / 2K(2560x1440) / 2MP(1920x1080) (1~25fps) Substream: 2MP/1MP/D1/CIF/QCIF Third Stream: 1MP/D1/CIF/QCIF (1~30fps) |
| Bit Rate | 64Kbps ~ 7Mbps@H.265 / 64Kbps ~ 8Mbps@H.264 |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| Lens | |
| Lens (Field of View) | 2.8mm (103°) |
| Iris | Fixed Iris |
| Lens Mount | M12 Mount |
| Detect | 83m(272ft) |
| Recognize | 17m(56ft) |
| Identify | 8m(26ft) |
| Network | |
| User Access | Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTMP, Multicast, UPnP, Email, FTP, HTTPS, QoS, P2P, HTTP POST, Auto Report |
| Remote Monitoring | IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin |
| Ethernet | 100Mbps |
| ONVIF | Profile T/S/G |
| Connectivity | |
| Network | RJ45 (+PoE) |
| Audio Connectivity | Built-in Microphone + Audio input + Audio output |
| Alarm | Alarm in + Alarm out |
| SD Card | Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand | No |
| Power | DC Socket |
| Analog Video Output | CVBS (BNCx1) |
| Housing | |
| PoE | Yes |
| Illumination | 10m (2 High-Power IR LEDs) |
| Power Supply | DC12V/~450mA / PoE/~7W |
| Protection Rate | Water Proof: IP67, Vandal Proof: IK10 |
| Work Environment | -30°C~60°C, 10%~90% Humidity |
| Bracket | 3-Axis Bracket |
| Dimensions | Φ110.4mm×62mm |
| Weight (gross) | ~430g |
| Hard Reset Button | Yes |
Download Provision-ISR's Bracket Matching System PDF
