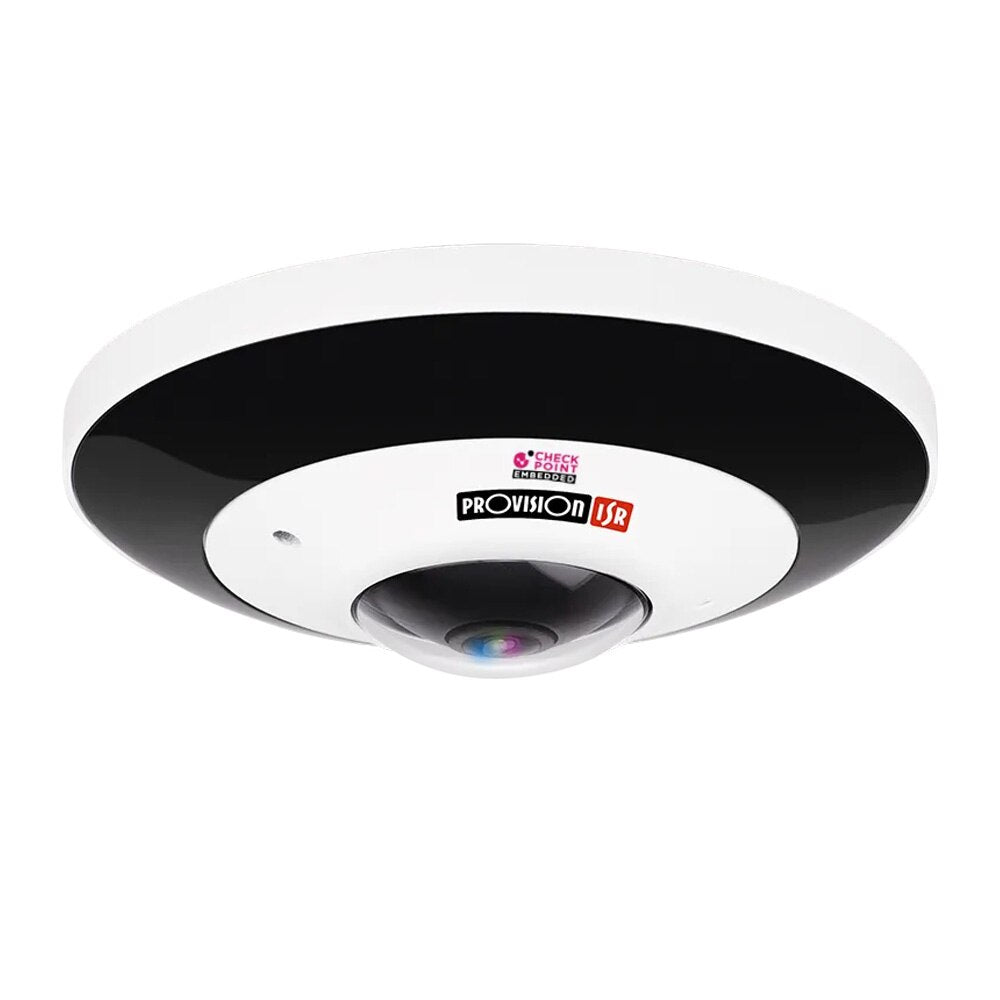

| Specifications for: PV-FEI-360IPN-V3: Provision-ISR 6MP 360° Vandal-Proof Fisheye IP Camera – White |
| 3rd Party Cyber Protection |
| General |
Quantum IoT Nano agent by Check Point™ |
| Protection Methods |
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection |
| NDAA Compliant |
| NDAA Compliant |
Yes |
| Video |
| Image Sensor |
1/2.9" CMOS (2160 x 2160 - 16:9) |
| Effective Pixels |
2160x2160 (1:1) |
| Electronic Shutter |
1/25s ~ 1/100000s |
| Day & Night |
ICR |
| Min. Illumination |
0.1lux (@F2.0, AGC on) 0lux with IR on |
| Audio |
| Audio compression |
G.711A/G.711U |
| Communication |
Two-Way Audio |
| Image |
| Image Settings |
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement |
Digital WDR, BLC, HLC, ROI |
| Noise Reduction |
3D-DNR |
| Image Orientation |
360 |
| Privacy Zone |
Yes |
| Events and Analytics |
| Analytics |
No |
| Motion Detection |
Yes |
| Compression |
| Resolution |
6MP(3200x1800), 5MP(2160x2160), 2MP(1440x1440), 2MP(1920x1080), 960x960, 480x480 |
| Frame Rate |
1-25/30FPS |
| Video Compression |
H.265+/ H.264+ / H.265 / H.264 / MJPEG** |
| Multi-Stream |
Master Stream: 6MP(3200x1800), 5MP(2160x2160), 4MP(1920x1920), 2MP(1440x1440) (1~30fps) Substream: 960x960, 480x480 (1~30fps) Third Stream: 960x960, 480x480 (1~30fps) |
| Bit Rate |
64Kbps ~ 6Mbps@H.265 / 64Kbps ~ 6Mbps@H.264 |
| Encode Mode |
VBR/CBR |
| Image Quality |
Five levels under VBR; Free adjustment under CBR |
| Lens |
| Lens (Field of View) |
1.65mm (360° for Ceiling Mount / 180° For Wall Mount) |
| Iris |
Fixed Iris |
| Lens Mount |
M12 Mount |
| Network |
| User Access |
Supports simultaneous monitoring of up to 6 users with multi-stream real-time transmission |
| Network Protocol |
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS |
| Remote Monitoring |
IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| Ethernet |
100Mbps |
| Connectivity |
| Network |
RJ45 (+PoE) |
| Audio Connectivity |
Built-In Microphone + Audio Input + Audio Output |
| Alarm |
Alarm in + Alarm out |
| SD Card |
Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand |
No |
| Power |
DC Socket |
| Analog Video Output |
CVBS (BNCx1) |
| Housing |
| PoE |
Yes |
| Illumination |
15m (4 High-Power IR LEDs) |
| Power Supply |
DC12V/~450mA / PoE/~7W |
| Protection Rate |
Water Proof: IP67 |
| Work Environment |
-30°C~60°C, 10%~90% Humidity |
| Bracket |
No |
| Dimensions |
Φ130mmx46mm |
| Weight (gross) |
~530g |
| Hard Reset Button |
Yes |
