| Specifications for: PV-I6-240LPRN-MVF2: Provision-ISR 4MP Smart Series LPR Bullet IP MVF 8-32mm Lens w/60M IR Camera – White |
| NDAA Compliant |
| NDAA Compliant |
Yes |
| Video |
| Image Sensor |
1/1.8" CMOS (16:9) |
| Effective Pixels |
2688×1520 |
| Electronic Shutter |
1s ~ 1/100000s |
| Day & Night |
ICR |
| Min. Illumination |
Day: 0.1lux / Night: 0.001lux (@F1.6, AGC on) 0lux with IR on |
| Audio |
| Audio compression |
G.711A/G.711U |
| Communication |
Two-Way Audio |
| Image |
| Image Settings |
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement |
True WDR(120dB), BLC, HLC, ROI |
| Noise Reduction |
3D-DNR |
| Image Orientation |
Mirror/Flip |
| Privacy Zone |
Yes |
| Events and Analytics |
| Analytics |
General Analytics: Camera Tampering License plate recognition |
| Motion Detection |
Yes |
| Triggers |
Snapshot / Email / FTP for allow/block lists |
| Recognition per second |
2 plates per second |
| Recognition distance |
16~48m |
| license plate database |
LPR (database):10000 Plate Database |
| Speed |
LPR (detection speed): 0-100Km/h |
| Accuracy |
Recognition rate up to 99% under good conditions |
| Automation |
Automation: Can work as a standalone for gate automation |
| Compression |
| Resolution |
4MP / 2MP / 1MP / D1 (704x576) / QVGA (480x240) / CIF (352x288) |
| Frame Rate |
1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode*** |
| Video Compression |
H.265+/ H.264+ / H.265 / H.264 / MJPEG** |
| Multi-Stream |
Master Stream: 4MP(2592x1520) / 2K (2560x1440) / 3MP / 2MP / 1MP Substream: 1MP/QVGA/D1/CIF Third Stream: QVGA/D1/CIF (1~30fps) |
| Bit Rate |
64Kbps ~ 7Mbps@H.265 / 128Kbps ~ 8Mbps@H.264 |
| Encode Mode |
VBR/CBR |
| Image Quality |
Five levels under VBR; Free adjustment under CBR |
| Lens |
| Lens (Field of View) |
8-32mm MVF(42°-16°) |
| Iris |
DC Iris |
| Lens Mount |
Ø14 Mount |
| Network |
| User Access |
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission |
| Network Protocol |
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS |
| Remote Monitoring |
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin |
| Ethernet |
100Mbps |
| ONVIF |
Profile G/S/M |
| Connectivity |
| Network |
RJ45 (+PoE) |
| Audio Connectivity |
Audio input + Audio output |
| Alarm |
Alarm in + Alarm out |
| SD Card |
Event/Schedule based Main/Substream recording (Up to 256GB) |
| Wiegand |
26Bit (Output Only) |
| Power |
DC Socket |
| Analog Video Output |
CVBS out + Technician Port |
| Housing |
| PoE |
Yes |
| Illumination |
60m (4 High-Power IR LED) |
| Power Supply |
DC12V/~950mA / PoE/~10.5W |
| Protection Rate |
Water Proof: IP67 |
| Work Environment |
-30°C~60°C, 10%~90% Humidity |
| Bracket |
3-Axis Bracket |

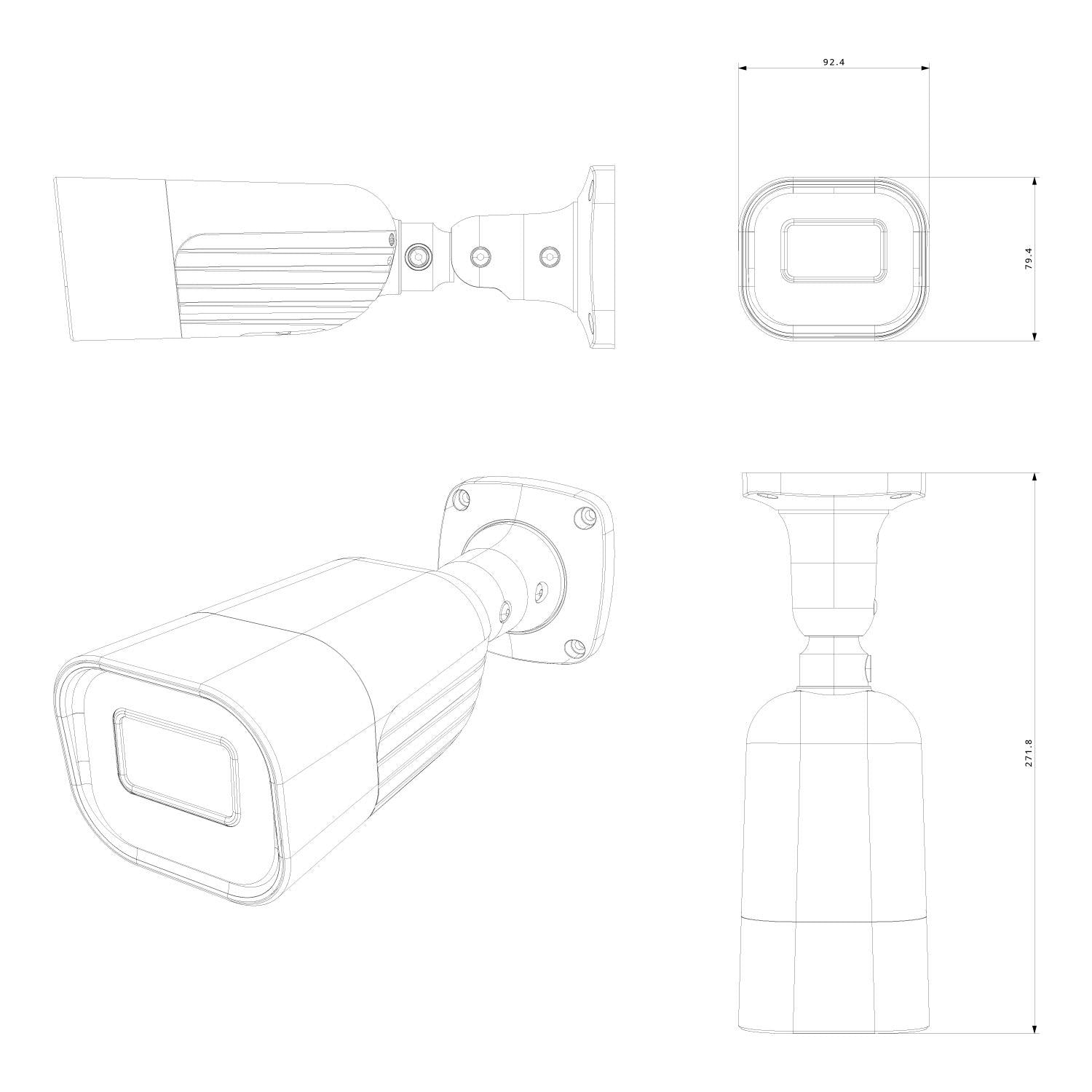

| Dimensions |
271.8x92.4x79.4mm |
| Weight (gross) |
~1120g |
| Hard Reset Button |
Yes |
