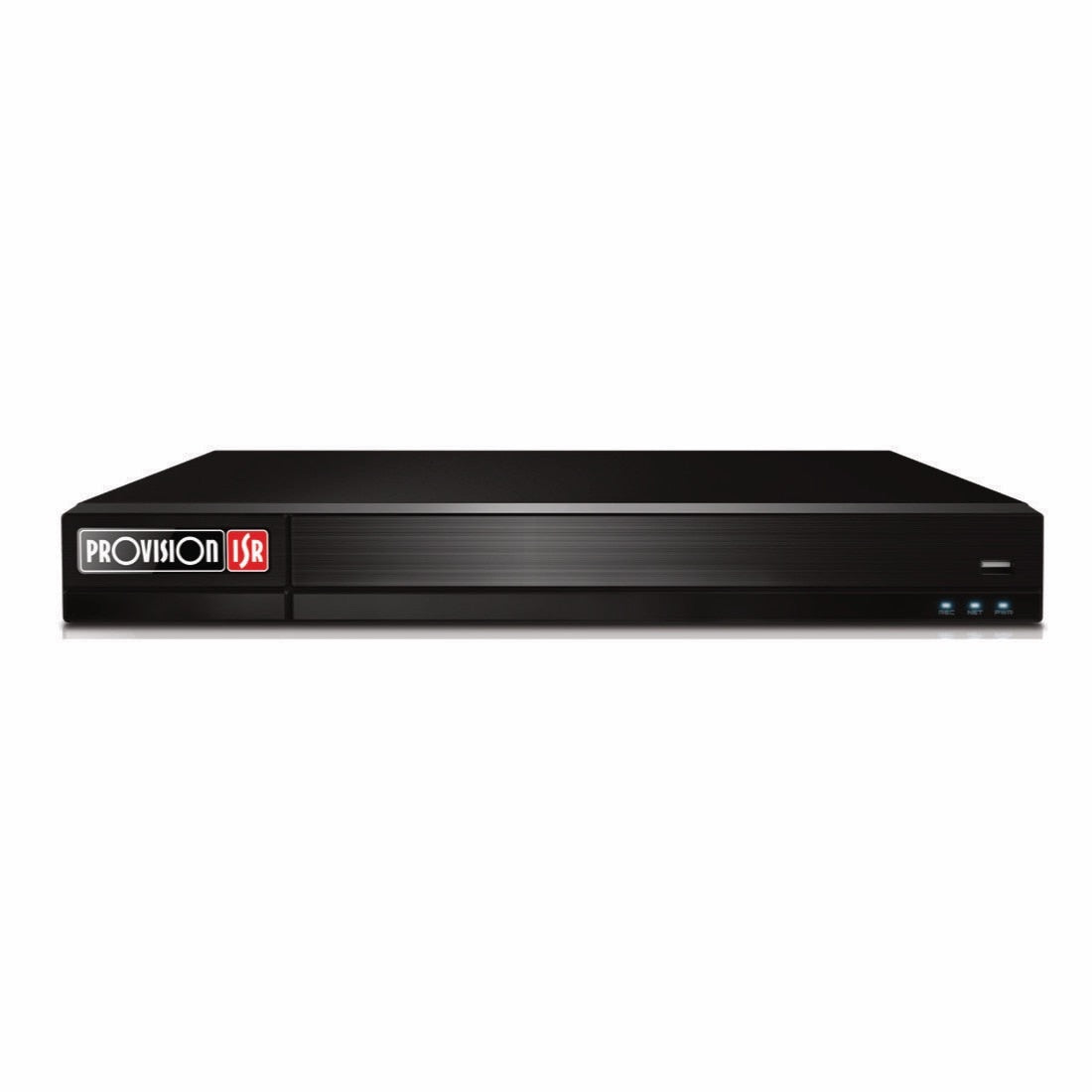

| Specifications for: PV-NVR12-16400PFAN-1: Provision-ISR H.265 Stand Alone NVR 16CH PoE 12MP/20fps Facial Recognition – 1U Case |
|---|
| Cyber Protection |
General |
N/A |
| Protection Methods |
N/A |
| Video |
Input |
16Ch over Network |
| Output |
HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280x1024, 1024x768) |
| View Mode |
Mirrored |
| Decoding Format |
H.265 / H.265+ / H.265S / H.264 |
| Fish-Eye Dewarp |
Local + Web |
| Decoding Capabilities |
1Ch - 12MP ; 4Ch - 2MP |
| Audio |
Input |
1CH RCA (Linear, 1kΩ) + IPC inputs |
| Output |
1CH RCA (2.0 Vp-p, 1 kΩ) + IPC outputs |
| Compression |
G.711A/G.711U |
| Two Way Audio |
Yes |
| Analytics |
Analytics Channels (IPC Based) |
16Ch (Requires supporting IPC) |
| Analytics Channels (NVR Based) |
Up to 2Ch Face Recognition (From non AI IPC) |
| Supported Analytics |
Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR, Thermal (Limited Support). Advanced Face Recognition Mode: Supports 2 Non-AI IPCs and performs face detection and recognition. |
| Face Recognition Rate |
180 Faces per minute (All Channels) / 3 Faces per second (Single Channel) |
| Bandwidth |
Incoming |
160Mbps |
| Outgoing |
160Mbps |
| Record / Remote App |
|---|
| Record / Main Stream |
Real-Time Recording |
16CH 8MP Real-Time; 12MP - 20FPS |
| Record Type |
Video / Video + Audio |
| 16MP |
N/A |
| 12MP |
320FPS(PAL/NTSC) |
| 8MP |
480FPS(NTSC)/400FPS(PAL) |
| 5MP and lower |
480FPS(NTSC)/400FPS(PAL) |
| Master stream over network |
Up to 12CH@Recording Resolution |
| Sub-stream |
Resolution |
Depends on IPC |
| Sub-streams over Network |
80Ch (Limited to Outgoing Bandwidth Capacity) |
| General |
Recording Modes |
Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations |
| Remote Applications |
User Access |
64 Users online with Professional Authority Management |
| Mobile App |
Provision Cam2 for iOS/Android |
| PC/Mac Software |
Ossia VMS Standard/Enterprise |
| Plug-in free Web-Browser |
Chrome, FireFox, Safari, Edge, Opera. (All limited to 4Ch Live View / Playback) |
| Plug-in based Web Browser |
Internet Explorer |
| Playback |
Local Playback |
16Ch |
| Remote Playback (Web, App, VMS) |
16Ch on IE, 4Ch on H5 |
| Search Modes |
DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS |
| Backup |
USB |
2 USB 2.0 Port + 1 USB 3.0 Port |
| Backup Format |
AVI (Unencrypted)/Private Format (Encrypted/Unencrypted) |
| Alarm |
Input |
8+IPC |
| Output |
4+IPC |
| Storage |
HDD |
2 |
| E-SATA |
No |
| HDD Capacity Support |
8TB |
| Max Capacity |
16TB |
| RAID |
N/A |
| PTZ |
Connection |
via Network |
| Supported Controls |
Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 |
Yes (C06 Keyboard Connection) |
| Network |
Ethernet |
10/100Mbps self-adaptive Ethernet interface |
| Protocols |
TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS) |
| ONVIF |
Full Device Support (Profile T/G, ONVIF Version 20.12) |
| PoE |
Ports |
16xRJ45 |
| Speed |
10/100Mbps (10Mbps under CCTV Mode) |
| Standard |
IEEE802.3AF/AT |
| CCTV Mode |
Yes (Up to 200m and 10Mbps bandwidth) |
| Total Power |
150W (Avarage 9.3W per Channel) |
| Max. Power Output (Per Ch.) |
~15W* |
| Others |
Power Supply |
12VDC/4A |
| Power consumption (No HDD) |
20W |
| Dimensions |
380 × 268 × 48.1 mm |
| Operation Temperature |
0°C ~50°C |
