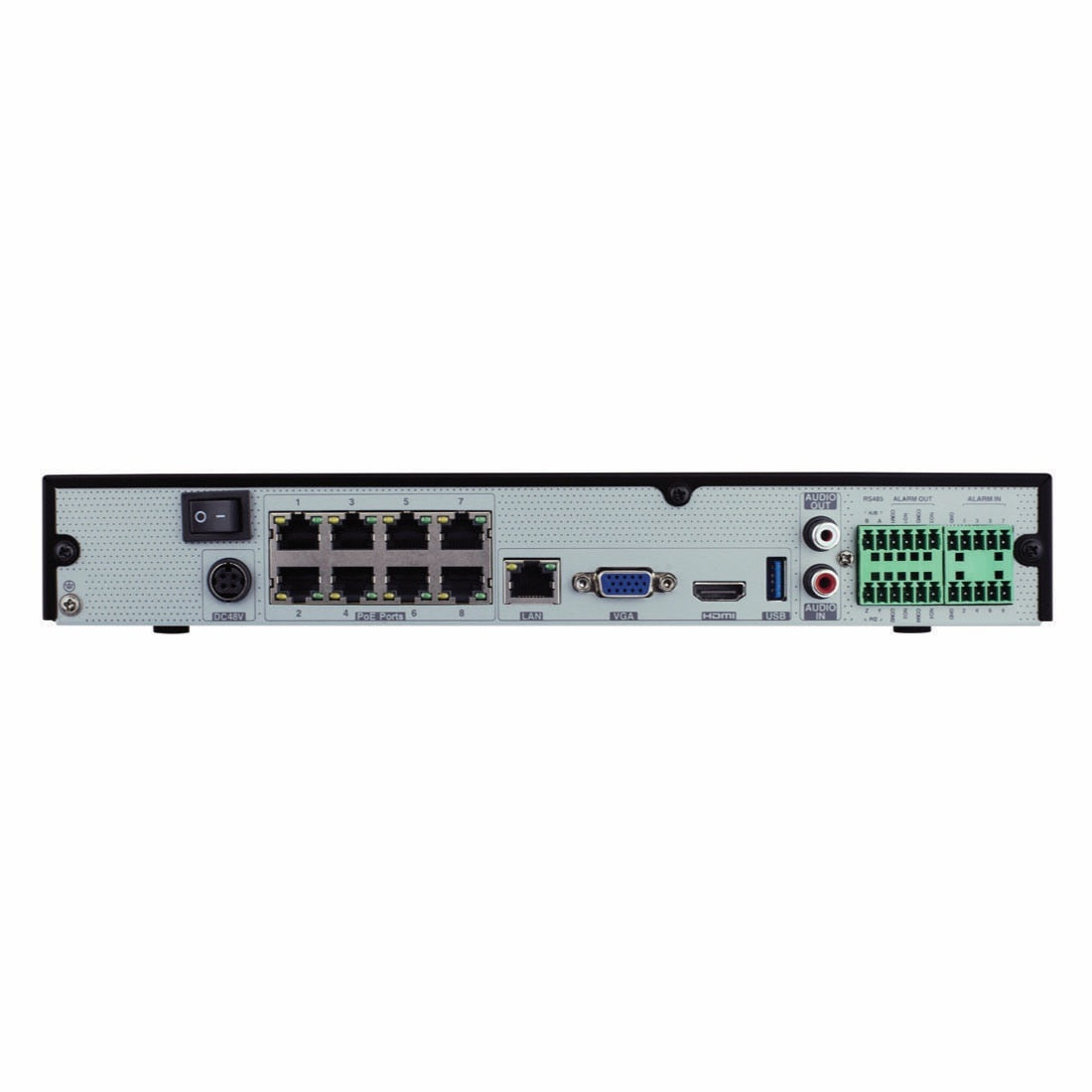

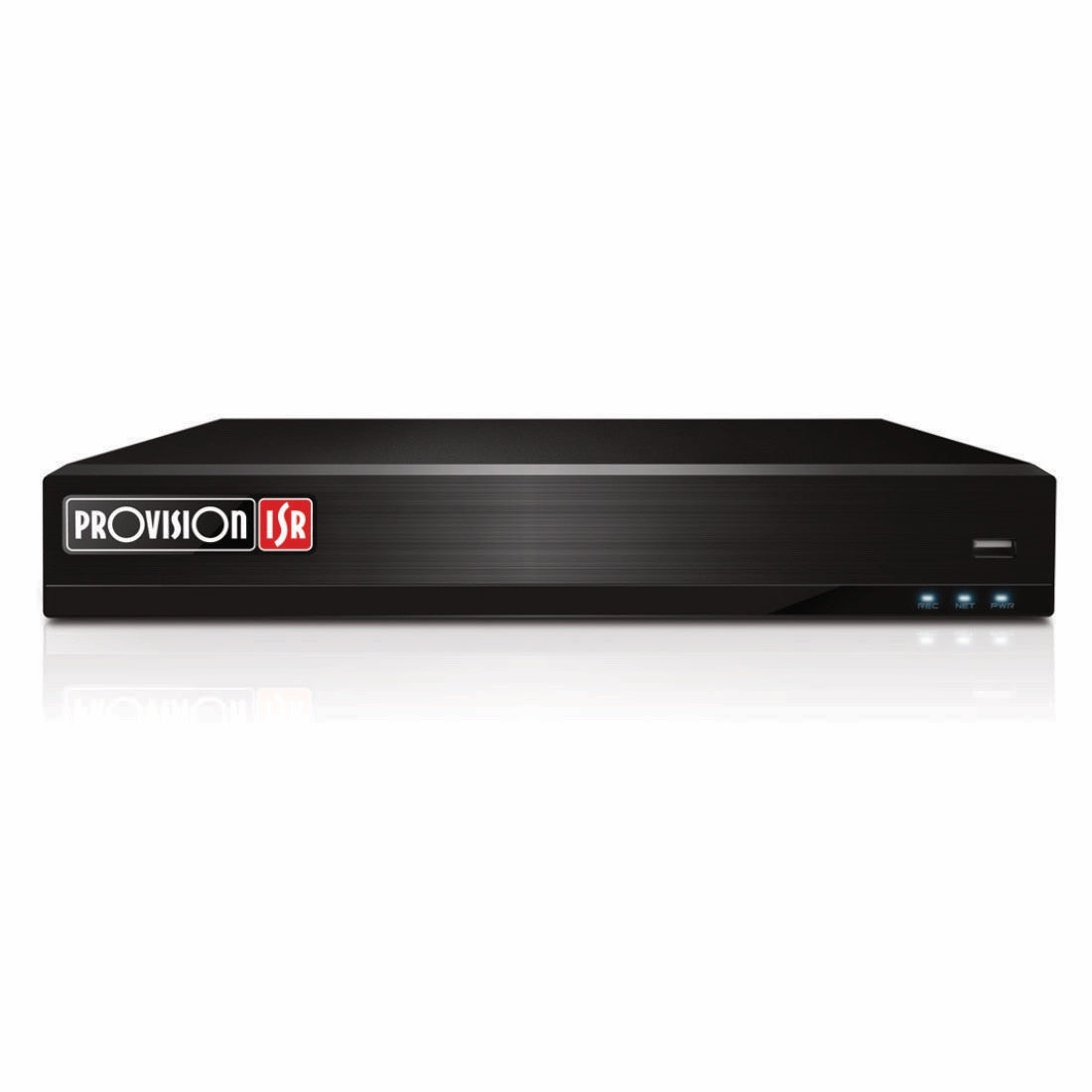

| Specifications for: PV-NVR12-8200PFAN: Provision-ISR H.265 Stand Alone NVR 8CH PoE 12MP/25fps – 1U Case |
|---|
| Video |
Input |
8CH RJ45 Direct connection / Over Network |
| Output |
HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280x1024, 1024x768) |
| Decoding Format |
H.265 (HEVC) / H.264 |
| Decoding Capabilities |
1Ch - 12MP ; 4Ch - 2x8MP + 2x5MP ; 9Ch - 1MP |
| Analytics |
Analytics Channels |
8Ch (Requires supporting IPC) |
| Supported Analytics |
Face Recognition, Smart Search, Camera Tampering, Line Crossing (Old + DDA), Sterile Area (Old + DDA), Object Counting (Old + DDA), Item Monitoring, Crowd Gathering |
| Face Recognition Rate |
240 Faces per minute (All Channels) / 5 Faces per second (Single Channel) |
| Audio |
Input |
1CH + Depends on Camera Inputs |
| Output |
1CH + Depends on Camera Outputs |
| Two Way Audio |
Yes |
| Bandwidth |
Incoming |
80Mbps |
| Outgoing |
80Mbps |
| Record / Remote Application |
Record / Main Stream |
Real-Time Recording |
8CH 12MP Real-Time |
| 12MP |
480FPS (NTSC)/400FPS (PAL) |
| 5MP and lower |
480FPS (NTSC)/400FPS (PAL) |
| Master Streams over Network |
Up to 12CH@Recording Resolution |
| Sub-Stream |
Resolution |
Depends on IPC |
| Sub-Streams over Network |
Up to Outgoing Bandwidth Capacity |
| General |
User Access |
10 Users Online with Professional Autorithy Management |
| Recording Modes |
Schedule, Manual, Motion, Sensor, Analytics |
| Applications |
Provision Cam2 for iOS/Android, IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/Mac |
| Playback |
Playback (Local / Remote) |
8Ch / 8Ch |
| Search Mode |
Smart Search, Face Recognition, Time-Slice, Time, Event, POS, File Management |
| Backup |
USB |
1 USB 2.0 Port + 1 USB 3.0 Port |
| Backup Format |
AVI/DAT |
| Alarm |
Input |
8 + Depends on Camera |
| Output |
4 + Depends on Camera |
| Storage |
HDD |
1 SATA (8TB Max) |
| E-SATA |
No |
| RAID |
Not Supported |
| PTZ |
Connection |
Via Network |
| Supported Controls |
Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| RS-485 |
Yes (C06 Keyboard connection) |
| Network |
Ethernet |
1000 Mbps (RJ-45) |
| Protocols |
TCP/IP, DHCP, DDNS, NTP, SMTP, P2P, RTSP, FTP, HTTPS, 802.1X, SNMP, NAT |
| ONVIF |
Yes (For IP Channels) |
| PoE |
Ports |
Yes (8CH) |
| Interface |
10/100Mbps |
| Standard |
IEEE802.3AF |
| Total Power |
120W (Average 12.5W per Channel) |
| Max. Power Output (Per Ch.) |
~14W |
| Others |
Power Supply |
DC48V/2.5A |
| Power Consumption (No HDD) |
15W |
| Dimension |
W 375 x D 275 x H 50mm |
| Operation Temperature |
0°C ~50°C |
