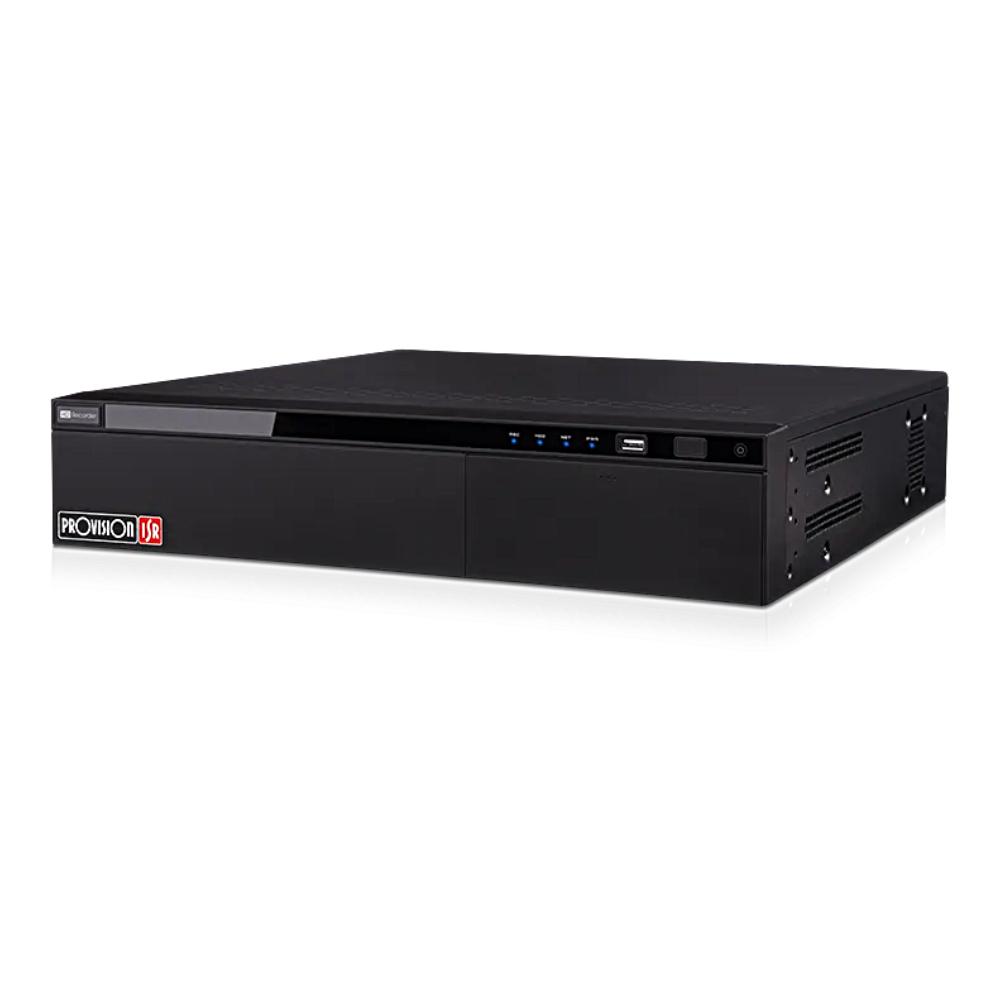

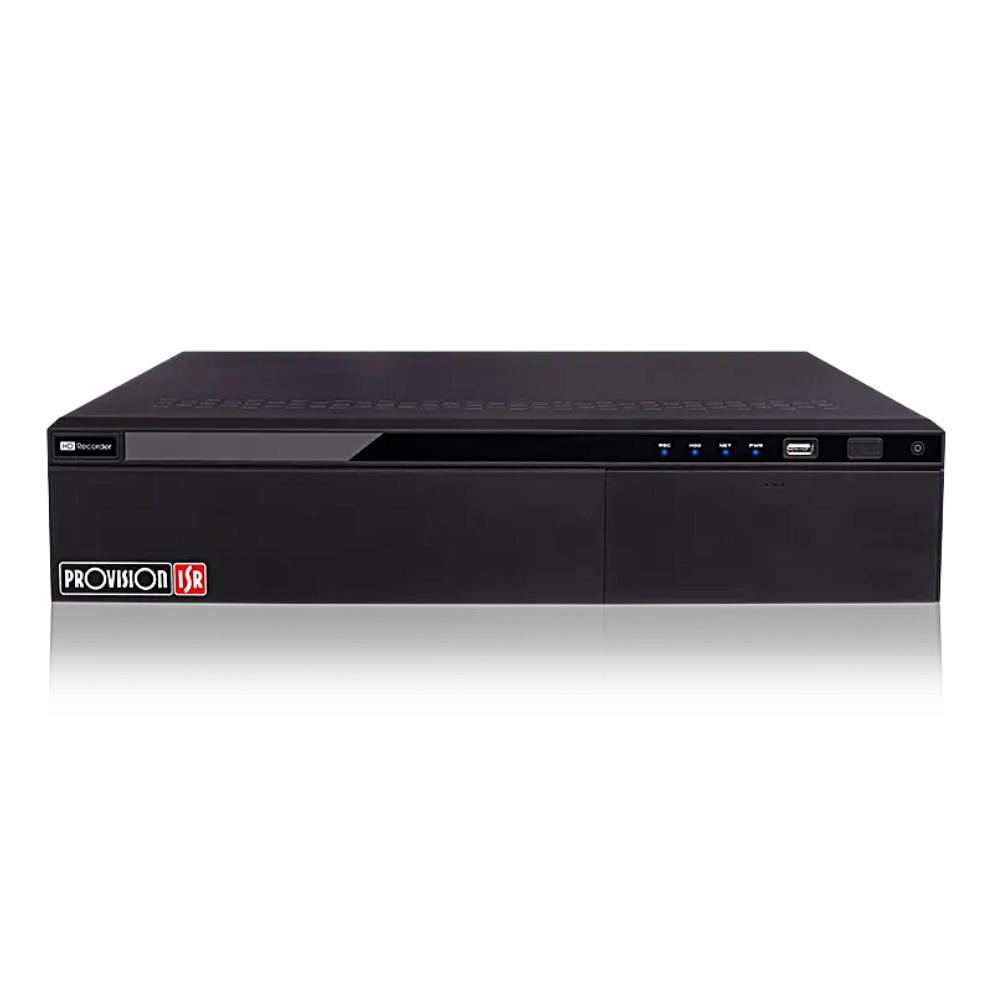

Provision-ISR H.265 Stand Alone NVR 64CH 16MP Facial Recognition w/RAID – 2U Case

Provision-ISR

Provision-ISR H.265 Stand Alone NVR 64CH 16MP Facial Recognition w/RAID – 2U Case

$2,190.00

Description

Summary

64CH 16MP NVR, NDAA-compliant, Face Recognition with Alarms and RAID

Overview

Provision-ISR NVR16-641600RFAN(2U) is an easy-to-install solution suitable for big-sized installations (up to 64 channels). The device features 16 alarm inputs + 4 alarm outputs and provides you with everything you need for a trouble-free CCTV project. All hardware components, including the Raid, are validated to meet the demands for reliable high-definition surveillance. This model complies with NDAA demands and ensures that your devices are cyber-protected round the clock with the integrated Check Point Quantum IoT Nano agent that provides an advanced threat prevention layer against the common attack vectors at runtime.

CCTV Analytics Demonstration

Features

Video Input: 64 Channels
Video Output: 4 x HDMI – (8K+4K+FHD)
VGA Recording:
- 64CH 16MP Real-Time
- FPS: 1600 (PAL) / 1920 (NTSC)
Playback:
- Local: 16Ch Simultaneously
- Remote: 16Ch Simultaneously
Audio:
- Input: 1CH + IPC Inputs
- Output: 1CH + IPC Output
- 2 Way Audio
Alarm:
- Input: 16+IPC
- Output: 4+IPC
Storage:
- 8 x SATA (Up to 8TB each)
- 2 x E-SATA (Up to 8TB each)
- RAID: (0/1/5/6/10) Support
Network: 2 x RJ-45: 10/100/1000Mbps
PTZ/Keyboard:
- Network PTZ Support
- 1 x RS-485 Keyboard Support
Power Supply: AC100-240V
Analytics:
- AI by IPC:
  - All Analytics Supported by the camera
- AI By NVR:
  - Up to 8Ch DDA1 (Sterile Area/Line Crossing) or
  - Up to 4Ch Face Detection + Recognition or
  - Up to 16Ch Face Recognition Based on FW
Version: v1.4.7
Features subject to firmware version changes

Specifications

Specifications for: PV-NVR16-641600RFAN2: Provision-ISR H.265 Stand Alone NVR 64CH 16MP Facial Recognition w/RAID – 2U Case
3rd Party Cyber Protection
General	N/A
Protection Methods	N/A
NDAA Compliant
NDAA Compliant	Yes
Video
Video Input	64Ch Over Network
Output	HDMI1 (8K 30/60Hz, 4K, 1080P, 1280x1024) (When the resolution of HDMI1 output is 8K, HDMI2 is unavailable) HDMI2: 4K, 1080P, 1280×1024, 1024×768 HDMI3: 4K, 1080P, 1280×1024, 1024×768 HDMI4: 1080P, 1280×1024, 1024×768 VGA: 1080P 1280×1024, 1024×768 (VGA and HDMI1 output the same video source)
View Mode	Independent*, Up to 32ch Per Monitor (When enabled, NVR based analytics are disabled)
Fish-Eye Dewarp	Local + Web
Decoding Format	H.265 / H.265+ / H.265S / H.264
Decoding Capabilities	1Ch – 16MP 4Ch – 12MP 9/16Ch – 1MP 32Ch – D1 64Ch – D1
Audio
Audio Input	1CH RCA (Linear, 1kΩ) + IPC Inputs
Audio Output	1CH RCA (2.0 Vp-p, 1 kΩ) + IPC Outputs
Compression	G.711A/G.711U
Two Way Audio	Yes
Analytics
Supported Analytics	Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition (Up to 16 CH), LPR, Thermal (Limited Support). Advanced Face Recognition Mode: Supports 4 Non-AI IPCs and performs face detection and recognition.
Analytics Channels (IPC Based)	64Ch (Requires supporting IPC)
Analytic Channels (NVR Based)	Up to 8Ch DDA1 (Sterile Area/Line Crossing) or Up to 4Ch Face Detection + Recognition or Up to 16Ch Face Recognition (or their combinations)
Face Recognition Rate	36 Faces per second (16Ch supported)
Bandwidth
Incoming	640Mbps
Outgoing	640Mbps
Record / Main Stream
Real-Time Recording	64CH 16MP Real-Time
Record Type	Video / Video + Audio
Recording Modes	Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations
16MP	1920FPS(NTSC)/1600FPS(PAL)
12MP	1920FPS(NTSC)/1600FPS(PAL)
8MP	1920FPS(NTSC)/1600FPS(PAL)
5MP and lower	1920FPS(NTSC)/1600FPS(PAL)
Master stream over network	Up to 64CH@Recording Resolution
Substream
Resolution substream	Depends on IPC
Remote view
Max Channel View	320Ch (Limited to Outgoing Bandwidth Capacity)
Remote Applications
User Access	128 Users online with Professional Autorithy Management
Mobile App	Provision Cam2 for iOS/Android
PC/Mac Software	Ossia VMS Standard / Enterprise
Plug-in free Web-Browser	Chrome, FireFox, Safari, Edge, Opera. (All Limited to 4Ch Live View / Playback)
Plug-in based Web-Browser	Internet Exporer
Playback
Local	16Ch
Remote	16Ch
Search Mode	DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS
Backup
USB	2 USB 2.0 Port + 1 USB 3.0 Port
Backup Format	AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)
Alarm
Alarm-in	16+IPC
Alarm-out	4+IPC
Storage
HDD	8
E-Sata Support	2
RAID	Yes (0/1/5/6/10)
PTZ
Connection	Via Network
Supported Controls	Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
RS-485	Yes (C06 Keyboard Connection)
Network
Ethernet	2x1000/100/10Mbps self-adaptive Ethernet interface with Fault Tolerance / Dual Network Configuration
Protocols	TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS)
ONVIF	Full Device Support (Profile T/G, ONVIF Version 20.12)
PoE
PoE Ports	N/A
Speed	N/A
Standard	N/A
CCTV Mode	N/A
Total Power	N/A
Max. Power Output (Per Ch.)	N/A
Others
Power Supply	AC100-240V
Power consumption (No HDD)	50W
Dimension	W436xD445xH90mm
Operation Temperature	0°C~50°C
