8CH 5MP NVR

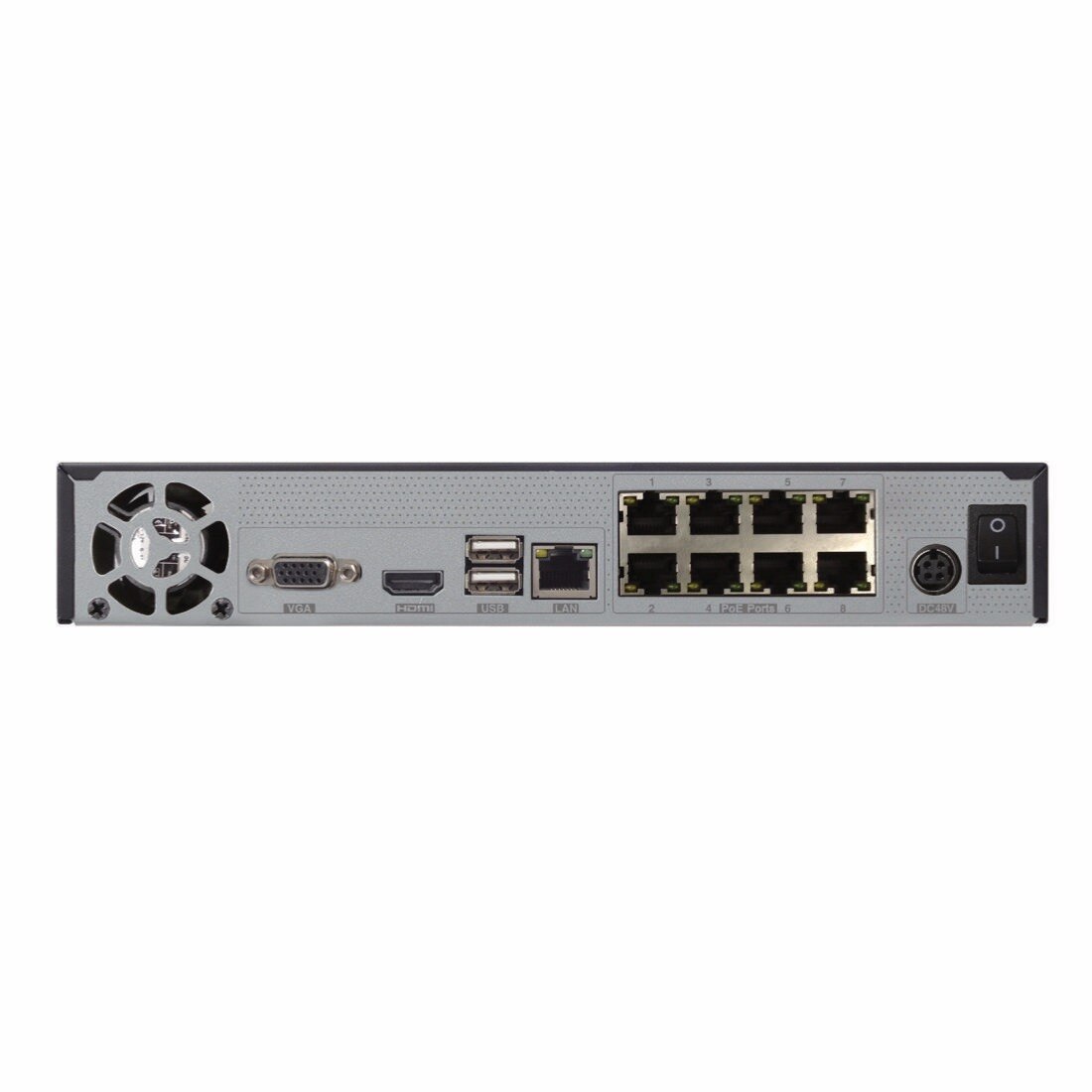

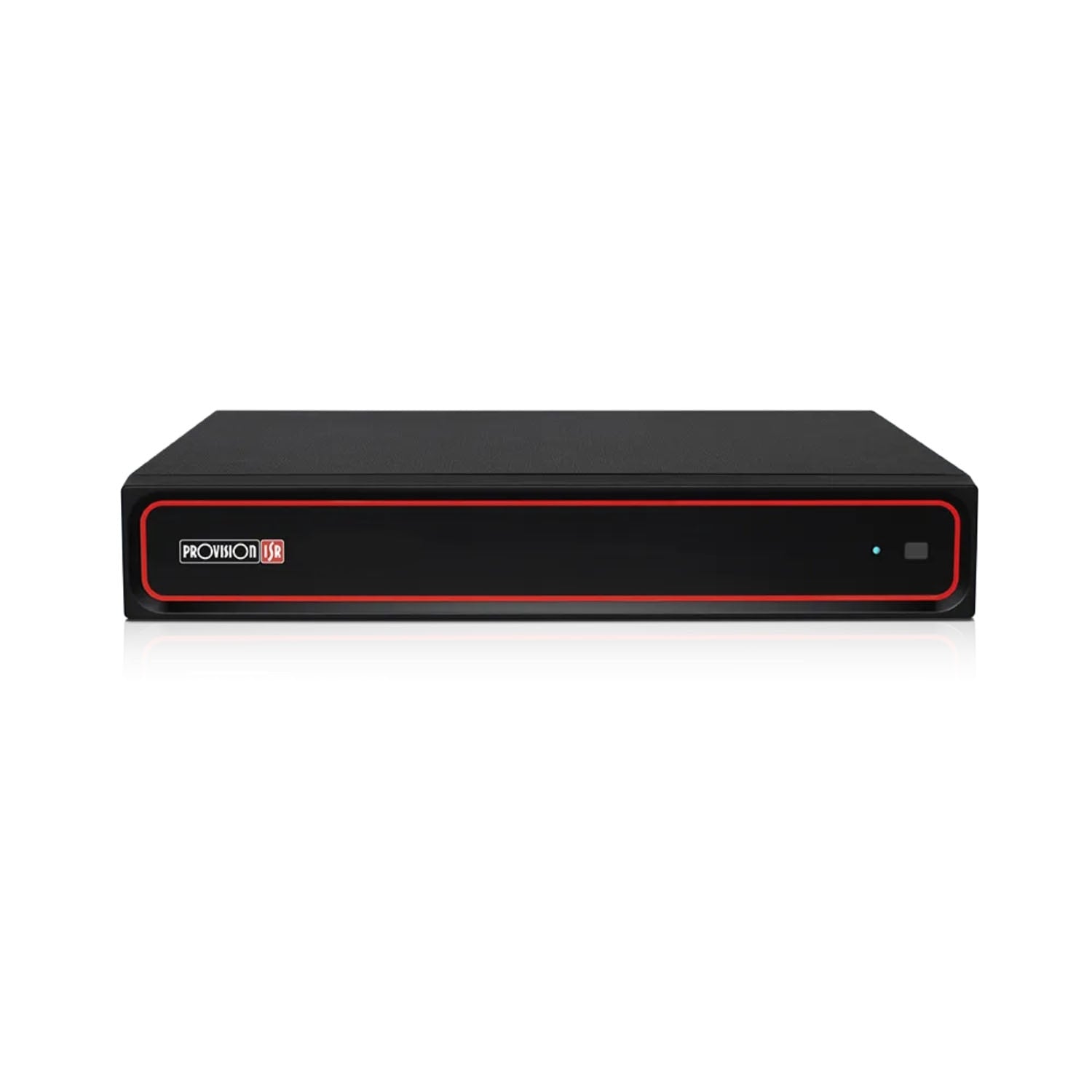

| Specifications for: PV-NVR5-8200PXN-MM: Provision-ISR H.265 Stand Alone NVR, 8CH 5MP at 25fps, MM case with PoE | ||
|---|---|---|
| MODEL | NVR5-8200PX+(MM) | |
| Video | Input | 8CH RJ45 Direct Connection /Over Network |
| Output | HDMI /VGA (1080P, 1280x1024, 1024x768) | |
| Decoding Format | H.265 /H.264 | |
| Decoding Capabilities | 1Ch -5MP ; 4/8Ch -D1 | |
| Analytics | Camera Tampering, Line Crossing, Sterile Area, Object Monitoring | |
| Audio | Input | Depends on Camera Inputs |
| Output | Depends on Camera Outputs | |
| Two Way Audio | No | |
| Bandwidth | Incoming | 40Mbps |
| Outgoing | 40Mbps | |
| Recording | Real-Time Recording | 8CH 5MP Real-Time |
| 8MP | No | |
| 5MP | 240FPS (NTSC)/200FPS (PAL) | |
| 4MP | 240FPS (NTSC)/200FPS (PAL) | |
| 3MP | 240FPS (NTSC)/200FPS (PAL) | |
| 2MP (1080P) | 240FPS (NTSC)/200FPS (PAL) | |
| 1.3MP (960P) and lower | 240FPS (NTSC)/200FPS (PAL) | |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics | |
| Playback | Playback Channels | 8CH |
| Search Mode | Time-Slice, Time, Event, File Management | |
| Backup | USB | 2 USB 2.0 Port |
| DVD burner | No | |
| Backup Format | AVI/DAT | |
| Remote Application | Master Stream | Up to 8CH@Recording Resolution |
| Sub-stream | Depends on IPC | |
| Browser | Safari (Mac OS) IE (Windows Vista/7/8/10) | |
| CMS | Yes | |
| Mobile Application | Provision CAM2 for iOS/Android | |
| User Access | 10 Users Online with Professional Autorithy Management | |
| Alarm | Input | Depends on Camera |
| Output | Depends on Camera | |
| Storage | HDD | 1 SATA (6TB) |
| E-SATA | No | |
| PTZ | Connection | Via Network |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus | |
| RS-485 | No | |
| Network | Ethernet | 100 Mbps (RJ-45) |
| Protocols | TCP/IP, DHCP, DDNS, NTP, SMTP, P2P, RTSP | |
| ONVIF | Yes | |
| PoE | Ports | Yes (8CH) |
| Interface | 10/100Mbps | |
| Standard | IEEE802.3AF | |
| Total Power | 120W (Average 12.5W per Channel) | |
| Max. Power Output (Per Ch.) | ~14W | |
| Others | Power Supply | DC48V/2.5A |
| Power Consumption (No HDD) | 5W | |
| Dimensions | W255xD220xH45mm | |
| Operation Temperature | 0°C ~50°C | |
Try our Surveillance HDD Storage Capacity Calculator
