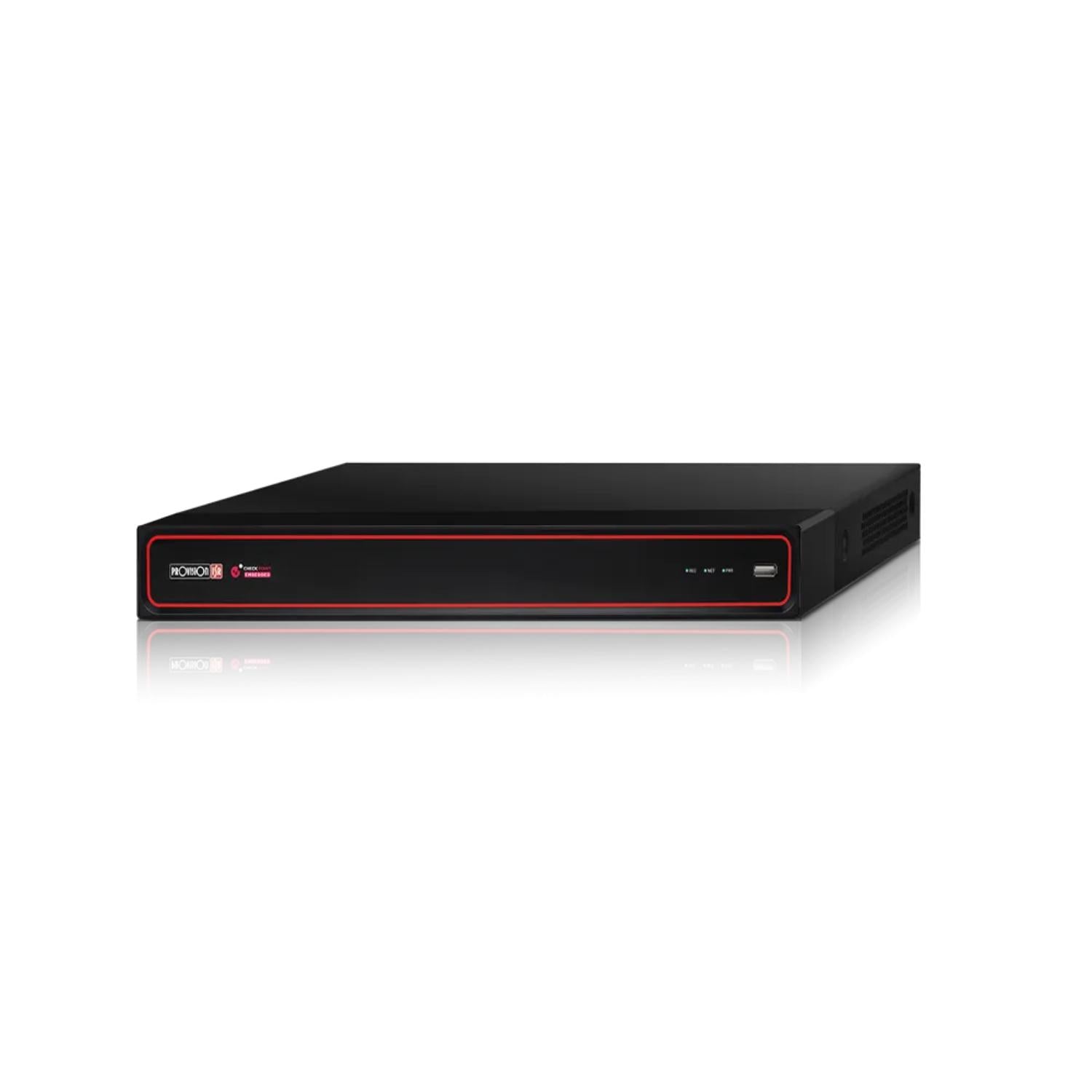

H.265S Stand Alone NVR, 8CH 8MP at 120FPS
| Specifications for: PV-NVR8-8200PN-V2: Provision-ISR H.265S Stand Alone NVR, 8CH 8MP at 120FPS | ||
|---|---|---|
| 3rd Party Cyber Protection | ||
| General | Quantum IoT Nano agent by Check Point™ | |
| Protection Methods | Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection | |
| NDAA Compliant | ||
| NDAA Compliant | Yes | |
| Video | ||
| Video Input | 8Ch over Network | |
| Output | HDMI (4K, 1080P), VGA (1080P, 1280x1024, 1024x768) | |
| View Mode | Mirrored | |
| Fish-Eye Dewarp | Web Only | |
| Decoding Format | H.265 / H.265+ / H.265S / H.264 | |
| Decoding Capabilities | 1Ch -; 8MP ; 4Ch -; 2MP | |
| Audio | ||
| Audio-specs-Input | 1CH RCA (Linear, 1k™) + IPC inputs | |
| audio-specs-Output | 1CH RCA (2.0 Vp-p, 1 k™) + IPC outputs | |
| Compression | G.711A/G.711U | |
| Two Way Audio | Yes | |
| Analytics | ||
| Supported Analytics | Camera Tampering, DDA2 With Object Classification, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, LPR, Thermal | |
| Analytics Channels (IPC Based) | 8Ch (Requires supporting IPC) | |
| Analytic Channels (NVR Based) | Up to 2Ch DDA1 (Sterile Area/Line Crossing) or Up to 2Ch Face Detection (or their combinations) | |
| Face Recognition Rate | N/A | |
| Bandwidth | ||
| Incoming | 80Mbps | |
| Outgoing | 80Mbps | |
| Record/ Main Stream | ||
| Real-Time Recording | 8CH 8MP Real-Time | |
| Record Type | Video / Video + Audio | |
| Recording Modes | Schedule, Manual, Motion, Sensor, Analytics, POS and all of the combinations | |
| 16MP | N/A | |
| 12MP | N/A | |
| 8MP | 240FPS(NTSC)/200FPS(PAL) | |
| 5MP and lower | 240FPS(NTSC)/200FPS(PAL) | |
| Master stream over network | Up to 8CH@Recording Resolution | |
| Substream | ||
| Resolution substream | Depends on IPC | |
| Remote view | ||
| Max Channel View | 40Ch (Limited to Outgoing Bandwidth Capacity) | |
| Remote Applications | ||
| User Access | 64 Users online with Professional Authority Management | |
| Mobile App | Provision Cam2 for iOS/Android | |
| PC/Mac Software | Ossia VMS Standard / Enterprise | |
| Plug-in free Web-Browser | Chrome, FireFox, Safari, Edge, Opera. | |
| Plug-in based Web-Browser | Internet Explorer | |
| Playback | ||
| Local | 8Ch | |
| Remote | 8Ch | |
| Search Mode | DDA Object, Smart Search, LPR, Time-Slice, Time, Event, POS | |
| Backup | ||
| USB | 2 USB 2.0 Port | |
| Backup Format | AVI (Unencrypted) / Private Format (Encrypted / Unencrypted) | |
| Alarm | ||
| Alarm-in | Based on IPC only | |
| Alarm-out | Based on IPC only | |
| Storage | ||
| HDD | 1 | |
| E-Sata Support | No | |
| RAID | N/A | |
| PTZ | ||
| Connection | Via Network | |
| Supported Controls | Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus | |
| RS-485 | N/A | |
| Network | ||
| Ethernet | 1000/100/10Mbps self-adaptive Ethernet interface | |
| Protocols | TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X, SNMP, Auto Report (Ossia VMS) | |
| ONVIF | Full Device Support (Profile T/G, ONVIF Version 20.12) | |
| PoE | ||
| PoE Ports | 8xRJ45 | |
| Speed | 10/100Mbps (10Mbps under CCTV Mode) | |
| Standard | PoE (IEEE802.3AF/AT) | |
| CCTV Mode | Yes (Up to 200m and 10Mbps bandwidth) | |
| Total Power | 72W (Average 9W per Channel) | |
| Max. Power Output (Per Ch.) | ~25.5W | |
| Others | ||
| Power Supply | DC 48V/1.36A | |
| Power consumption (No HDD) | 10W | |
| Dimension | W300xD249xH45mm | |
| Operation Temperature | 0°C~50°C | |
Try our Surveillance HDD Storage Capacity Calculator
