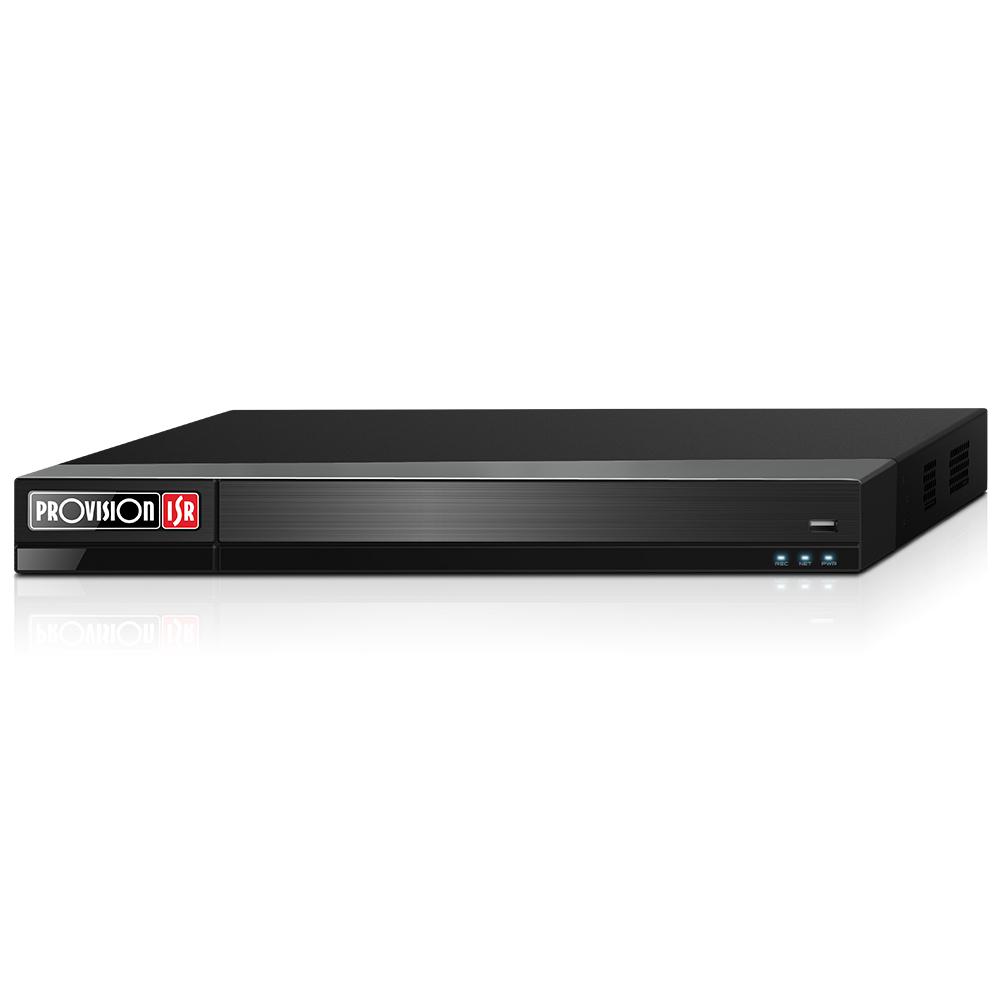

Provision-ISR H.265 All In 1 Hybrid DVR 5MP Lite 16CH Video Input 1U V2

16CH "4 In 1" + 8CH IP Dynamic Hybrid DVR

• 5MP Lite
• Input: 16CH Standard BNC + 8CH IP (over Network)
• "All in 1” Hybrid (AHD / CVI / TVI / CVBS + IP)
• Output: HDMI(1920x1080), VGA (1280x1024, 1024x768), CVBS(Spot)
• Audio in/out
• Alarm in/out
• RS-485

Video:

• Input: 16CH Standard BNC + 8CH IP (Over Network)
• Output: HDMI(1920x1080), VGA (1280x1024, 1024x768), CVBS(Spot)

Recording:

• IP 5MP and lower: 30/25FPS Per Channel
• AHD 5MP Lite: Up to 10FPS Per Channel
• AHD 4MP Lite / 2MP: Up to 12/15FPS Per Channel
• AHD 2MP Lite: Up to 25/30FPS Per Channel
• TVI 5MP Lite: Up to 10FPS Per Channel
• TVI 4MP Lite / 2MP: Up to 12/15FPS Per Channel
• TVI 2MP Lite: Up to 25/30FPS Per Channel
• CVI 4MP Lite / 2MP: Up to 15/12FPS Per Channel
• CVI 2MP Lite: Up to 25/30FPS Per Channel
• CVBS 960H: Up to 30/25FPS Per Channel

Playback:

• 16 Channel Simultaneously (Local)
• 8 Channel Simultaneously (Remote)

Analytics:

• For IP Channels: Line Crossing (With Direction Choice), Sterile Area, Item Monitoring, Camera Tampering, Smart Search
• For HD Analog Channels: Line Crossing (No Direction Choice), Sterile Area, Smart Search

Bandwidth:

• Incoming: 32Mbps
• Outgoing: 96Mbps

Audio:

• Input: 8 Channel (RCA) + IP Cameras inputs
• Output: 1 Channel (RCA) + IP Cameras outputs
• 2 Way audio

Storage:

• 2 x SATA (Up to 8TB) + 1 x E-SATA (8TB)

USB Port:

• 2 x USB2.0

Network:

• RJ-45: 100Mbps

Alarm:

• Input: 16CH + IP Cameras inputs
• Output: 4CH + IP Cameras outputs

PTZ / Keyboard:

• 1 x RS485
• Protocol: Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC
