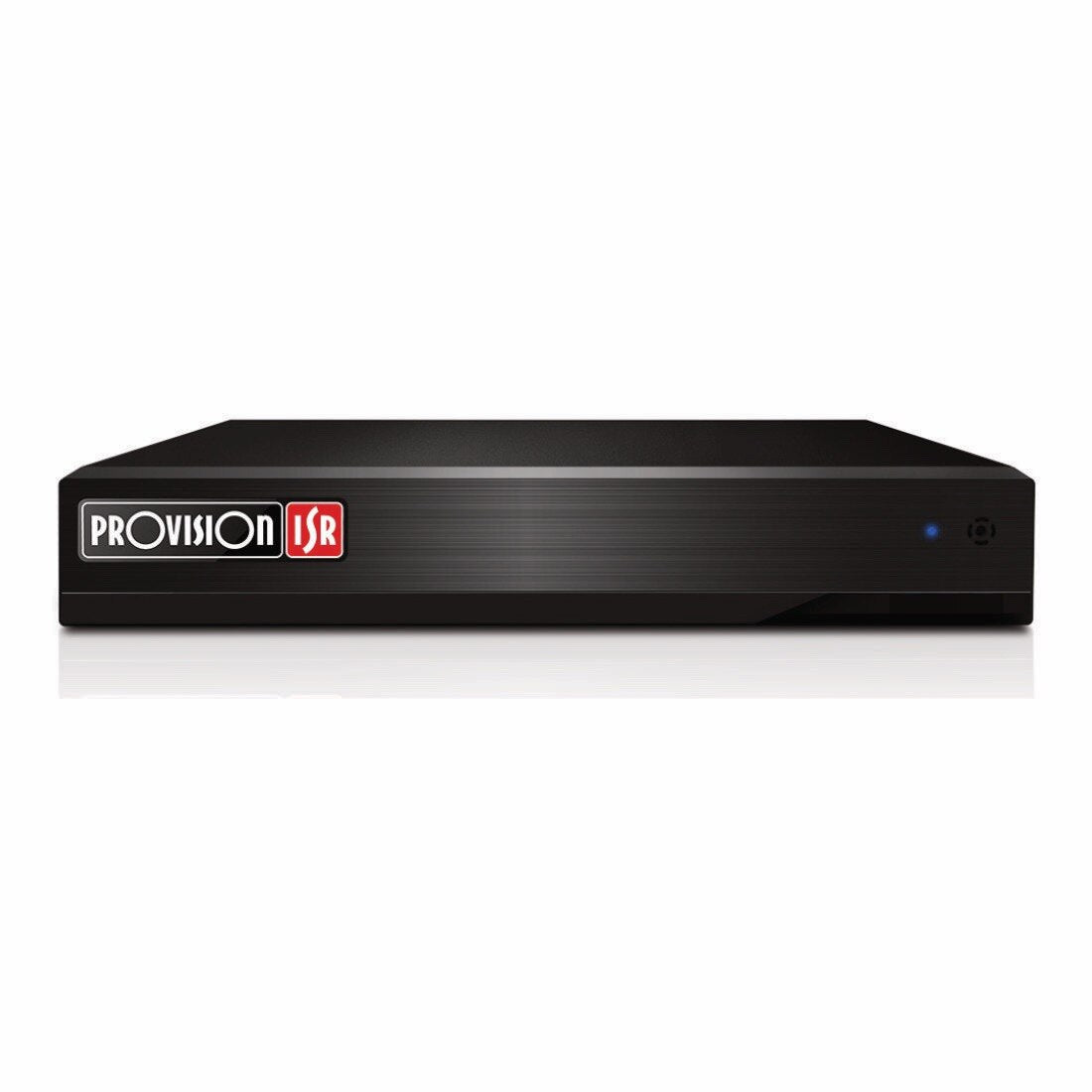

| Specifications for: PV-SH-8100A5N-5LMMV2: Provision-ISR H.265 All In 1 Hybrid DVR 5MP Lite 8CH Video Inputs MM Case |
|---|
| General |
Technology |
Hybrid DVR |
| Video Compression |
H.265 (HEVC)/H.264 |
| Audio Compression |
G.711u |
| Recording Mode |
Main Stream Only |
| ONVIF |
IP Channels Only |
| Format |
"All in 1" Hybrid (AHD/CVI/TVI/CVBS + IP) |
| Video |

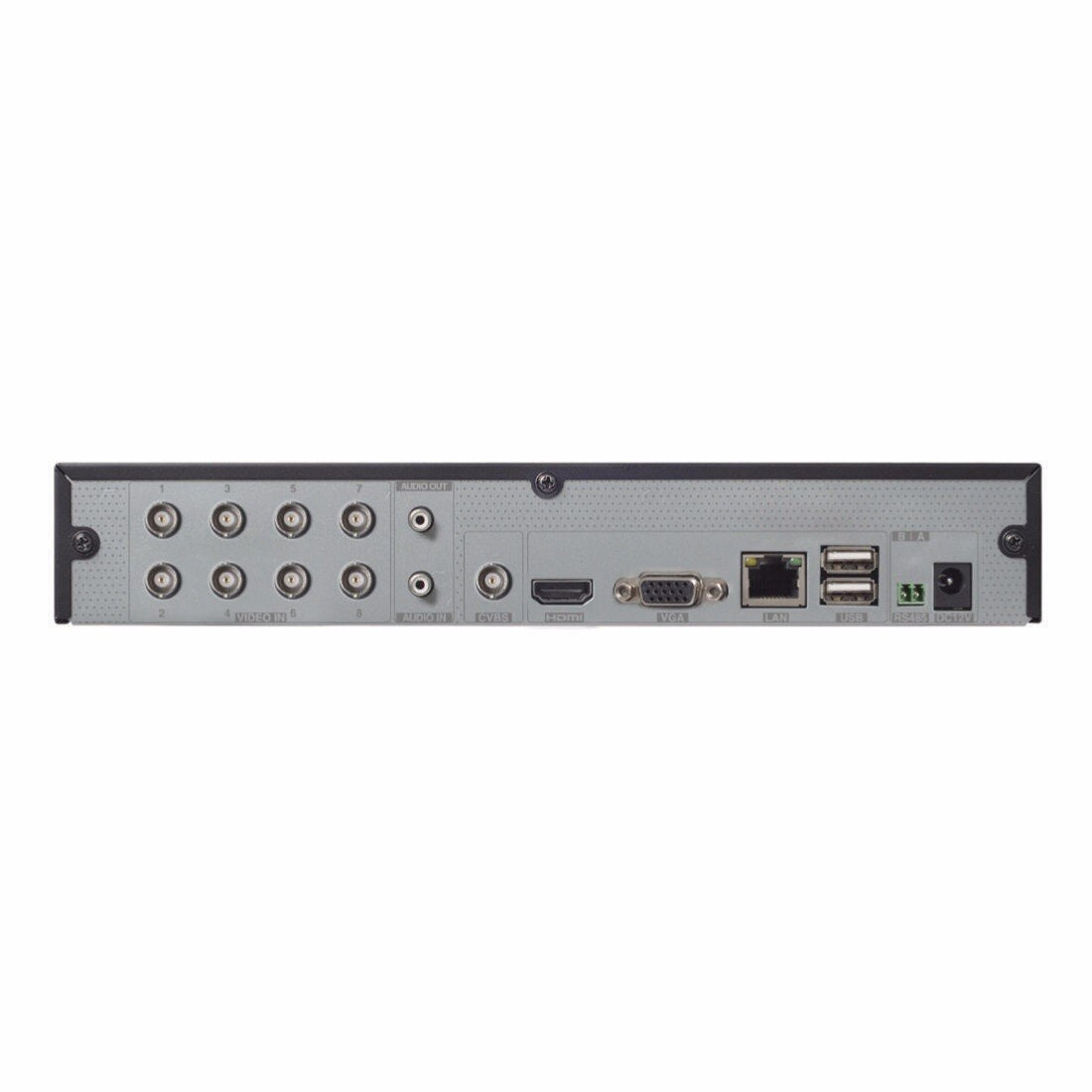

Video input |
8CH Standard BNC + 4CH IP (Over Network) |
| Video Output |
HDMI (1920 x 1080), VGA (1280 x 1024, 1024 x 768), CVBS (Spot) |
| Dual Output |
Mirrored |
| Audio |
Audio-In |
1CH RCA (2.0 Vp-p, 1 kΩ) (+ IP Cameras) |
| Audio-Out |
1CH RCA (2.0 Vp-p, 1 kΩ) (+ IP Cameras) |
|
| Two Way Audio |
Yes |
| Main Resolution & FPS |
IP |
5MP and lower: 30/25FPS Per Channel |
| AHD |
AHD 5MP Lite: Up to 10FPS Per Channel, 4MP Lite / 2MP: Up to 12/15FPS Per Channel, 2MP Lite / 1MP: Up to 25/30FPS Per Channel |
| TVI |
5MP Lite: Up to 10FPS Per Channel, 4MP Lite / 2MP: Up to 12/15FPS Per Channel, 2MP Lite / 1MP: Up to 25/30FPS Per Channel |
| CVI |
4MP Lite / 2MP: Up to 15/12FPS Per Channel, 2MP Lite / 1MP: Up to 25/30FPS Per Channel |
| CVBS |
CVBS: 960H: Up to 30/25FPS Per Channel |
| Master Stream Over Network |
4Ch |
| Network (Sub-Stream) Resolution & FPS |
IP |
1-25/30FPS@D1 Per Channel |
| HD Analog |
1-25/30FPS@720P Per Channel (FPS Restricted to Master Stream FPS) |
| CVBS |
1-25/30FPS@D1 Per Channel |
| Sub-Streams over Network |
Up to Outgoing Bandwidth Capacity |
| General |
User Access |
5 Users Online with Professional Autorithy Management |
| Recording Modes |
Schedule, Manual, Motion, Sensor, Analytics, POS |
| Applications |
Provision Cam2 for iOS/Android, IE for Windows 7/8/10, Ossia VMS for Windows/MAC |
| Bandwidth |
Incoming |
32Mbps |
| Outgoing |
60Mbps |
| Playback |
Local/Remote |
8Ch/4Ch |
| Search Modes |
Time-Slice, Time, Event, File Management, Smart Search |
| Analytics |
Analytics Support |
Yes (Pixel Based) |
| For AHD Cameras |
Line Crossing (No Direction Choice), Sterile Area, Smart Search |
| For IP Cameras |
Line Crossing (With Direction Choice), Sterile Area, Item Monitoring, Camera Tampering, Smart Search |
| Backup |
USB |
2 USB 2.0 Port |
| Backup Format |
AVI/DAT |
| Alarm |
Alarm-In |
IP Cameras Only |
| Alarm-Out |
IP Cameras Only |
| Alarm Box Support |
No |
| Storage |
HDD |
1 SATA (6TB) |
| E-SATA |
No |
| PTZ |
Connection |
RS-485 / CoC / IP-Over Network |
| Supported Protocols |
Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC |
| Supported Controls |
Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus |
| Network |
Ethernet |
100 Mbps (RJ-45) |
| Protocols |
TCP/IP, DHCP, DDNS, NTP, SMTP, RTSP, HTTPS, FTP, SNMP, P2P, POS |
| Others |
Dimensions |
W255 x D220 x H43 mm |
| Power Supply |
12V/2A |
| Operation Temperature |
0°C ~50°C |
