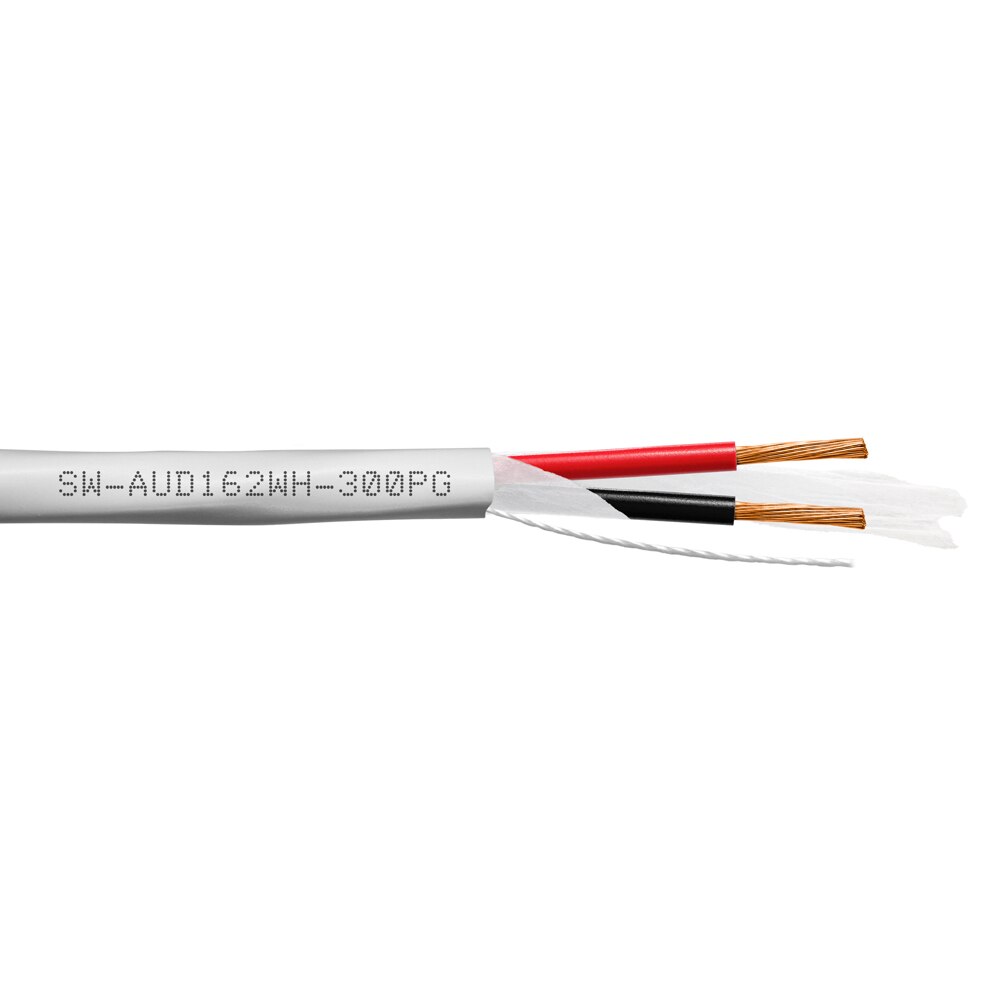

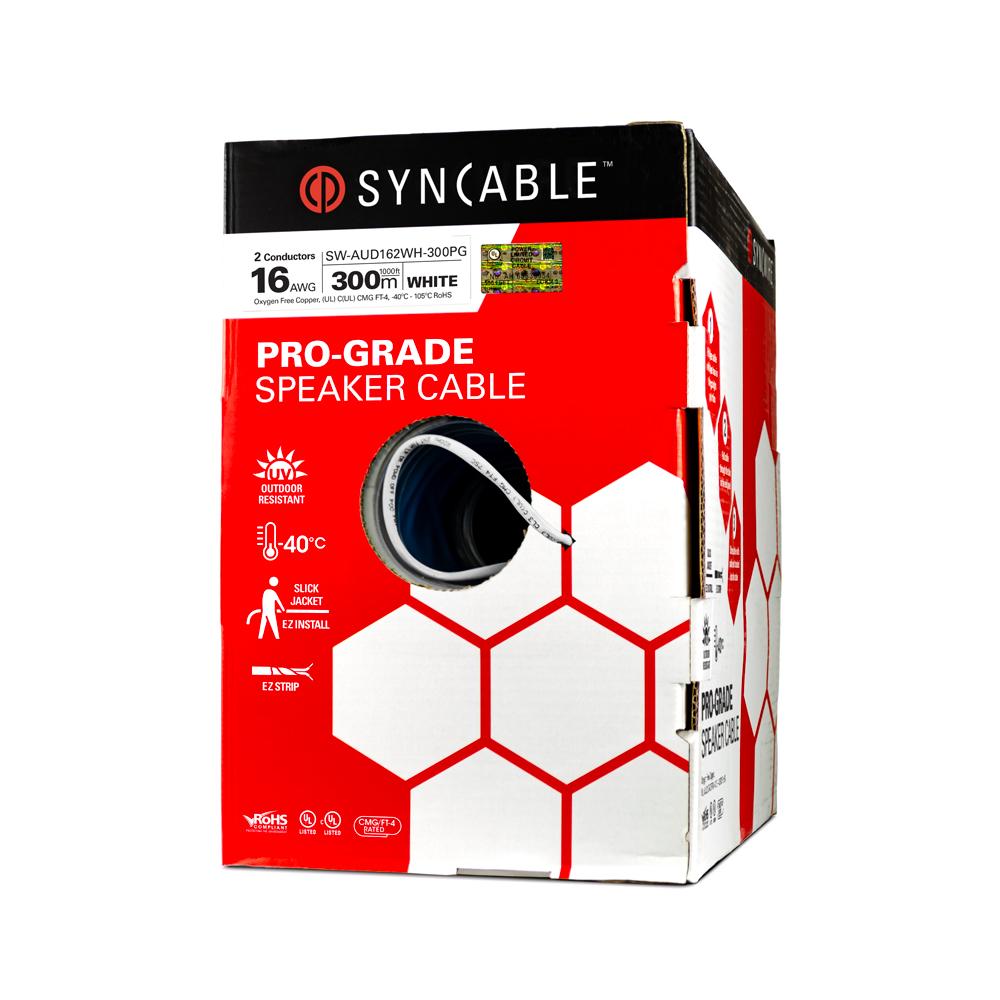

| Specifications for: SW-AUD162WH-300PG: SynCable Pro-Grade Audio 16-2c 65 STR BC OFC c(UL) FT4 RoHS In-Wall Cable – 300m Box – White JKT | |
|---|---|
| Applications | |
| Indoor/Outdoor Multi-conductor-audio/sound, control, instrumentation & led lighting cables | |
| Construction | Product Description |
| Conductor | Oxygen Free Bare Copper Wire Strands |
| AWG | 16 |
| Stranding (wire no./wire dia. mm) | 65 x 0.16BC |
| Number of Conductors | 2 |
| Insulation Type | PVC (CM/CMG) |
| Insulation Diameter | 2.2 +/- 0.2mm |
| Insulation Colours | Black & Red |
| Jacket Type | UV Resistant Glossy PVC (CM/CMG) |
| Jacket Thickness | 0.70 +/- 0.15mm |
| Nom. Cable OD | 6.0 +/- 0.2mm |
| Ripcord Material | Nylon (210D) |
| Voltage | 300V |
| Temperature | Range |
| Temperature Rating | -40°C to +105°C |
| Mechanical Characteristics | Physical & Electrical Characteristics (at 20°C) |
| Conductor DC Resistance | ≤ 8.6 Ohms/KM |
| Insulation Resistance | ≥50MΩ/KM |
| Testing Voltage | 50Hz 1Min (wire/wire 50Hz 1min)=1.5KV |
| Tensile Strength | ≥13.8Mpa |
| Elongation at Break: | ≥100% |
| Certifications | Details |
| Reelex II | Yes |
| c(UL)us | Yes |
| RoHS | COMPLIANT |
| Flame Test | FT-4 |
Download SW-AUD162WH-300PG Spec Sheet
