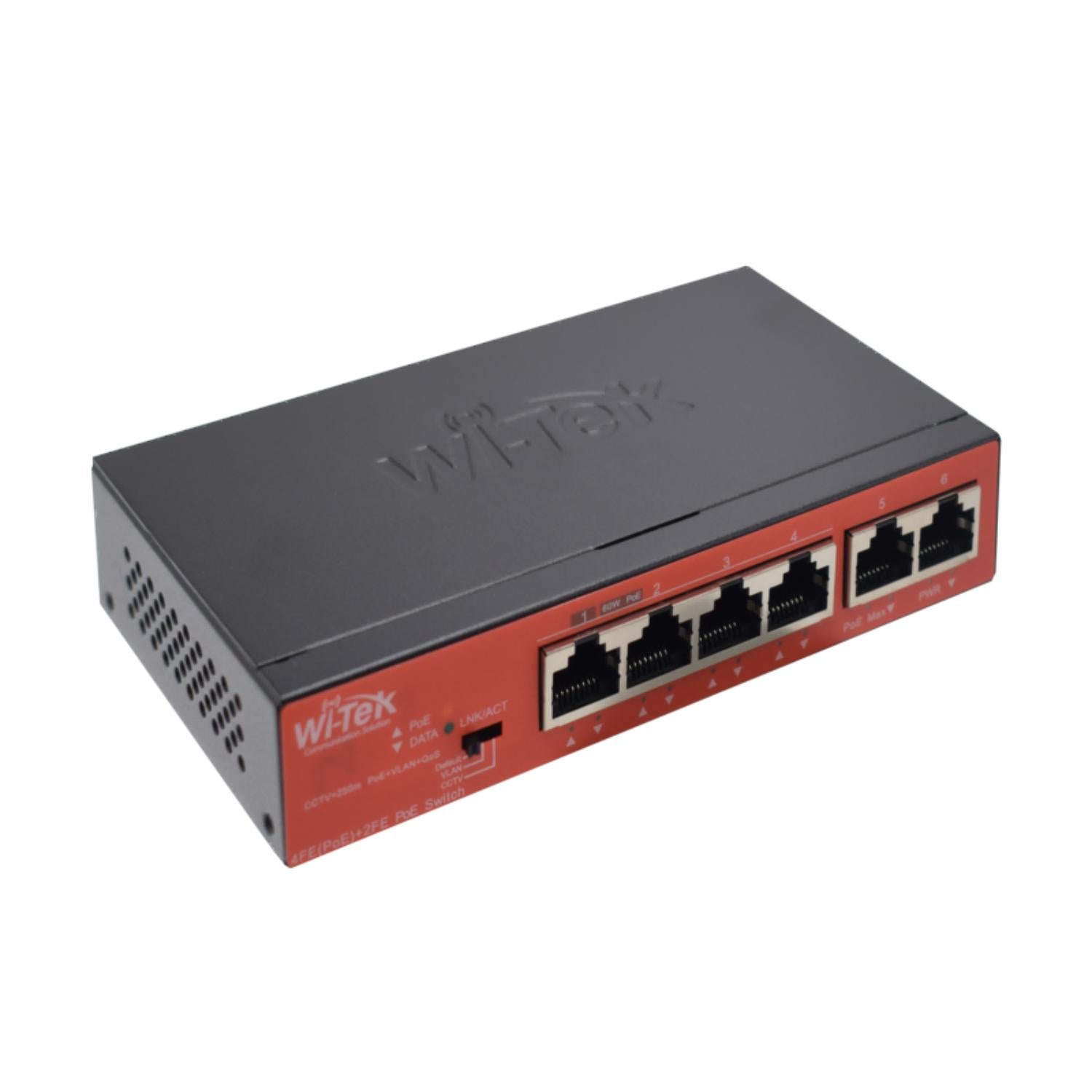

| Specifications for: WI-PS205V4: Wi-Tek 6 Port PoE Switch | |
|---|---|
| Downlink Ports | 4 10/100Mbps RJ45 PoE Ports |
| Uplink Ports | 2 10/100Mbps Uplink Ports |
| PoE Port | Port 1-4 |
| PoE Standard | Port 1: Hi-PoE 60W Port 2-4: 802.3af/at 30W |
| PoE Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power | 60W max for port 1 30W max for port 2-4 60W max. PoE power budget |
| Standards and Protocols | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 1.2Gbps |
| Packet Forwarding Rate | 0.89Mpps |
| MAC Address Table | 2k |
| Packet Buffer Memory | 448 Kbit |
| Jumbo Frame | 1536Byte |
| Input Power | DC 48-56V 1.3A Max |
| Power Consumption | Idle: 2W 100% Traffic Rate with PoE: 62W |
| LED Indicators |
PWR Solid on: The device power on is normal Off: The device is power off or failed PoE On: PoE is working Off: PoE not working Link On: Data on TX/RX Off: Ports link down PoE Max When total PoE output power > Power Budget * 80%, the LED light will be on |
| Buttons |
Default The transmission distance of PoE Port can be up to 100m with 100Mbps and disable port isolation, QoS, Watchdog VLAN Enable Port isolation and Watchdog, each PoE port just can send data to Up-link port, PoE transmit 100 meters and disable QoS CCTV=250m PoE+VLAN+QoS Enable Port isolation, PoE transmit 250 meters at 10Mbps, and enable QoS, Watchdog |
| Fan Quantity | Fanless |
| Switch Dimensions | 140.0×76.7×27.7 mm |
| Package Dimensions | 193.0×203.0×62.0 mm |
| Weight | Net Weight: 0.32 kg Package Weight: 0.60 kg |
| Installation | Wall-mounted, Desktop |
| Surge Immunity | IEC 61000-4-5 Common mode 4kV Differential mode 2kV |
| ESD Protection | IEC 61000-4-2 Contact discharge 6kV Air discharge 8kV |
| Operating Temperature | -10°C-50°C (14°F-122°F) |
| Storage Temperature | -40°C-70°C (-40°F-158°F) |
| Operating Humidity | 10-90% RH non-condensing |
| Storage Humidity | 5-95% RH non-condensing |
| Certification | CE, FCC, RoHS, UKCA, RCM |
