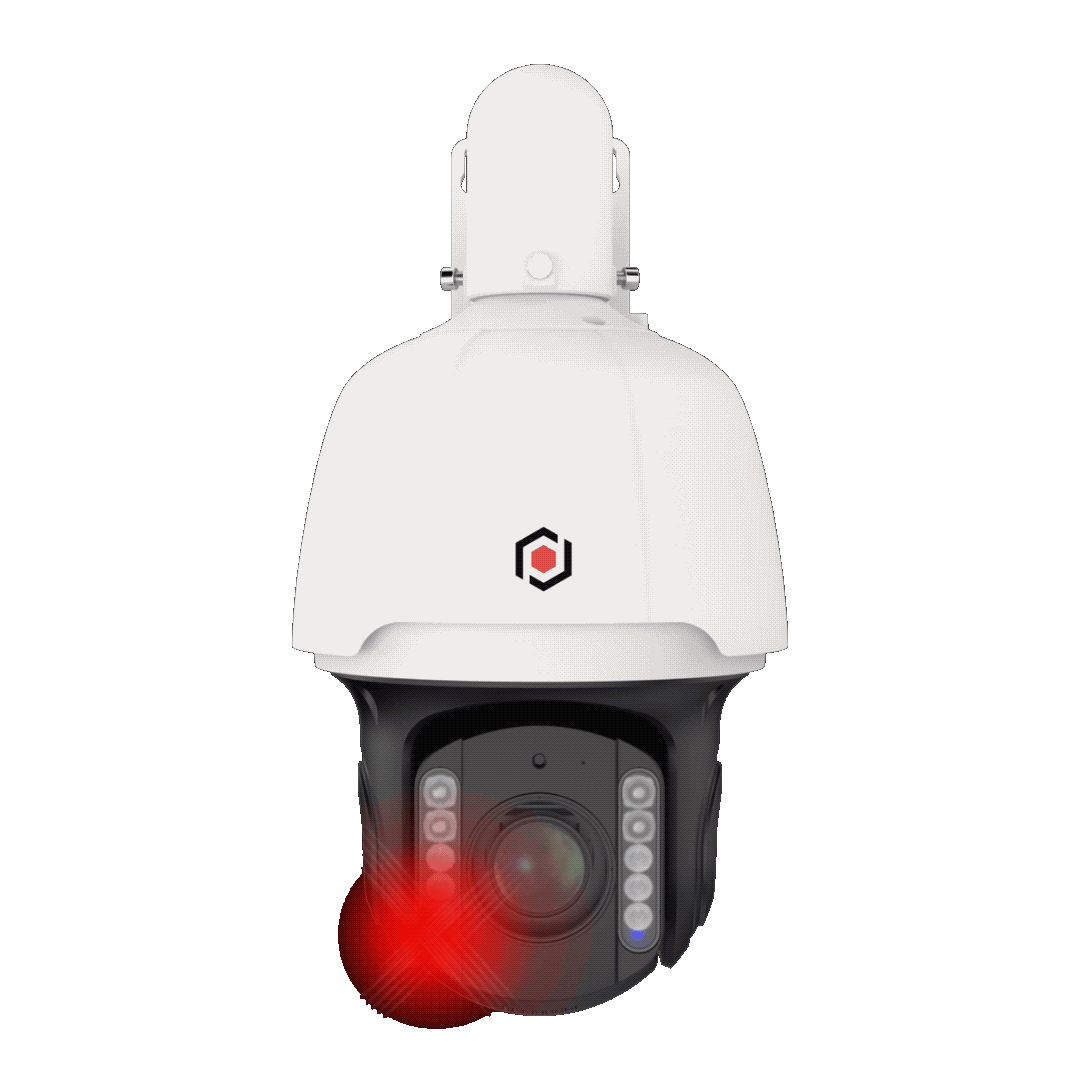

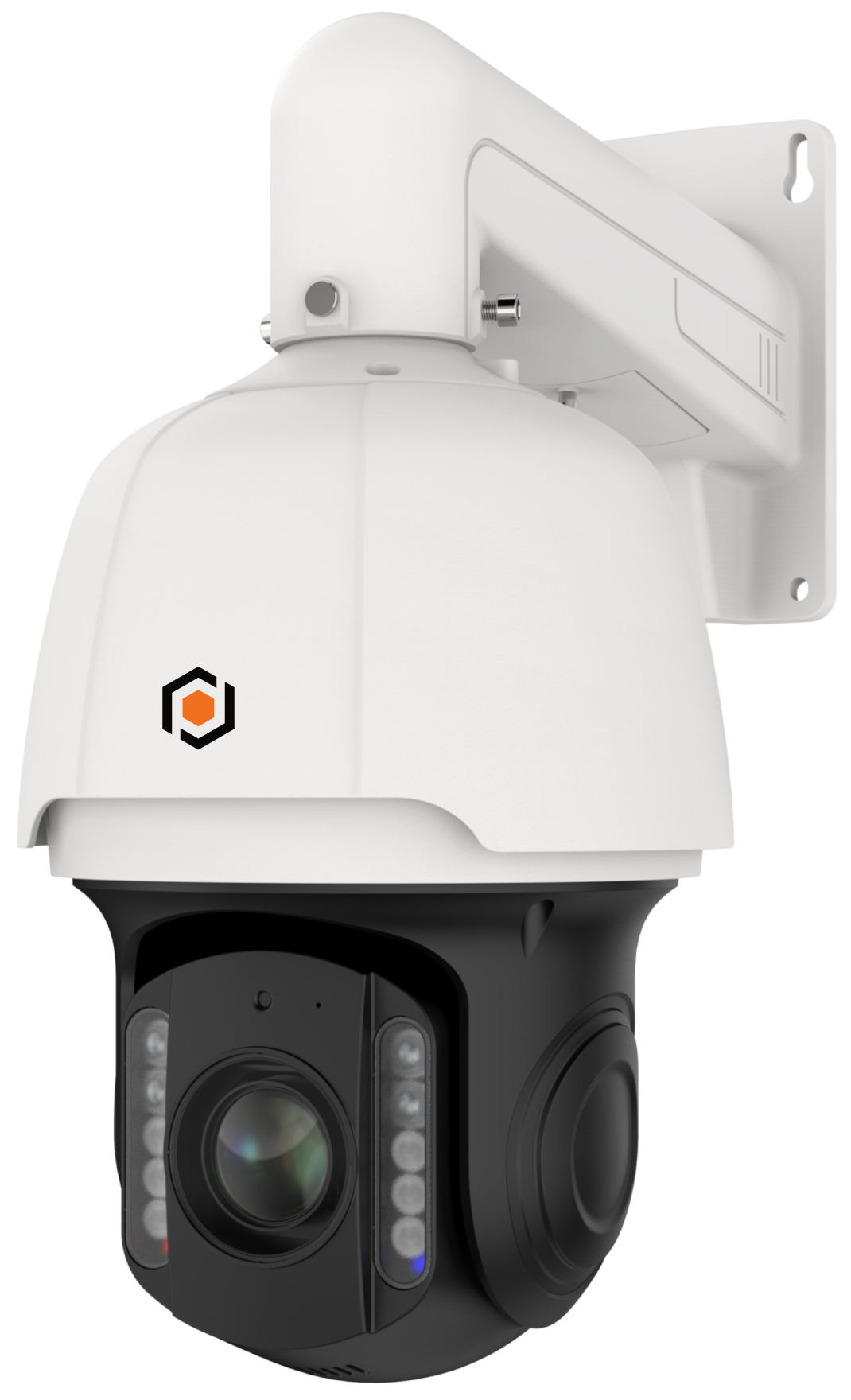

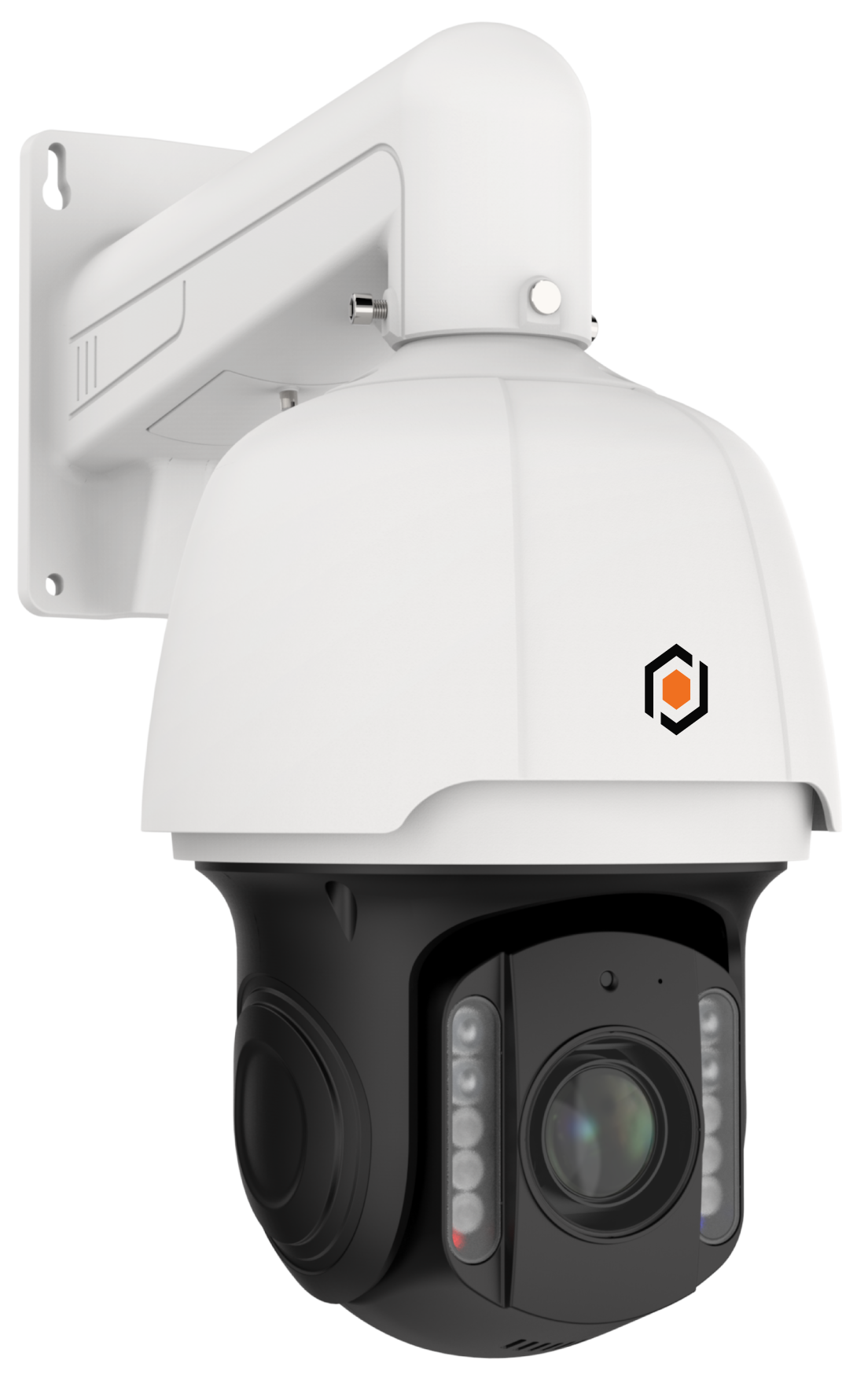

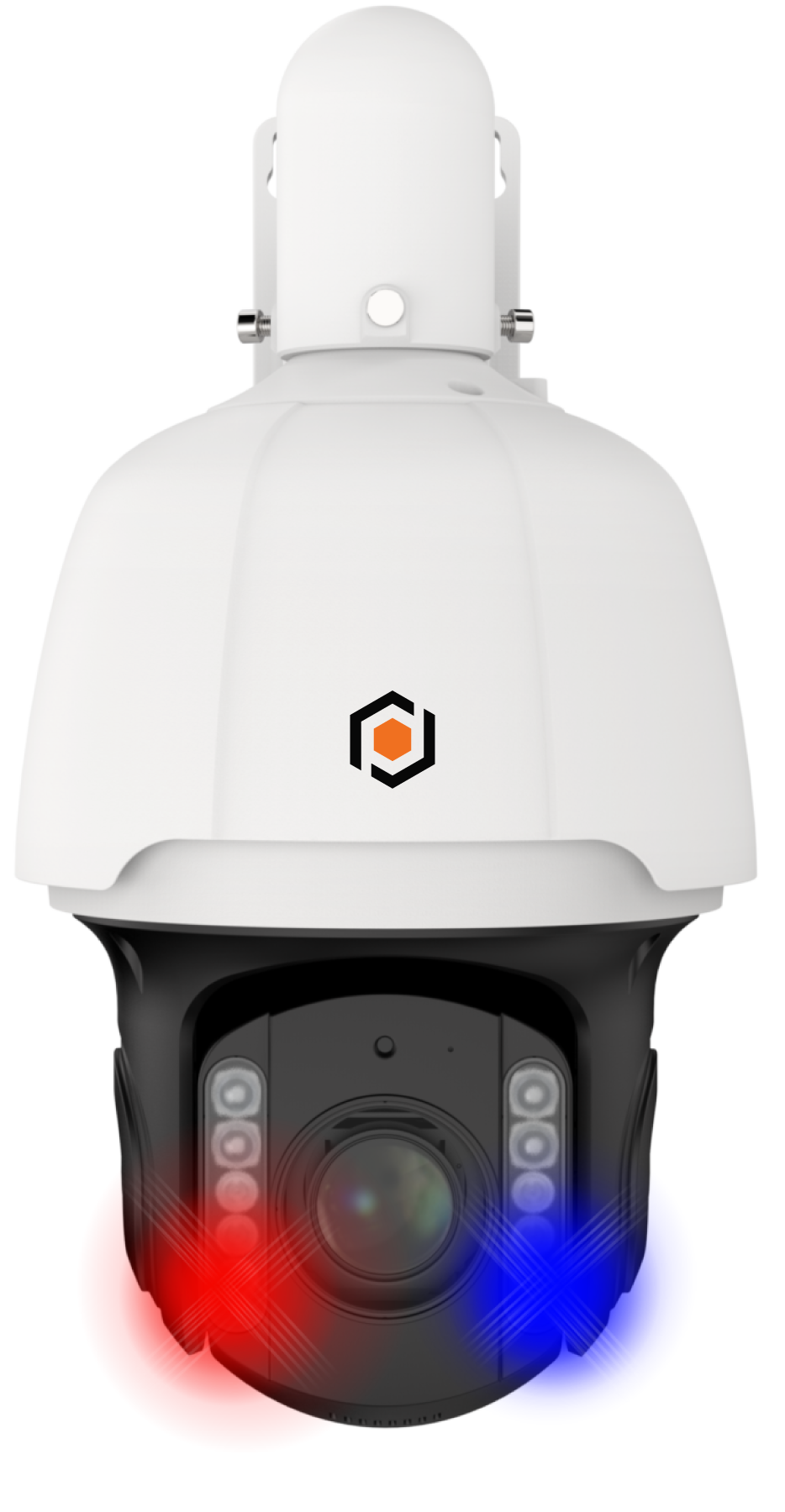

XPTZ37XIP8MP-AI-N is an 8MP IP PTZ camera with 37x optical zoom, enhanced low-light night vision and AI-powered detection.
| Image Sensor |
1/1.8” progressive scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
0.0005Lux @ (F1.6, AGC ON), B/W |
| Shutter Speed |
1/5 s to 1/20000 s |
| Slow Shutter |
Yes |
| Day & Night |
IR cut filter |
| Zoom |
37 × optical, 16 × digital |
| Focal Length |
5.5 mm to 202 mm |
| FOV |
60° to 2.31° (wide-tele) Vertical field of view |
| Aperture |
Max. F1.6 |
| Focus |
Auto, semi-auto, manual |
| Supplement Light Range |
up to 25 m, IR |
| Supplement Light Type |
Hybrid (IR and White Light) |
| Movement Range(PAN) |
360° |
| Movement Range(TILT) |
-20° to 90° (auto flip) |
| Pan Speed |
200°/s |
| Tilt Speed |
Configurable from 0.6° to 90°/s, preset speed 100°/s |
| Proportional Pan |
Yes |
| Presets |
255 |
| Patrol Scan |
4 patrols, up to 32 presets for each patrol |
| Pattern Scan |
4 pattern scans |
| Power-Off Memory |
Yes |
| Park Action |
Preset, pattern scan, auto scan, patrol scan |
| 3D Positioning |
Yes |
| PTZ Status Display |
Yes |
| Scheduled Task |
Preset, pattern scan, patrol scan, auto scan |
| Main Stream |
25 fps (3840 × 2160, 3072 x 1728, 2592 x 1944, 2592 x 1520, 2304 x 1296, 1920 x 1080, 1280 × 960, 1280 × 720); 60 Hz |
| Sub-Stream |
25 fps (1920 x 1080, 1280 × 720, 640 × 480, 320 × 240); 60 Hz |
| Third Stream |
25 fps ( 640 × 480, 320 × 240); 60 Hz |
| Video Compression |
H.265+/H.265/H.264+/H.264 Sub-stream |
| Video Bit Rate |
16 kbps to 16384 kbps |
| H.264 TYPE |
Baseline Profile/Main Profile/High Profile |
| H.265 TYPE |
Main Profile |
| Region Of Interest (ROI) |
8 fixed regions for each stream |
| Audio Compression |
G.711alaw, G.711ulaw |
| Audio Bit Rate |
64 Kbps (G.711) |
| Audio Sampling Rate |
8 kHz |
| Environment Noise Filtering |
Yes |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP |
| API |
Onvif ( Profile S, Profile G, Profile T),Http API |
| Simultaneous Live View |
Up to 20 channels |
| User/Host |
administrator, operator, and user |
| Security |
Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings |
| Client |
VMS |
| Web |
IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) |
120 dB |
| DEFOG |
Digital defog |
| Image Stabilization |
DIS |
| Image Setting |
Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Privacy Mask |
8 privacy masks |
| SNR |
> 52 dB |
| Ethernet Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
| On-Board Storage |
Built-in SD card slot, support microSD/SDHC/SDXC card, up to 256 GB |
| Alarm |
1 input, 1 output |
| Audio |
1 input (line in); 1 output (line out) |
| Reset |
Yes |
| Built-In Microphone |
1 built-in microphone |
| Built-In Speaker |
1 built-in speaker |
| Power |
36VDC / IEEE802.3bt(PoE++) |
| Operating Conditions |
-40 °C to 65 °C (-22 °F to 149 °F) Humidity 90% or less (non-condensing) |
| Demist |
Yes |
| Material |
Metal |
| Dimensions |
Ø 206.4 mm × 337.3 mm (Ø8.13” × 13.27”) |
| Weight |
1035g) |
| Protection |
IP67, IK10 |
| Basic Event |
Motion detection, video tampering alarm, alarm input and output |
| Deep Learning Function |
Face Recognition, Human & Vehicle Detection, Perimeter Intrusion Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection |
| Smart Tracking |
auto-tracking |
| Alarm Linkage |
Upload to FTP, send email, trigger alarm output, trigger recording |
